I just got the first Prototype unit completed. It turned out perfect and exactly as designed. All the designing time spent was well worth the wait. There were no shortcuts taken or cost cuts made in designing this Headstock. My number one priority was and always will be offering you the best quality and best price possible. All my headstocks will have 3 of the best quality sealed bearings on the market. I cant go into details on the design. But I will provide Technical specs and bearing and spindle runout as soon as I get them measured.
This one piece headstock is and will be the best Cue Lathe Headstock on the market in price, design, accuracy, and over all functionality.
This headstock will feature mainly 1/2HP DC motor with speed control and Reverse switch. It will also have an optional 2 speed setting high (300-2200RPM) and low (150-1100RPM). Or you can specify your desired speed setting and I can set it for that if possible.
Lots of optional headstock upgrades available
2 speed settings
24 step indexing spindle/pulley attachment (every 15Degrees)
Rear Chuck upgrade
Base Price for this Headstock with 1/2HP Motor $650 without motor $525
Base Price for the Tall Headstock with 1/2HP Motor $675 without motor $550
A video of the headstock running with a dial indicator measuring the runout will be uploaded on my website as soon as it becomes available
first production run will be complete in about a week.
Production units will be anodized black and m company name Engraved on the front side. Those headstocks are compatible with all Taig based cue lathe, and any lathe that mounts to a 2.26" dovetail bed you can order and reserve yours now, by emailing me @ customcuelathe@yahoo.com or call my cell @ 248-884-4469

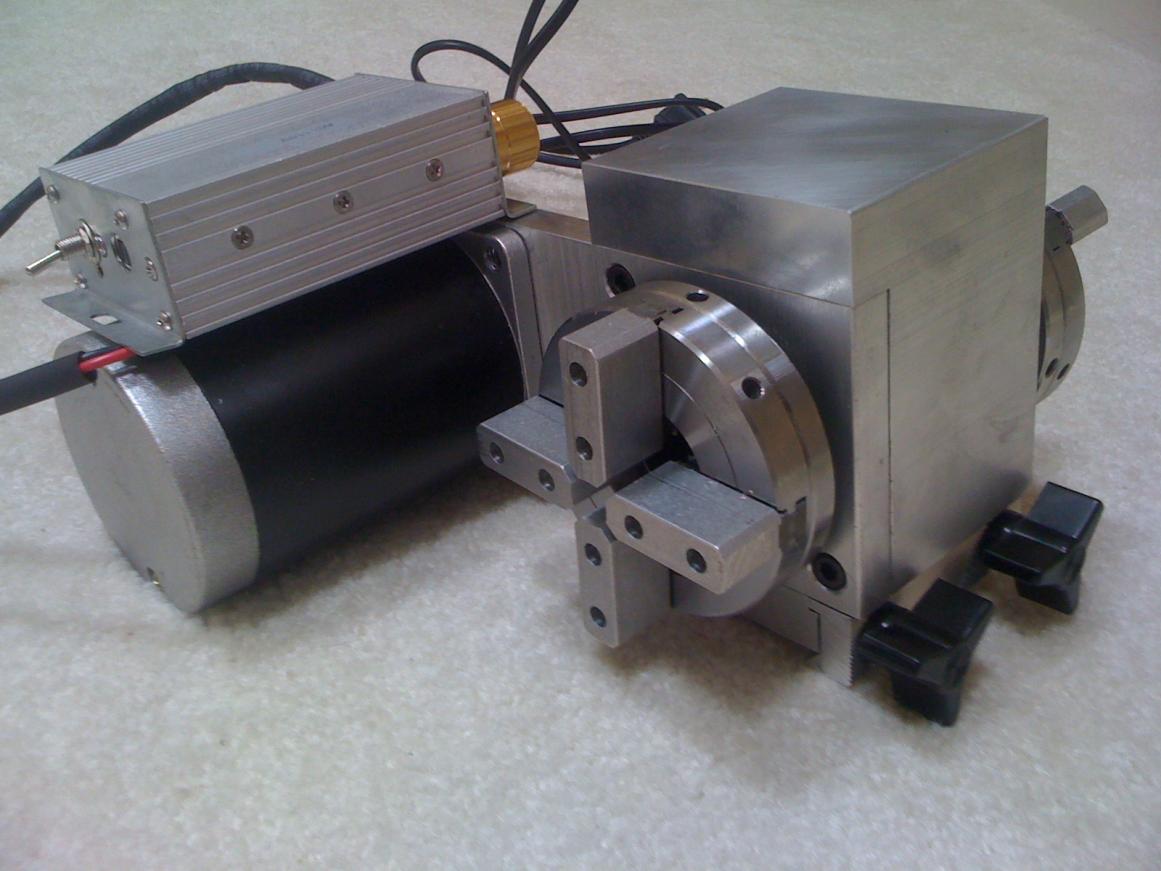

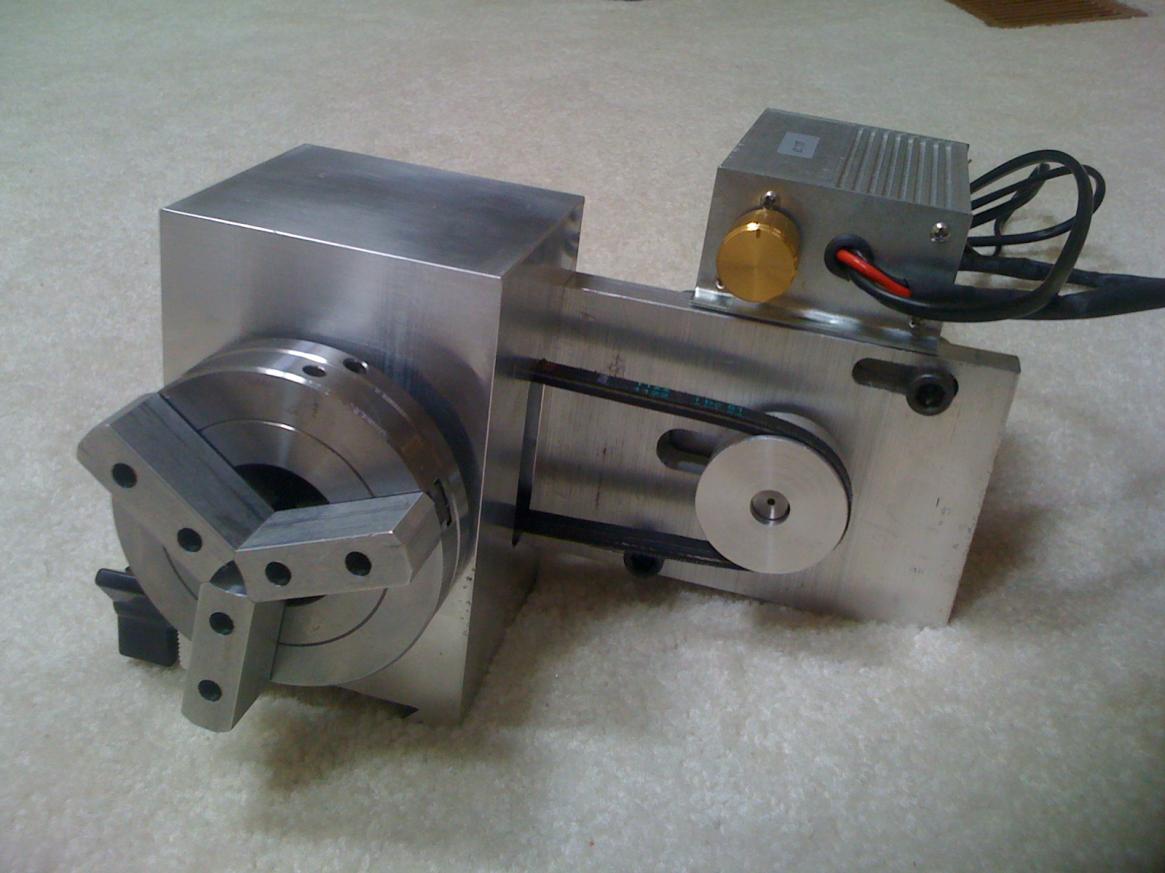

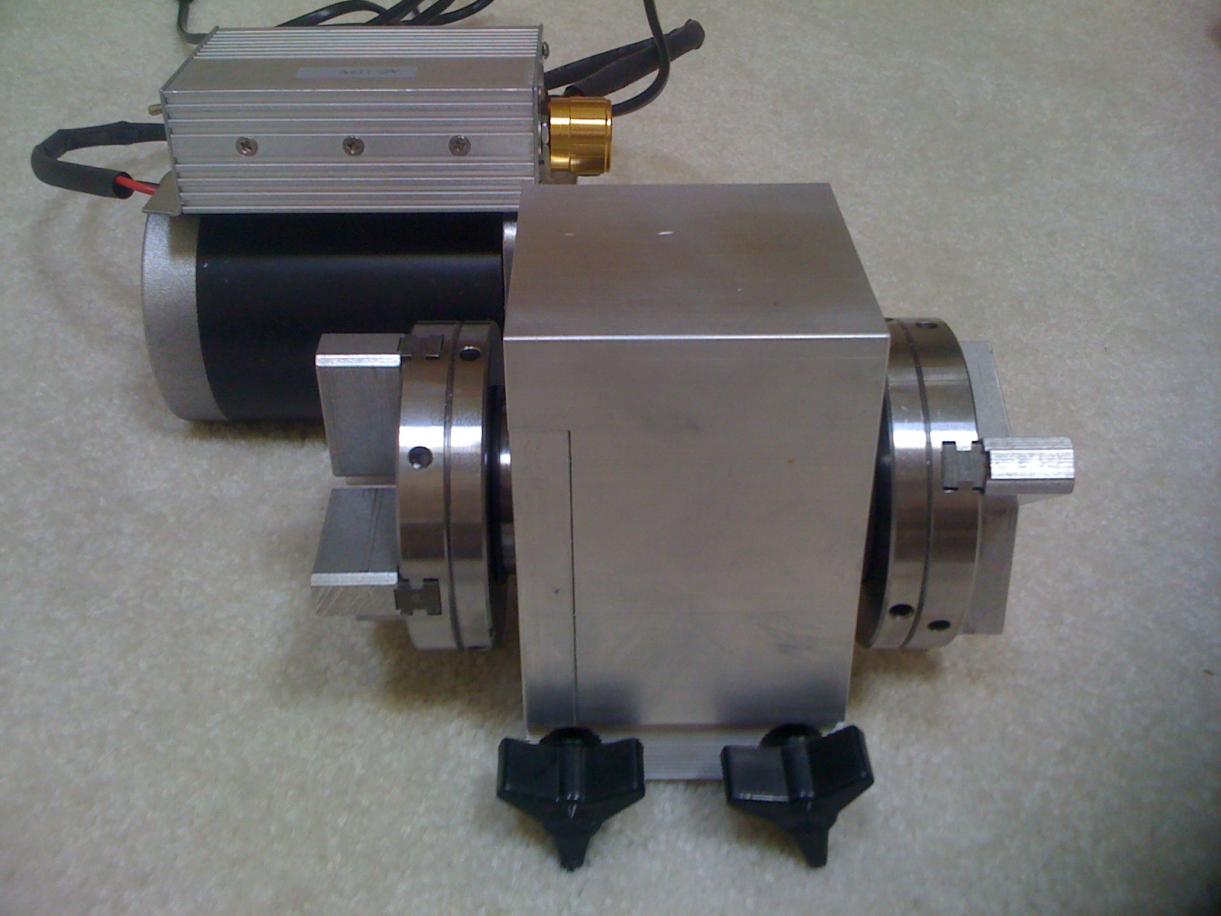

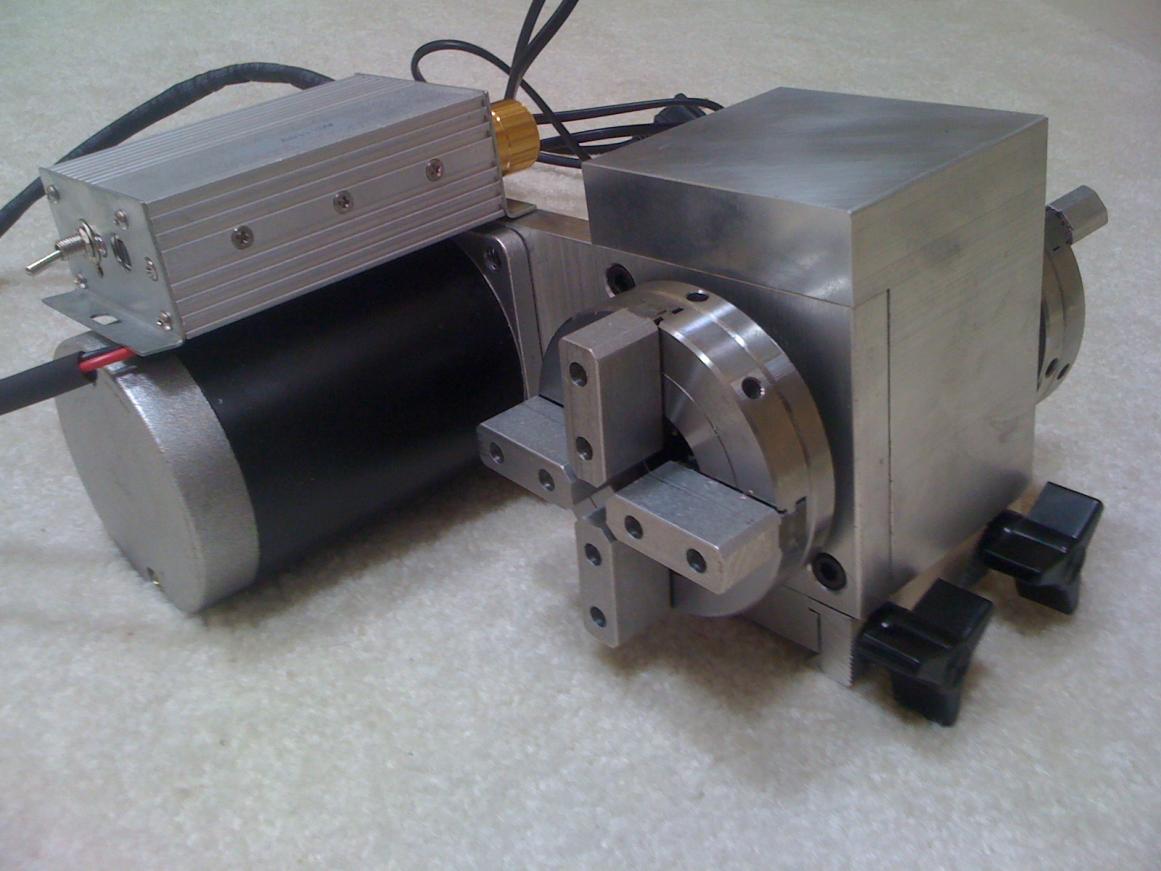

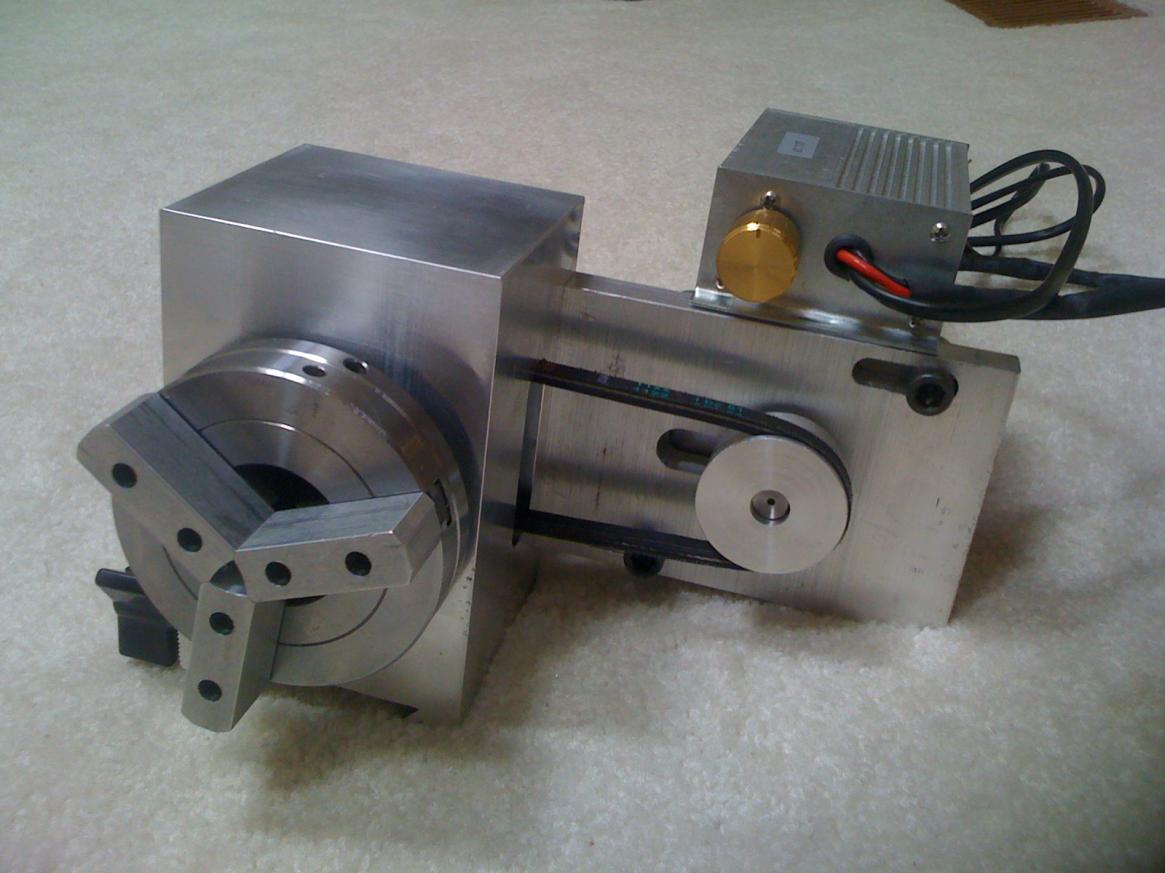

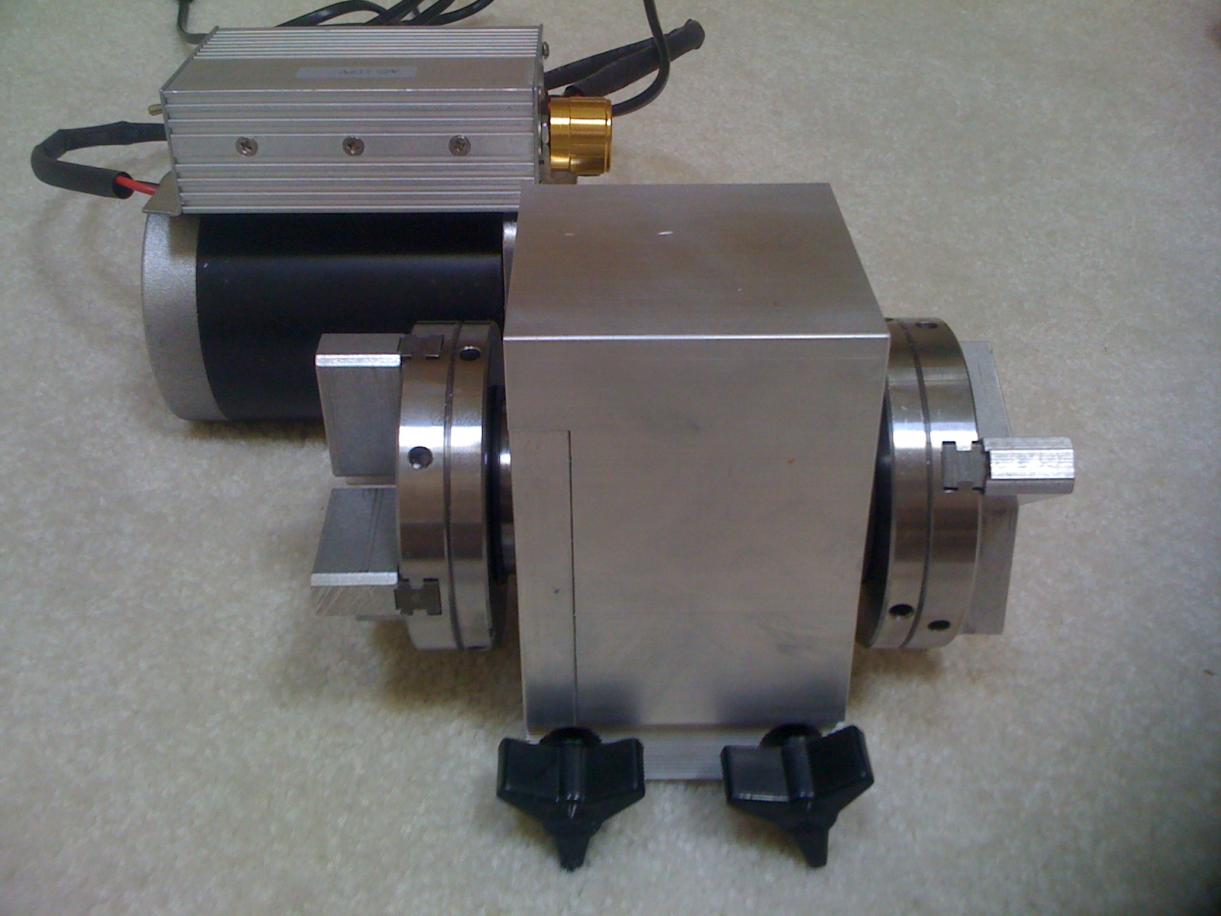

Pictures show a 1/8HP High torque DC Motor with reverse and speed control. which will be available in 110VAC or 220VAC for all international customers
Shipping is $20 with insurance included anywhere in the lower 48 states.
Will ship Worldwide
Note: Those headstocks are designed and built right here in commerce Michigan. I used my Engineering connection to find this state of the art low production and prototype Manufacturing company with over $2 million dollars in high end CNC Boring and milling machines, lathes and much more complex and high precision machining.
