Jeff's pooldawg tip trimmed

Jeff's pooldawg tip trimmed

  • Media owner conetip
  • Date added Feb 20, 2014
  • Reaction score 0
  • Comments 0

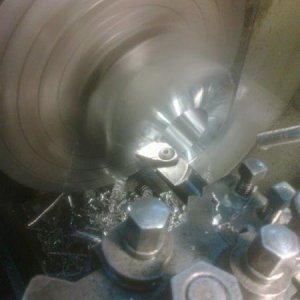

Turcite-vee-block , Milk Dud Tip by Jeff after trimming.

Turcite-vee-block , Milk Dud Tip by Jeff after trimming.

  • Media owner conetip
  • Date added Feb 19, 2014
  • Reaction score 0
  • Comments 0
Turcite Vee support for tip trimmer

Turcite Vee support for tip trimmer

  • Media owner conetip
  • Date added Feb 19, 2014
  • Reaction score 0
  • Comments 0
Finished tip trimmed, and polished the outside with some 600 grit paper. This is a snooker tip and is Ø9.55 mm

Finished tip trimmed, and polished the outside with some 600 grit paper. This is a snooker tip and is Ø9.55 mm

  • Media owner conetip
  • Date added Jan 17, 2014
  • Reaction score 0
  • Comments 0

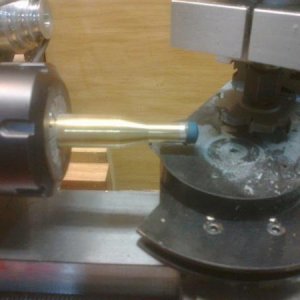

Trimmed front radius and moved around to the radial diameter stop, ready for the continuation of the pass.

Trimmed front radius and moved around to the radial diameter stop, ready for the continuation of the pass.

  • Media owner conetip
  • Date added Jan 17, 2014
  • Reaction score 0
  • Comments 0
Set up tip on mandre, Tip radius and diameter stop have already been set on a set up piece.

Set up tip on mandre, Tip radius and diameter stop have already been set on a set up piece.

  • Media owner conetip
  • Date added Jan 17, 2014
  • Reaction score 0
  • Comments 0

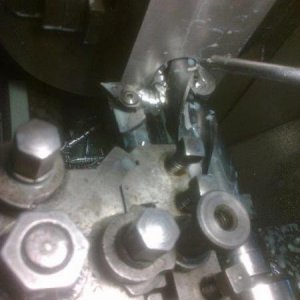

Assembled unit with router and 8 wing cutter, set to penny radius.

Assembled unit with router and 8 wing cutter, set to penny radius.

  • Media owner conetip
  • Date added Jan 17, 2014
  • Reaction score 0
  • Comments 0

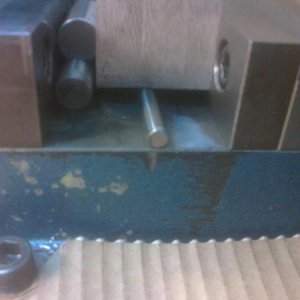

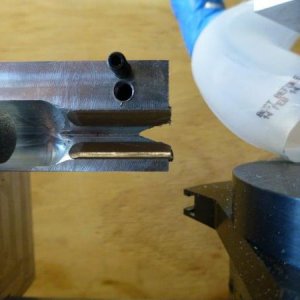

Cutting the 3mm wide slide through for the Router Clamp. Slitting saws if available makes for a quick and easy way of slitting these sort of things.

Cutting the 3mm wide slide through for the Router Clamp. Slitting saws if available makes for a quick and easy way of slitting these sort of things.

  • Media owner conetip
  • Date added Jan 17, 2014
  • Reaction score 0
  • Comments 0

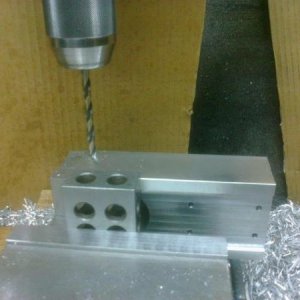

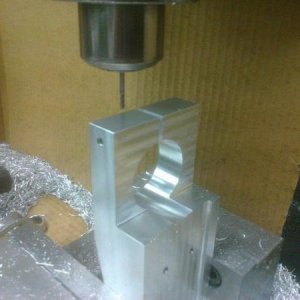

Using a block for support on the back jaw face. Drilling the M6 hole for clamping the router.I drill down with a 6.1mm drill just pass the slot mark.T

Using a block for support on the back jaw face. Drilling the M6 hole for clamping the router.I drill down with a 6.1mm drill just pass the slot mark.T

  • Media owner conetip
  • Date added Jan 17, 2014
  • Reaction score 0
  • Comments 0
Flipped block over , leaving the same face against the vice jaw, so only need to find the hole center, in X (long axis). Y has not changed, C' bore to

Flipped block over , leaving the same face against the vice jaw, so only need to find the hole center, in X (long axis). Y has not changed, C' bore to

  • Media owner conetip
  • Date added Jan 17, 2014
  • Reaction score 0
  • Comments 0

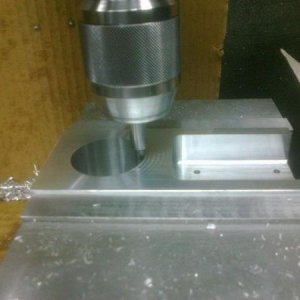

Spot drill and drilling the capscrew holes. Drilled from under side, as that is the important side to match Taig Slide T slot.

Spot drill and drilling the capscrew holes. Drilled from under side, as that is the important side to match Taig Slide T slot.

  • Media owner conetip
  • Date added Jan 17, 2014
  • Reaction score 0
  • Comments 0

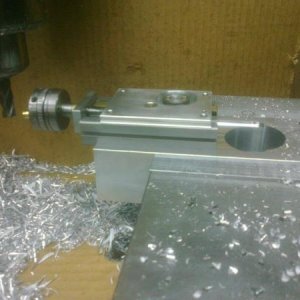

Checking the fit of the Taig slide into the bottom side of router mount.

Checking the fit of the Taig slide into the bottom side of router mount.

  • Media owner conetip
  • Date added Jan 17, 2014
  • Reaction score 0
  • Comments 0

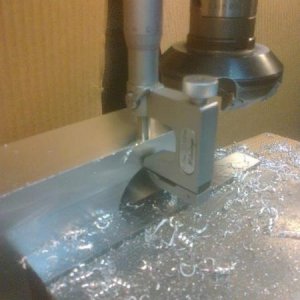

Centralizing the router mount hole to the width of the mount block, using a Universal mic to check the wall section.

Centralizing the router mount hole to the width of the mount block, using a Universal mic to check the wall section.

  • Media owner conetip
  • Date added Jan 17, 2014
  • Reaction score 0
  • Comments 0

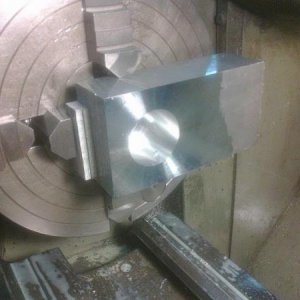

Making-Router-Mount,1st set up for squaring block from turned reference face.

Making-Router-Mount,1st set up for squaring block from turned reference face.

  • Media owner conetip
  • Date added Jan 17, 2014
  • Reaction score 0
  • Comments 0
Making router mount 5

Making router mount 5

  • Media owner conetip
  • Date added Jan 15, 2014
  • Reaction score 0
  • Comments 0
Making router mount 4

Making router mount 4

  • Media owner conetip
  • Date added Jan 15, 2014
  • Reaction score 0
  • Comments 0
Making router mount 2

Making router mount 2

  • Media owner conetip
  • Date added Jan 15, 2014
  • Reaction score 0
  • Comments 0

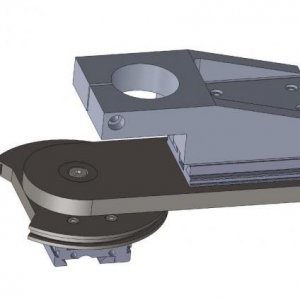

Radius assembly mount001

Radius assembly mount001

  • Media owner conetip
  • Date added Jan 14, 2014
  • Reaction score 0
  • Comments 0

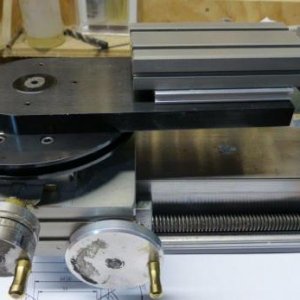

Pic-12 Assembled Radius thingy On Lathe

Pic-12 Assembled Radius thingy On Lathe

  • Media owner conetip
  • Date added Jan 14, 2014
  • Reaction score 0
  • Comments 0

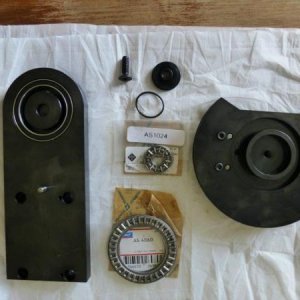

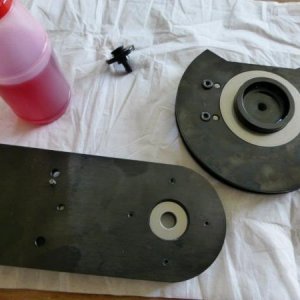

Pic-11 Thrust bearings assembled with ATF oil.

Pic-11 Thrust bearings assembled with ATF oil.

  • Media owner conetip
  • Date added Jan 14, 2014
  • Reaction score 0
  • Comments 0
Pic-10 40X52x7 bearing installed in Top plate. C' sink screw with nylon locking cross drilled and inserted.

Pic-10 40X52x7 bearing installed in Top plate. C' sink screw with nylon locking cross drilled and inserted.

  • Media owner conetip
  • Date added Jan 14, 2014
  • Reaction score 0
  • Comments 0

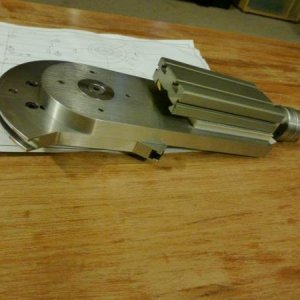

Pic-9 Assembled min Rad

Pic-9 Assembled min Rad

  • Media owner conetip
  • Date added Jan 13, 2014
  • Reaction score 0
  • Comments 0

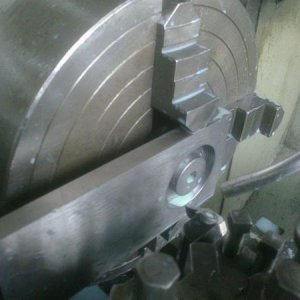

8-Top plate turn1

8-Top plate turn1

  • Media owner conetip
  • Date added Jan 12, 2014
  • Reaction score 0
  • Comments 0

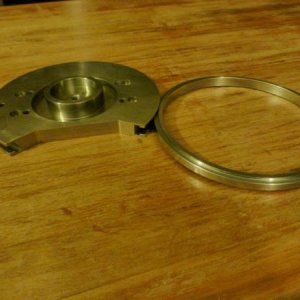

7 Base T ring

7 Base T ring

  • Media owner conetip
  • Date added Jan 10, 2014
  • Reaction score 0
  • Comments 0
conetip

Radius-Trimmer

  • Items 30
  • Album owner conetip
  • Date created
Neil's Radius Trimmer,taig or with adaptor plate Myford.
