Checking the fit of the Taig slide into the bottom side of router mount.
Using a block for support on the back jaw face. Drilling the M6 hole for clamping the router.I drill down with a 6.1mm drill just pass the slot mark.T
Flipped block over , leaving the same face against the vice jaw, so only need to find the hole center, in X (long axis). Y has not changed, C' bore to
Spot drill and drilling the capscrew holes. Drilled from under side, as that is the important side to match Taig Slide T slot.
Checking the fit of the Taig slide into the bottom side of router mount.
Centralizing the router mount hole to the width of the mount block, using a Universal mic to check the wall section.
Making-Router-Mount,1st set up for squaring block from turned reference face.
Making router mount 5
conetip

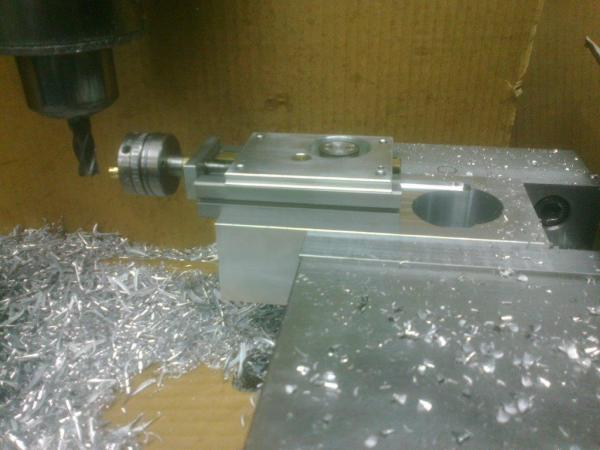

Checking the fit of the Taig slide into the bottom side of router mount.
