Cutting the 3mm wide slide through for the Router Clamp. Slitting saws if available makes for a quick and easy way of slitting these sort of things.
Trimmed front radius and moved around to the radial diameter stop, ready for the continuation of the pass.
Set up tip on mandre, Tip radius and diameter stop have already been set on a set up piece.
Assembled unit with router and 8 wing cutter, set to penny radius.
Cutting the 3mm wide slide through for the Router Clamp. Slitting saws if available makes for a quick and easy way of slitting these sort of things.

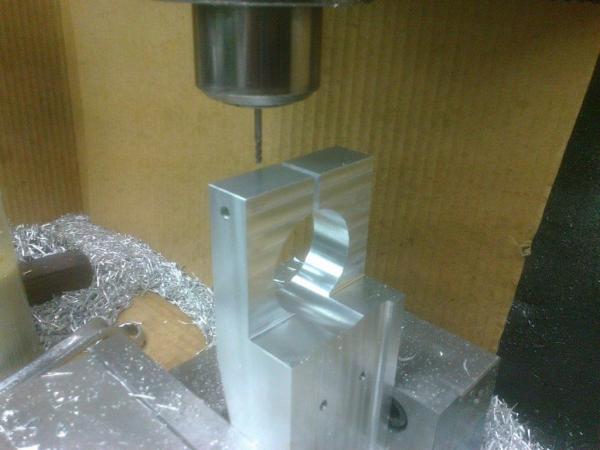

Using a block for support on the back jaw face. Drilling the M6 hole for clamping the router.I drill down with a 6.1mm drill just pass the slot mark.T
Flipped block over , leaving the same face against the vice jaw, so only need to find the hole center, in X (long axis). Y has not changed, C' bore to
Spot drill and drilling the capscrew holes. Drilled from under side, as that is the important side to match Taig Slide T slot.
conetip

Cutting the 3mm wide slide through for the Router Clamp. Slitting saws if available makes for a quick and easy way of slitting these sort of things.
