Spot drill and drilling the capscrew holes. Drilled from under side, as that is the important side to match Taig Slide T slot.
Cutting the 3mm wide slide through for the Router Clamp. Slitting saws if available makes for a quick and easy way of slitting these sort of things.
Using a block for support on the back jaw face. Drilling the M6 hole for clamping the router.I drill down with a 6.1mm drill just pass the slot mark.T
Flipped block over , leaving the same face against the vice jaw, so only need to find the hole center, in X (long axis). Y has not changed, C' bore to
Spot drill and drilling the capscrew holes. Drilled from under side, as that is the important side to match Taig Slide T slot.
Checking the fit of the Taig slide into the bottom side of router mount.
Centralizing the router mount hole to the width of the mount block, using a Universal mic to check the wall section.
Making-Router-Mount,1st set up for squaring block from turned reference face.
conetip

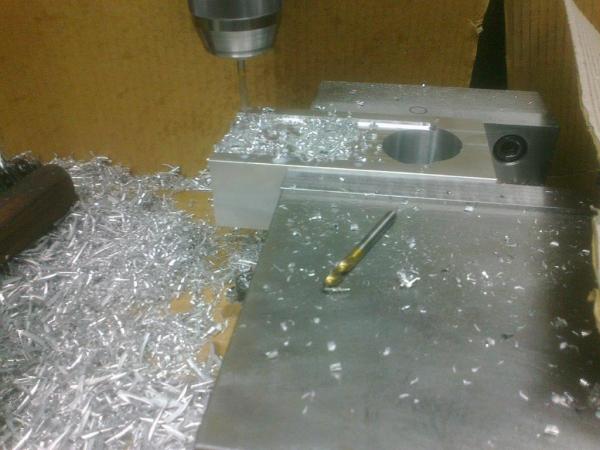

Spot drill and drilling the capscrew holes. Drilled from under side, as that is the important side to match Taig Slide T slot.
