Using a block for support on the back jaw face. Drilling the M6 hole for clamping the router.I drill down with a 6.1mm drill just pass the slot mark.T
Set up tip on mandre, Tip radius and diameter stop have already been set on a set up piece.
Assembled unit with router and 8 wing cutter, set to penny radius.
Cutting the 3mm wide slide through for the Router Clamp. Slitting saws if available makes for a quick and easy way of slitting these sort of things.
Using a block for support on the back jaw face. Drilling the M6 hole for clamping the router.I drill down with a 6.1mm drill just pass the slot mark.T
Flipped block over , leaving the same face against the vice jaw, so only need to find the hole center, in X (long axis). Y has not changed, C' bore to
Spot drill and drilling the capscrew holes. Drilled from under side, as that is the important side to match Taig Slide T slot.
Checking the fit of the Taig slide into the bottom side of router mount.
conetip

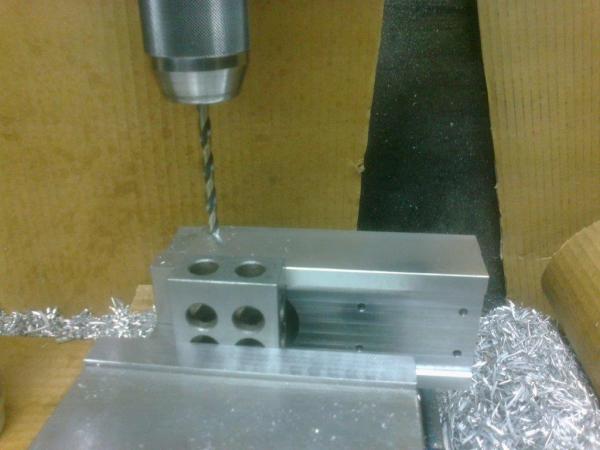

Using a block for support on the back jaw face. Drilling the M6 hole for clamping the router.I drill down with a 6.1mm drill just pass the slot mark.T
