Cue Stick Glossary

[murdoc23]

Has anyone put together a glossary or infographic of cue stick terms? Ideally I'd be interested in seeing a picture of a stick, with the terms above the parts and arrows pointing them out. Things like a "Hoppe Ring", Merry Widow (Window?), Flat faced joint, piloted joint, the different pin types, Wood examples, Full Splice vs Part Splice, ect.

Thanks



[ADAM HENSON]

I'd be interested as well..



[Bavafongoul]

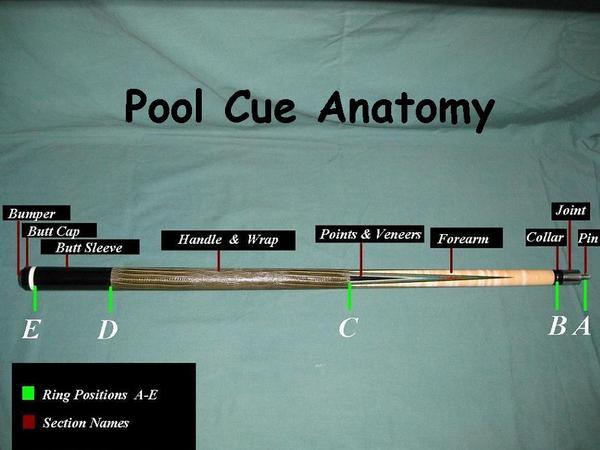

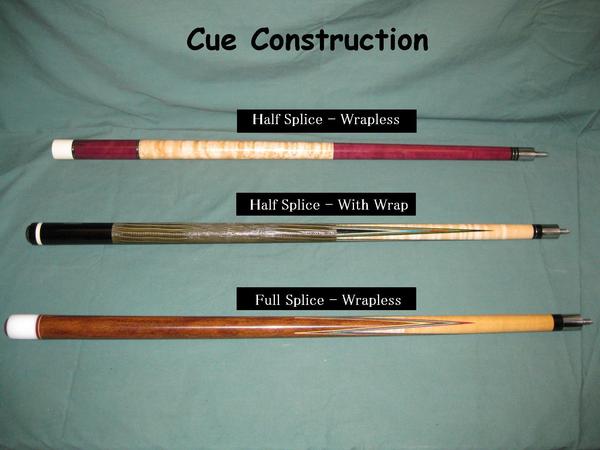

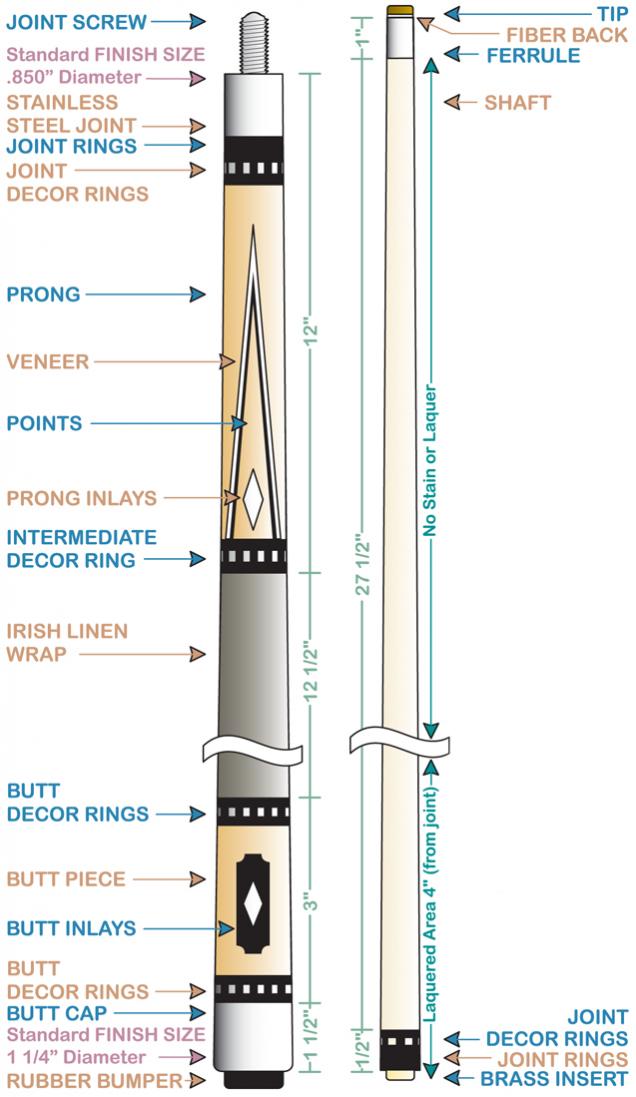

How About This?

Perhaps this will be of some assistance.........


Matt B.



[murdoc23]

Perhaps this will be of some assistance.........


Matt B.

Exactly what I was thinking of. Just missing some of the terms I was thinking of, like a Hoppe ring. Many thanks
