I've decided to sell the CNC I bought from Sherm a couple of years ago, as I am running low on shop space. PFD Studios, Josey Cues, Dzuricky and McDaniel have used Technos.
Mach3 has been configured so the cnc is up and running. I also added a pendant, optical home switches and a tool touch-off plate.
The machine would fit on a 66” SQ X 34” H pallet and be approximately 500 pounds with the pallet.
Asking $4200. Buyer pays shipping. I paid $4750 plus shipping when it wasn't running.
Specs:

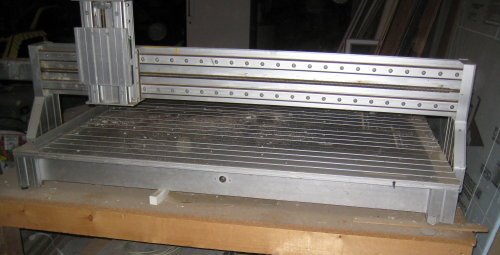

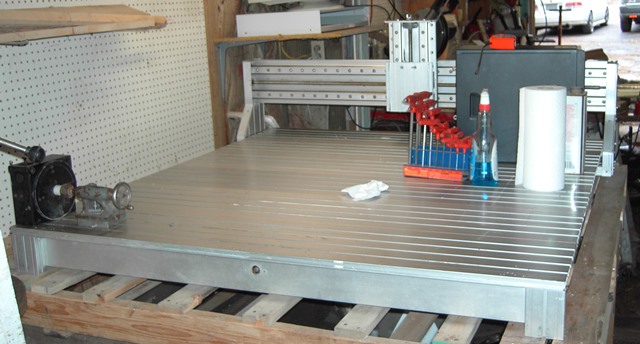

German (Techno) Isel CNC router with ball screws.
53" W x 59" L table.
Travel approximately 46" x 52". Z height 4.5" with about 4.00" of travel.
Ballscrews approximately .600 diameter.
Includes computer with Mach3, Gecko 4 axis control box with 4 pre-wired 270oz nema 23 motors.
Set up for use with XBox 360 pendant control, homing switches, spindle on/off relay and an auto tool zero. Router not included.
Add a 4th axis and you're ready to go. One could be fashioned with a Taig dovetail bed, headstock & tailstock. Just add a mount for the motor to the Taig headstock and you're set.
