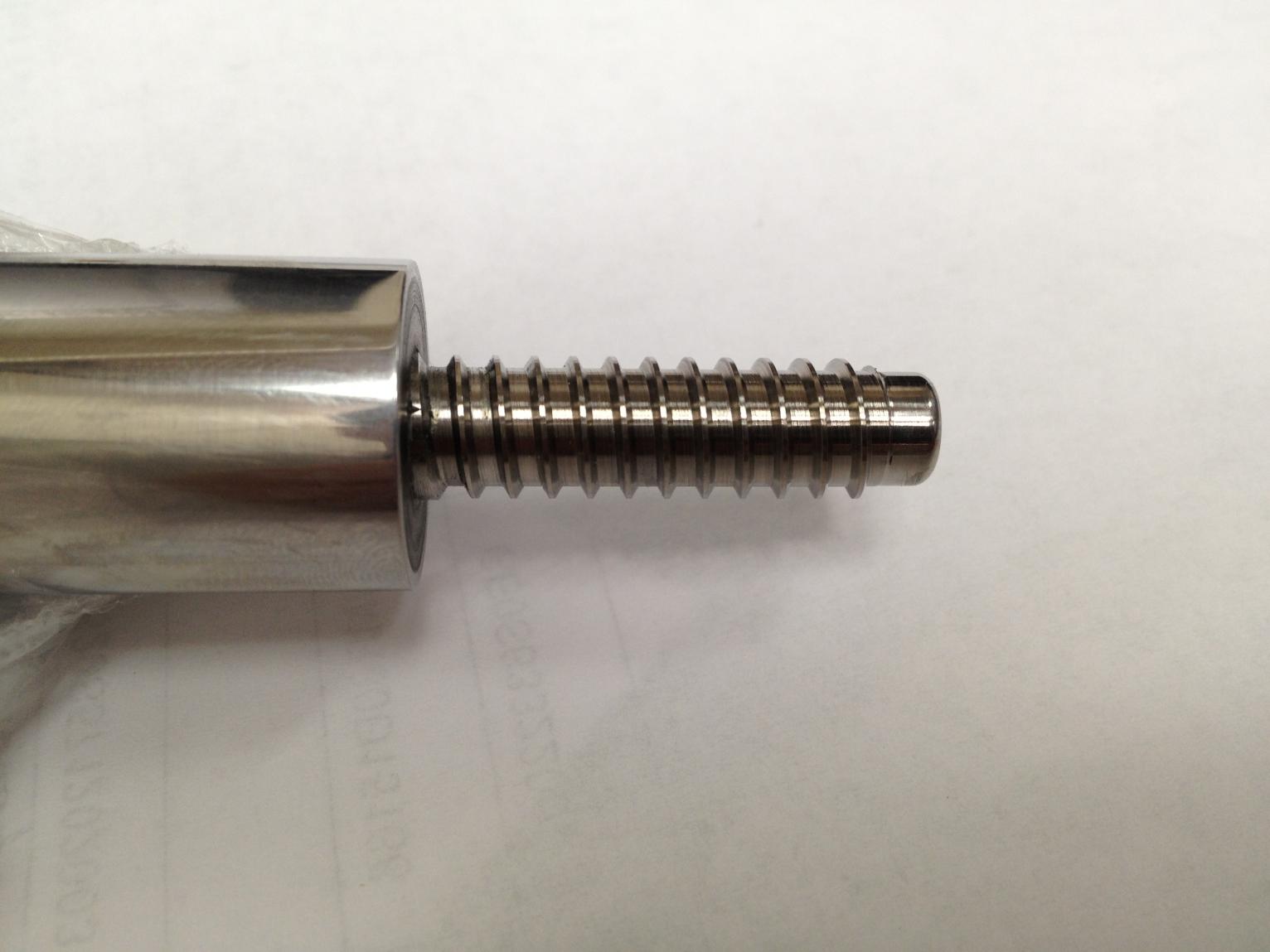

M mono-eat-mono Registered Jul 8, 2013 #1 Hi guys, can you please help to identify the pin size in the picture? btw, it's from an AC cue. Thanks! Attachments IMG_0743.jpg 93 KB · Views: 281
Hi guys, can you please help to identify the pin size in the picture? btw, it's from an AC cue. Thanks!
GBCues Damn, still .002 TIR! Gold Member Silver Member Jul 8, 2013 #2 Take the same picture again with a ruler under the pin so we can count how many threads per inch. Thanks Gary
Take the same picture again with a ruler under the pin so we can count how many threads per inch. Thanks Gary

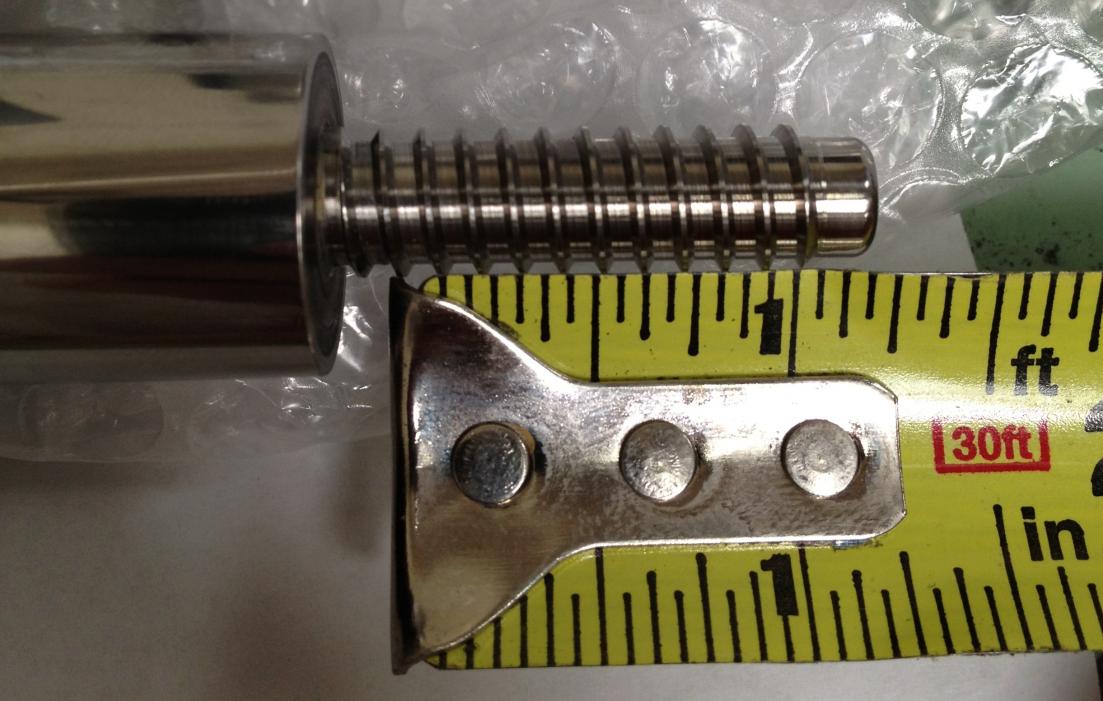

M mono-eat-mono Registered Jul 8, 2013 #3 It counts 11 threads in an inch. Does Ariel Carmeli use 3/8x11 pin? I though most of his cues use 3/8x10 pin. Attachments IMG_0744a.jpg 95.7 KB · Views: 276
It counts 11 threads in an inch. Does Ariel Carmeli use 3/8x11 pin? I though most of his cues use 3/8x10 pin.
GBCues Damn, still .002 TIR! Gold Member Silver Member Jul 8, 2013 #6 Guys, the zero location doesn't count. It's a 3/8-10 modified flat bottom - install them all the time. Any "regular" 3/8-10 you want to bore out to fit this pin should still snug up just fine on a "regular" 3/8-10 butt pin. My 2 cents, Gary
Guys, the zero location doesn't count. It's a 3/8-10 modified flat bottom - install them all the time. Any "regular" 3/8-10 you want to bore out to fit this pin should still snug up just fine on a "regular" 3/8-10 butt pin. My 2 cents, Gary
