Joint repair

[Biloxi69]

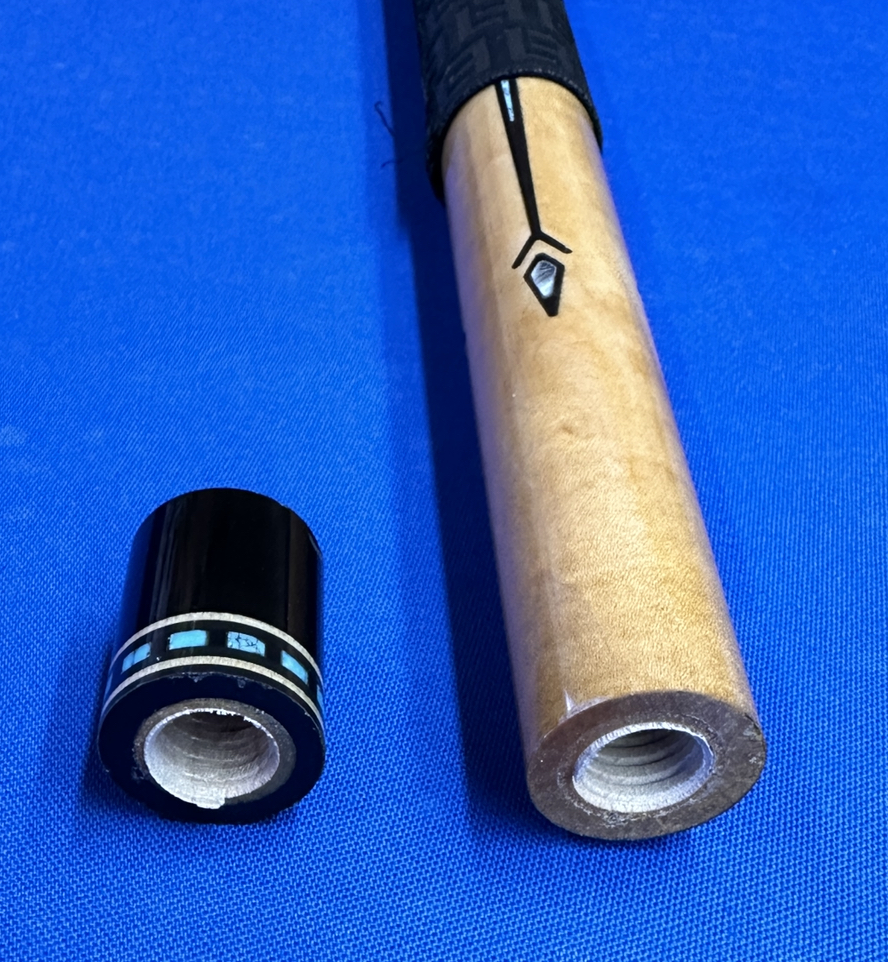

Greetings. Need help on how go about this repair. Ceuleman wood pin screws into this joint. Not sure why they would make collar joint so thin.

Thanks in advance!
Biloxi69



[Sheldon]

Bore out the forearm and install a maple dowel. Turn down the dowel and then bore the joint out to fit. Glue the joint back on. bore the forearm for threads, cut threads. Refinish as needed.
Obviously there's more to it than this, getting thing cut and bored straight and concentric is the key.



[Biloxi69]

Bore out the forearm and install a maple dowel. Turn down the dowel and then bore the joint out to fit. Glue the joint back on. bore the forearm for threads, cut threads. Refinish as needed.
Obviously there's more to it than this, getting thing cut and bored straight and concentric is the key.

Thanks Sheldon.



[Sheldon]

If it were my cue, I would be tempted to remove the wood pin from the shaft and install a G10 pin into the butt once I got it put back together.
