uniloc weight change tool

[rhncue]

Anyone know the dimensions on this tool so that one can be fabricated?

http://www.ozonebilliards.com/prp3wecakit.html

I'm not paying that price to tighten one weight bolt. Thanks for any info if available.

Dick



[Celophanewrap]

Try a fork. That's what I was told to use, it worked out fine



[KJ Cues]

If you can get the bolt out, there are your dimensions.
I've got the tool out in the shop and I'm in my PJs.
I'll PM info in the morning. Lol



[DEXTER]

Weight bolt

Needle nose pliers work well, as does a pair of snap ring pliers with straight tips.



[rhncue]

There are some very good recommendations on removing this weight bolt without the special tool. Once removed I'll be able to construct a better tool for future use. Thanks for the ideas.

I haven't got the cue in front of me as the owner called about the weight bolt. He said he would go ahead and purchase the tool for me to use. I just called him back and left a message for him not to purchase the tool unless he also wanted to change the weight, not just tighten the present one.

Dick



[KJ Cues]

Hi Dick,

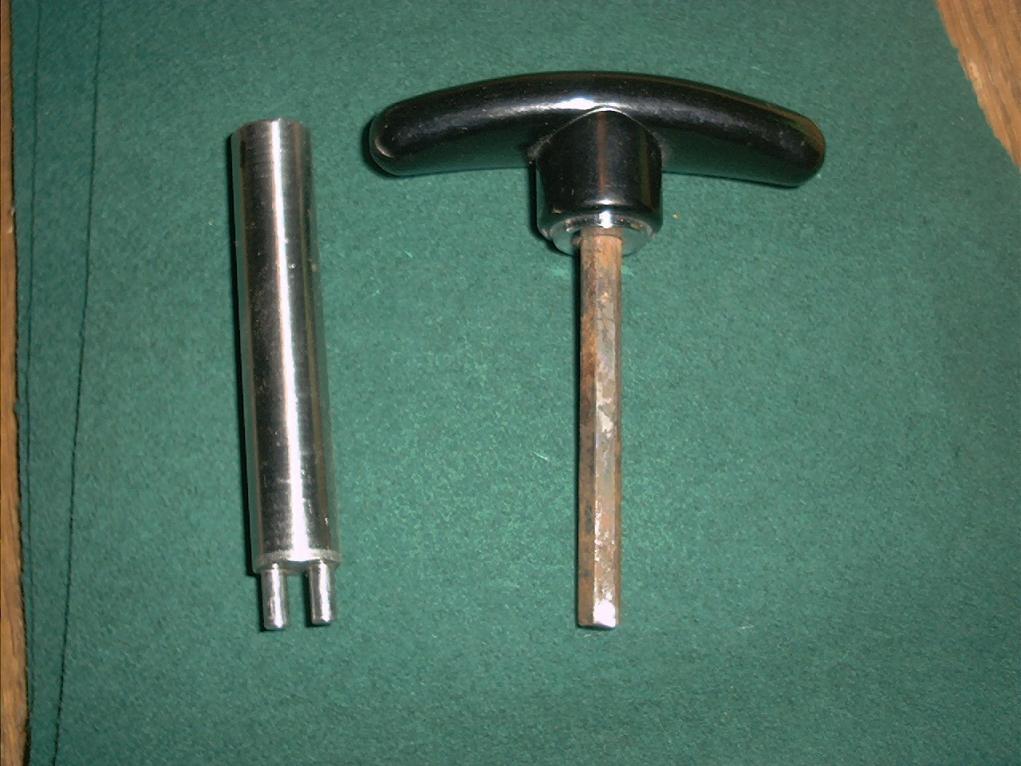

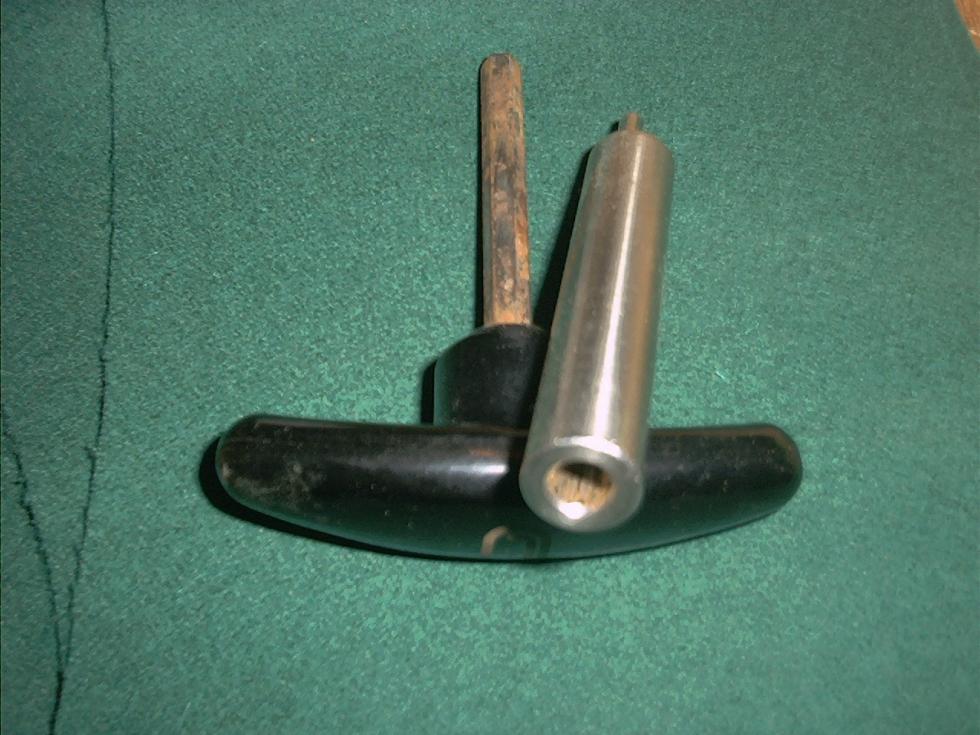

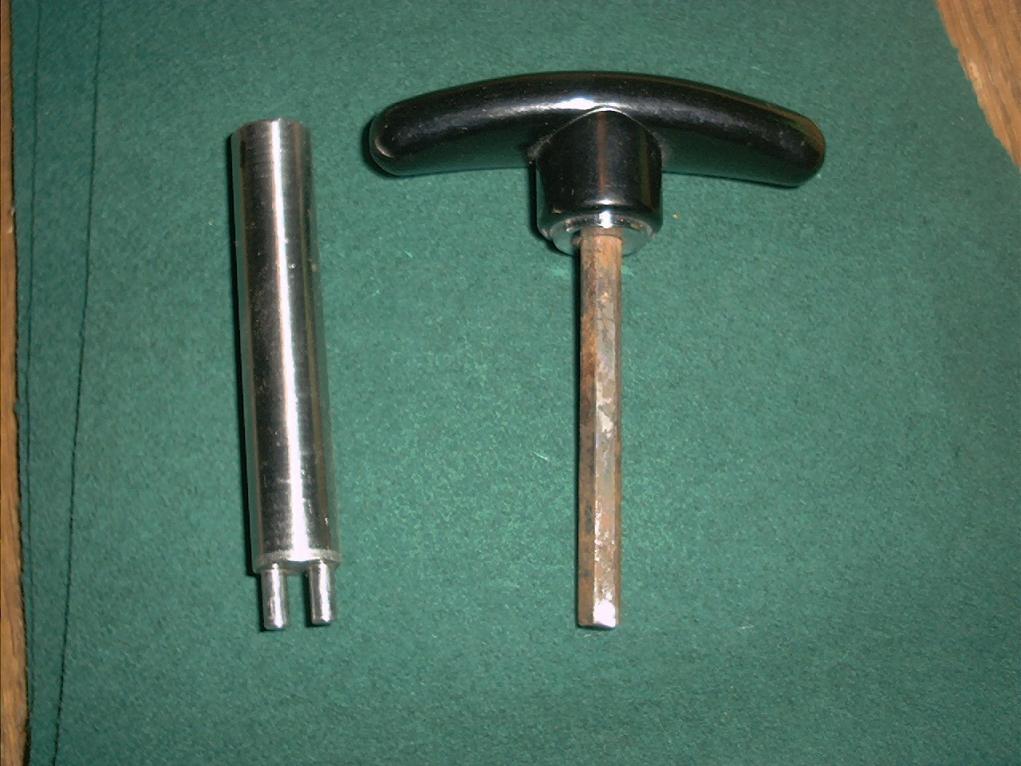

The body of the Pred. tool is .553/554" in dia. x 3" in length minus the pins.
It has a broached 1/4" hex socket in one end to drive, pins in the other end.
The two pins are .153/154" in dia. on .295" centers. They are .340" in length.
Total stainless construction.

I think you could make the tool any length you want and drive it however suits you.
