10 Foot Table Set Up

[Gate City]

Does anyone know the radius of the "D" and the position of the spots for a 10 foot snooker table? Also the position of the Baulk line.



[drsnooker]

The "D" is exactly one third the width of the playable area. Thus the radius should be 1/6th that of the playable width of the table. The baulk line is 1/5th of the length of the table. The blue is in the middle, the pink is in the middle of the centre and corner pockets and the black is 1/11th from the top cushion.
I think I can find a diagram some where.

<EDIT>
http://www.snookergames.co.uk/qanda21.html



[tksix]

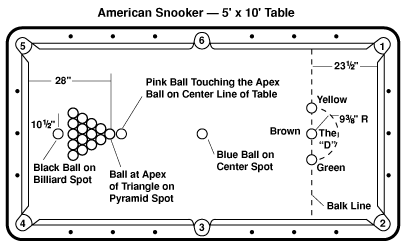

Here is another diagram from Brunswick.

Hope that helps!!

Mike


http://www.brunswickbilliards.com/helpful_information/the_sport/american_snooker_rules.html



[Gate City]

Here is another diagram from Brunswick.

Hope that helps!!

Mike


http://www.brunswickbilliards.com/helpful_information/the_sport/american_snooker_rules.html

This is great, thank you.
