1963 Anniversary Rebuild
- Thread starter PlynSets
- Start date

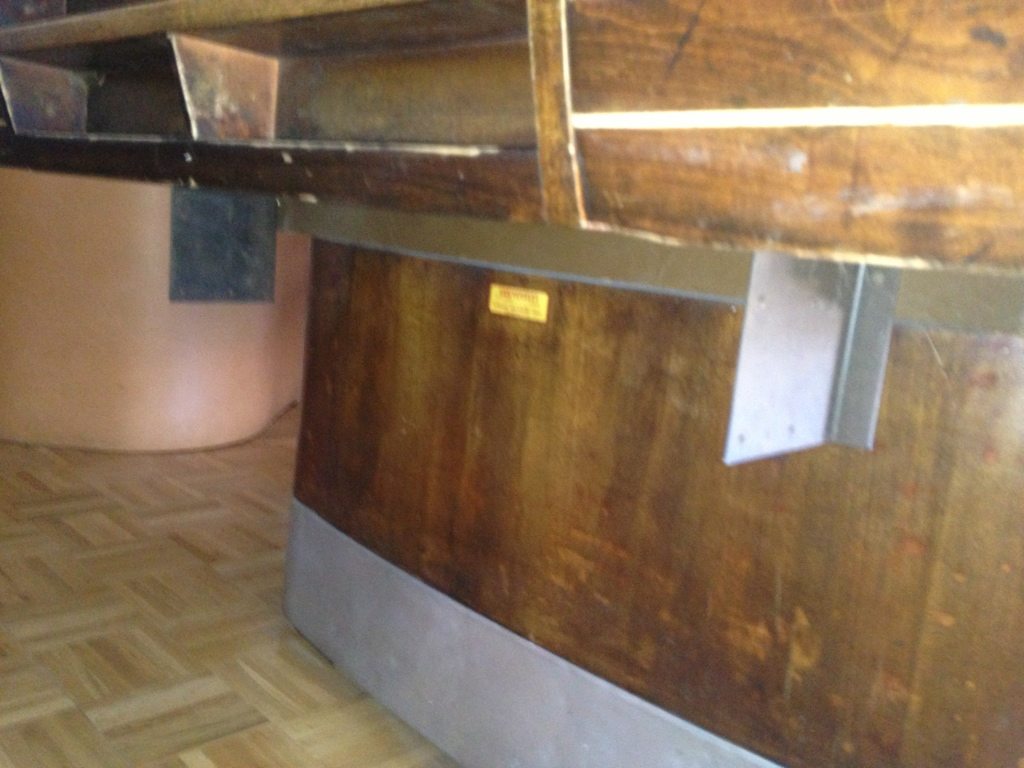

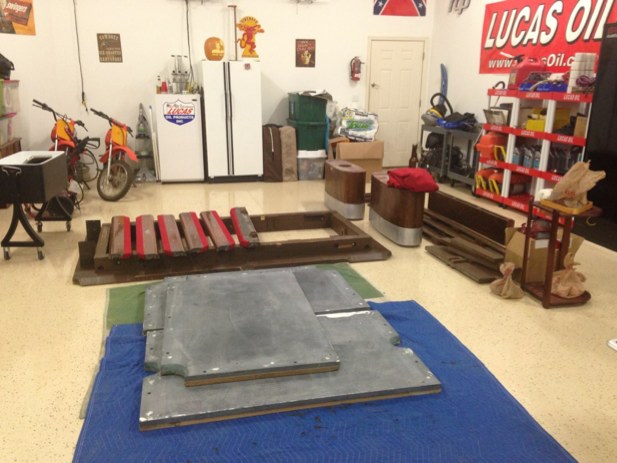

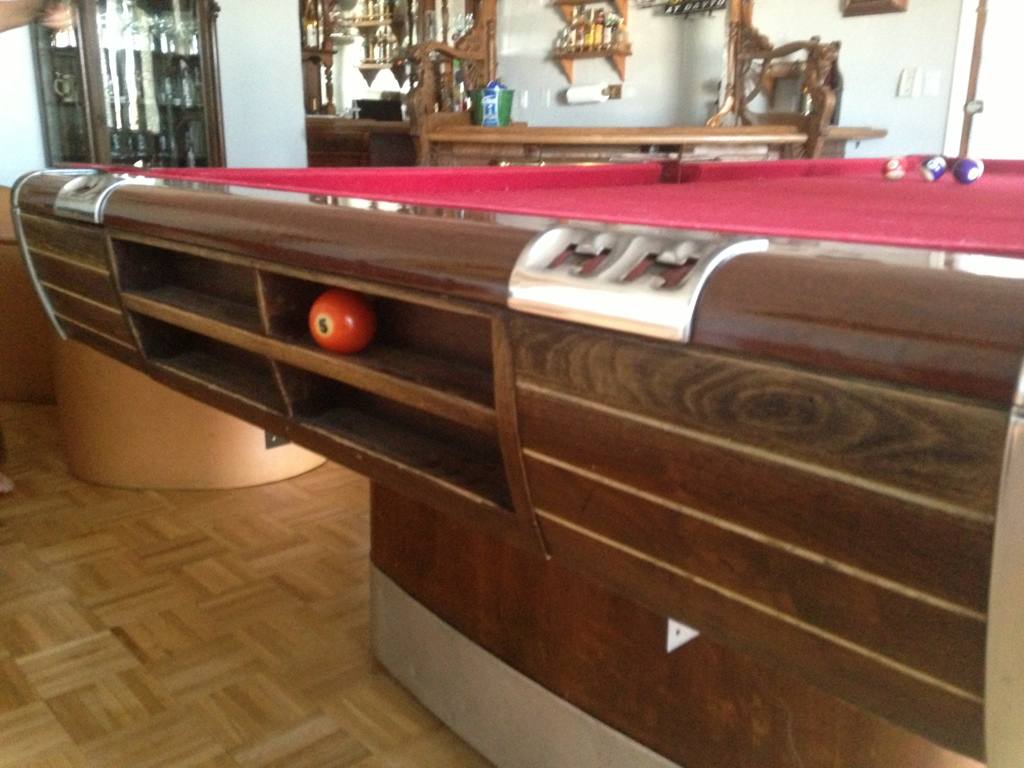

Dismantled

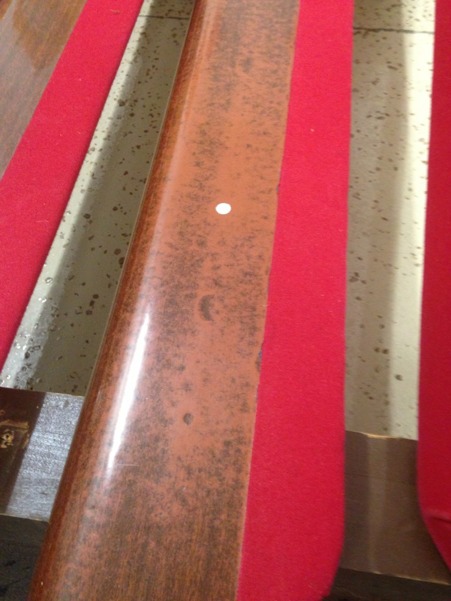

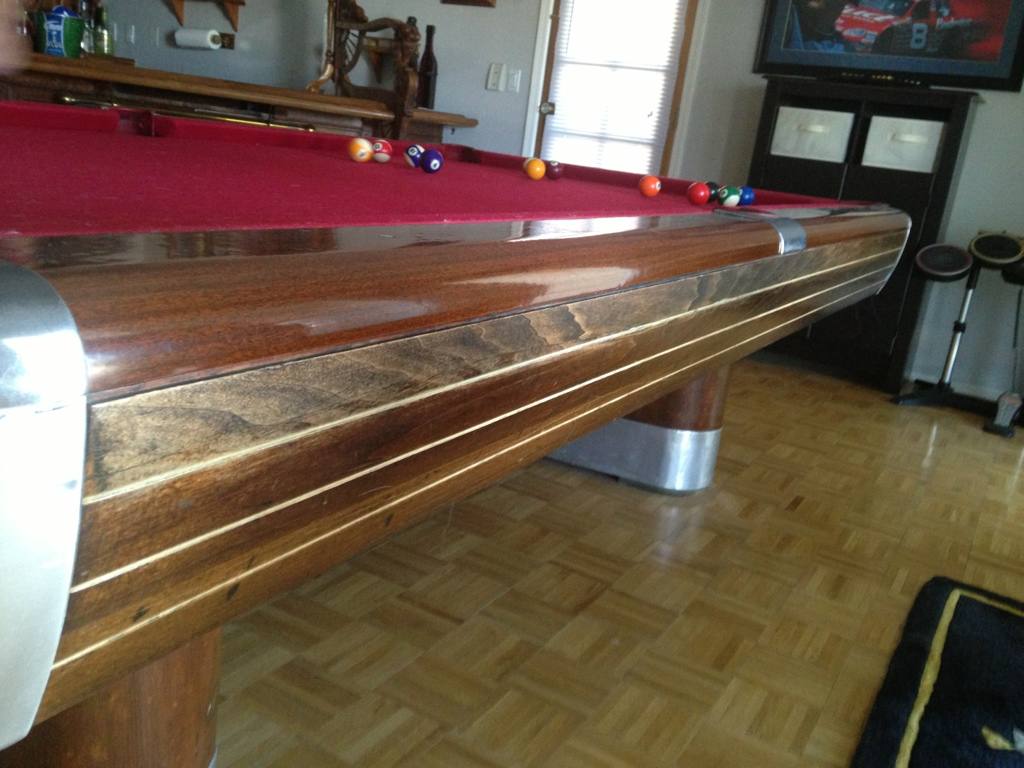

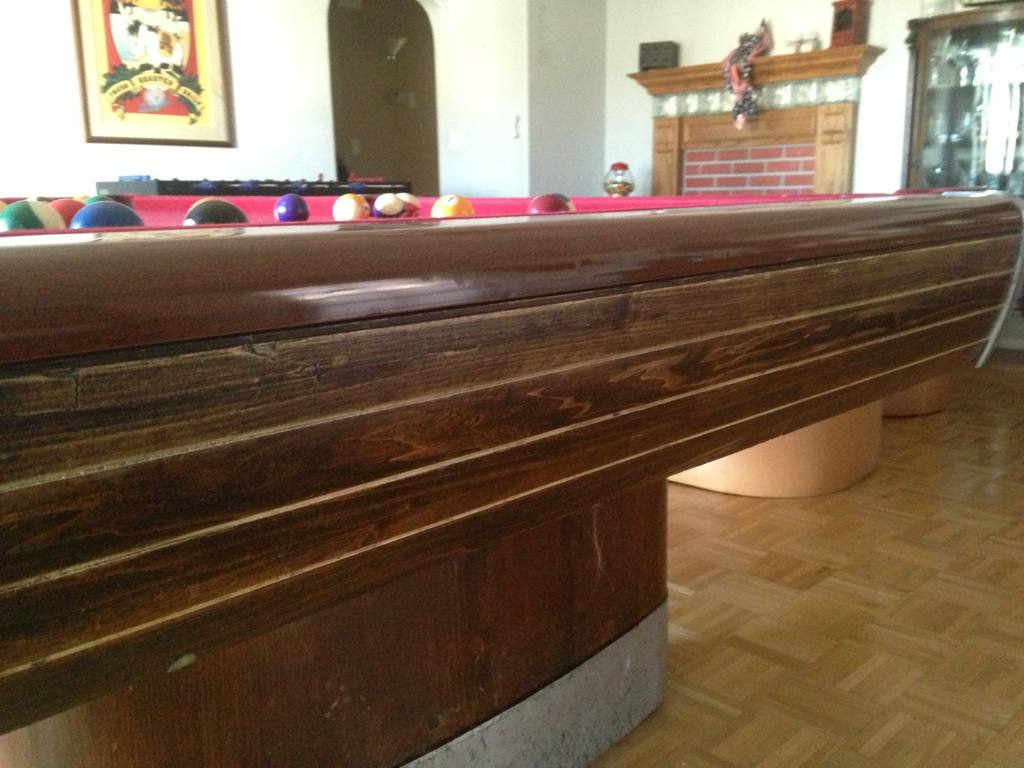

This wearing on the Formica has me wanting to have it ground off and replace with a wood veneer like the other rebuild.
This is off the head rail.. The rest if then seen fine except they have those typical dents which is driving my OCD nuts.
This wearing on the Formica has me wanting to have it ground off and replace with a wood veneer like the other rebuild.
This is off the head rail.. The rest if then seen fine except they have those typical dents which is driving my OCD nuts.
Last edited:
That looks like a really nice find, especially for the price!!!
Is that an 8ft or 9ft?
Is that an 8ft or 9ft?
Last edited:
Damn! That makes it even better.
I cant tell your area, like so many here you dont have it listed under your avatar.
West Tennessee.
My wife has explained to me to spend zero money on this thing.. Lol. (We will see how that goes). So lets get started with the counters.

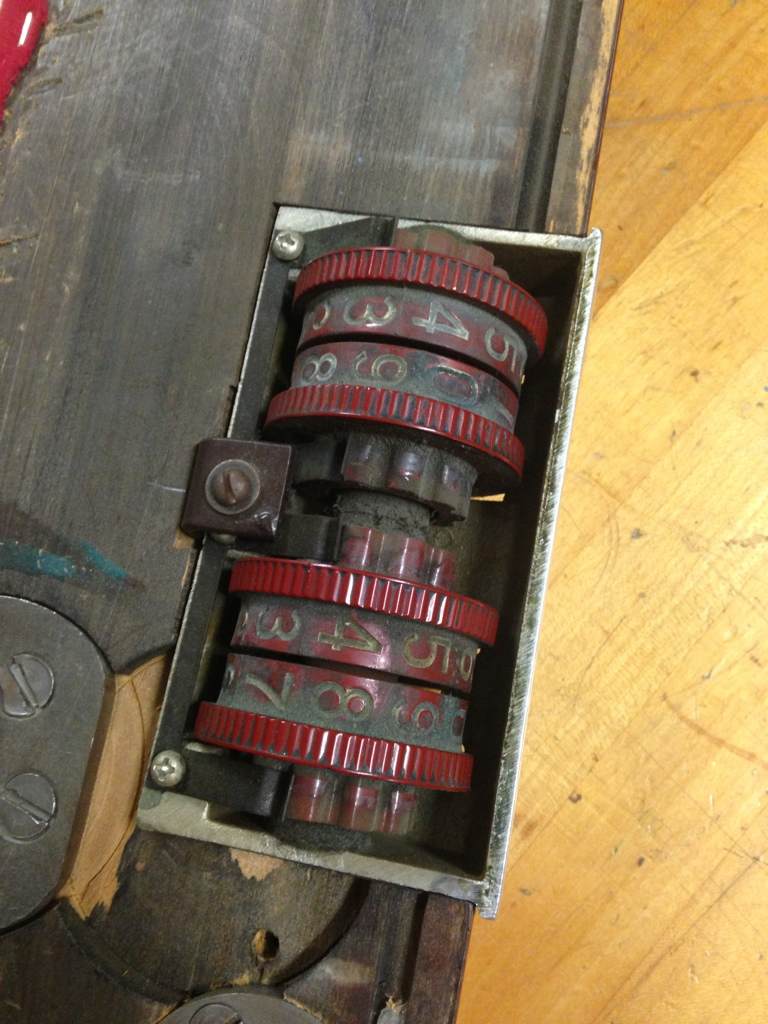

Apparently we will need a Phillips and flat screwdriver. (Learning as we go)

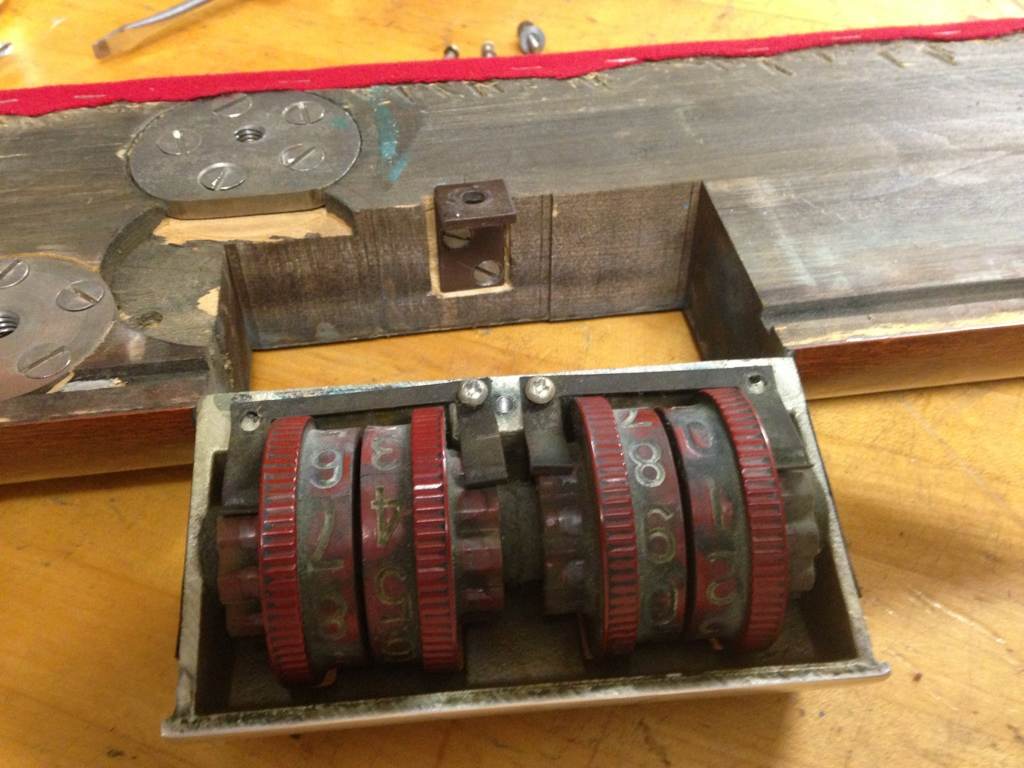

The flat screw in the middle holds the counters to the rail. The Phillips hold the spring steel in to give the counters the ratchet feel between numbers.
Apparently we will need a Phillips and flat screwdriver. (Learning as we go)
The flat screw in the middle holds the counters to the rail. The Phillips hold the spring steel in to give the counters the ratchet feel between numbers.
Last edited:

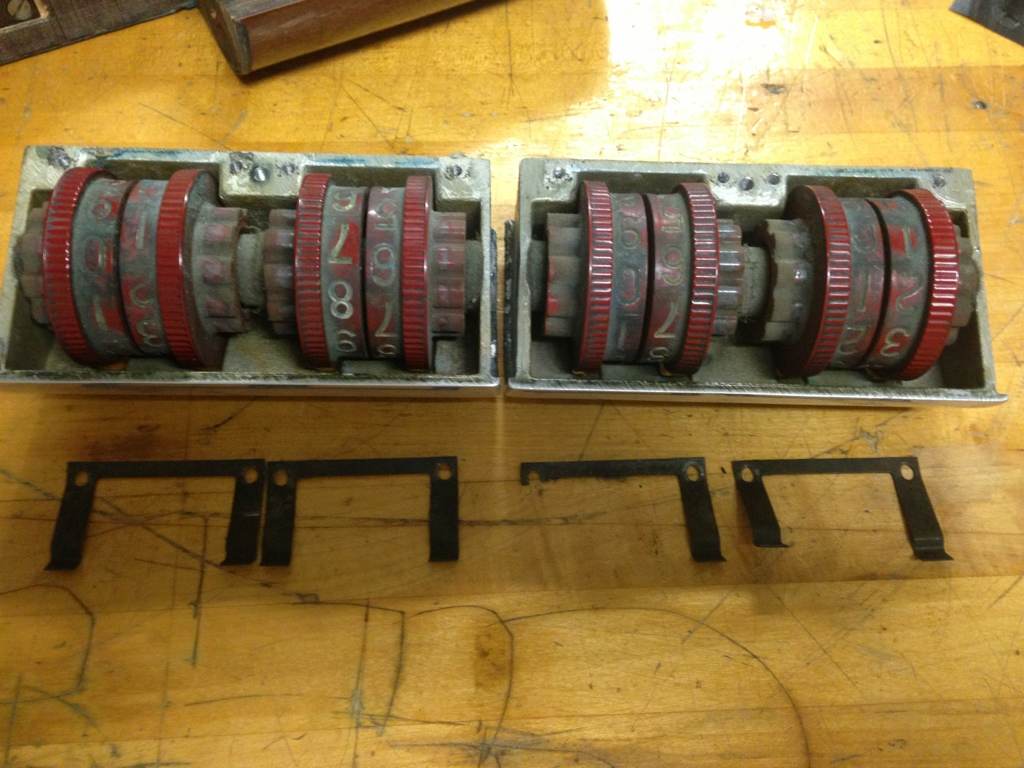

Up next I removed the springs.
(Note number 3 spring broken)

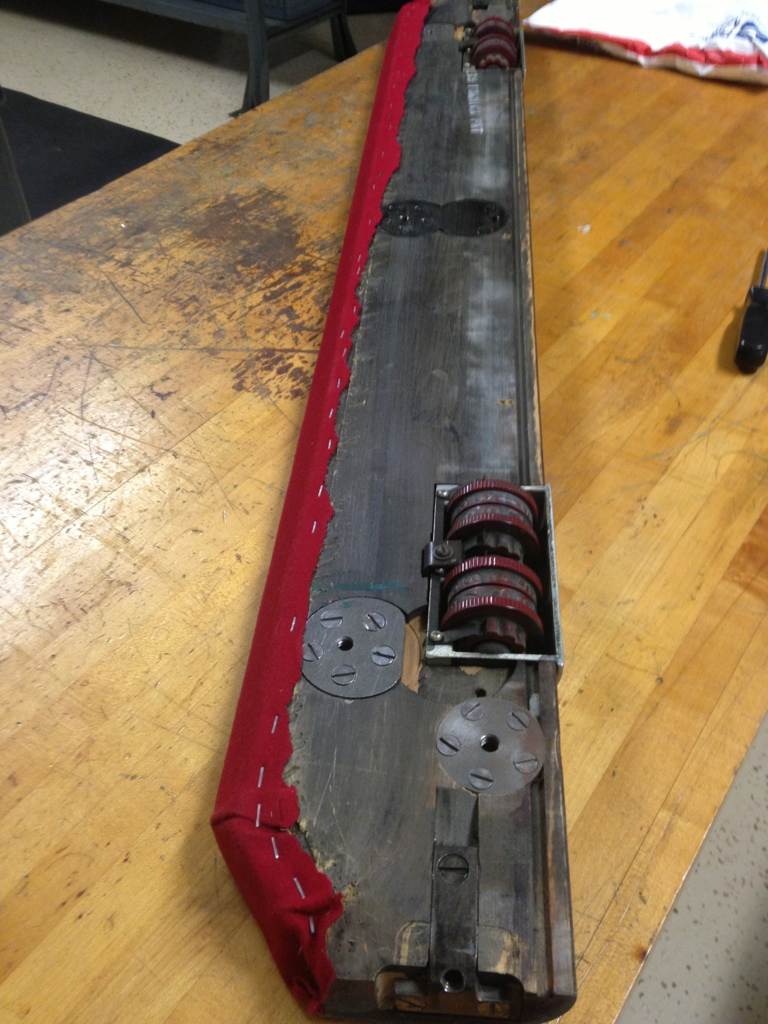

Now its time to pull the counters out

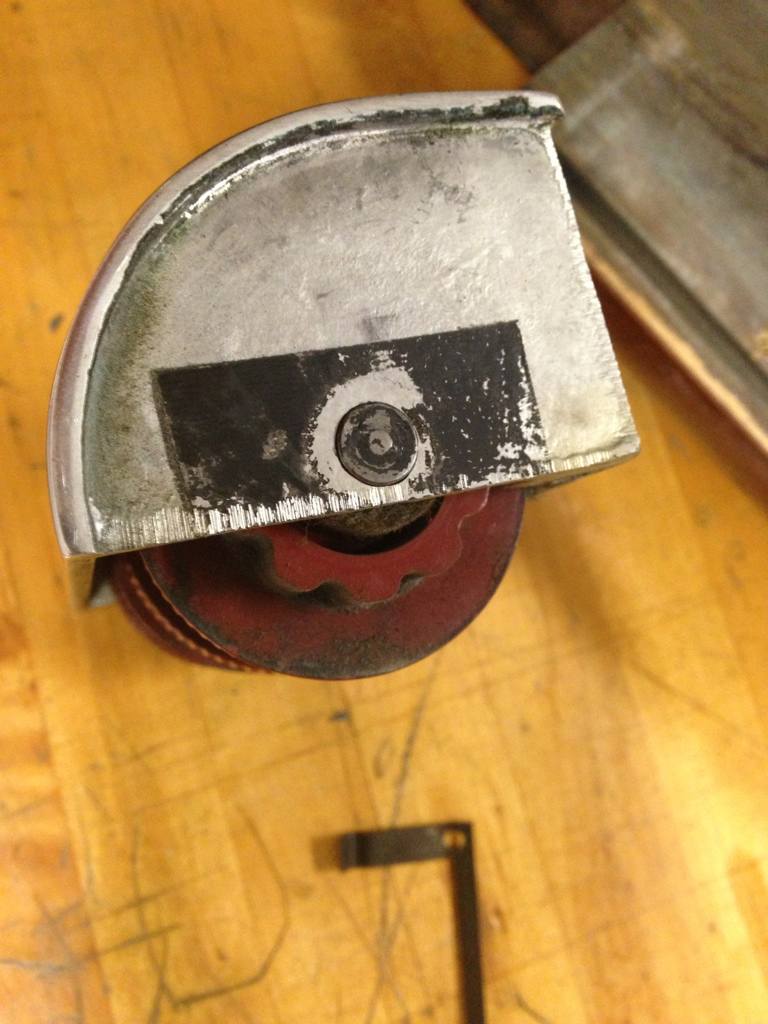

They have a rod that is apparently press fit into the castings.

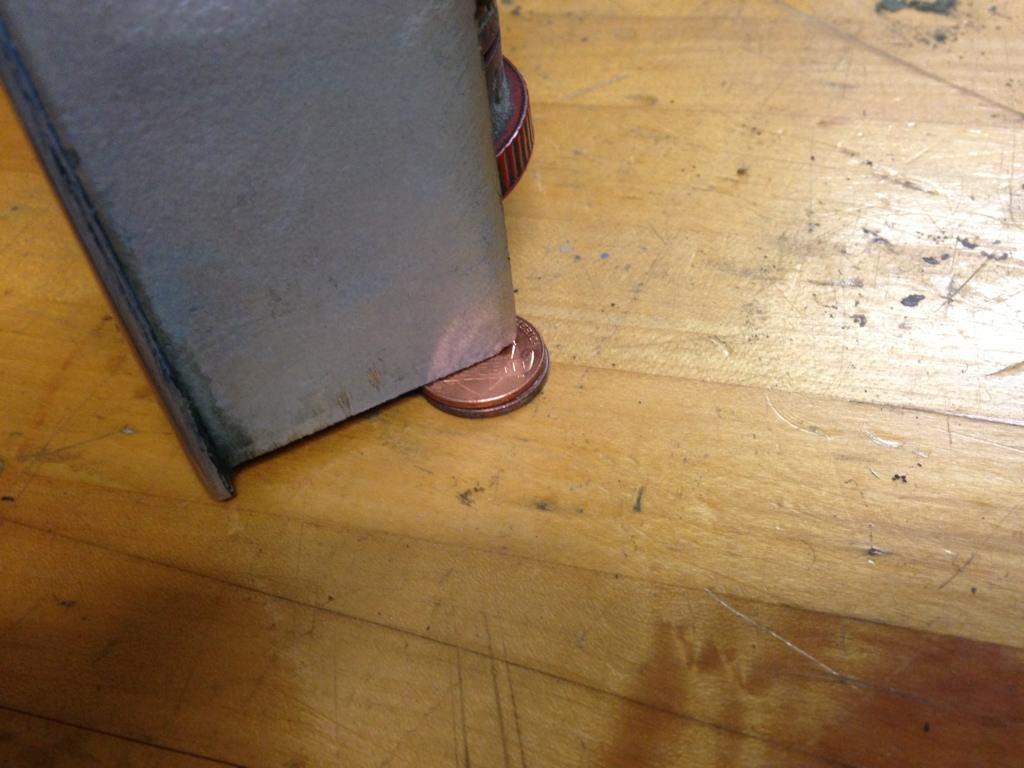

The castings have an edge on them so to get the rods out we have to get them to sit flat and then either press them out or use something smaller and just whack them with a deadblow or hammer a couple times. Truth be told I have an entire machine shop in the garage so I have a million things around here to make these sit flat but I'm trying to keep the thread on a level that anyone could do it in their garage. 2 pennies is about the right height.

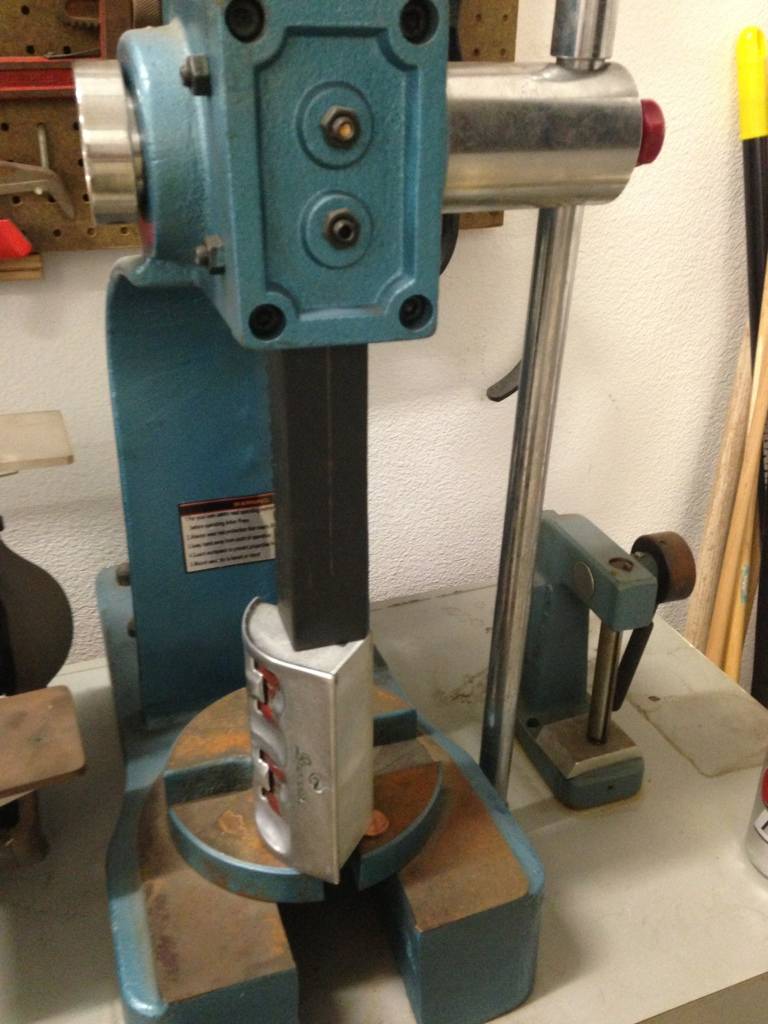

I have a press but I think you get the idea that you could hammer then out easy enough. They weren't really pressed in so much as there was resistance from dirt over the years. A little patience and wd40 with a hammer and they will come right out.

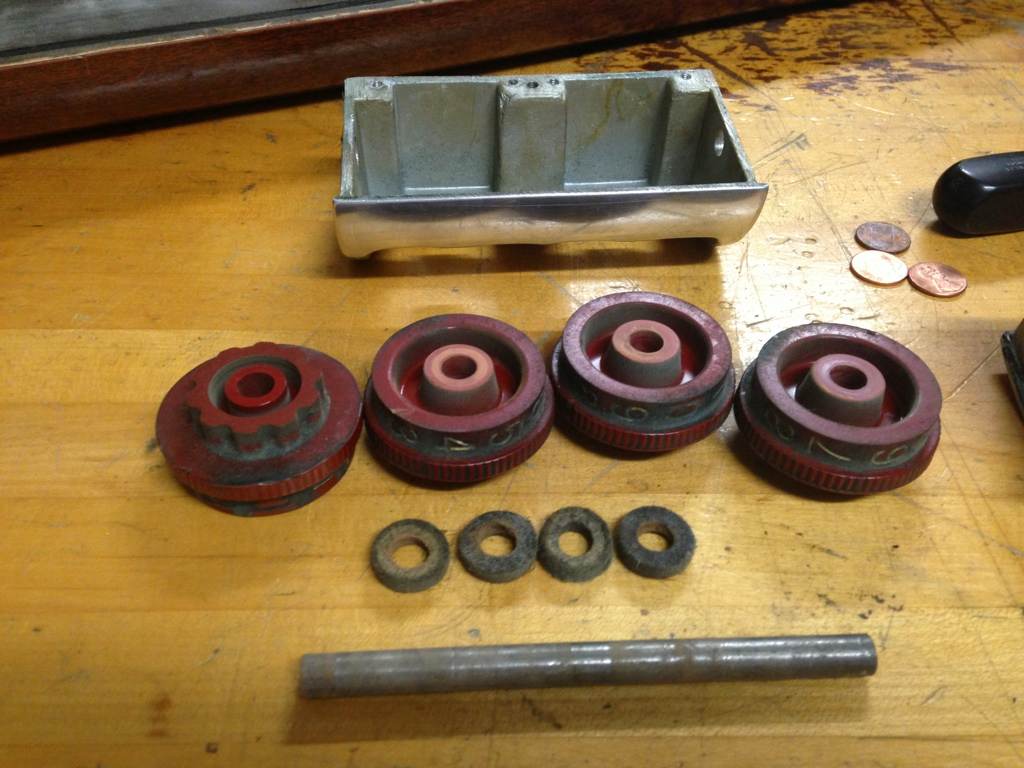

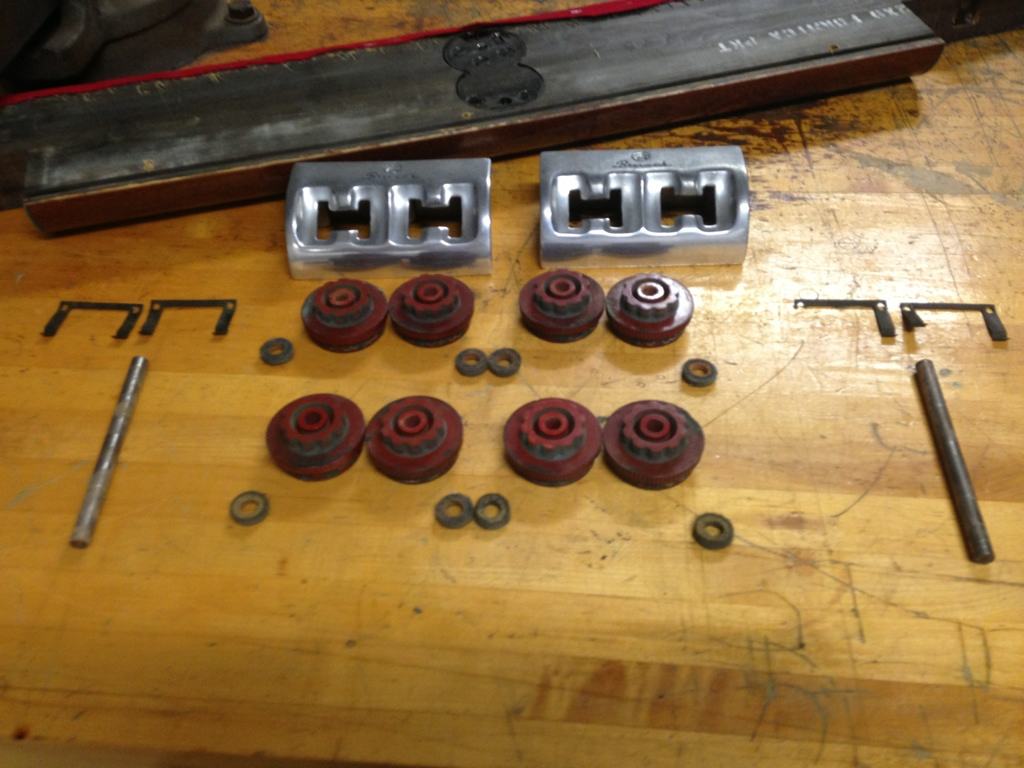

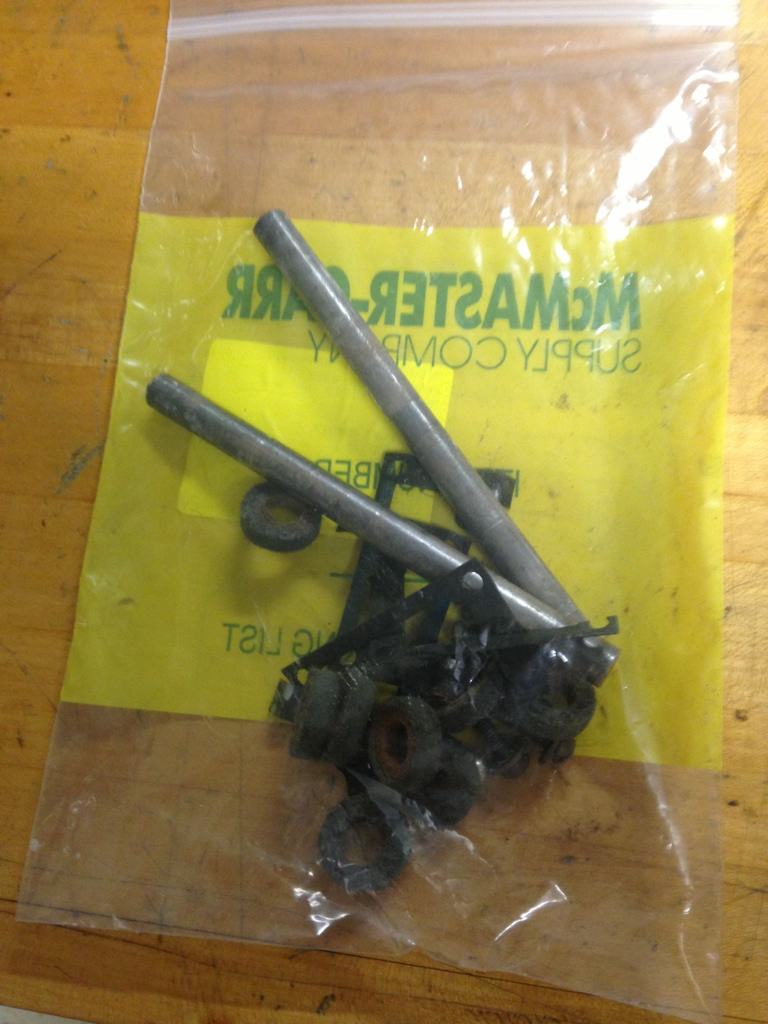

This is what I found inside. Little felt type discs that are used for drag between the counters. 1 outside, 2 in between counters, then one on the outside again.
(Note number 3 spring broken)
Now its time to pull the counters out
They have a rod that is apparently press fit into the castings.
The castings have an edge on them so to get the rods out we have to get them to sit flat and then either press them out or use something smaller and just whack them with a deadblow or hammer a couple times. Truth be told I have an entire machine shop in the garage so I have a million things around here to make these sit flat but I'm trying to keep the thread on a level that anyone could do it in their garage. 2 pennies is about the right height.
I have a press but I think you get the idea that you could hammer then out easy enough. They weren't really pressed in so much as there was resistance from dirt over the years. A little patience and wd40 with a hammer and they will come right out.
This is what I found inside. Little felt type discs that are used for drag between the counters. 1 outside, 2 in between counters, then one on the outside again.
Last edited:

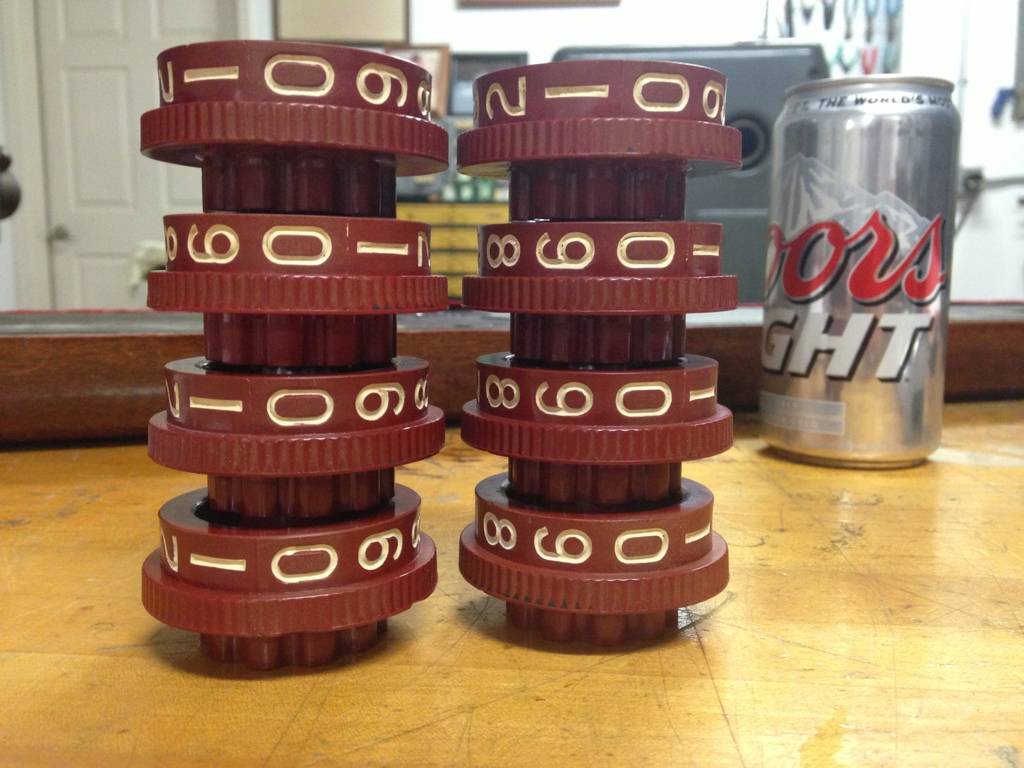

Other side done

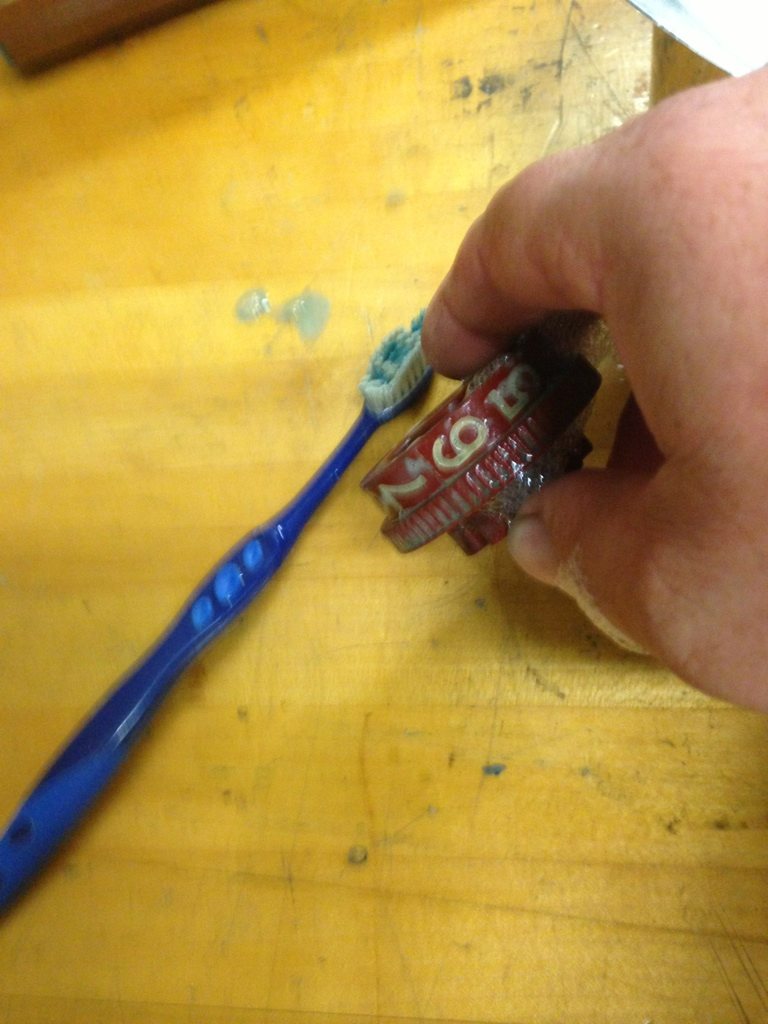

Next step clean years if dirt / grime off counters.. If wife or girlfriend is asleep go grab a pan out of kitchen, and put some dish soap in it.. Fill with hottest water you can get and drop counters in. If wife / girlfriend awake drink more beers until they goto sleep (very important). Wash and return pot before they know what you did.
Next step clean years if dirt / grime off counters.. If wife or girlfriend is asleep go grab a pan out of kitchen, and put some dish soap in it.. Fill with hottest water you can get and drop counters in. If wife / girlfriend awake drink more beers until they goto sleep (very important). Wash and return pot before they know what you did.

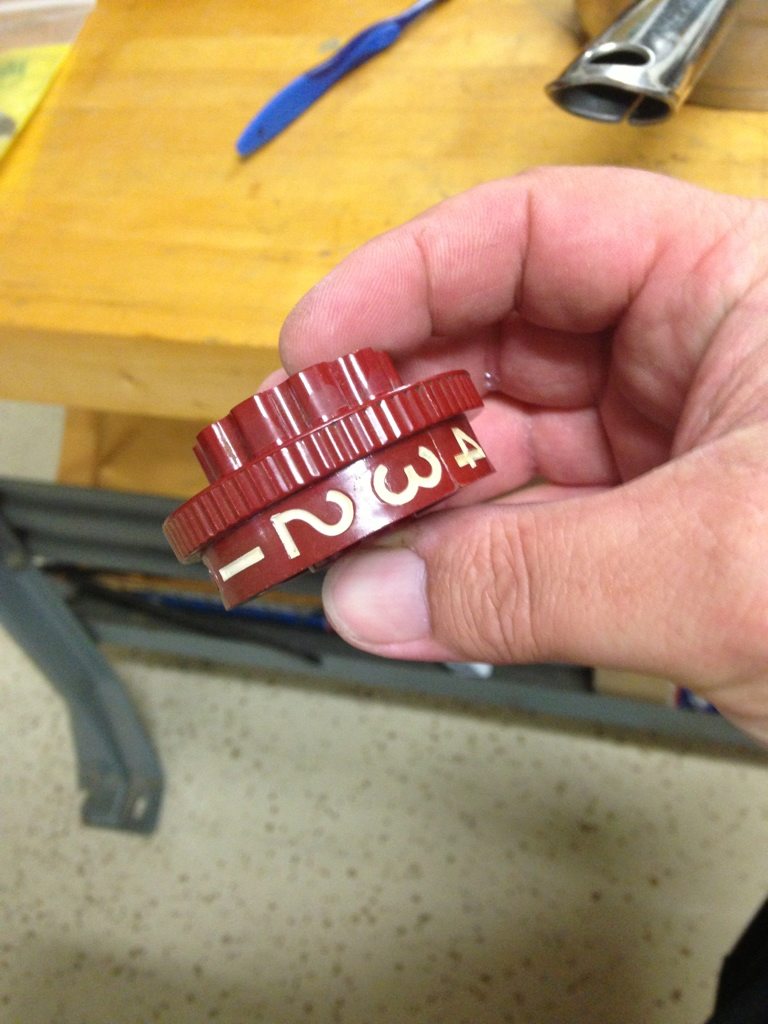

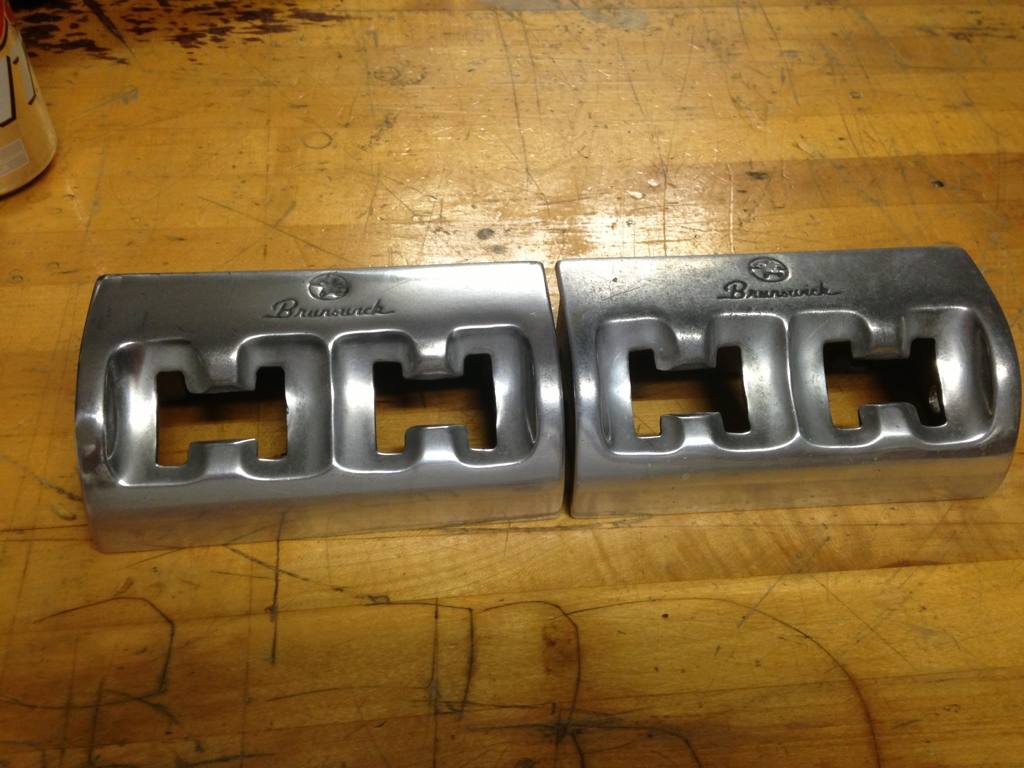

Before I call it a night I just wanted to see how the counters themselves would clean up.. I put one on a buffing wheel for about 30 seconds.. I'm not 100% sure what to do about the porosity if the castings themselves. I am wondering if that's why the Steve149 nickel plated them. (Looking for input there Steve if you are reading) Maybe the plating helps to get a more uniform surface finish? (Note this isn't polished by a long shot, was just a quick test)
Lightly touched the top surface on the one on the left.
Lightly touched the top surface on the one on the left.
Last edited:

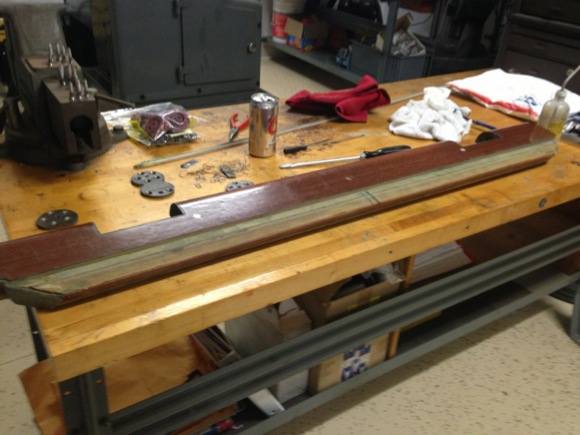

Decided to at least take a look at the rest to see if I could figure it out..

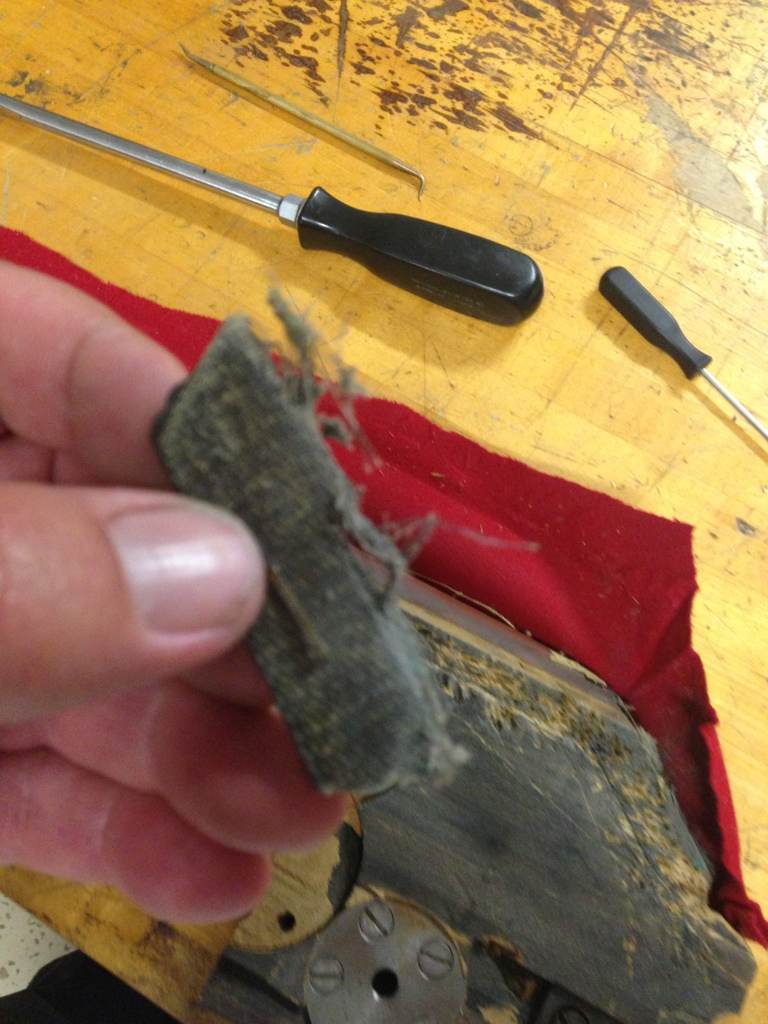

This pocket shim disintegrated in my fingers.. Probably not a good sign.

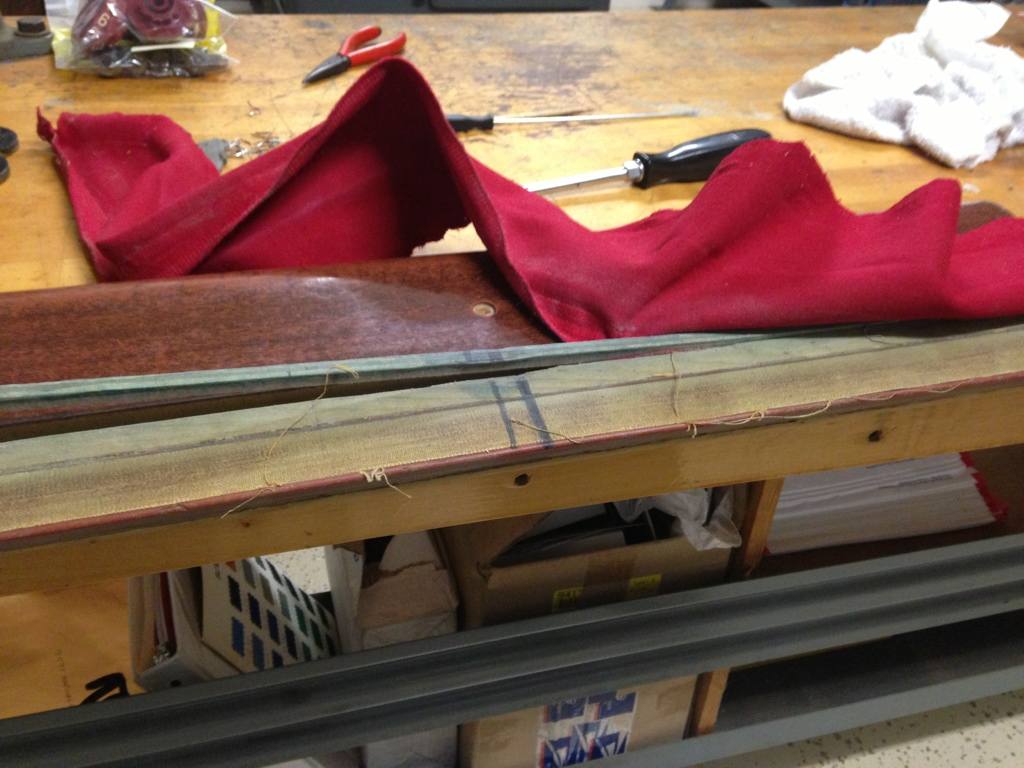

Found this wood shim that holds the cloth in.. Also very tired (old)

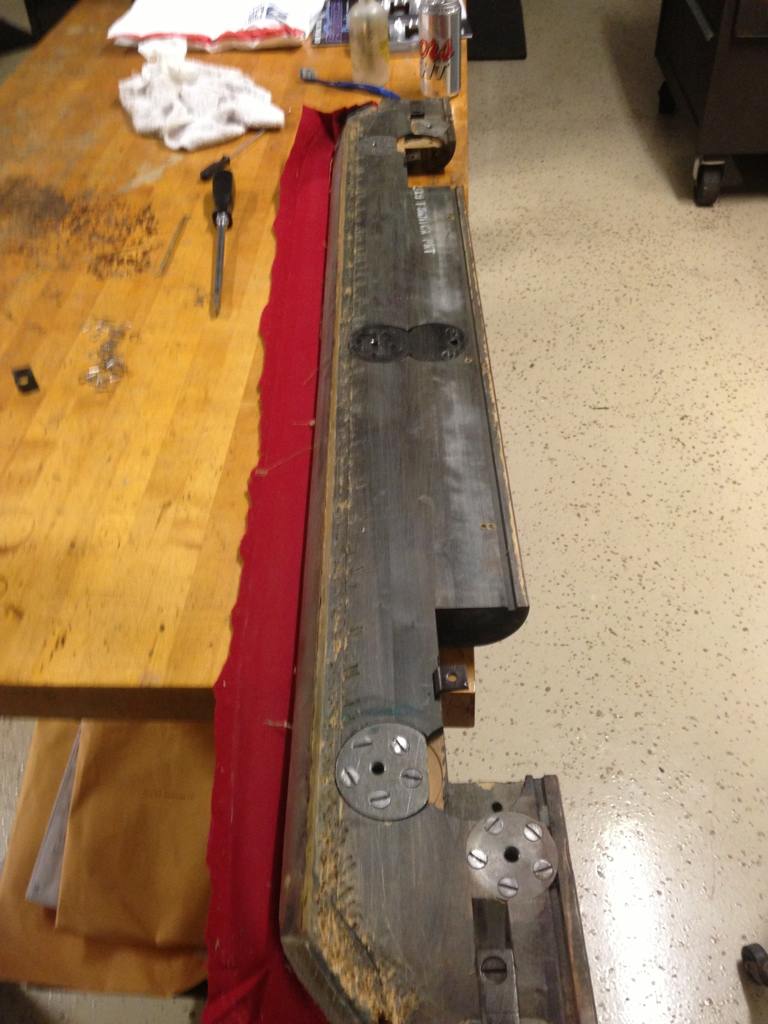

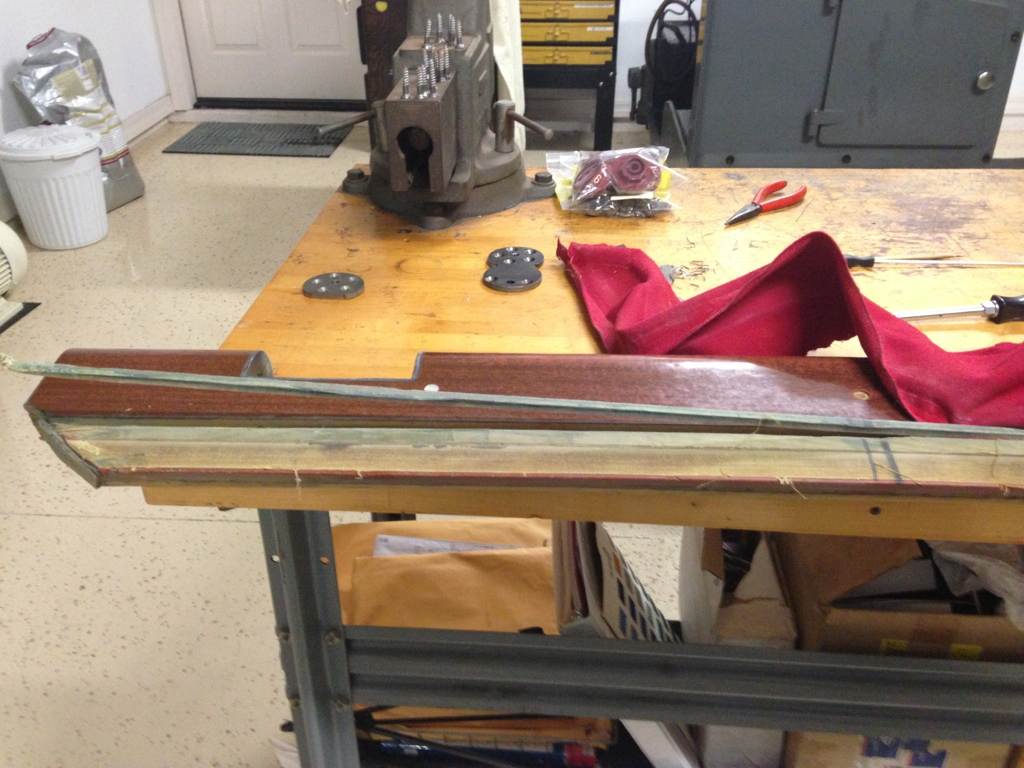

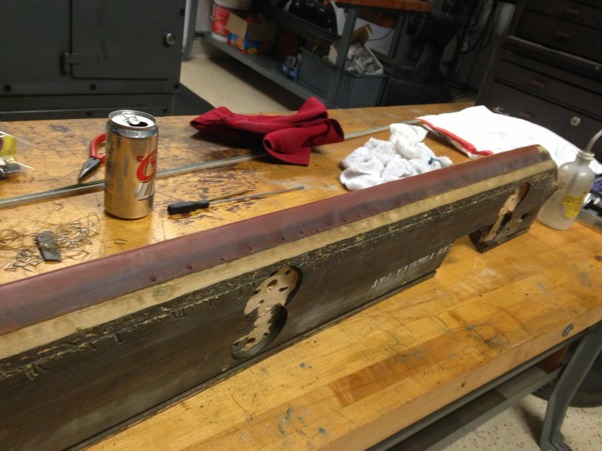

My goal was to figure out how the rail is held on.. Appears to be an ancient Chinese mystery, because I will be damned if I can figure it out.. Lol.
There's little nails in the bottom if the rubber but it has to be more then that because this is on there pretty rigid..
This pocket shim disintegrated in my fingers.. Probably not a good sign.
Found this wood shim that holds the cloth in.. Also very tired (old)
My goal was to figure out how the rail is held on.. Appears to be an ancient Chinese mystery, because I will be damned if I can figure it out.. Lol.
There's little nails in the bottom if the rubber but it has to be more then that because this is on there pretty rigid..
Nice find.
There was a thread some years back in how to make your own spring steel clips for the ball counters. You seem handy enough to do that.
There was a thread some years back in how to make your own spring steel clips for the ball counters. You seem handy enough to do that.
Last edited:
I was thinking about making them, but they sell them cheap enough on classic billiards.
