By request, I'll post time frame photos for my 5 veneer build "Flame" Hoppe for Gascoigne.
Paul Sumrall S&S Cues
Paul Sumrall S&S Cues
Last edited:

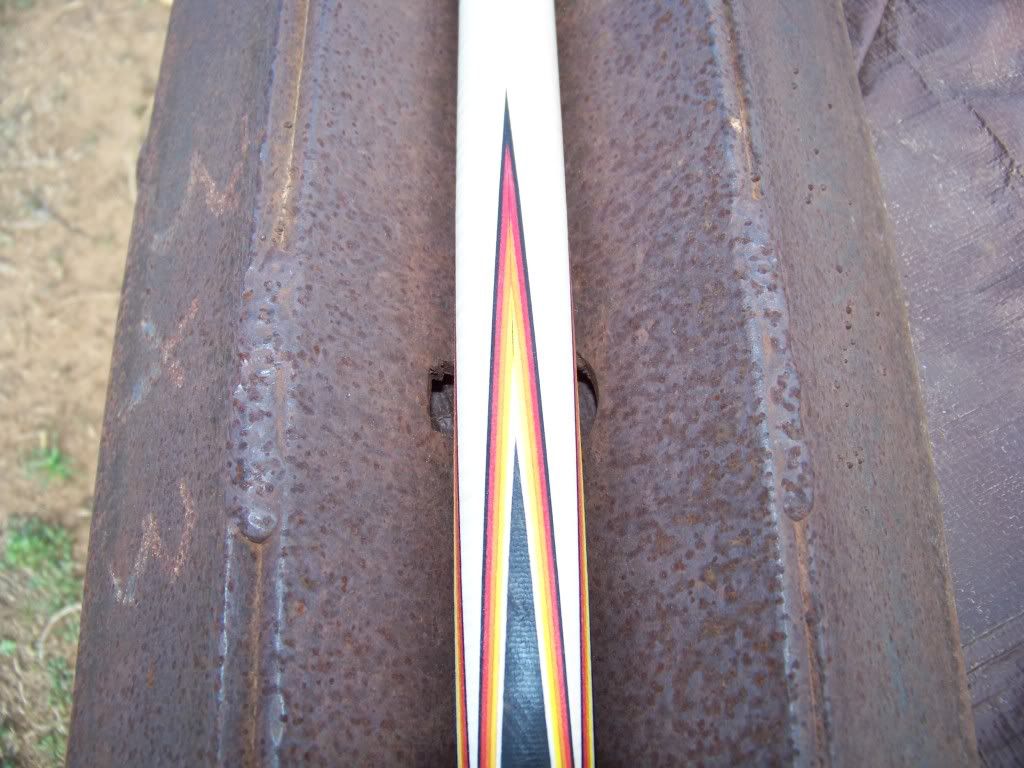

5 Veneer Build for Gascoigne
- Thread starter sonofthunder
- Start date

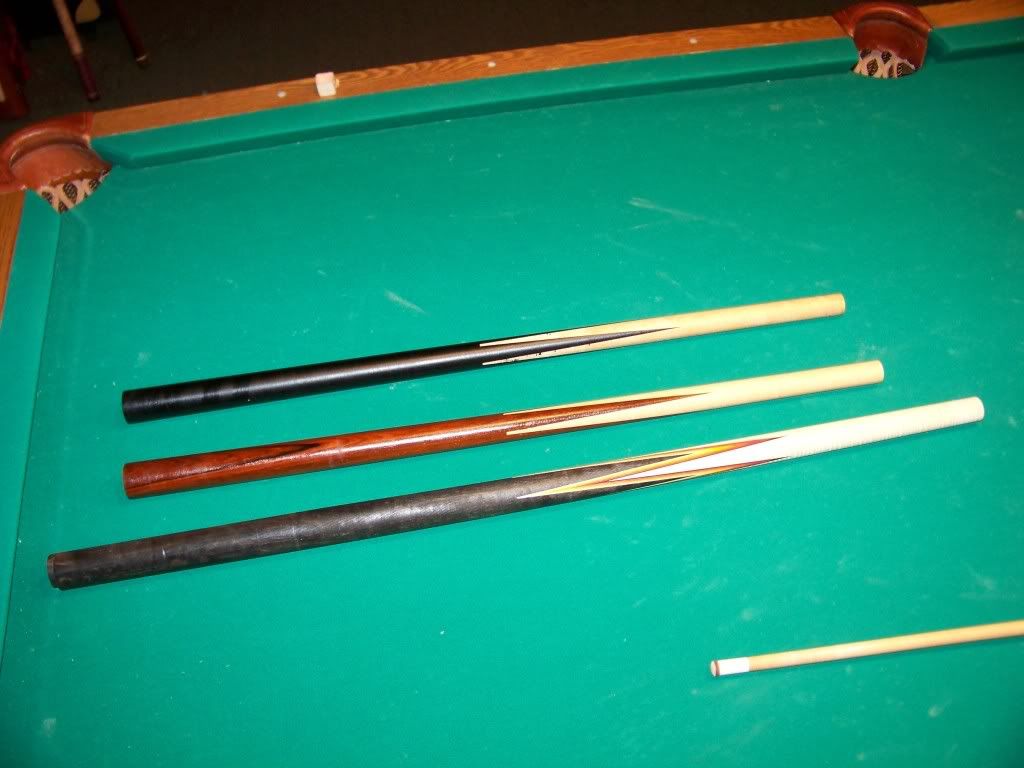

S&S 5 veneer build
It will be pretty flash once I'm through. Thanks for the compliments.
Ebony on ebony monster is next.
Paul
It will be pretty flash once I'm through. Thanks for the compliments.
Ebony on ebony monster is next.
Paul

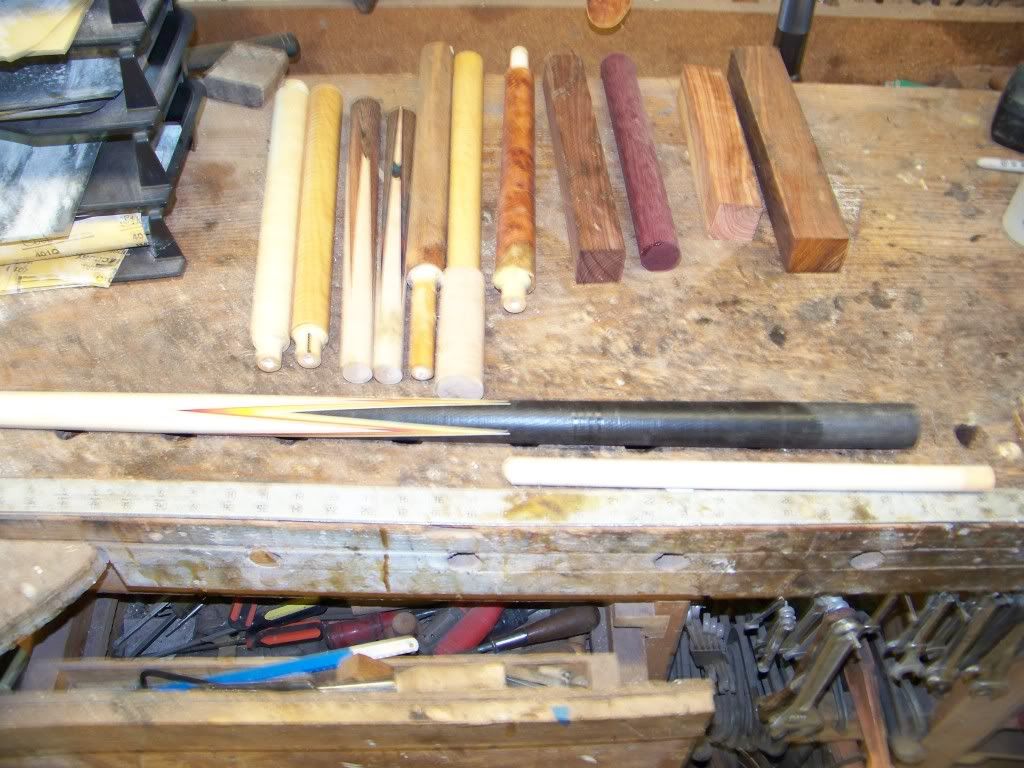

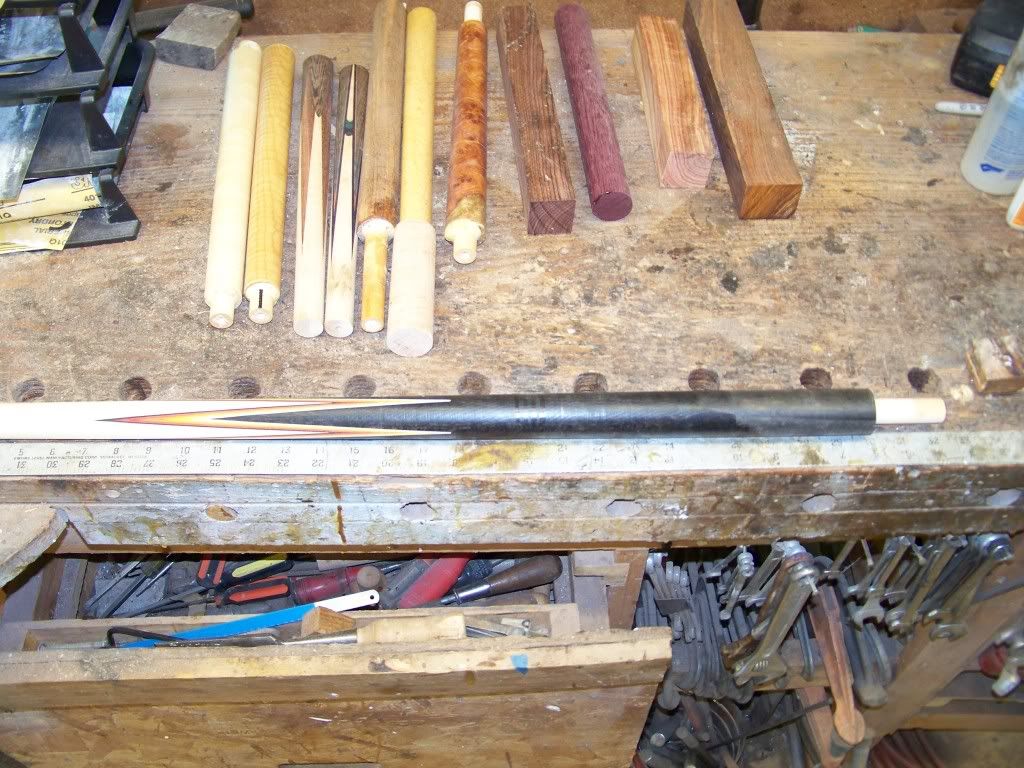

"Flame" cut & cored
Here is Gascoignes' Flame Hoppe cut to length & the core about to be glued in properly. I have allowed .007" clearance for glue relief. It's hard to see, but the core itself is scored w/ my lathe set to thread.
A note about the core itself-IT IS SHAFT GRADE MAPLE. My cores are turned over a period of about a year, very similiar to my shaft process.(18mo.- 2yrs.) Proper adhesives are required as well.
Paul
Here is Gascoignes' Flame Hoppe cut to length & the core about to be glued in properly. I have allowed .007" clearance for glue relief. It's hard to see, but the core itself is scored w/ my lathe set to thread.
A note about the core itself-IT IS SHAFT GRADE MAPLE. My cores are turned over a period of about a year, very similiar to my shaft process.(18mo.- 2yrs.) Proper adhesives are required as well.
Paul
That is sweet!!!
I had no idea you were a full splice man when we met!!
How did you escape without an order from me!!!
I had no idea you were a full splice man when we met!!
How did you escape without an order from me!!!
It's not to late
You can call me @ 806-778-1957 I can accomodate pretty much any design. I am always available.
Paul
You can call me @ 806-778-1957 I can accomodate pretty much any design. I am always available.
Paul

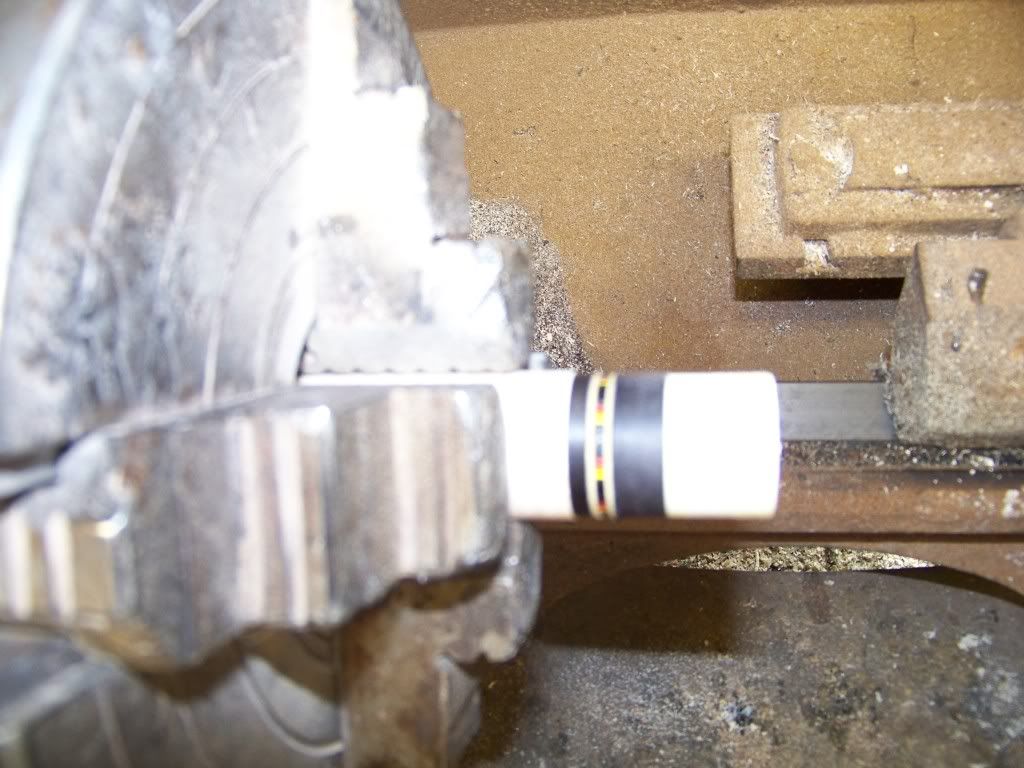

Hoppe ring & joint assembly
Here is the progress on the 5 V Hoppe
[/IMG]
Here is the progress on the 5 V Hoppe
Glue up complete
Will start tapering later today...
P
Will start tapering later today...
P
looking good Paul! :thumbup:
5 V Finished Diameter
I cut the final pass about an hour ago. Remember that this is a time frame build. (3 mo.) from start until now. It will take "about" a week to undercoat & spray.
The matched pair of shafts will be in the works next. They will finish @ 4.1-4.2 oz w/no insert. They are beefy & tight 20+rpi.
[/IMG]
[/IMG]
I cut the final pass about an hour ago. Remember that this is a time frame build. (3 mo.) from start until now. It will take "about" a week to undercoat & spray.
The matched pair of shafts will be in the works next. They will finish @ 4.1-4.2 oz w/no insert. They are beefy & tight 20+rpi.
5V Flame...
5V-Pinned(titanium),undercoated, I will sand & start clearcoat later today
[/IMG]
[/IMG]
[/IMG]
5V-Pinned(titanium),undercoated, I will sand & start clearcoat later today
