Custom lights

[paul j]

Many years ago i built a custom lite box 75x25x6” with 6 three ft 5K flouresent bulbs , I’d like to upgrade to some LED strips.
Has anyone done this to their lite and can make suggestions. Much appreciated.



[rexus31]

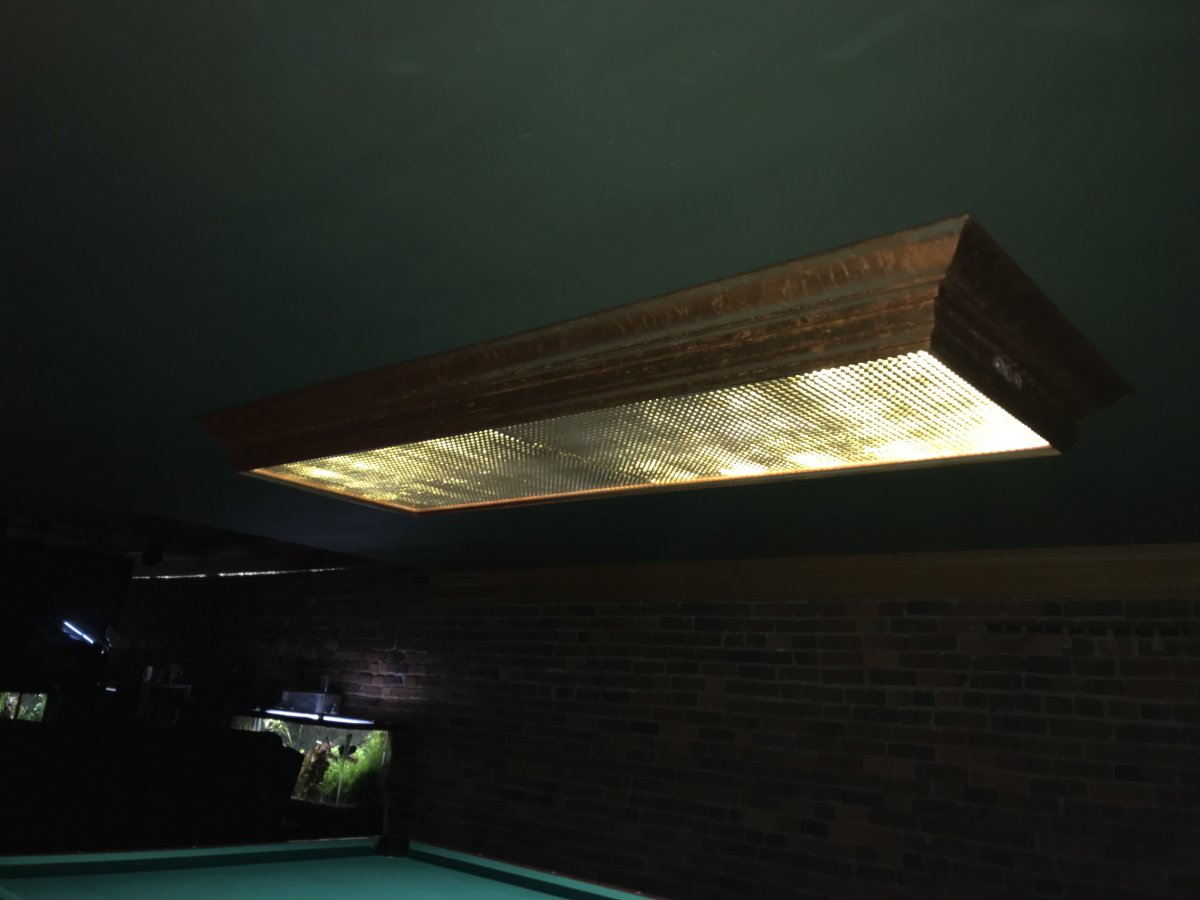

I built this light but kept fluorescents using Philips bulbs (specs below). I was going to go LED but I had used these bulbs in a different custom light I built and I liked the performance. I didn't want to experiment with the LED's so I just used what I know worked and worked well. The fixture uses (8) 4' 5K bulbs with a total output of 20,800 Lumens at a CRI of 90.



[rexus31]

FWIW, here's the other light I built.



[bignick31985]

I removed the 4 HO T12 lamps and ballast in my fixture and put ballast bypass LED in their place. Got them frosted and then out an egg crate style diffuser to remove glare.

BTW, those lights above look real good!

8ft 40W LED Tube - R17D Base - High Output Base - Bypass - (ETL)

Shop the 8ft 40W LED Tube with R17D High Output Base. Bypass ETL certified for reliable performance and energy efficiency. Upgrade your lighting today!

greenlightdepot.com



[rexus31]

I removed the 4 HO T12 lamps and ballast in my fixture and put ballast bypass LED in their place. Got them frosted and then out an egg crate style diffuser to remove glare.

BTW, those lights above look real good!

8ft 40W LED Tube - R17D Base - High Output Base - Bypass - (ETL)

Shop the 8ft 40W LED Tube with R17D High Output Base. Bypass ETL certified for reliable performance and energy efficiency. Upgrade your lighting today!

greenlightdepot.com

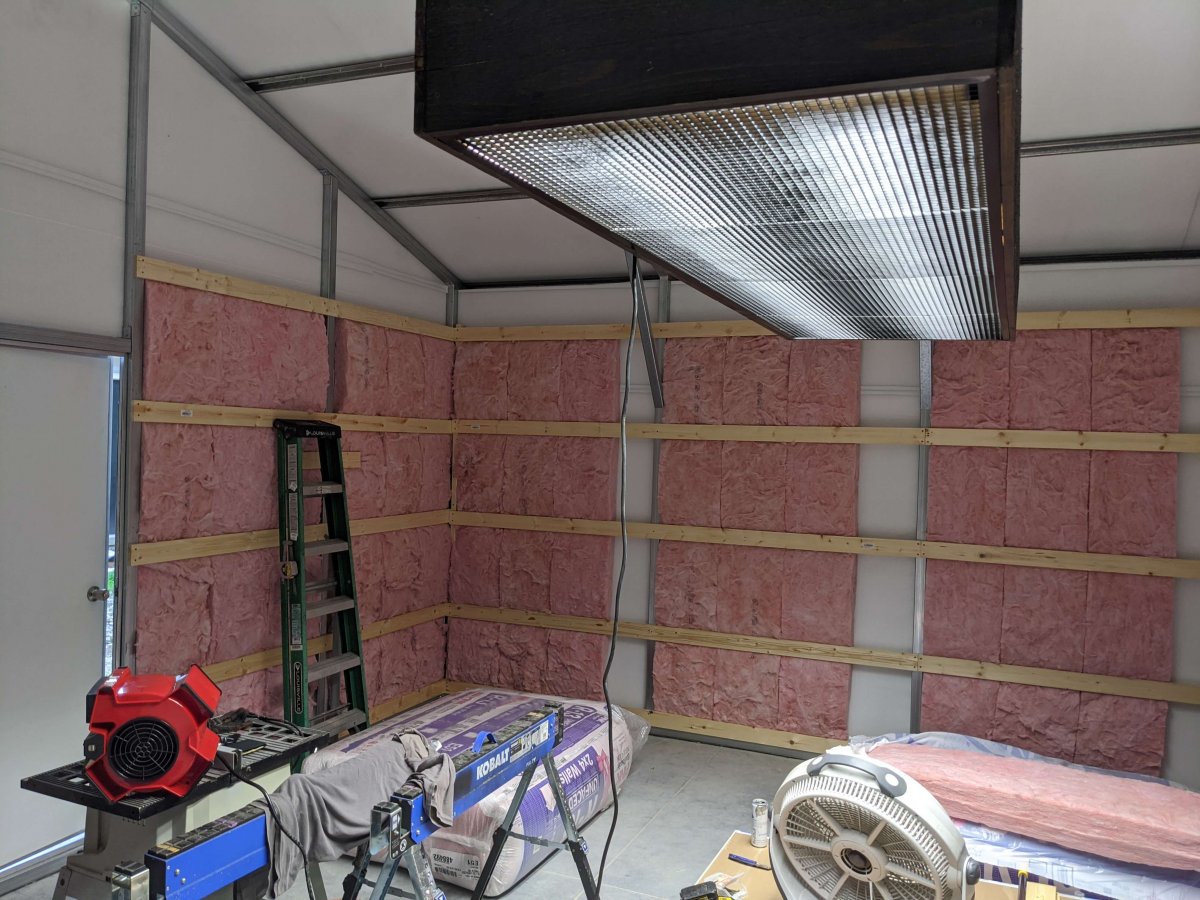

View attachment 616658

Thanks! Yours looks good too!



[paul j]



[paul j]

The problem is that the box is has a 73” inside dimension. Thinking multiple led strips would be the best solution. Problem solved
I just found 6’ led bypass tubes that will work. Now how many lumens are required when the light is 47” above the table?



[rexus31]

The problem is that the box is has a 73” inside dimension. Thinking multiple led strips would be the best solution. Problem solved
I just found 6’ led bypass tubes that will work. Now how many lumens are required when the light is 47” above the table?

I'd say no less than 18K.



[RacerX750]

Alphalite makes flat side lit LED panels that you'd normally install in a dropped ceiling - that would have been the simple solution.

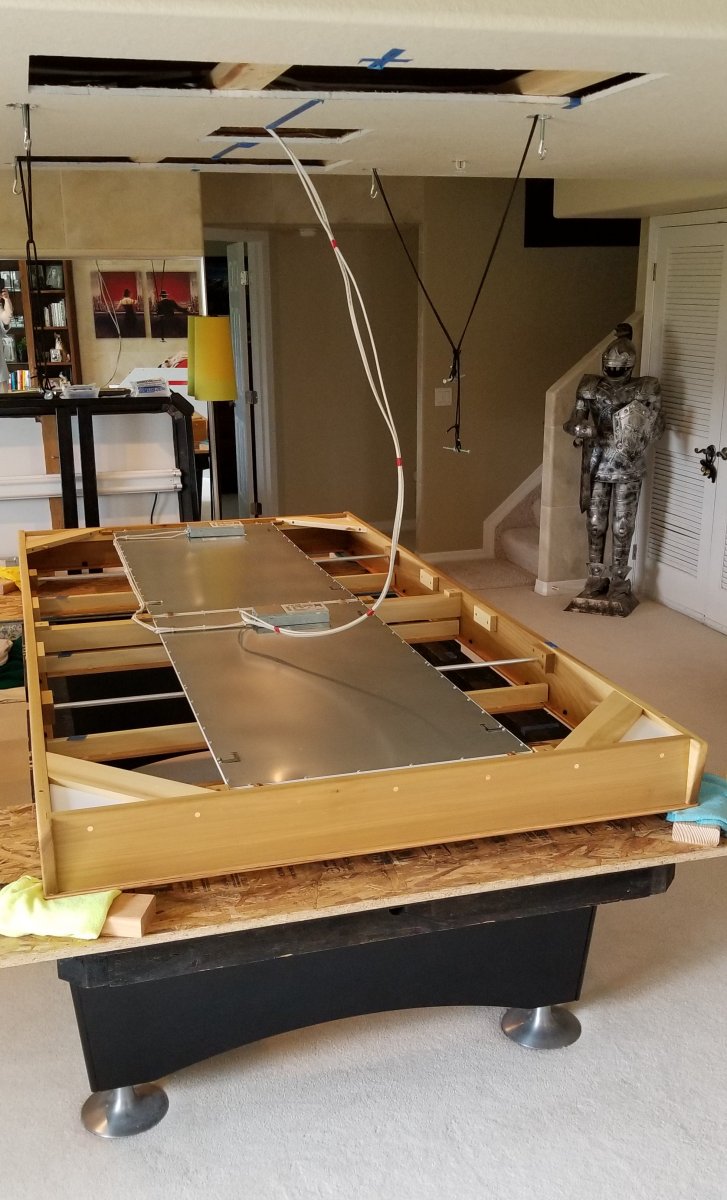

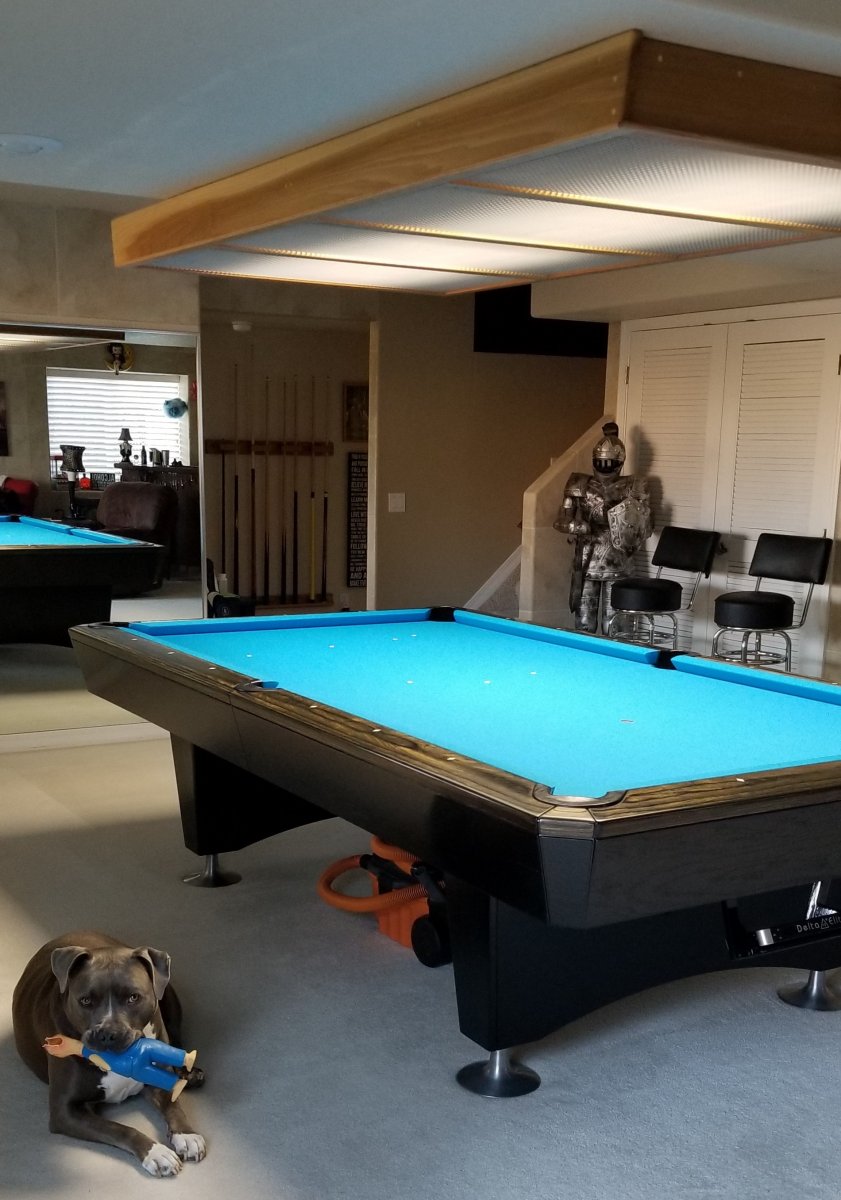

I built one from poplar. Way too much work, but I'm happy with the result.
I used two 2'x4' panels end to end. The the low voltage dimmer fits in a standard wall box. Normally I leave it cranked all the way up. If I were to do it again I'd use four 1'x4' panels providing more even coverage, but I can't complain with the 2 x 4's.

You'll have to ask Alphalite for a dealer near you.

1x4 Panel
FPL-14L/850 5000K
$82 each

2x4 Panel
FPL-24H/850 5000K
$99 each

Dimmer
WSBD010DECC1
$60

Spec sheet

https://alphalite.com/wp-content/uploads/2019/06/FPL-spec-190425.pdf

Alphalite home page

Alphalite Inc. | LED Lighting Technology - Contact Us

Alphalite Inc. is based in Southern California and committed to developing new technology to improve lighting efficiency, functionality, and quality.

alphalite.com

The 2x4 diffuser panels are from Diamond ($50 each)
