For Sale: Maintenance Drive Arbor Pin

metalware10

AzB Silver Member
Silver Member
Maintenance drive pin, 6 sizes available,
- Radius
- 3/8-10
- 3/8-11
- 3/8-14
- 5/16-14
- 5/16-18
Male pin shank diameter: 3/8"
Brass insert shank diameter: 5/8"
Flange Diameter: 0.74"

$15 per size. if take all 6 sizes, $80. Free Shipping!

send email to CUEFITS@YAHOO.COM if interest.


Attachments

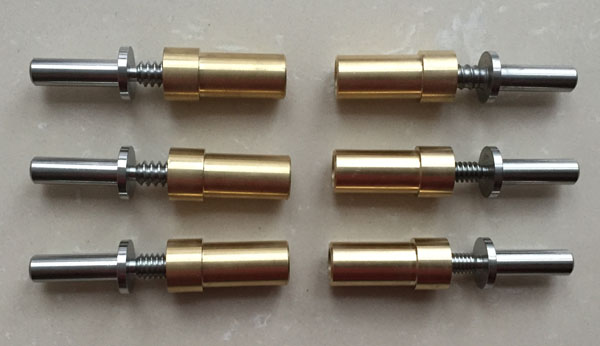

  • 5854.JPG
    40.9 KB · Views: 330

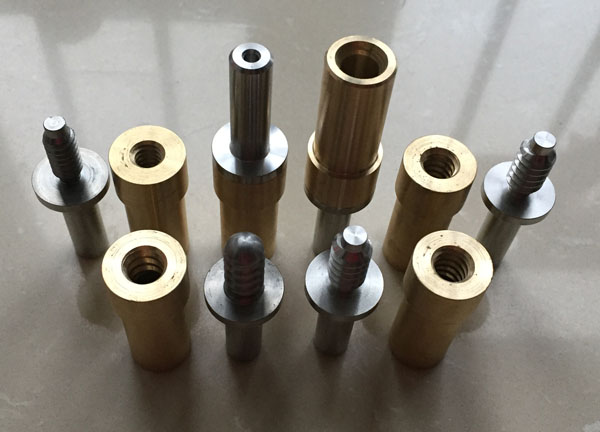

  • 5855.JPG
    50.3 KB · Views: 332

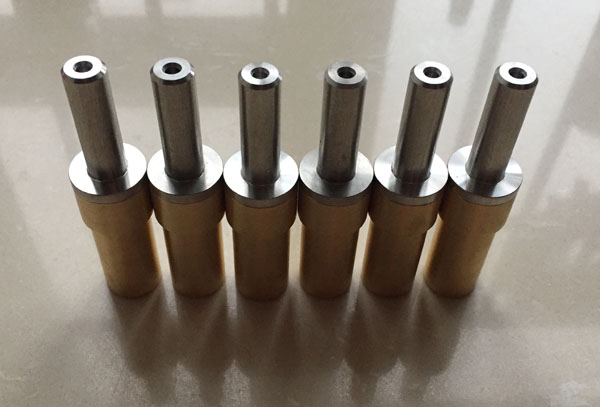

  • 5856.JPG
    45 KB · Views: 334

Michael Webb

AzB Silver Member
Silver Member
Web site works fine. On the 5/16x14 and 18. A lot of the joints using them are piloted. You may want to consider that next time you do a run. Say .540 i.d.x .200 deep.


metalware10

AzB Silver Member
Silver Member
Web site works fine. On the 5/16x14 and 18. A lot of the joints using them are piloted. You may want to consider that next time you do a run. Say .540 i.d.x .200 deep.

Thanks for comments, Sir.

The pilot you mean a concave groove on the male pin, right? Which allow the female insert enter I guess.

I thought about it before making. If need a 0.54”ID x 0.2” deep groove, the thread hard to make in one Stainless steel bar with this groove. Then, I need make a separate pin and glue it with a ss arbor. It may affect center issue.
