Gold crown 1 assembly question

Hinekanman

AzB Silver Member
Silver Member

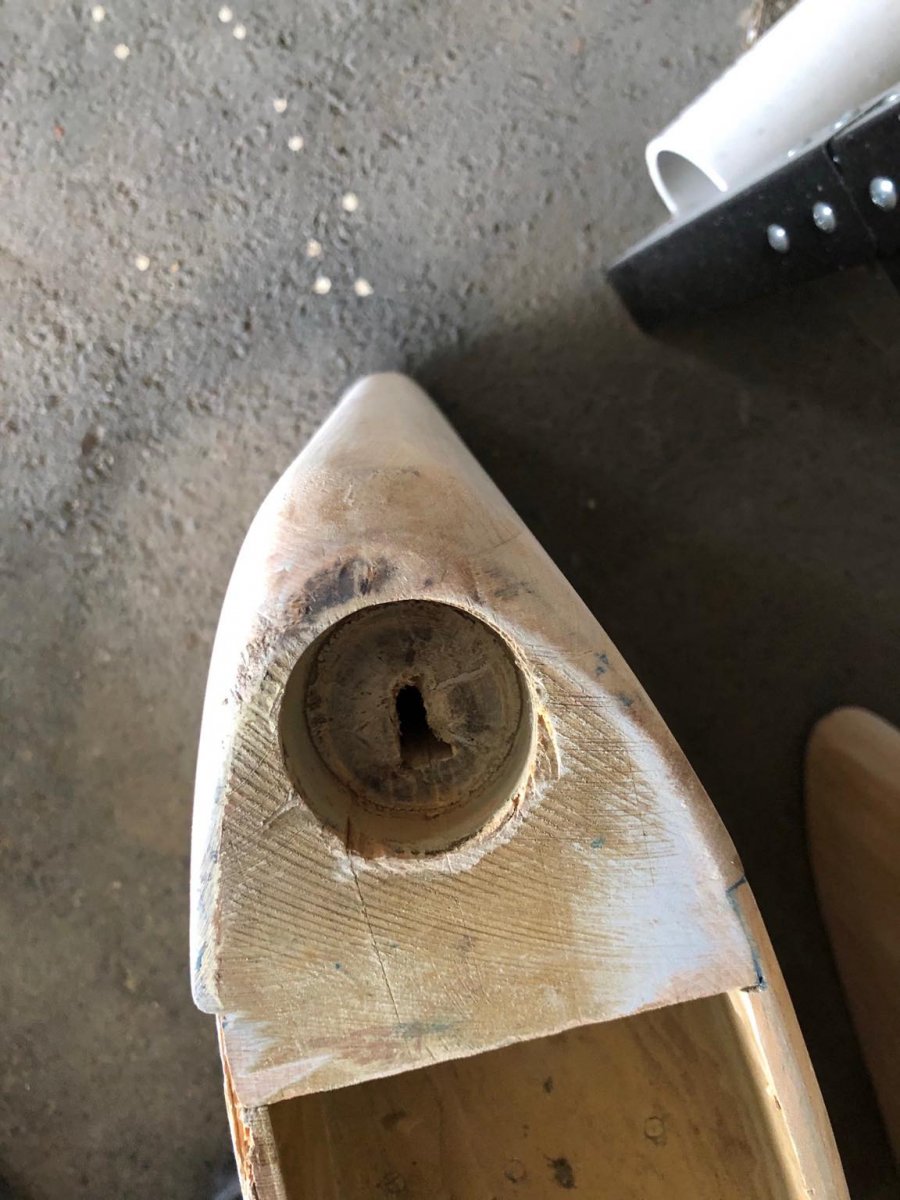

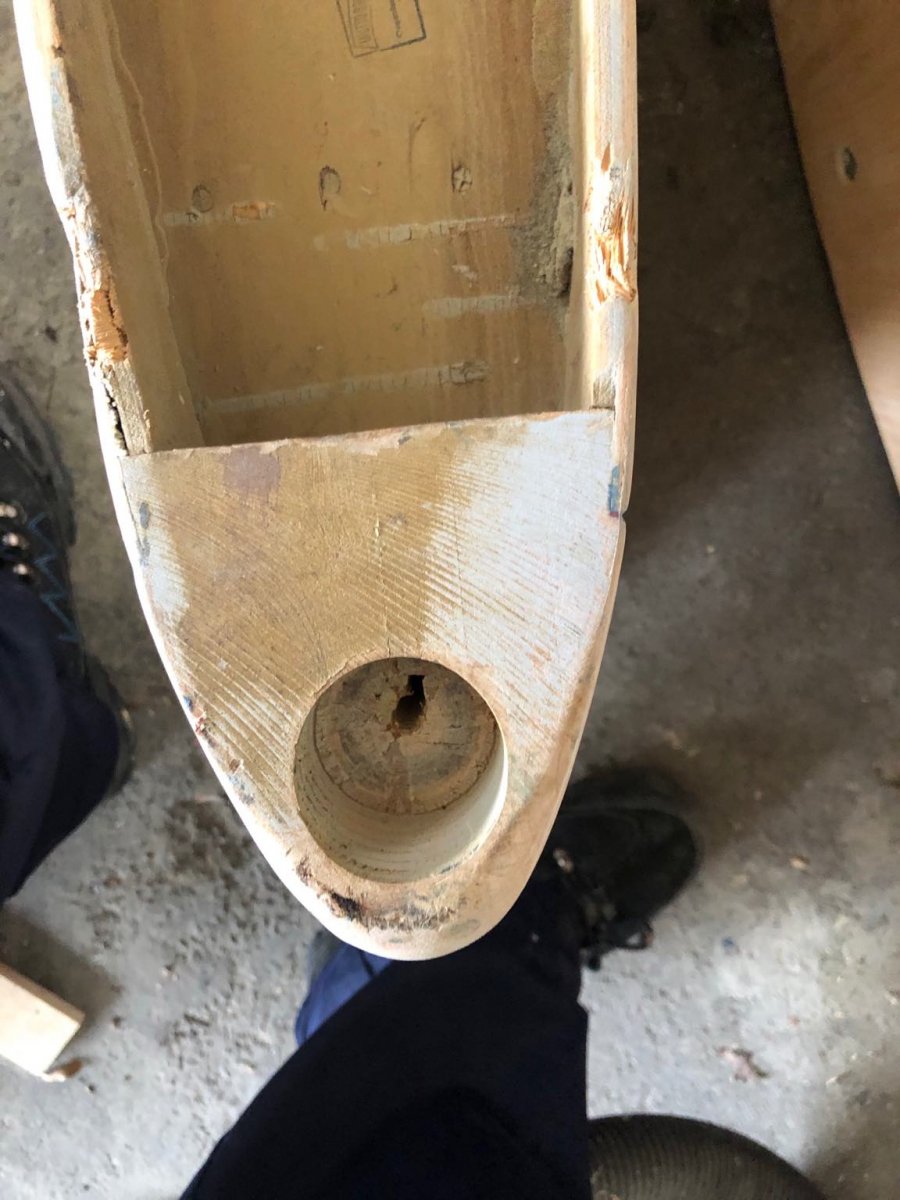

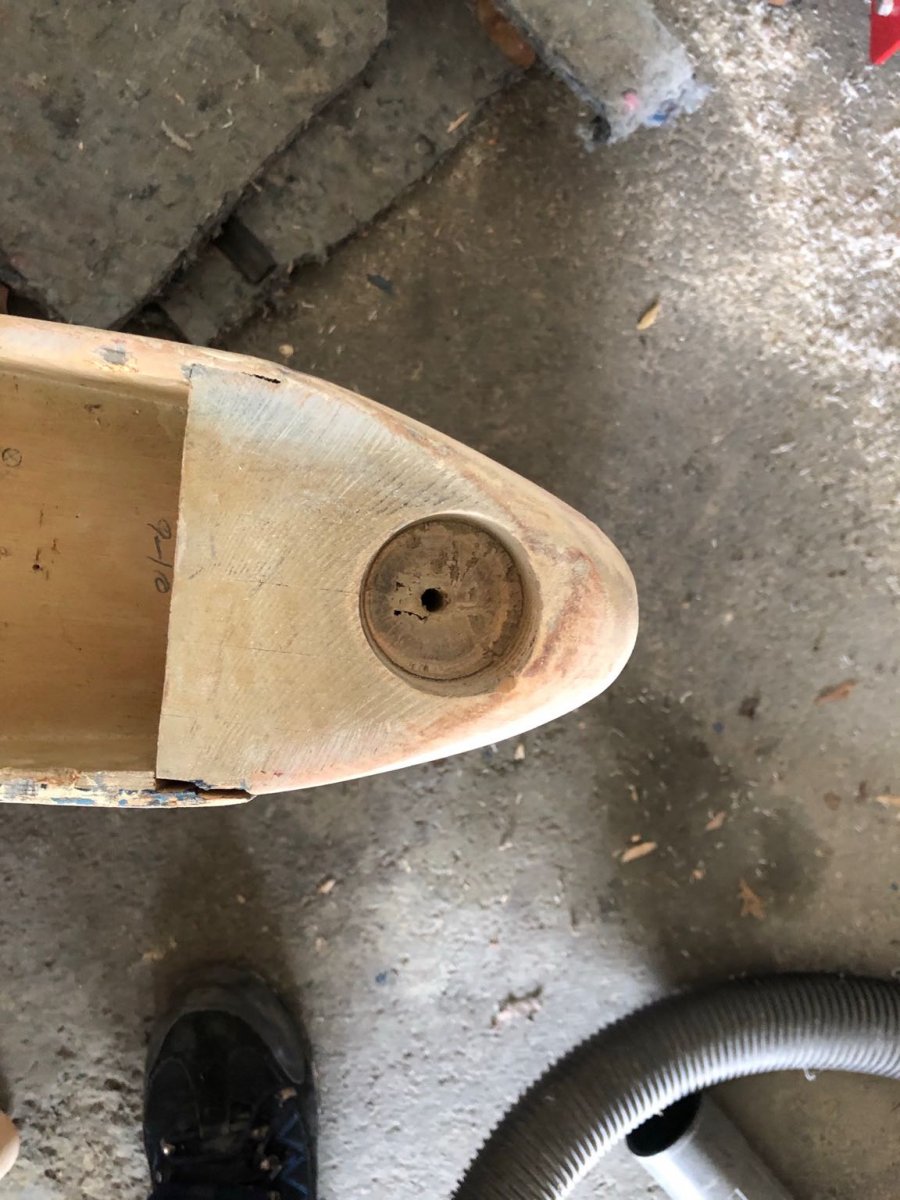

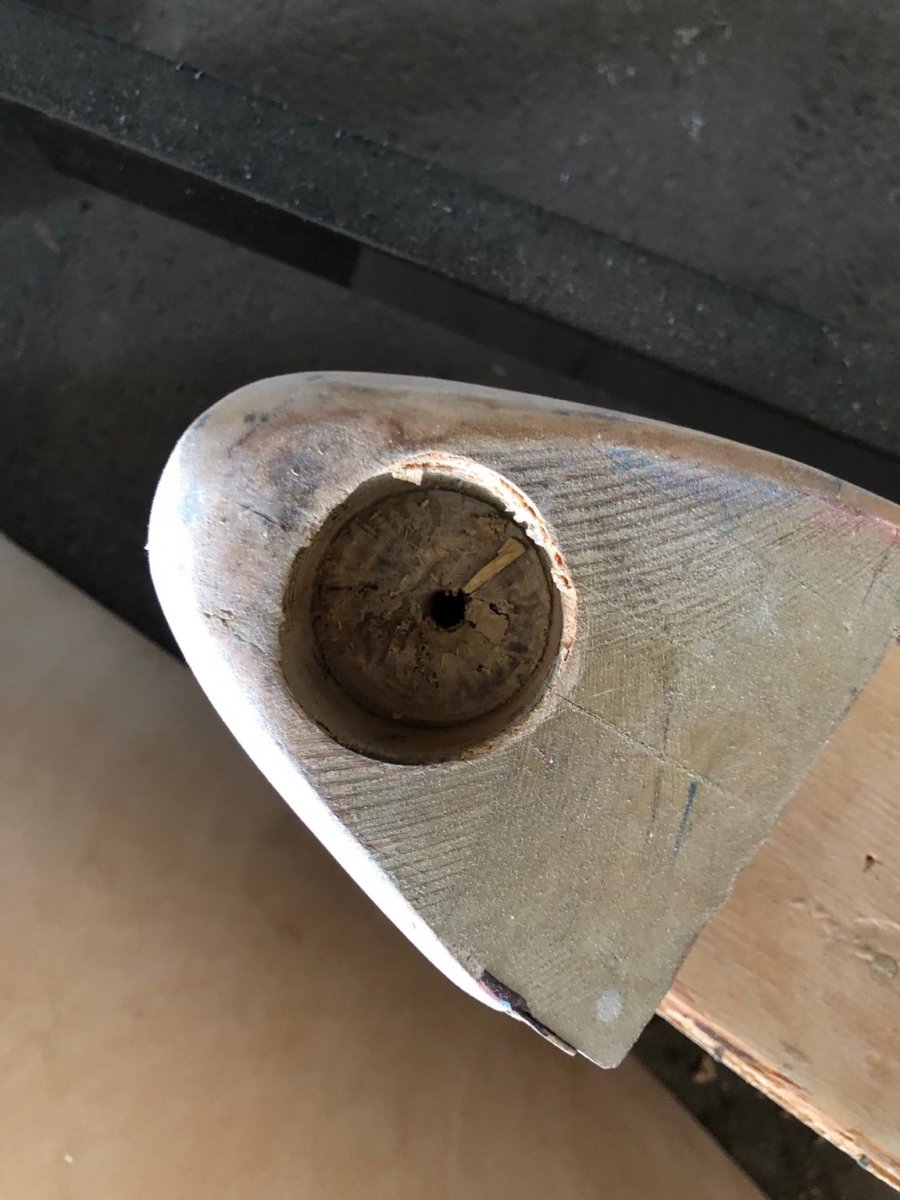

So I didn’t receive anything to attach the legs. I hear it’s a screw. With some holes being not perfect, is there anything I can do?



Sent from my iPhone using AzBilliards Forums


lgherb

Registered

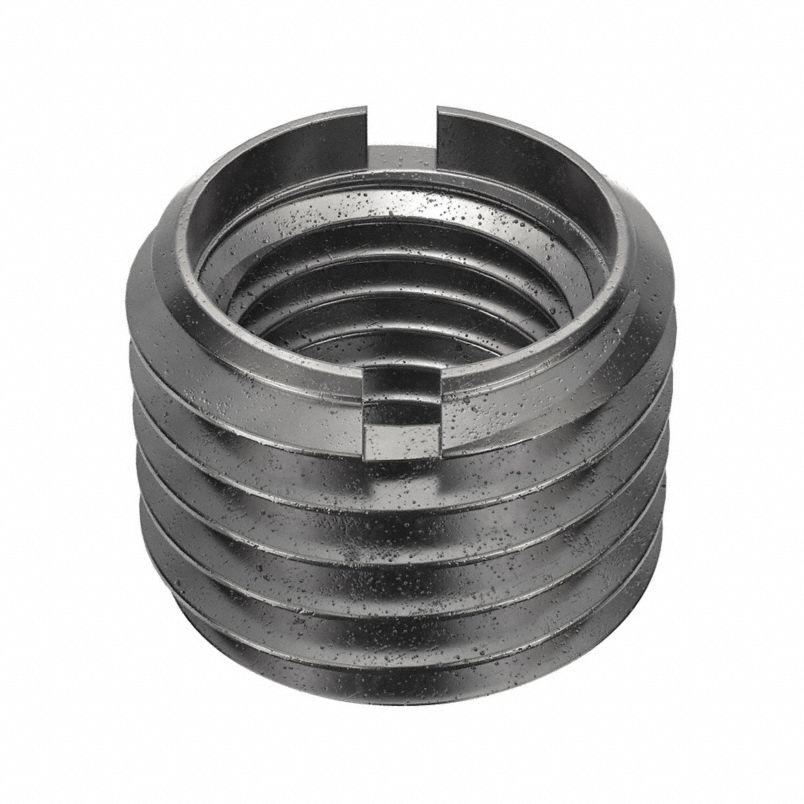

I'm not a mechanic, but could some kind of threaded insert work (if they are stout enough to handle the thread size and load)?



bradsh98

Bradshaw Billiard Service
Gold Member
Silver Member

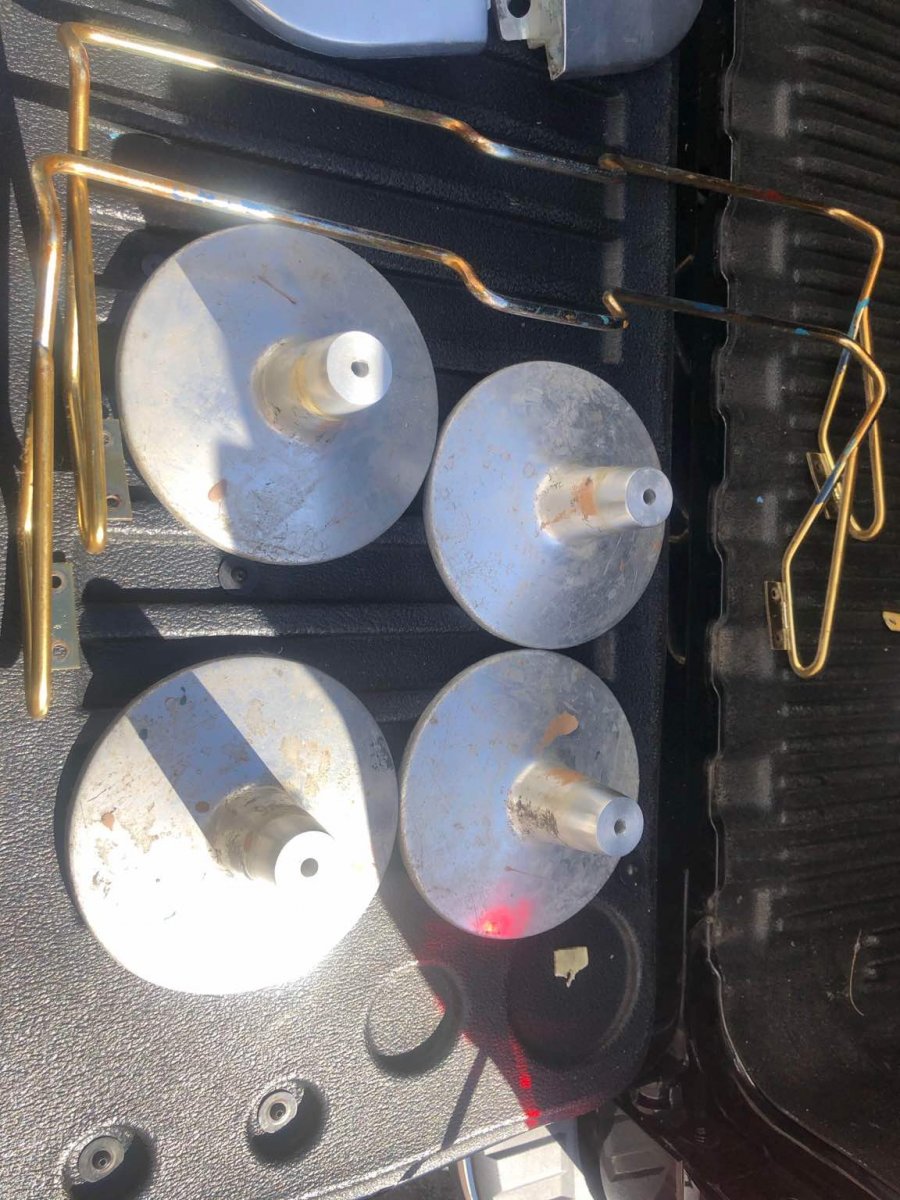

I would buy replacement feet w/ t nuts and make them work properly! just my $0.02 :)

TFT
I like this idea, but it can be a bit costly.. On the other hand, if you can find someone to machine the components, it's not horrible.

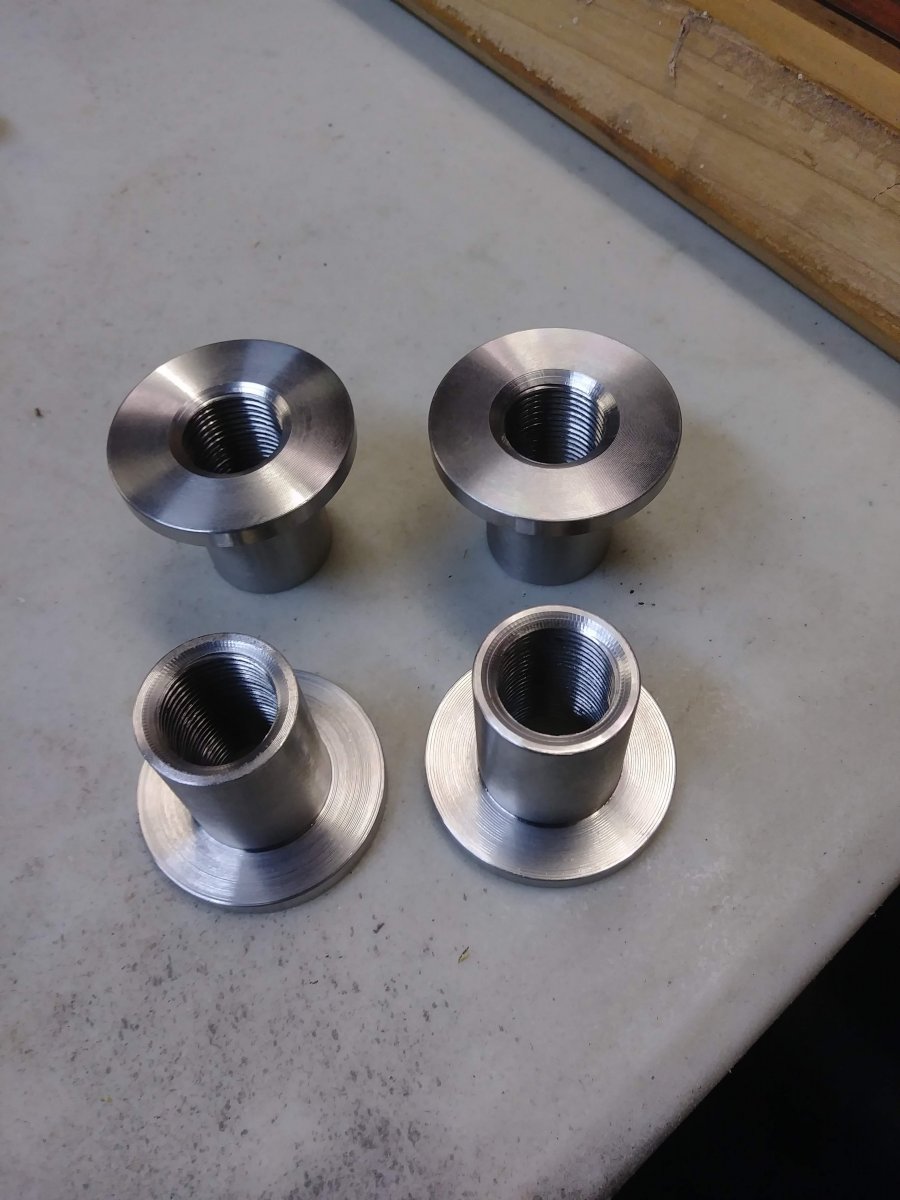

I made these a few years back:


You can also drill and tap the feet, and buy some 3/4-16 threaded rod and jam nuts. It's still not all that cheap, but it is cheaper than buying a replacement set.

Alternatively, you can drill and tap the current feet, and use a smaller thread, with a more common size T-nut. However, it won't have the strength of the 3/4".

I might recommend:
1/2" T-Nut
1/2-13 x 3" Threaded Rod
1/2-13 Black Oxide Nuts
