Gold Crown 3 restore

gazman100

gazman100

Brunswick Gold Crowns - Qld Australia
Silver Member

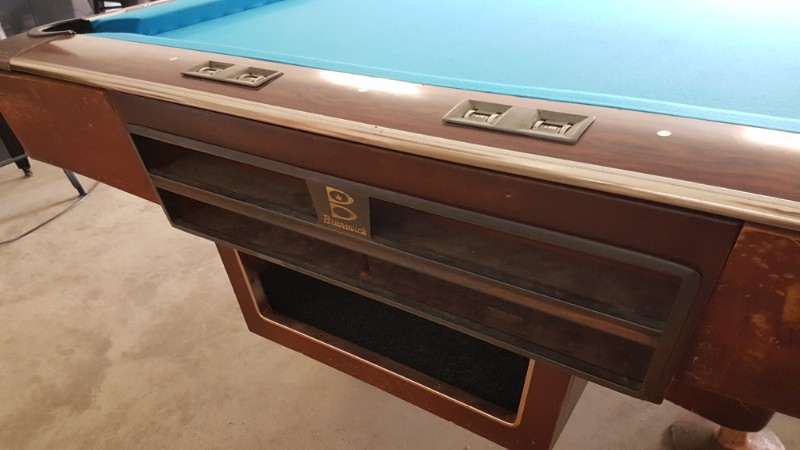

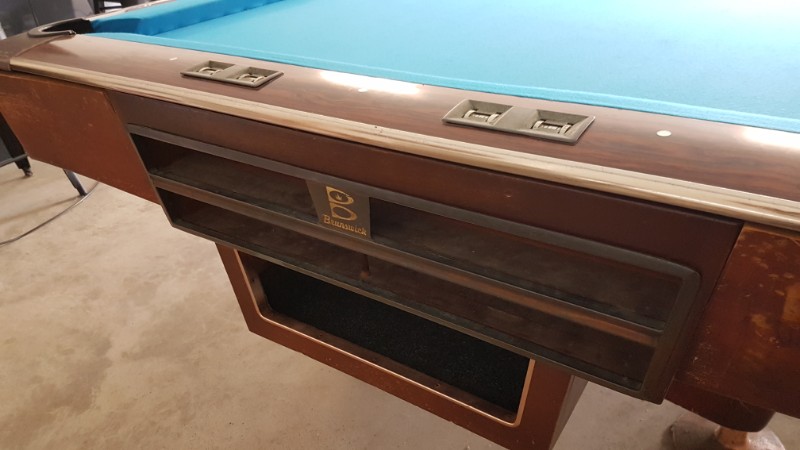

I purchased this Gold Crown 3 from someone I knew.

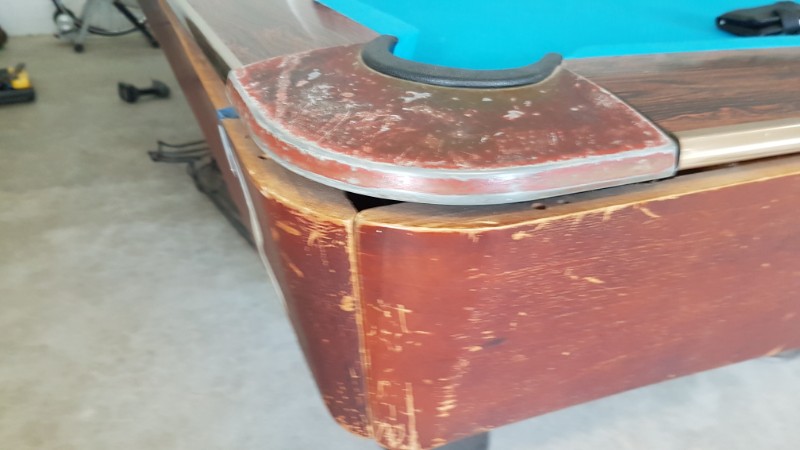

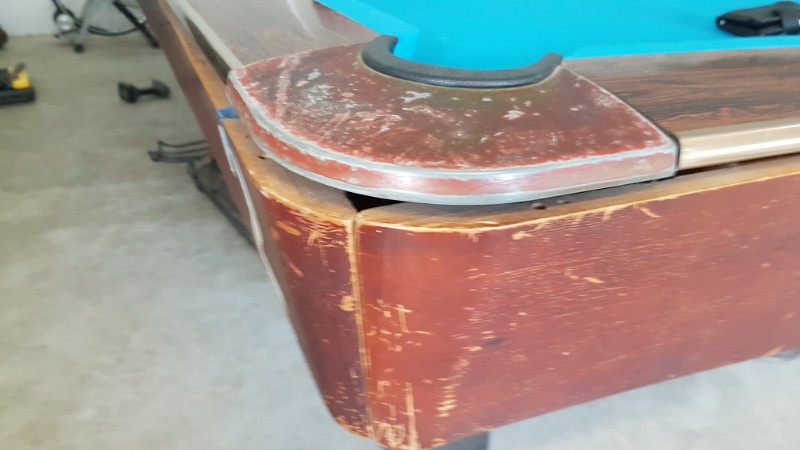

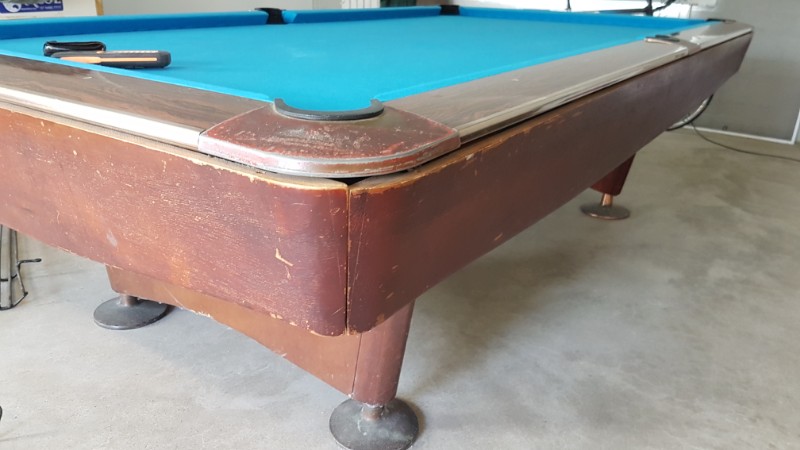

It's in rough shape with incorrect skirts which had a 10mm gap all around and the corners would bow out as they were too long.
I believe the skirts were of a GC4 maybe someone can make a comment
about the skirts


Skirt bolt going through the laminate.

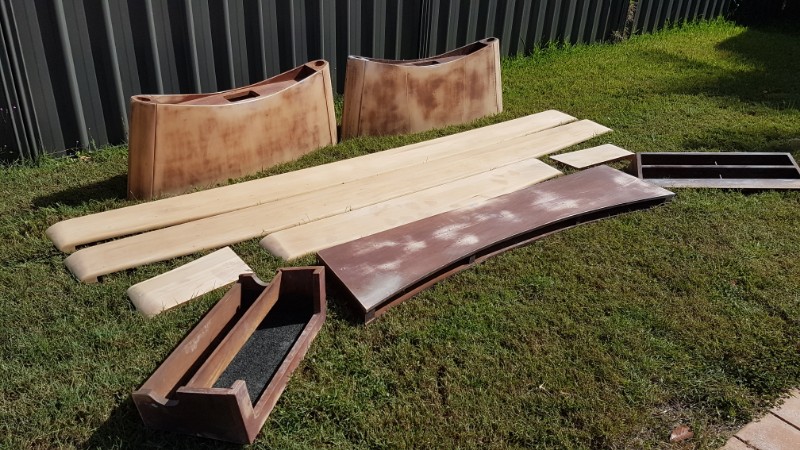

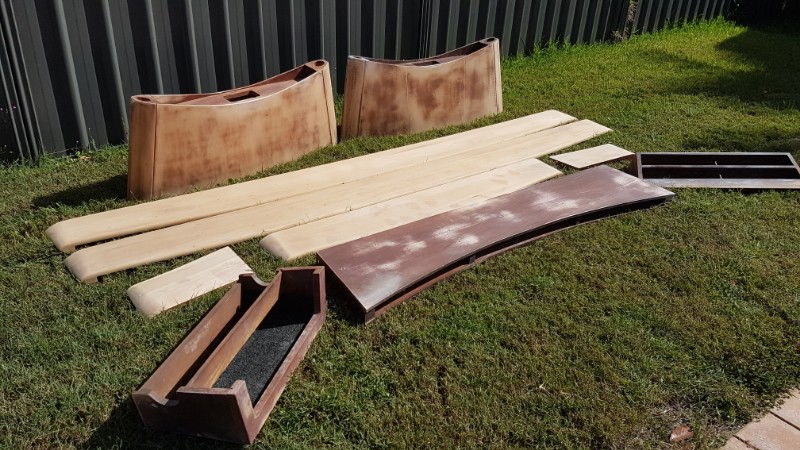

All panels were stripped down and repaired

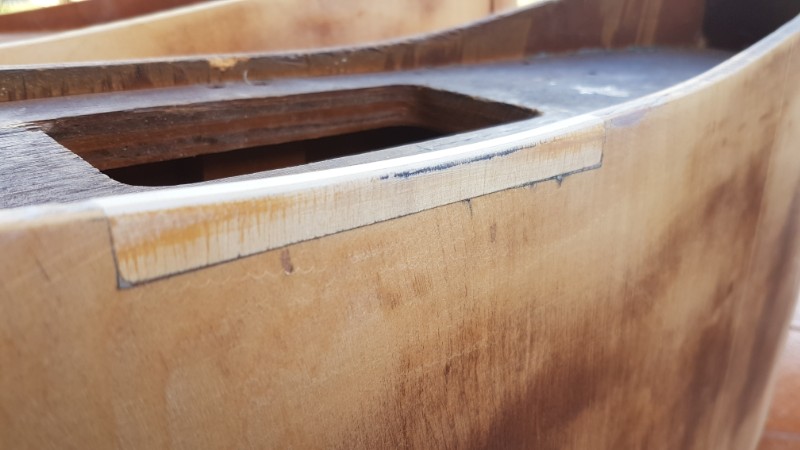

Someone had lifted up the table from the leg support and damaged the plywood.
I cut out the damage and glued in a new section.
I had to do 3 of these repairs to the leg supports.

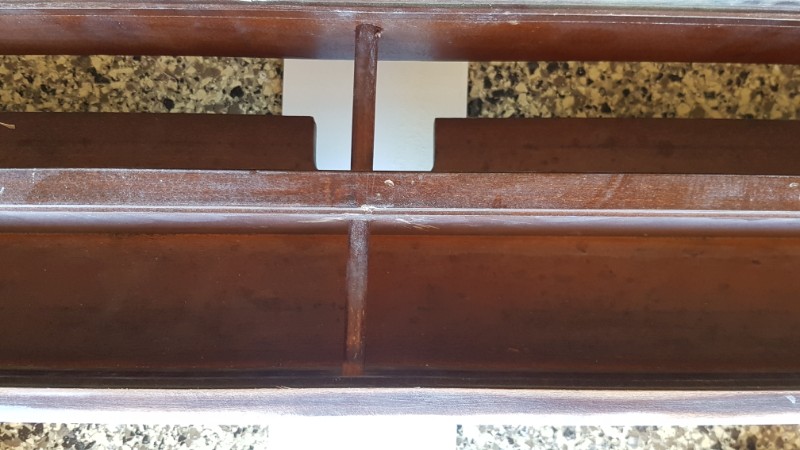

You can see here that Brunswick got the vertical dowel installed crooked

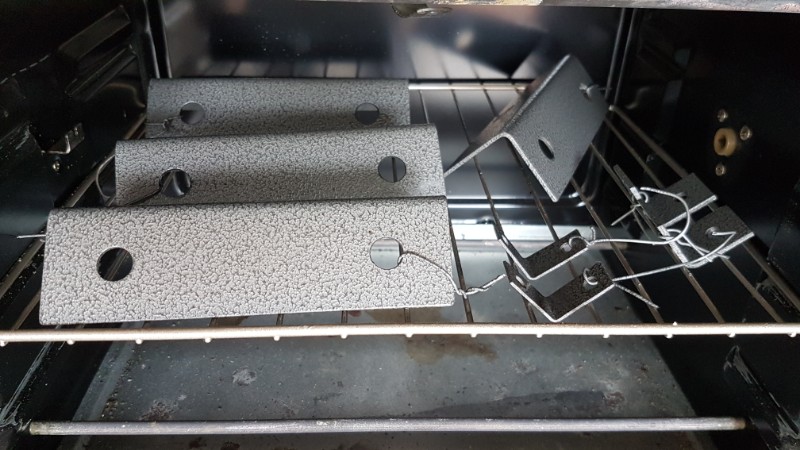

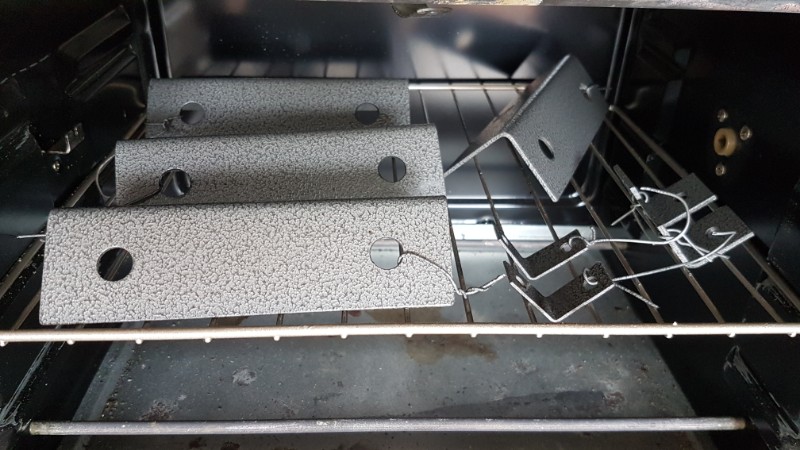

I power coated all of the brackets

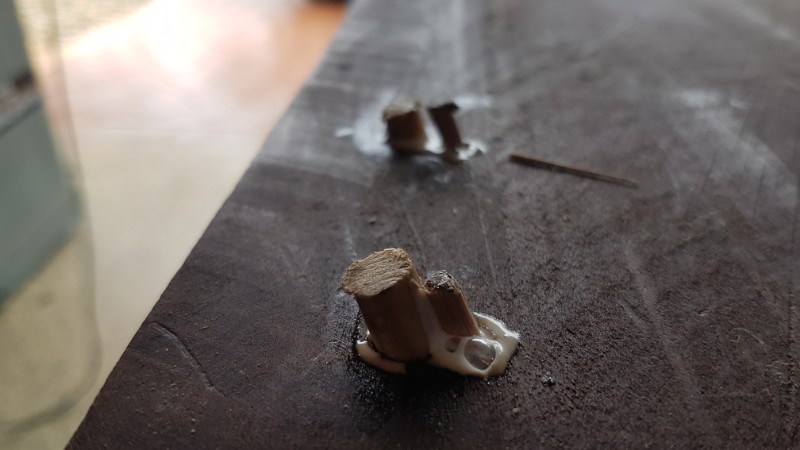

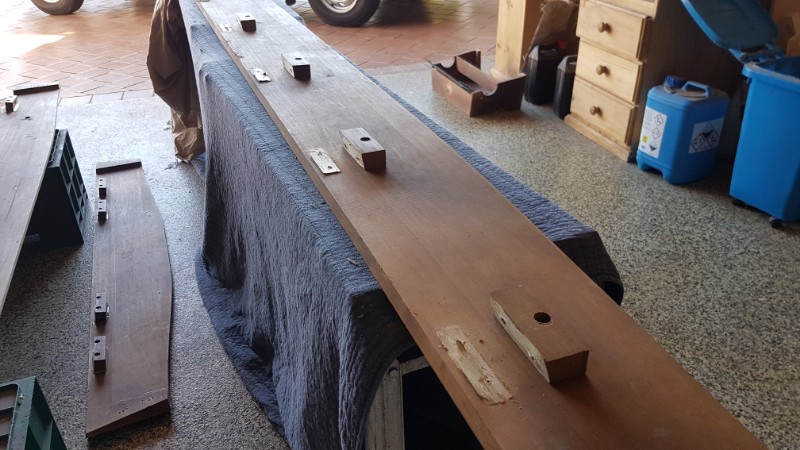

There were multiple slate holes which were filled with dowel and glue

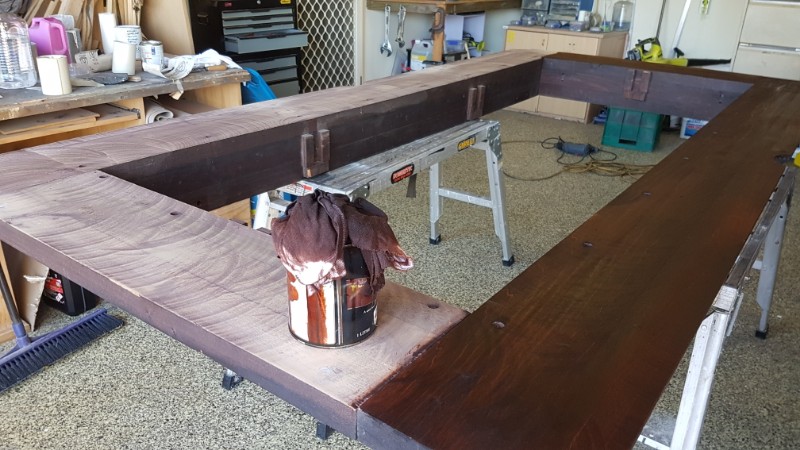

The slate frame was sanded and restrained

gazman100 said:
I purchased this Gold Crown 3 from someone I knew.

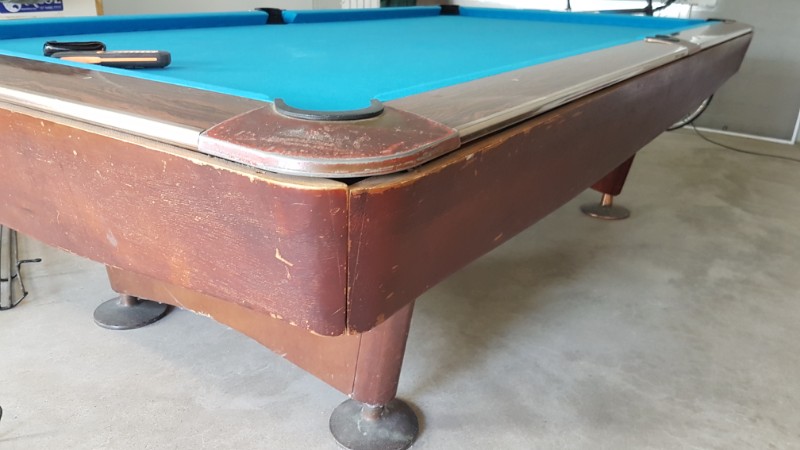

It's in rough shape with incorrect skirts which had a 10mm gap all around and the corners would bow out as they were too long.
I believe the skirts were of a GC4 maybe someone can make a comment View attachment 608641about the skirts
View attachment 608634

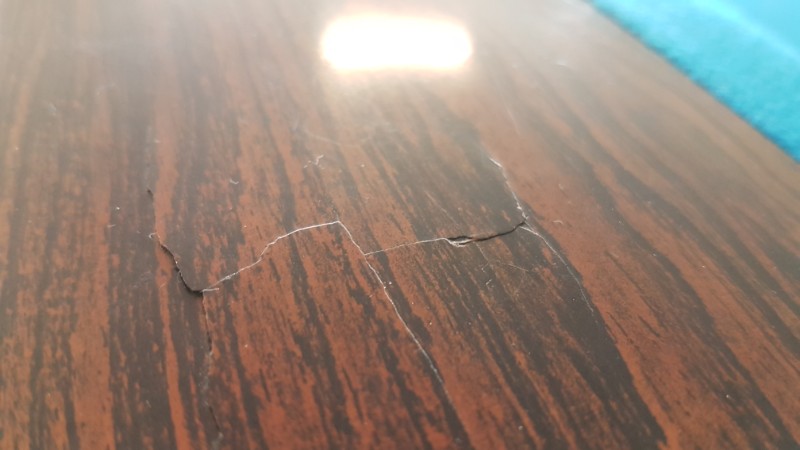

Skirt bolt going through the laminate.
View attachment 608642
View attachment 608644

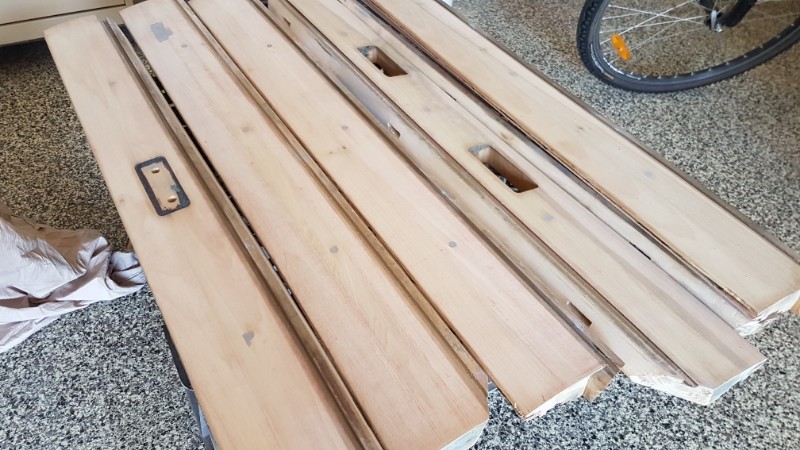

All panels were stripped down and repaired
View attachment 608645

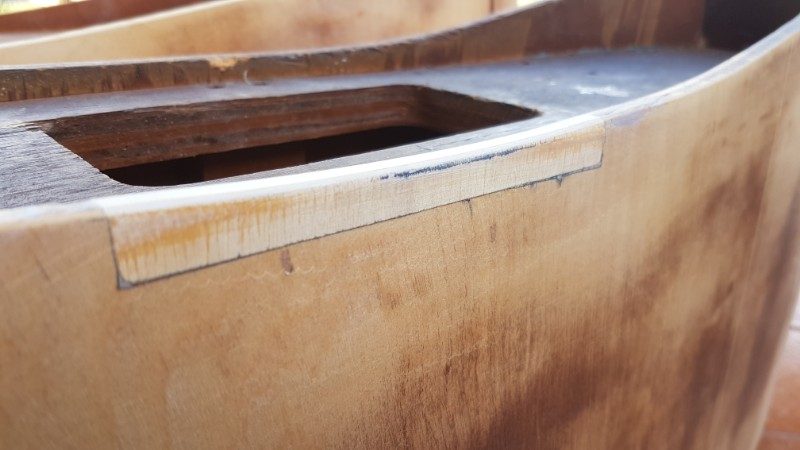

Someone had lifted up the table from the leg support and damaged the plywood.
I cut out the damage and glued in a new section.
I had to do 3 of these repairs to the leg supports.
View attachment 608646

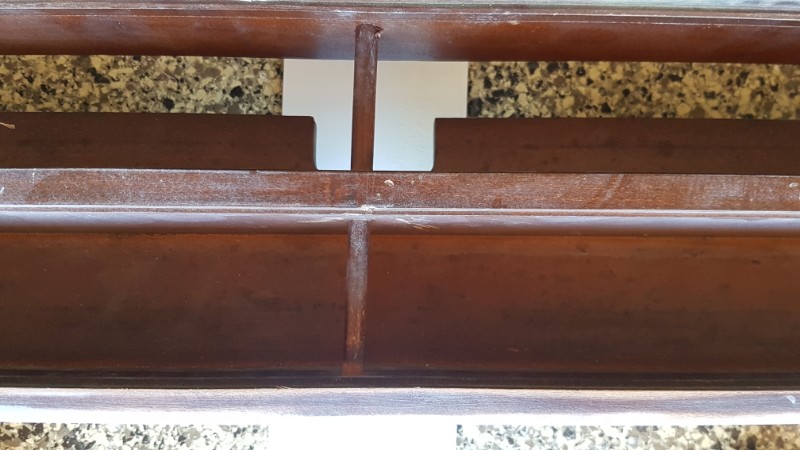

You can see here that Brunswick got the vertical dowel installed crooked
View attachment 608647
I power coated all of the brackets
View attachment 608648

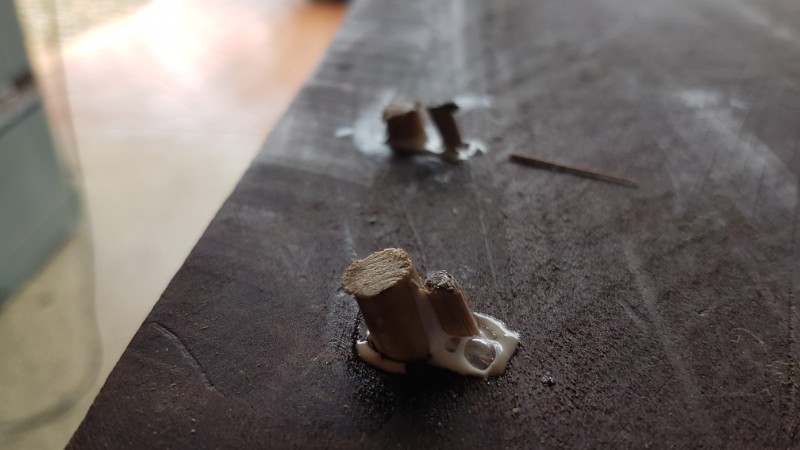

There were multiple slate holes which were filled with dowel and glue
View attachment 608649

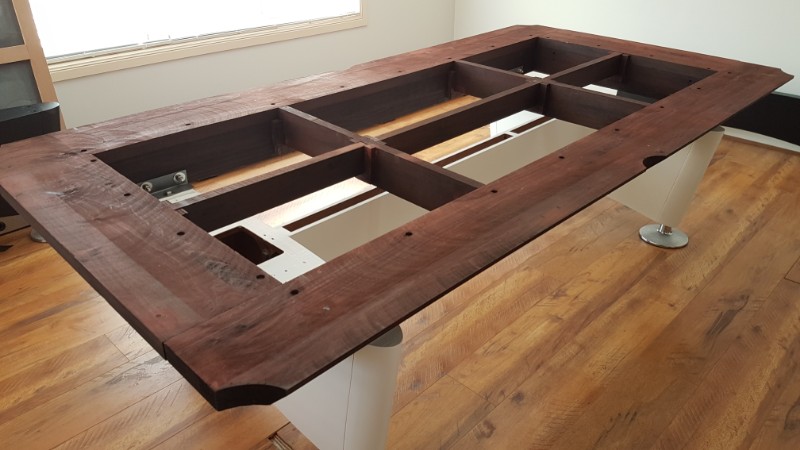

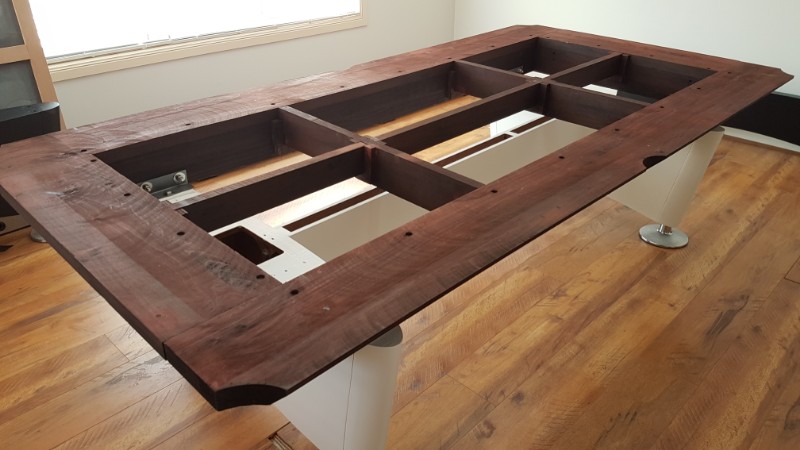

The slate frame was sanded and restrained
View attachment 608650
Click to expand...

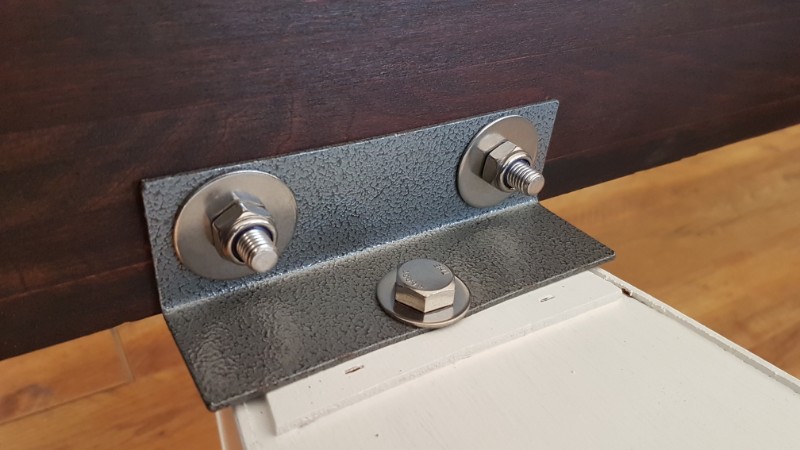

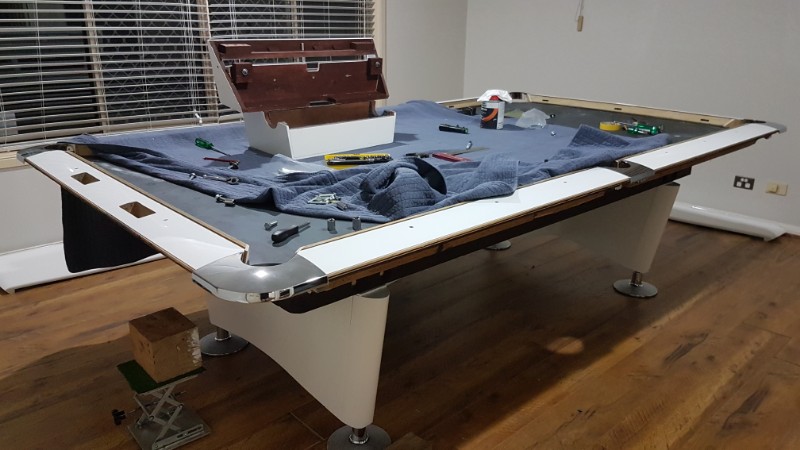

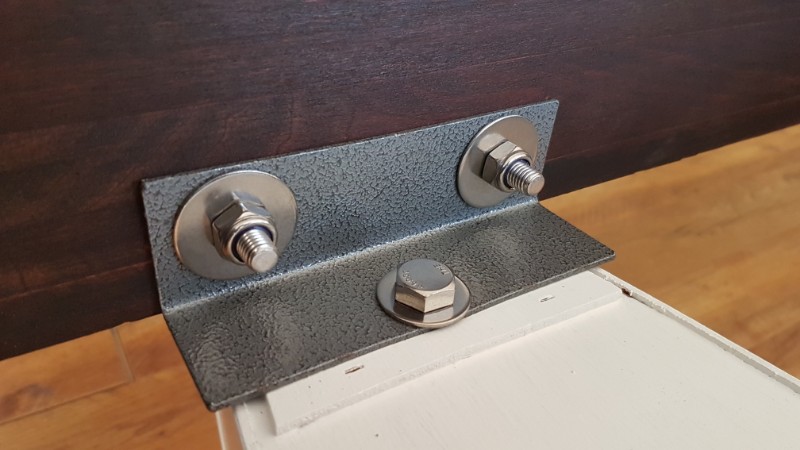

The brackets were fitted with stainless steel bolts and nylon nuts



The skirt brackets were removed

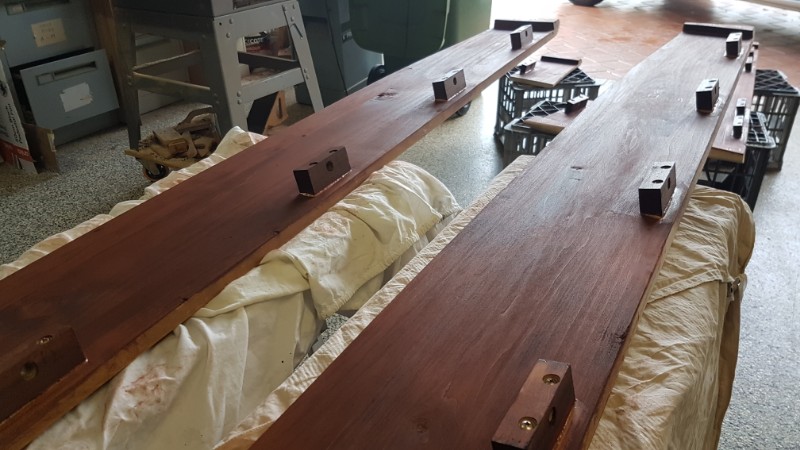

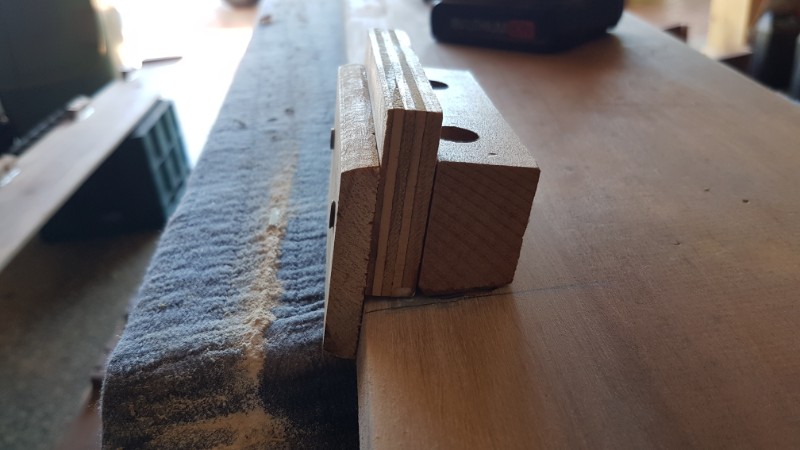

I worked out the correct skirt height, and made a jig, then reattached all of the brackets



The skirts now sit tight against the rails and the corners sit nice and flush.
I had to do several trial installs to get these just right.

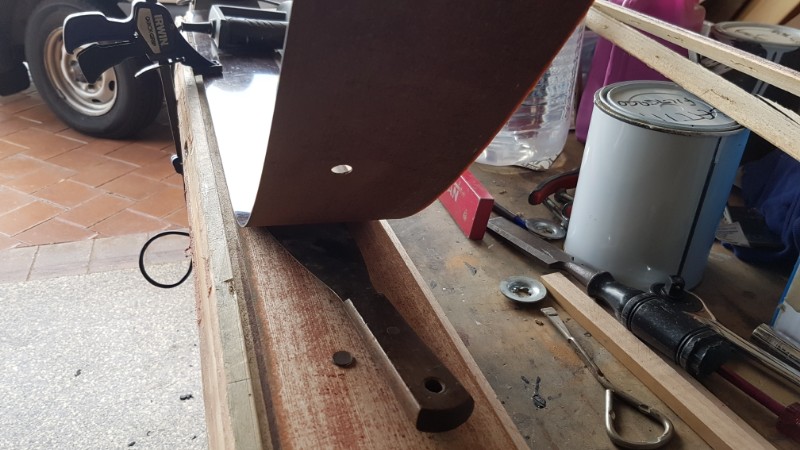

Removing the original laminate was easy using a heat gun and a thin blade

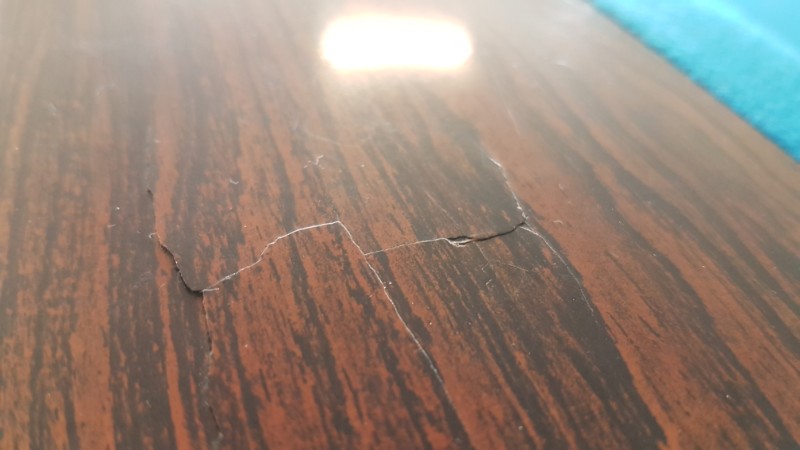

This was the damage caused by the bolt going through the rail

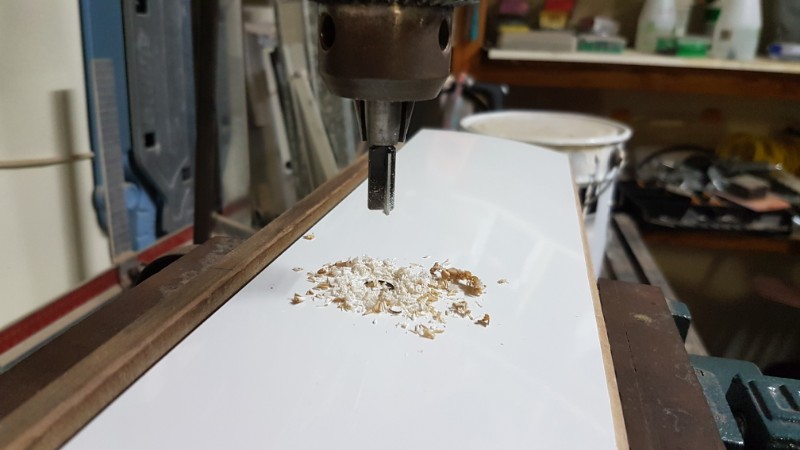

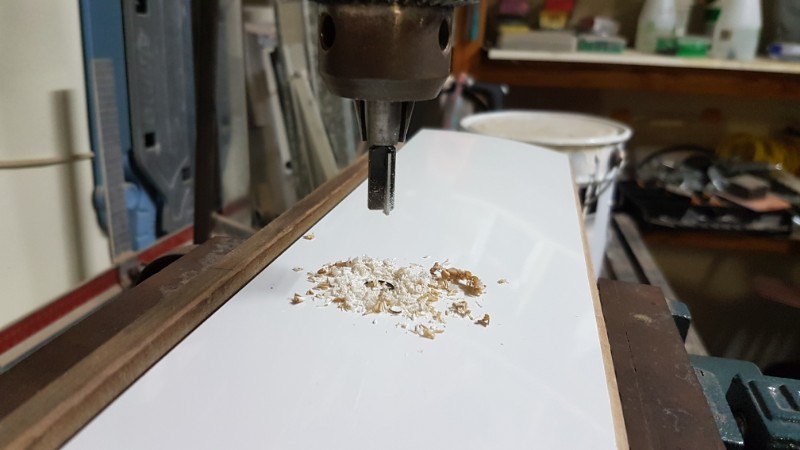

Drilling the rail sights. I always shit myself when I do this

gazman100 said:
The brackets were fitted with stainless steel bolts and nylon nuts
View attachment 608651

View attachment 608653

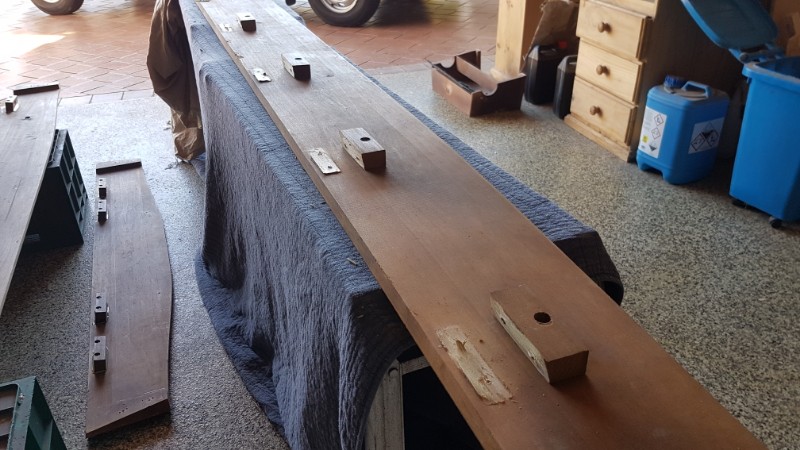

The skirt brackets were removed
View attachment 608654

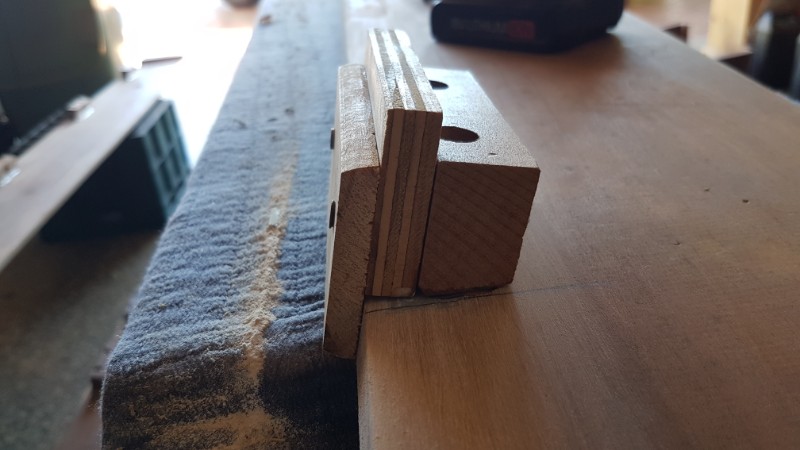

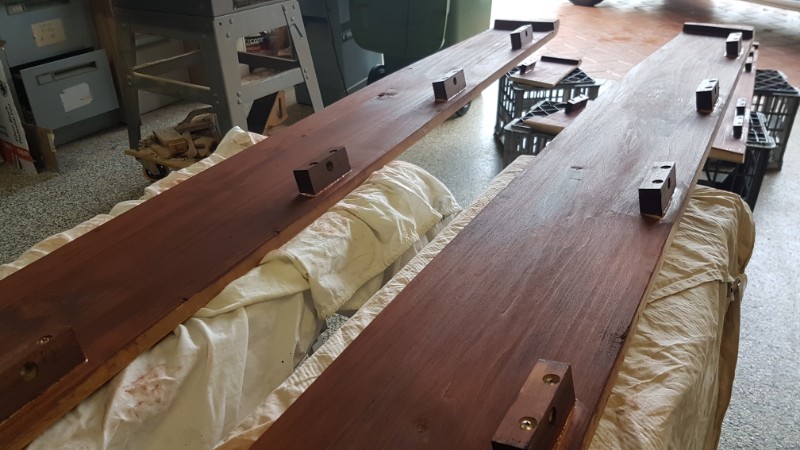

I worked out the correct skirt height, and made a jig, then reattached all of the brackets
View attachment 608655

View attachment 608656

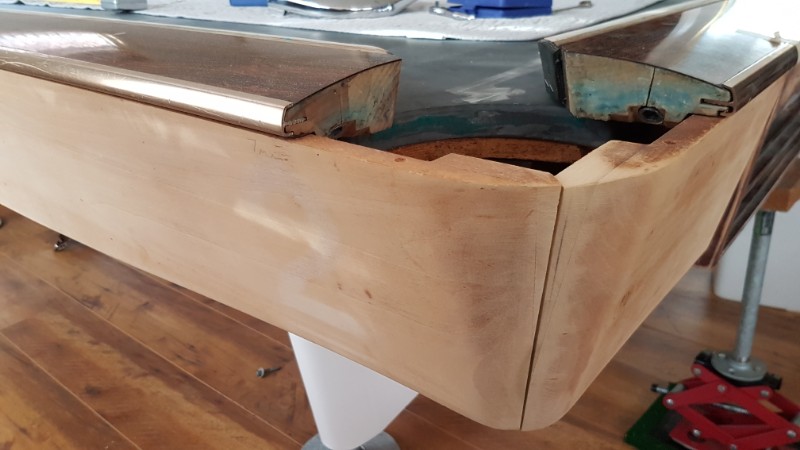

The skirts now sit tight against the rails and the corners sit nice and flush.
I had to do several trial installs to get these just right.
View attachment 608657

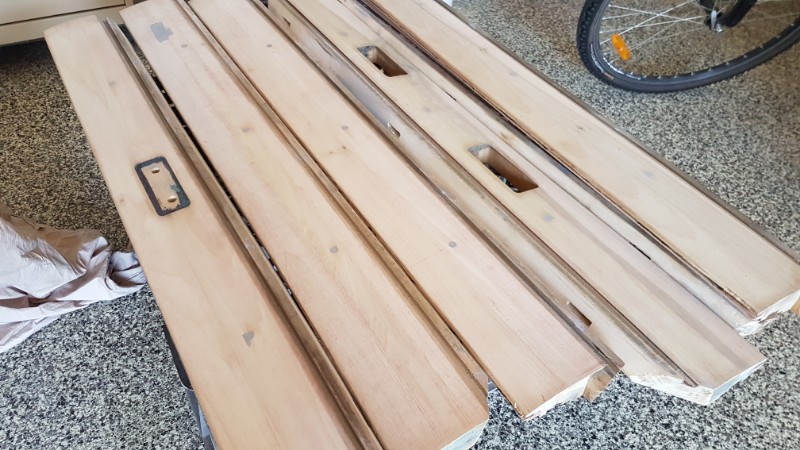

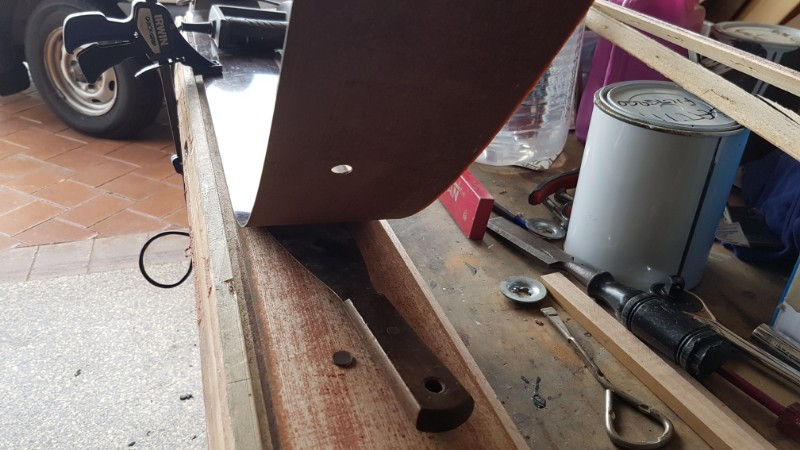

Removing the original laminate was easy using a heat gun and a thin blade
View attachment 608658

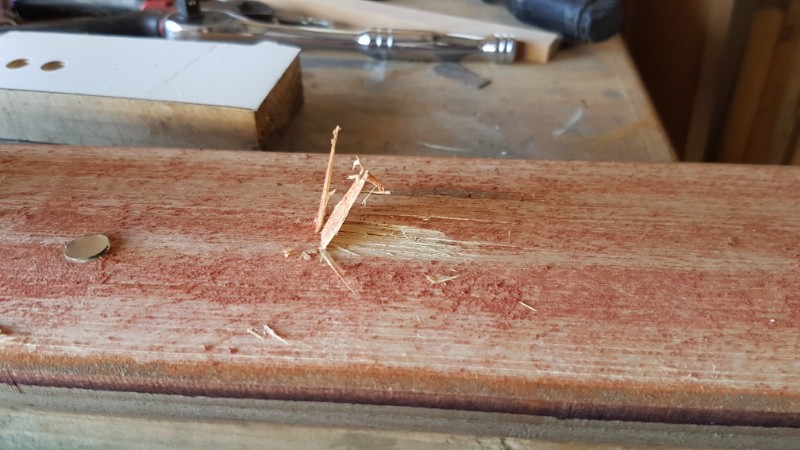

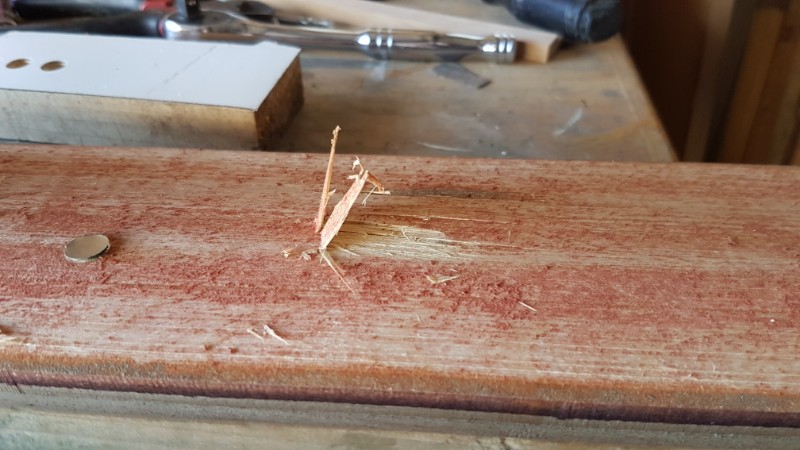

This was the damage caused by the bolt going through the rail
View attachment 608659
View attachment 608660
Drilling the rail sights. I always shit myself when I do this
View attachment 608661
Click to expand...

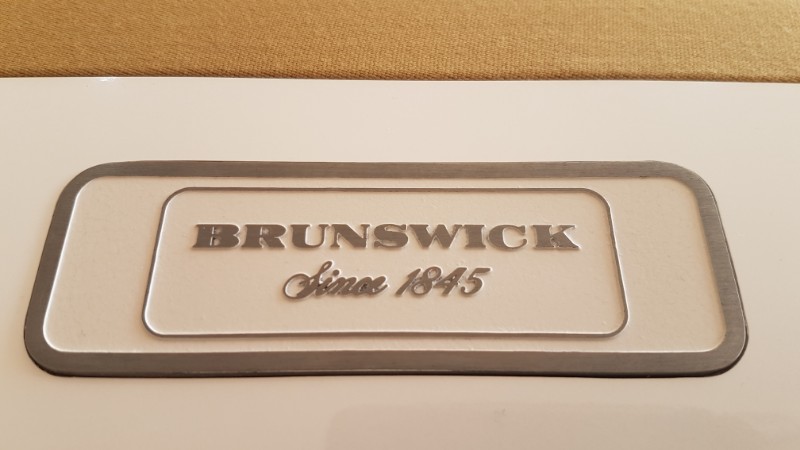

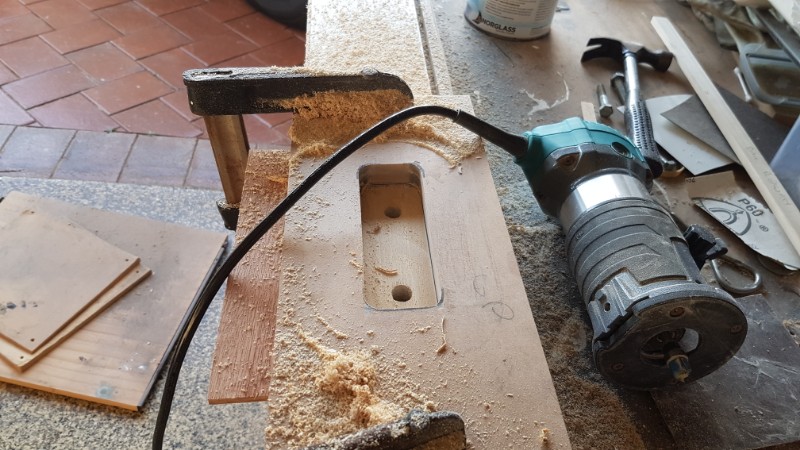

Using a router and a jig to cut out and lower the name plate

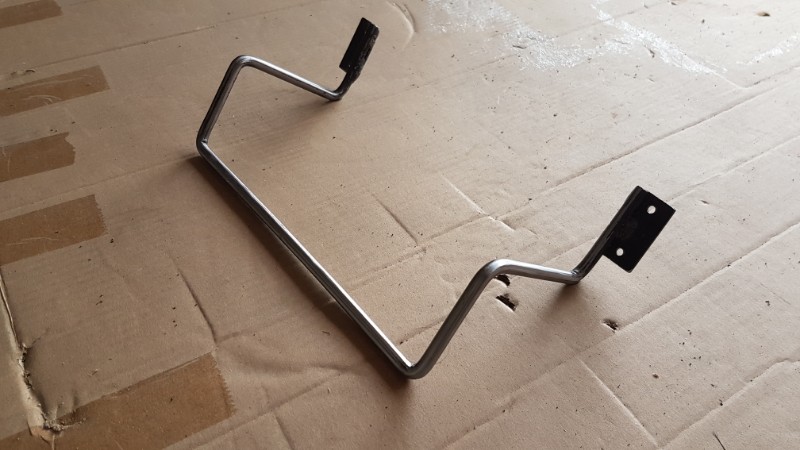

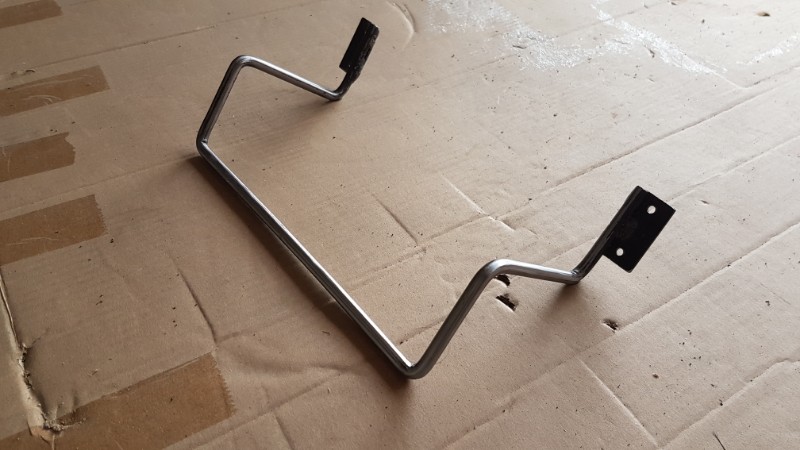

I made the triangle holder bracket out of 8mm round bar and bent it by using a vice.
I'm still waiting to get this back from the chrome plater

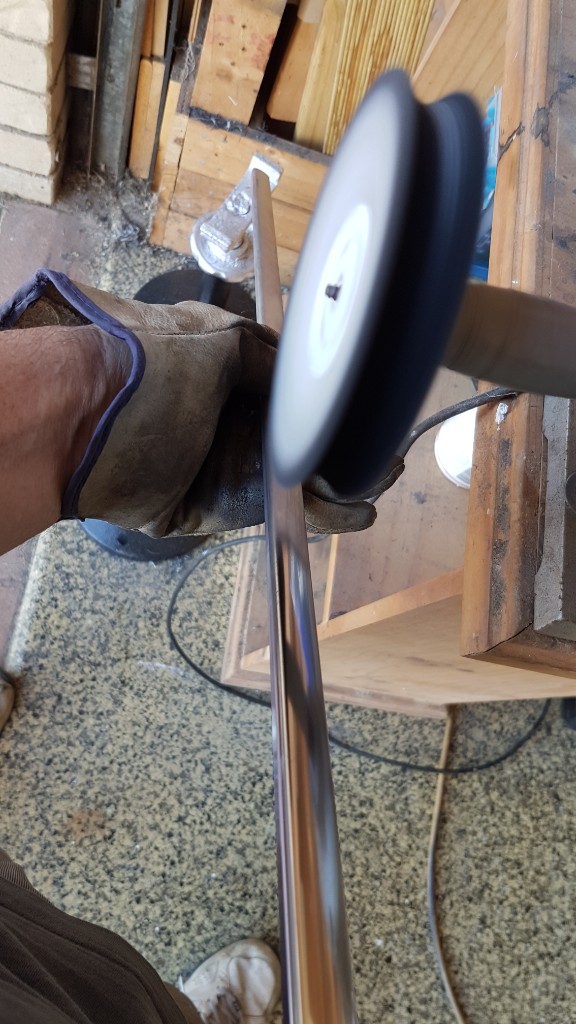

Buffing up the rail trims

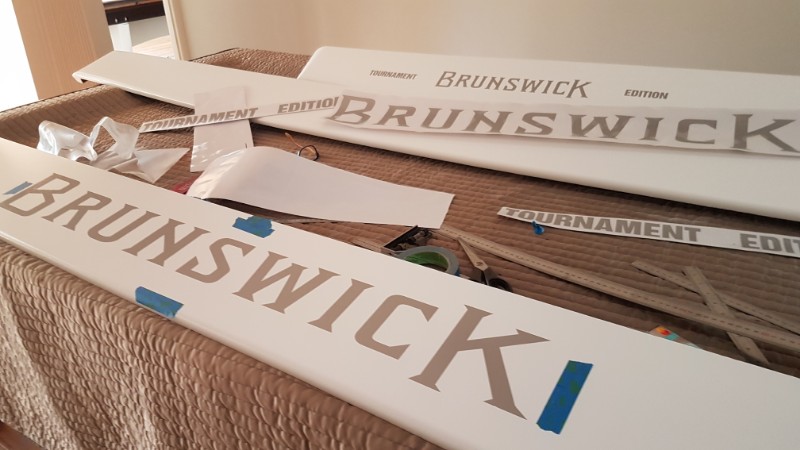

Applying the logo's " decals"

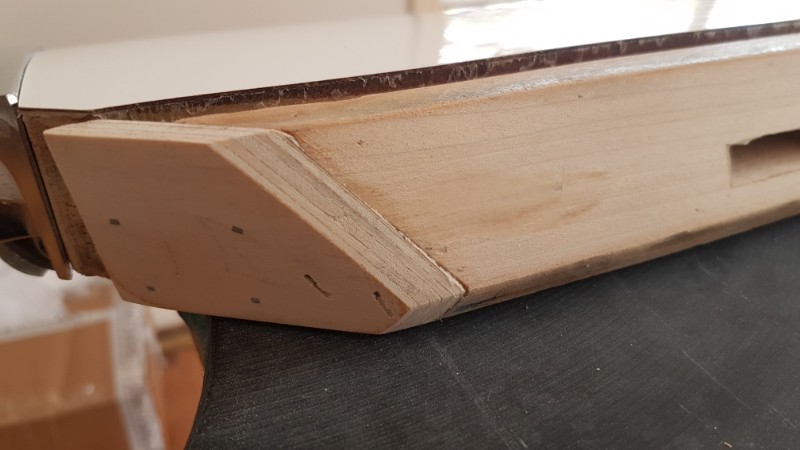

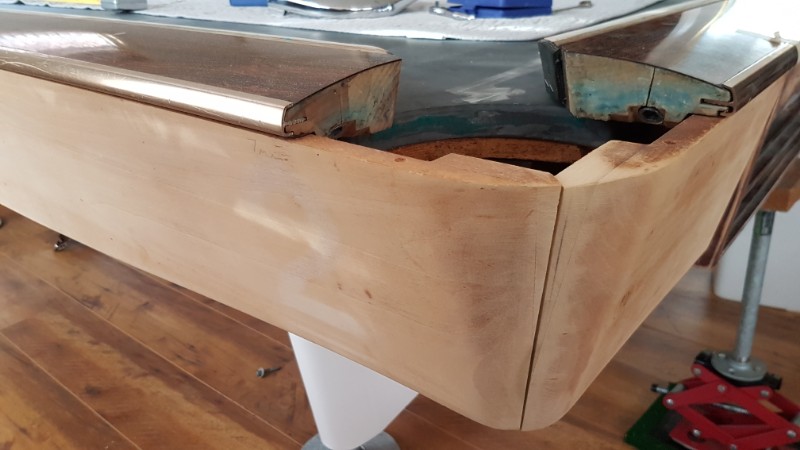

Sub rail extensions glued and pinned
This is the first time I've done these there were lots of angles to consider.
What I did was over size the extension then finished them off by sanding them to the existing sub rail

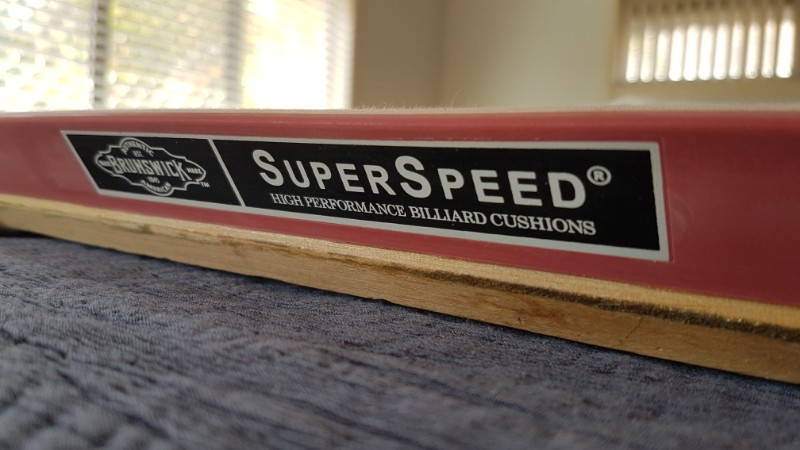

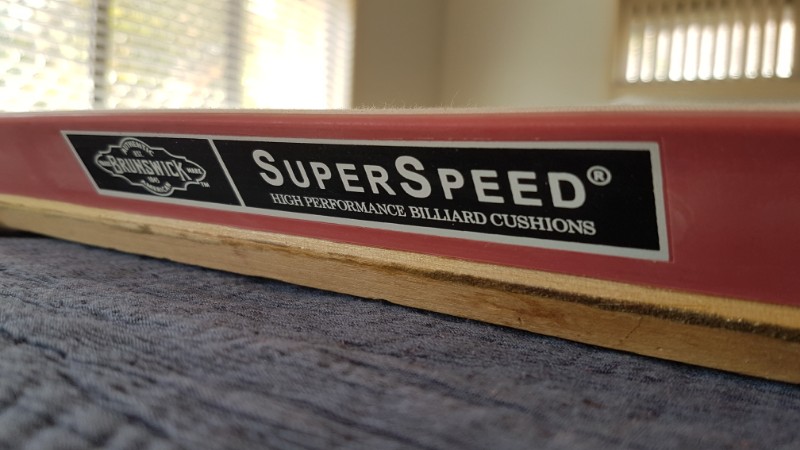

Brunswick rubbers installed

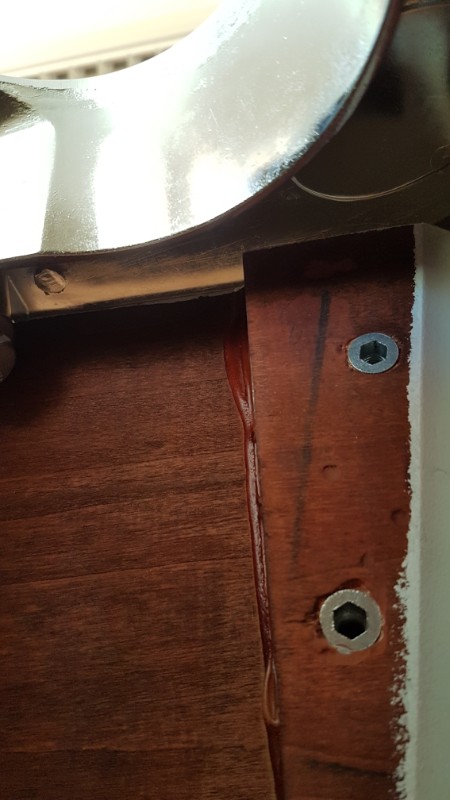

With the skirts I got rid of those crappy bracket screws and installed insert nuts

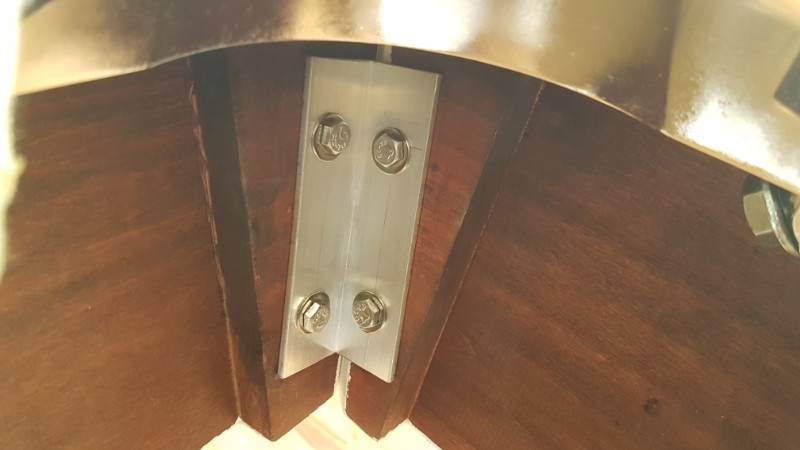

The alloy bracket which now bolt into the insert nuts makes a really nice install and is way stronger

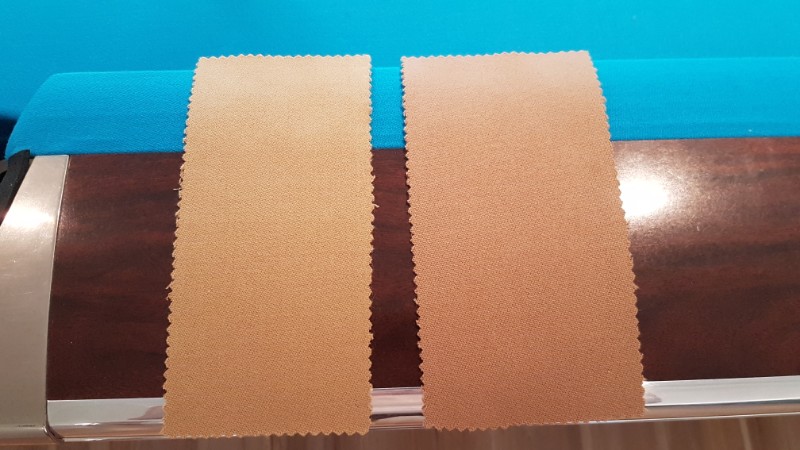

Shout out to Simonis for sending me some cloth samples.
1 sample is in Gold and the other sample is in Camel
I chose the Gold cloth which is on the left

Last edited:
gazman100 said:

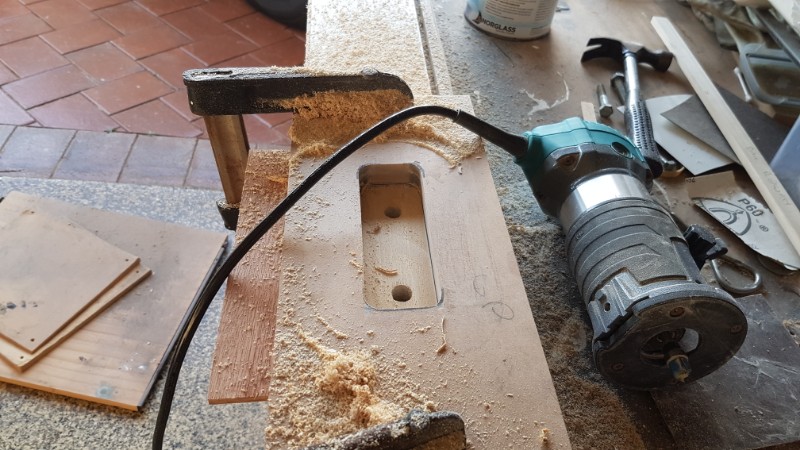

Using a router and a jig to cut out and lower the name plate
View attachment 608663
I made the triangle holder bracket out of 8mm round bar and bent it by using a vice.
I'm still waiting to get this back from the chrome plater
View attachment 608665
View attachment 608666
Buffing up the rail trims
View attachment 608667

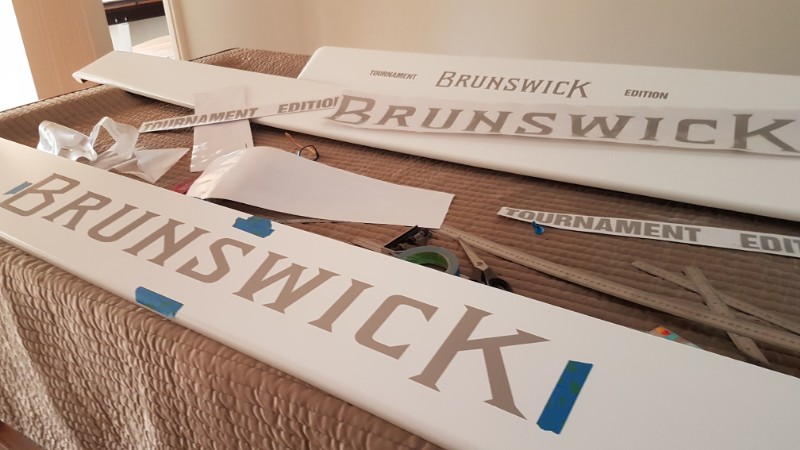

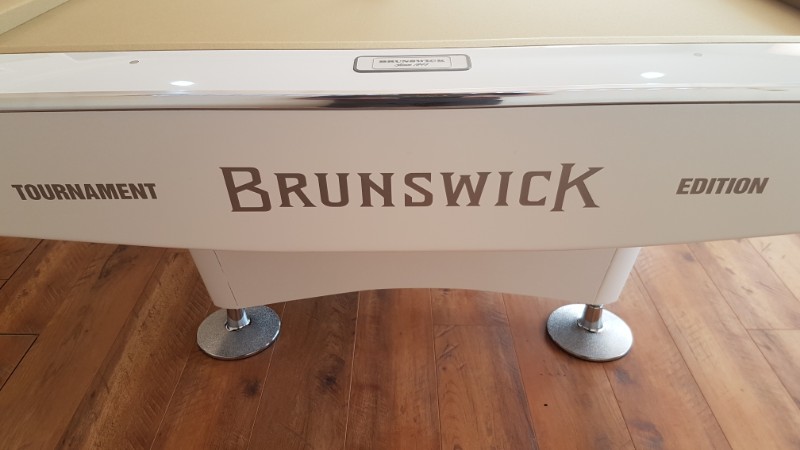

Applying the logo's " decals"
View attachment 608668

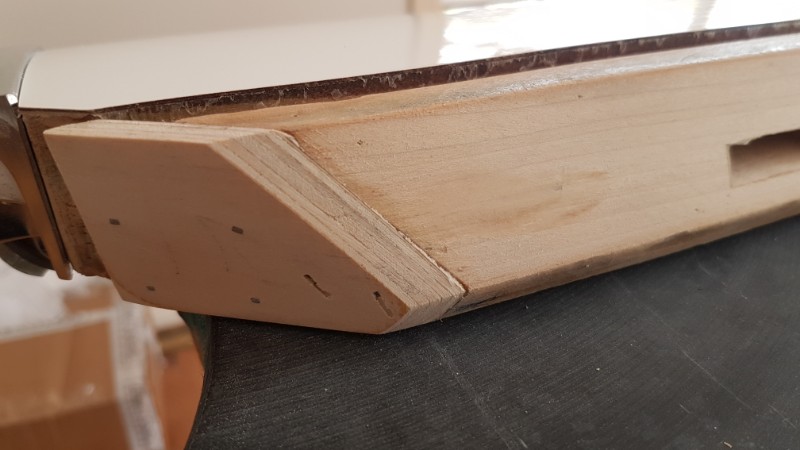

Sub rail extensions glued and pinned
This is the first time I've done these there were lots of angles to consider.
What I did was over size the extension then finished them off
View attachment 608669
Brunswick rubbers installed
View attachment 608670

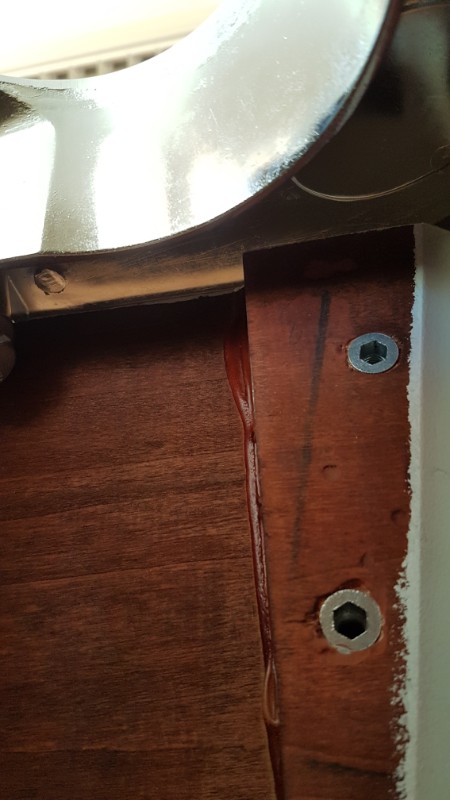

With the skirts I got rid of those crappy bracket screws and installed insert nuts
View attachment 608671

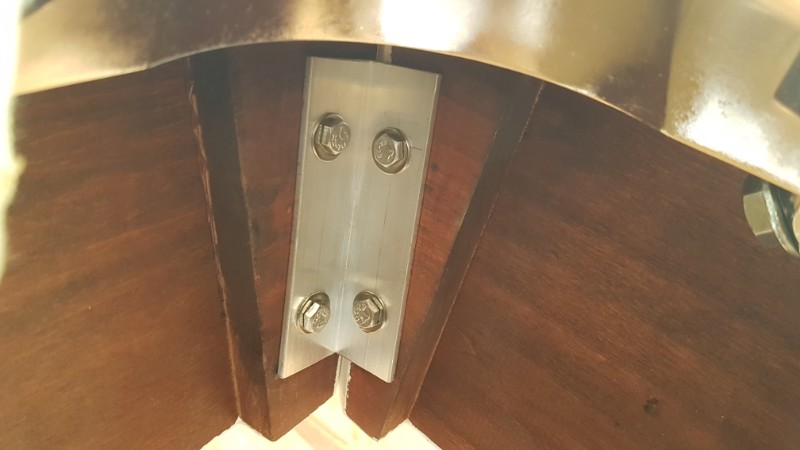

The alloy bracket which now bolt into the insert nuts makes a really nice install and is way stronger

View attachment 608672

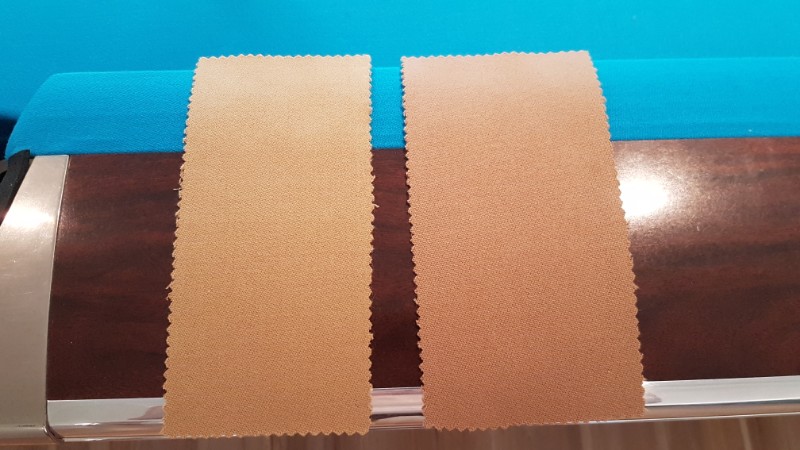

Shout out to Simonis for sending me some cloth samples.
1 sample is in Gold and the other sample is in Camel
I chose the Gold cloth which is on the left
View attachment 608675
Click to expand...

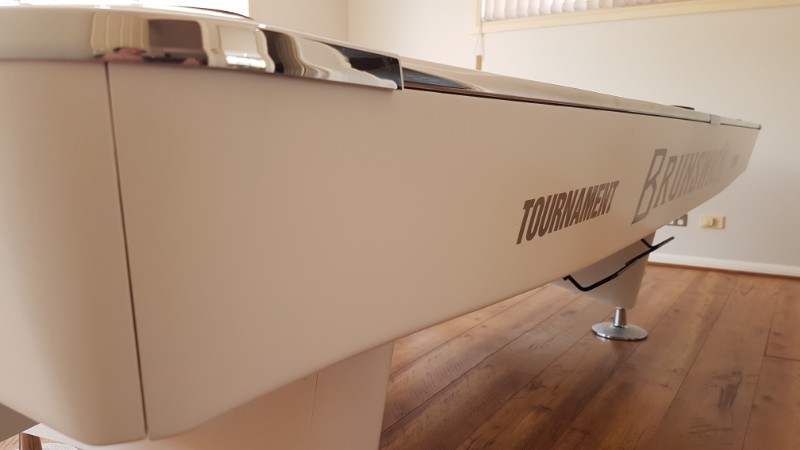

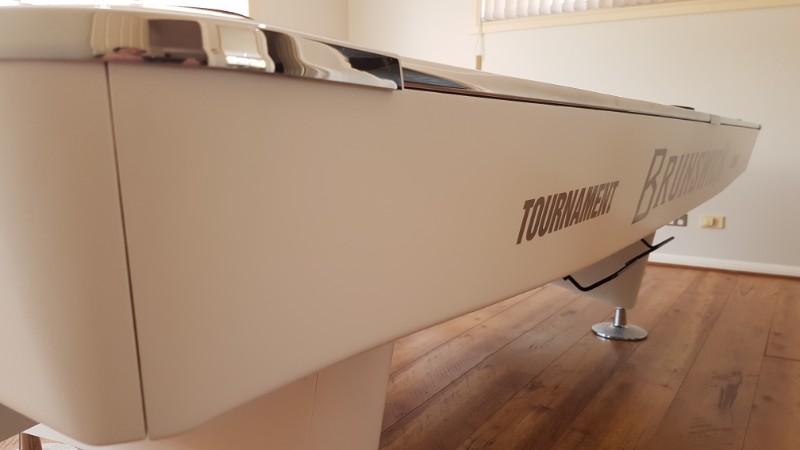

The skirt gaps look great

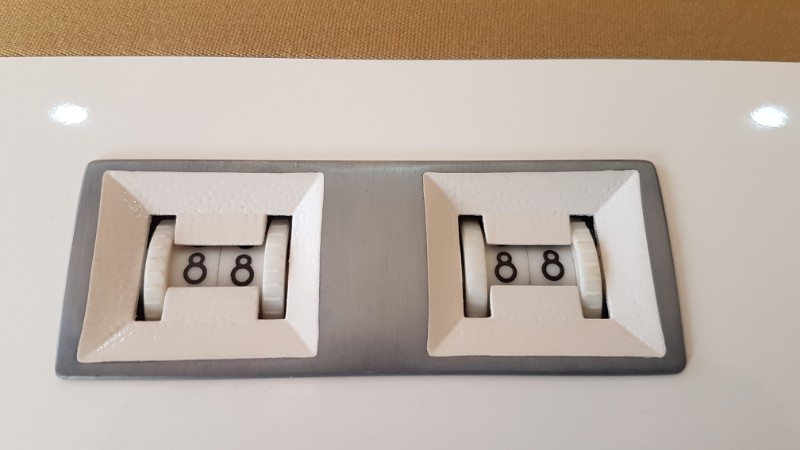

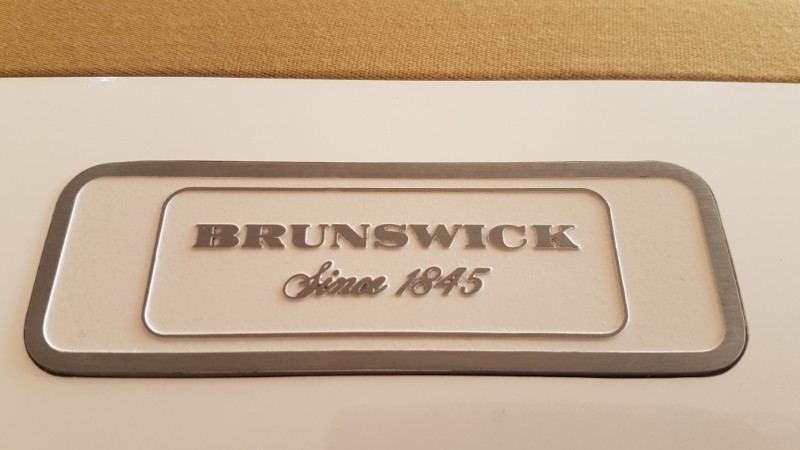

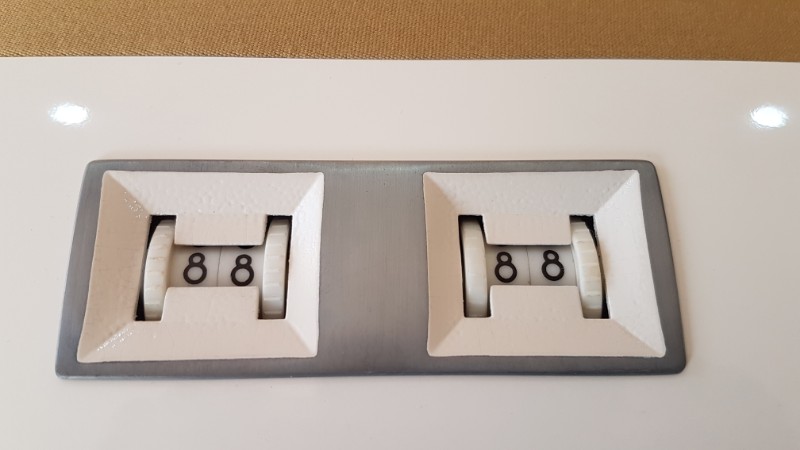

The rail counters were polished and the incerts were painted

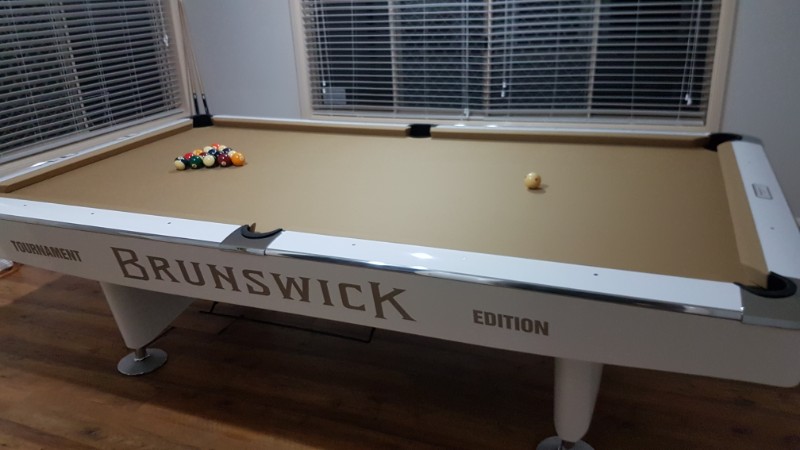

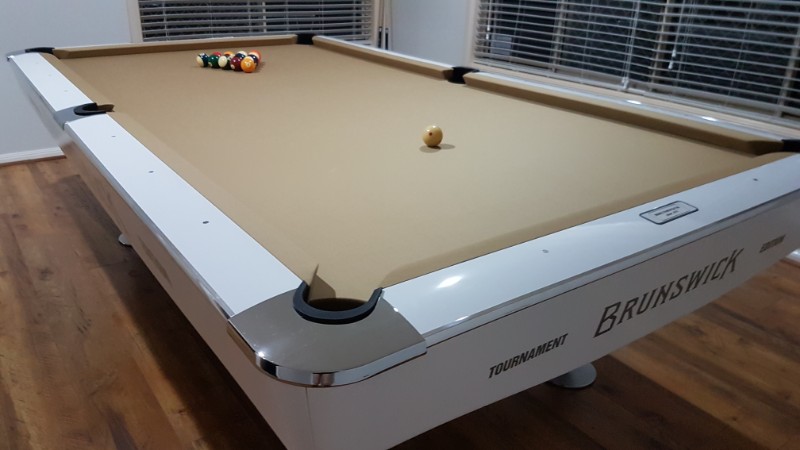

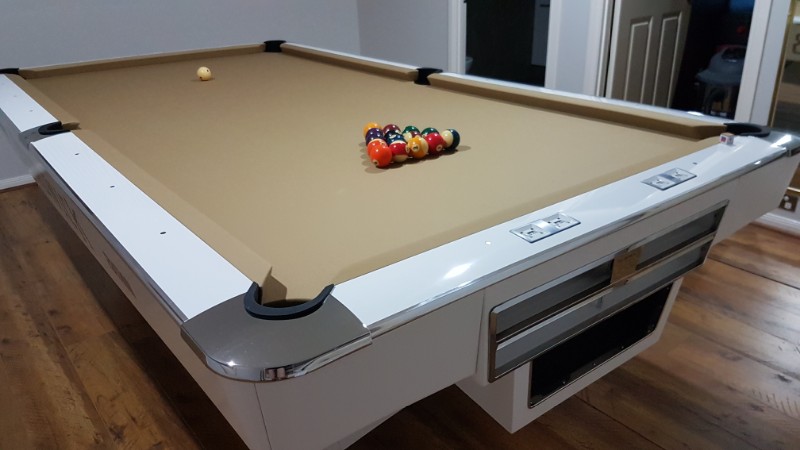

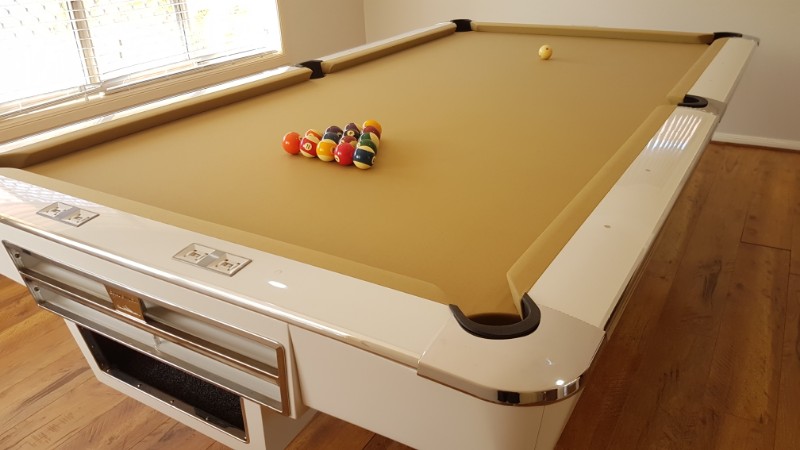

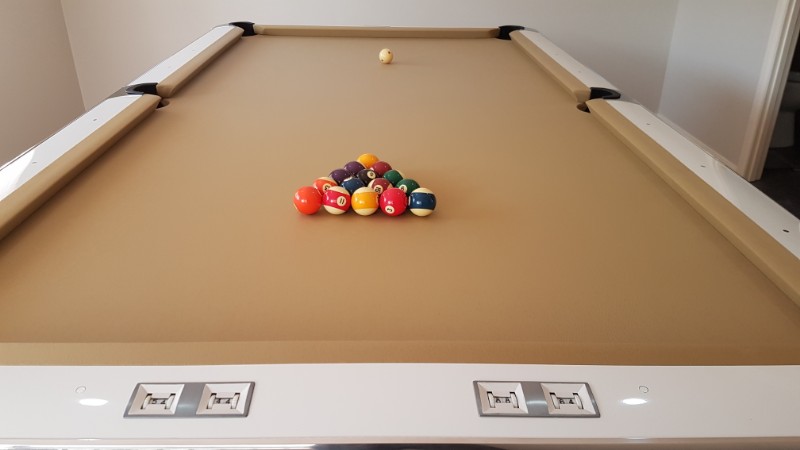

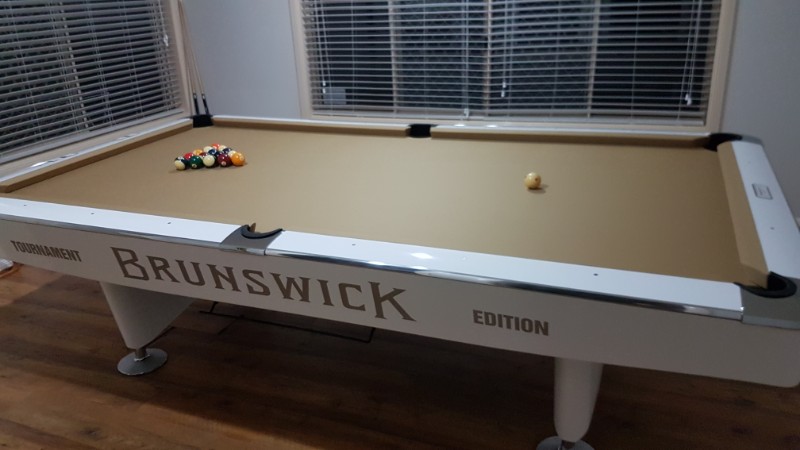

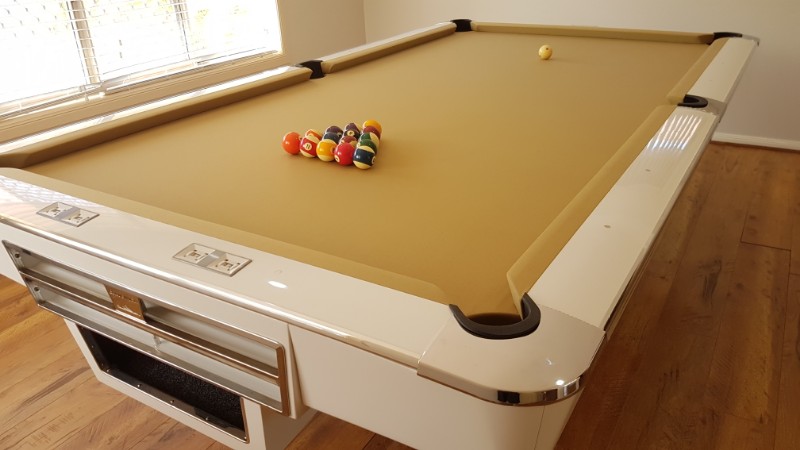

I finally finished it.
Total time was 5 months as I work on it bit by bit





The rail extension worked out really well.
I didn't have to cut the pocket rubbers to fit

Last edited:
gazman100 said:
The skirt gaps look great
View attachment 608678

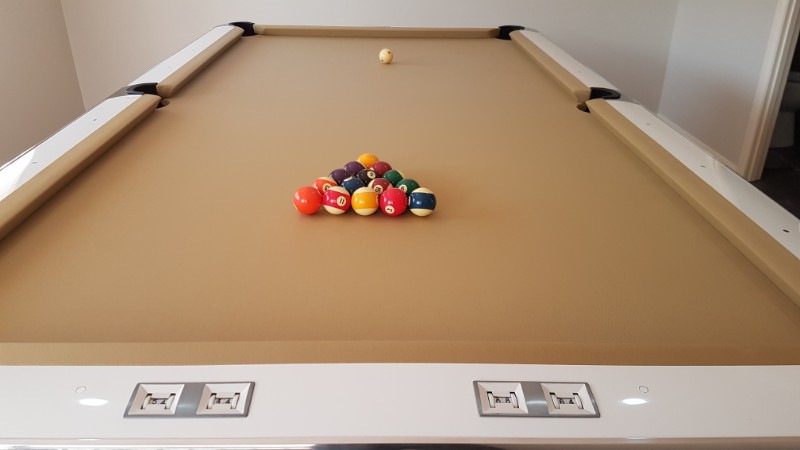

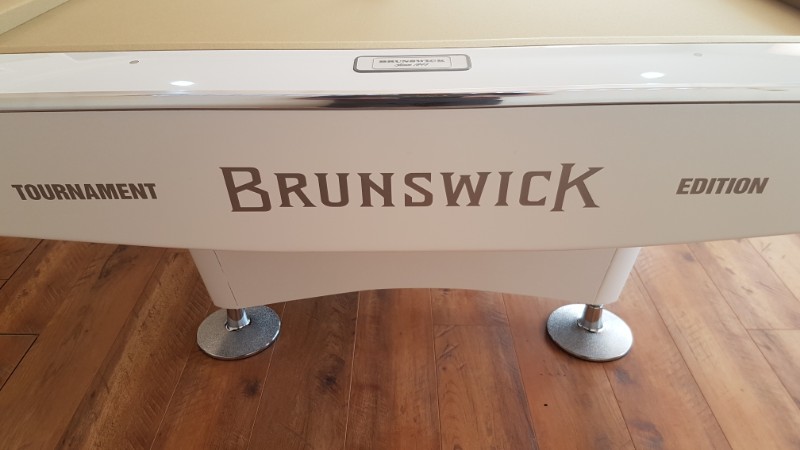

The rail counters were polished and the incerts were painted
View attachment 608679
View attachment 608682
View attachment 608683
View attachment 608684
View attachment 608685

View attachment 608688

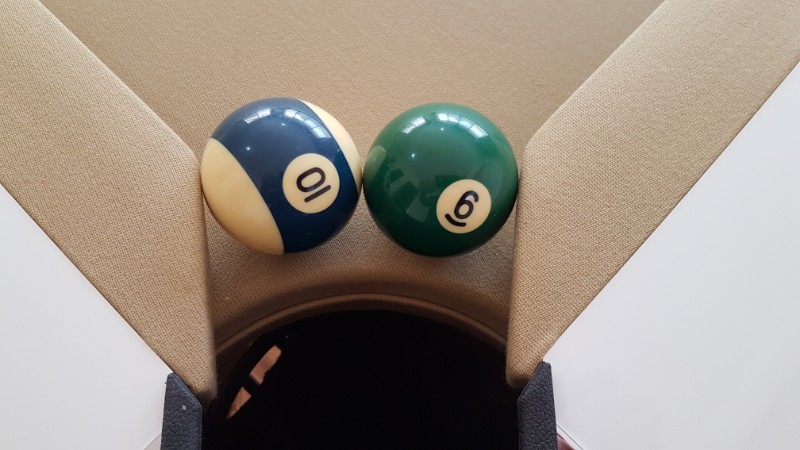

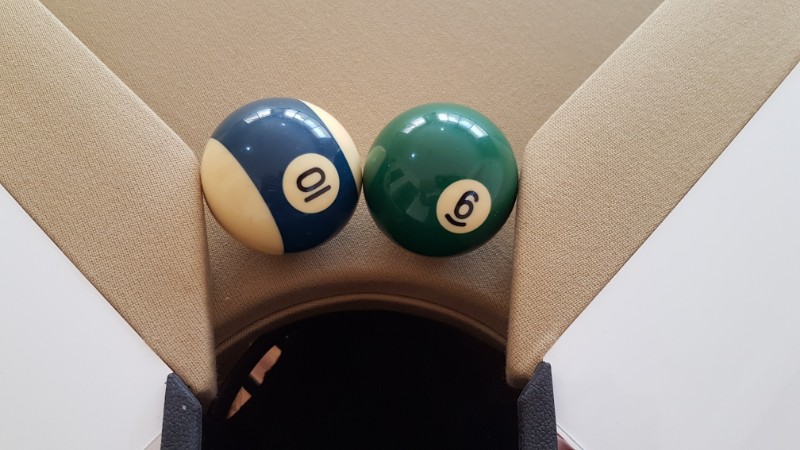

The rail extension worked out really well.
I didn't have to cut the pocket rubbers to fit
View attachment 608689
Click to expand...

The gold cloth tends to change colour slightly depending on the light. However for a white table it look gorgeous

Thanks for viewing

Last edited:
This is one of the most beautifull Brunswick restorations/rebuilds I have ever seen. Congrats on this achievement.
I think I'm jealous ...
enjoy your table

HugoBoss said:
That is amazing work. It's the best GC custom reno I have seen. Great job.
Click to expand...
gazman100, Thanks for the inspiration. I borrowed the colour scheme on my GCIII restoration.

H

Thread 'Brunswick Gold Crown III Restoration'

Hi Everyone

Sharing the results of a two-year restoration project.

Removed years of dirt, bad paint jobs, Formica and mismatched parts. Remade frame elements. Stripped it right back, sourced original and custom parts from the US, Germany, Taiwan, Ireland & the UK, repainted, and designed new logos and decals.

The goal of the restoration was to tie it into the interior of the house and to have an activity for the family (3 young boys) to play together. A local snooker table tech helped me level expertly, and it plays like a dream.

It was a lot of work, but we think the work paid off...
  • Like
  • Love

HugoBoss said:
gazman100, Thanks for the inspiration. I borrowed the colour scheme on my GCIII restoration.

H

Thread 'Brunswick Gold Crown III Restoration'

Hi Everyone

Sharing the results of a two-year restoration project.

Removed years of dirt, bad paint jobs, Formica and mismatched parts. Remade frame elements. Stripped it right back, sourced original and custom parts from the US, Germany, Taiwan, Ireland & the UK, repainted, and designed new logos and decals.

The goal of the restoration was to tie it into the interior of the house and to have an activity for the family (3 young boys) to play together. A local snooker table tech helped me level expertly, and it plays like a dream.

It was a lot of work, but we think the work paid off...
  • Like
  • Love
Click to expand...
Welcome😀
