Pocket screws.

[8pack]

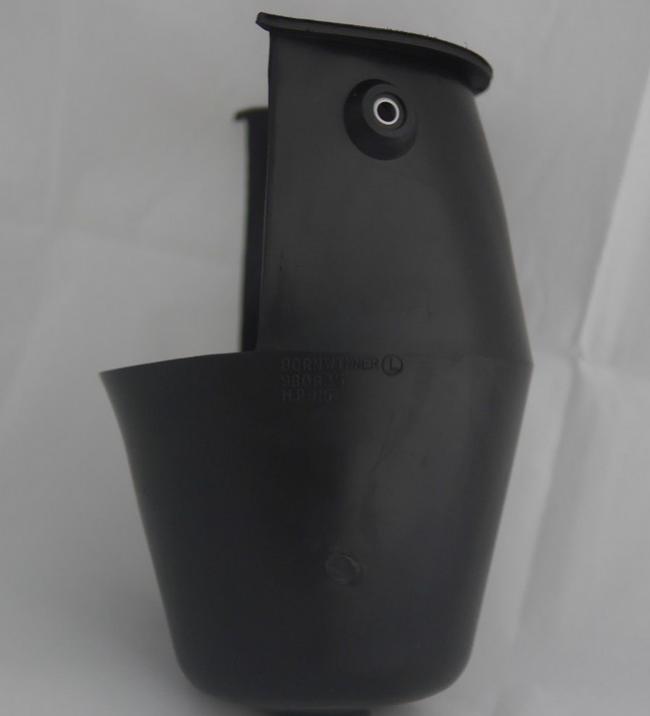

I have a gold crown with these type of pockets.I need to get replacement screws. Not sure of the size screws I need.

Any help would be appreciated .

Thanks



[ROB.M]

Table

I have a gold crown with these type of pockets.I need to get replacement screws. Not sure of the size screws I need.

Any help would be appreciated .

Thanks

-

10-24 hex screw at 5/8ths long. You'll mostly find the 3/4 length but the 1/2 length is suggested if you can't shorten the 3/4 length cap screw to 5/8ths - you won't find 5/8ths lengths at most hardware stores, if the screw comes looses and it's 3/4 long and goes unnoticed the ball will hit the head of the screw causing it to bend,break the screw and or damage the balls.

Don't forget the #10 star washer!! Even with the star washer the cap screw will come loose so keep an eye on em.





Rob.M



[8pack]

-

10-24 hex screw at 5/8ths long. You'll mostly find the 3/4 length but the 1/2 length is suggested if you can't shorten the 3/4 length cap screw to 5/8ths - you won't find 5/8ths lengths at most hardware stores, if the screw comes looses and it's 3/4 long and goes unnoticed the ball will hit the head of the screw causing it to bend,break the screw and or damage the balls.

Don't forget the #10 star washer!! Even with the star washer the cap screw will come loose so keep an eye on em.





Rob.M

Thank you.



[obe1]

Screws

Rob

I need the same screws...are the screws Hex Head or Socket head?



[bradsh98]

Rob

I need the same screws...are the screws Hex Head or Socket head?

Socket Head

http://www.mcmaster.com/#91251a244/=vka7r9

http://www.mcmaster.com/#91114a011/=vkabij



[Ralph Kramden]

Rob

I need the same screws...are the screws Hex Head or Socket head?

SHCS... Socket Head Cap Screws. You could ask someone that owns a local machine shop.
.
