Rail Mounting Holes Not Lineing Up

bludytiger

bludytiger

Registered
Well, it was Christmas eve and I was hard at work to get the pool table finished assembled. However when I was in the homestretch, I came across a problem. The slate for my table isn't the original slate for the table. I don't know why I didn't think about it, but the rail mounting holes don't line up with the holes in the slate. The two end rail's do line up fine though.

I am guessing the easier way is to move the mounting holes on the rails to line up with the slate, as I imagine drilling slate wont be an easy chore. Does anyone have any advice for doing this? I would prefer to do it without removing the rail cloth if possible.

Let me know if you need any extra details about the table or pictures.

bludytiger said:
Well, it was Christmas eve and I was hard at work to get the pool table finished assembled. However when I was in the homestretch, I came across a problem. The slate for my table isn't the original slate for the table. I don't know why I didn't think about it, but the rail mounting holes don't line up with the holes in the slate. The two end rail's do line up fine though.

I am guessing the easier way is to move the mounting holes on the rails to line up with the slate, as I imagine drilling slate wont be an easy chore. Does anyone have any advice for doing this? I would prefer to do it without removing the rail cloth if possible.

Let me know if you need any extra details about the table or pictures.
Click to expand...

Drill the slate, it's not that hard.

What type of table?

If it's a old T rail table, I'm thinking it's a lot more work. You've got to drill twice and more accurately, then drop a barrel nut in there. A lot more demanding than a "modern" GC style where the rails bolt vertically through the slate.

Dave

Sorry for the slow reply. I have been having trouble with my internet connection because of the snow.

Yes the slate does have a wood frame on the bottom.

Here are some pictures that may help show what I am talking about.

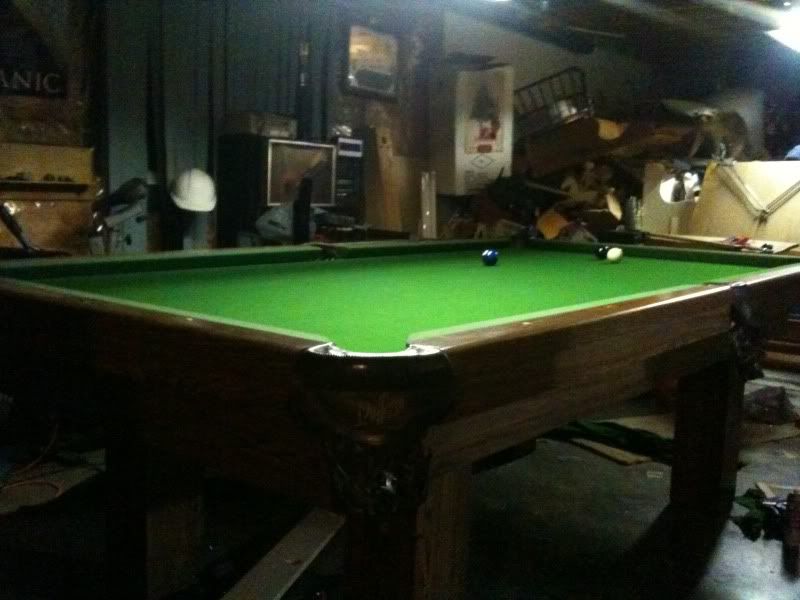

This is the table I have. Only end rails have bolts in them.

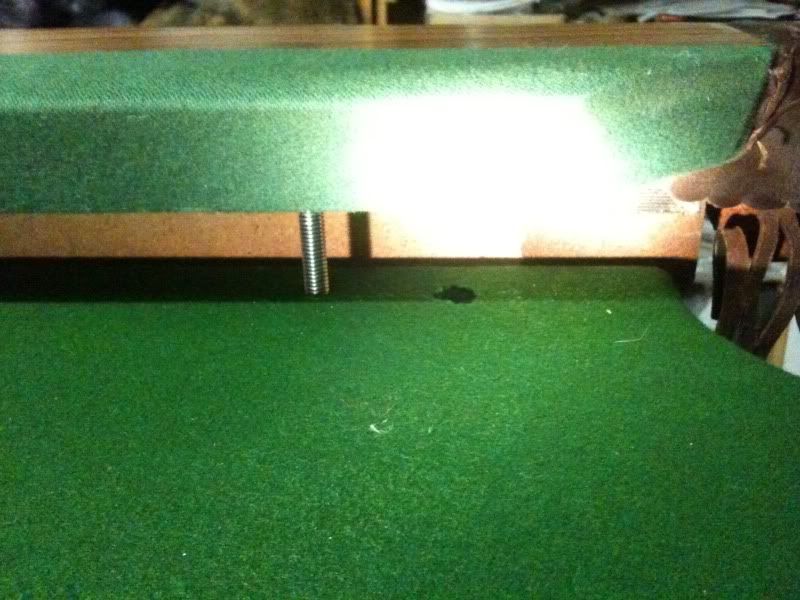

Side rail showing bolt closest to corner pocket.

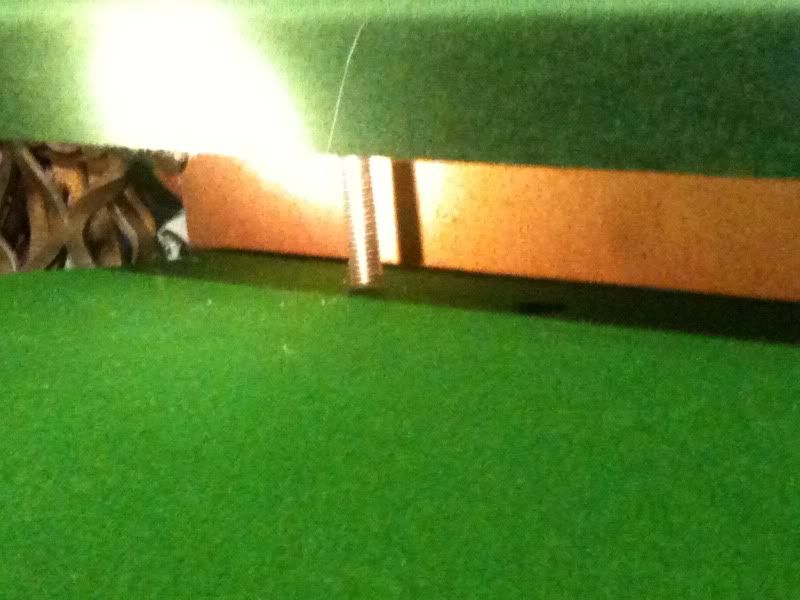

Middle bolt on side rail.

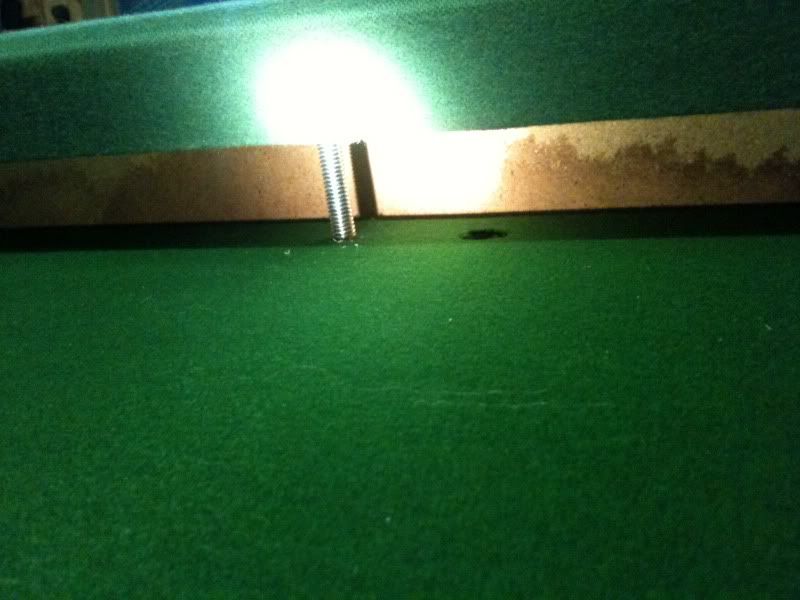

Bolt next to side pocket.

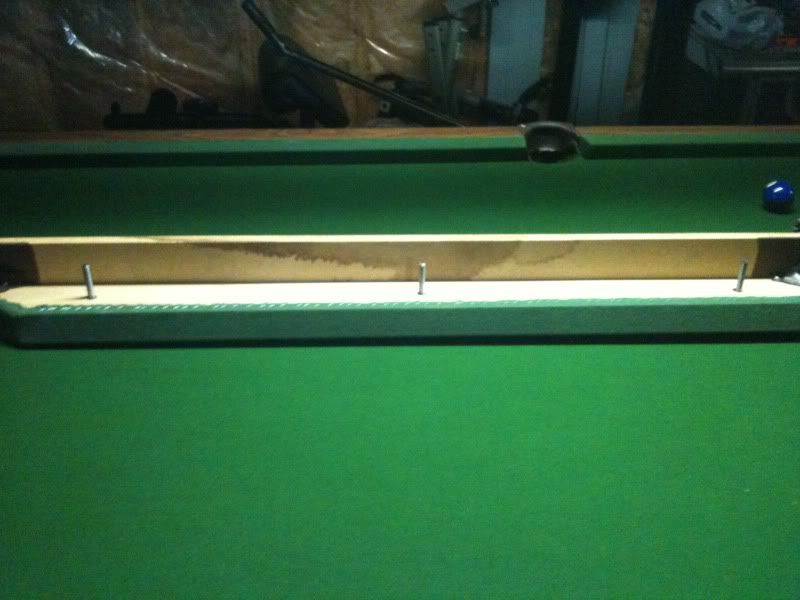

Rail removed and upside down with bolt studs.

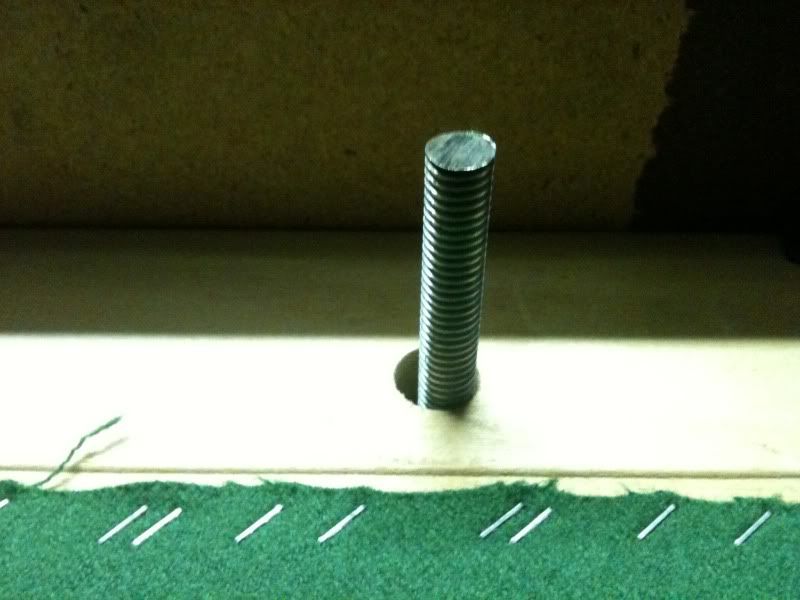

3" bolt stud screwed into rail.

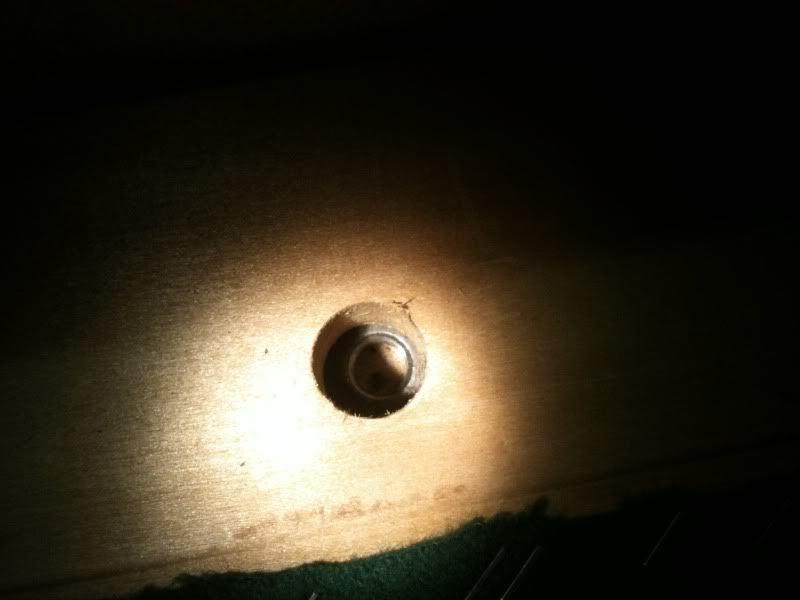

Bolt stud removed with inside of rail visible.

While taking these pictures, I also noticed that the bumpers on 2 of my rails are deader then dead. So I may have to take apart the rails regardless to change the bumpers.

What kind of drill bit would you suggest using to drill through the slate? I have a number of different drills and types of drill bits, including spade bits and hole saw sets.
