anti backblash bearing blocks

[brianna187]

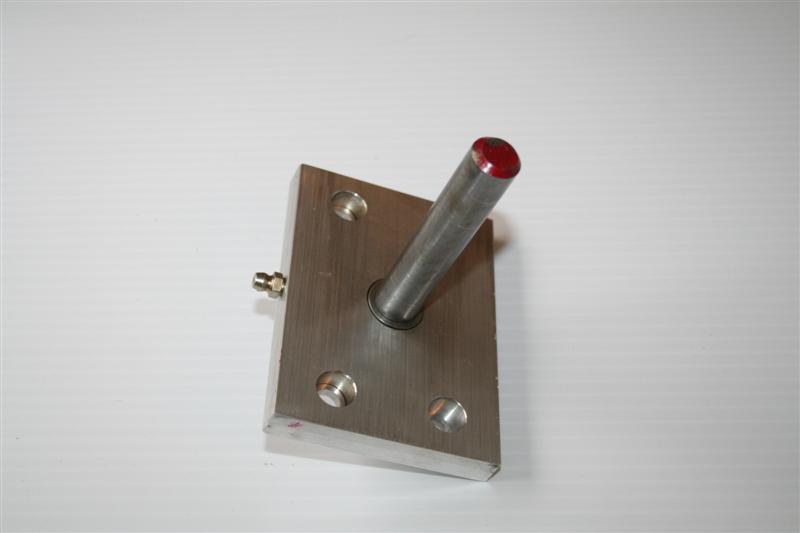

anti backblash bearing blocks adust out all backlash



[brianna187]

more shots



[brianna187]

i will post more shots tonight and explain how this works



[brianna187]

added new photos

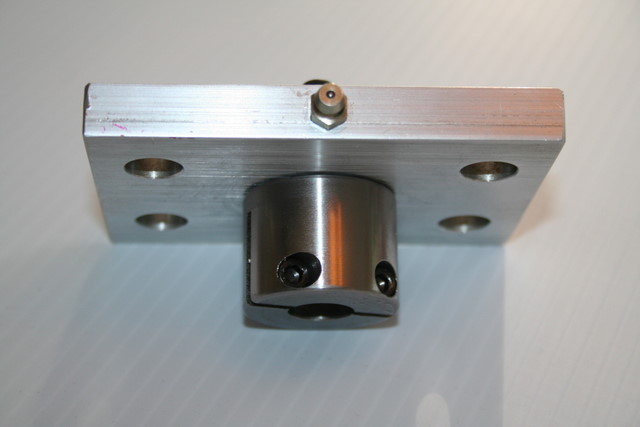

we changed a few things we are now including collar which we can bore to fit your screw size we are using this on the x and y axis on the storm cnc



[brianna187]

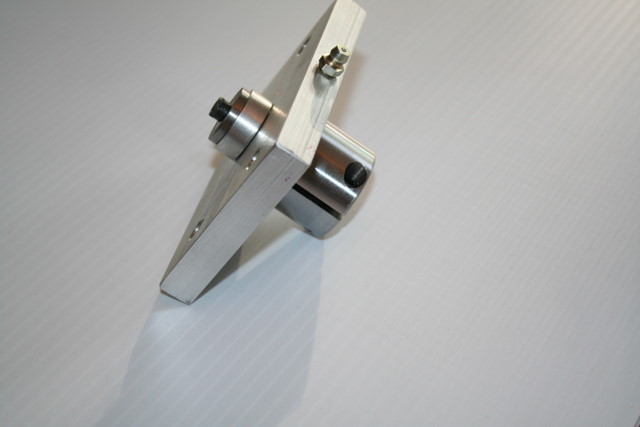

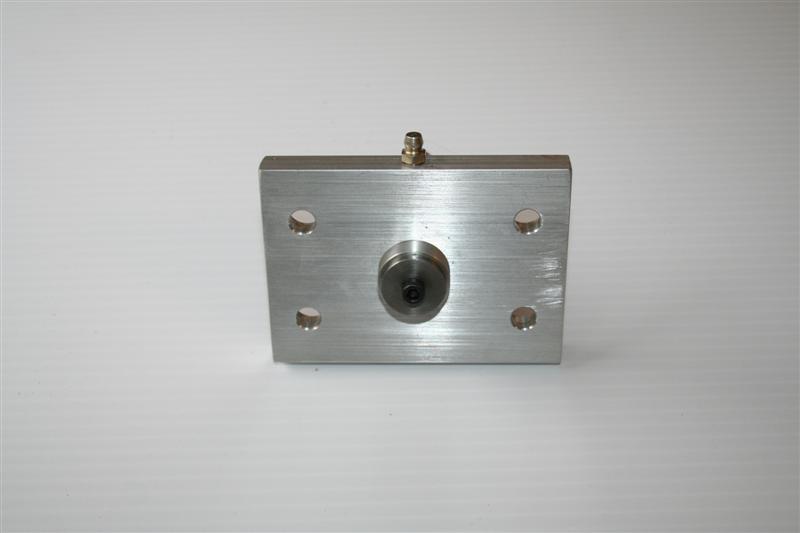

more views of the block see the website for info and updates



[brianna187]

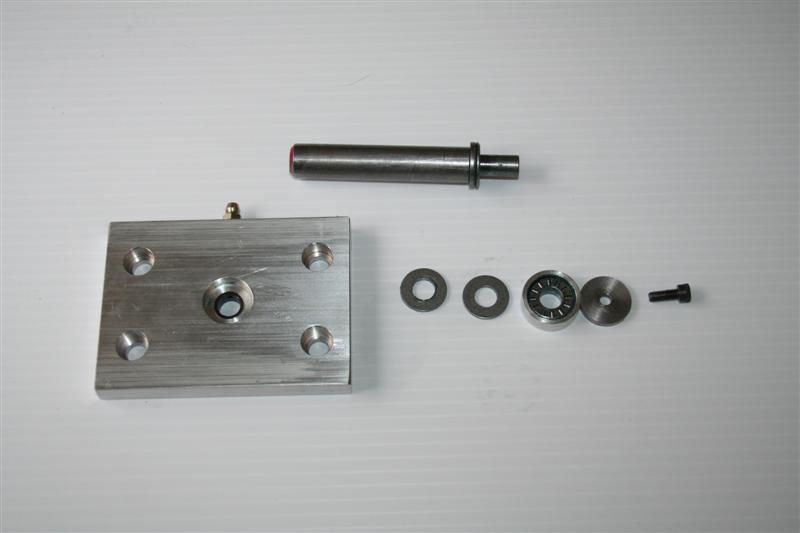

inside are 2 sets of thrust bearings for zero back lashthese are also adjustable
down the road if there is wear also a grease zert for bearings both sides of the block are protected from dust and dirt all parts but the zert and actual bearings are made in house.
