Black Crown Slate Holes Pattern....

[EL Picos]

Hello, does anyone have or know where I can see the plan of the slates of a 9 foot Black Crown table, I would like to know the location of all the holes exactly, I have already been told that it was like the Gold Crown, I searched a bit but couldn't find it. THANKS!



[realkingcobra]

Hello, does anyone have or know where I can see the plan of the slates of a 9 foot Black Crown table, I would like to know the location of all the holes exactly, I have already been told that it was like the Gold Crown, I searched a bit but couldn't find it. THANKS!

18" on center, 1 1/4" on center from the edge of the slate.



[EL Picos]

18" on center, 1 1/4" on center from the edge of the slate.

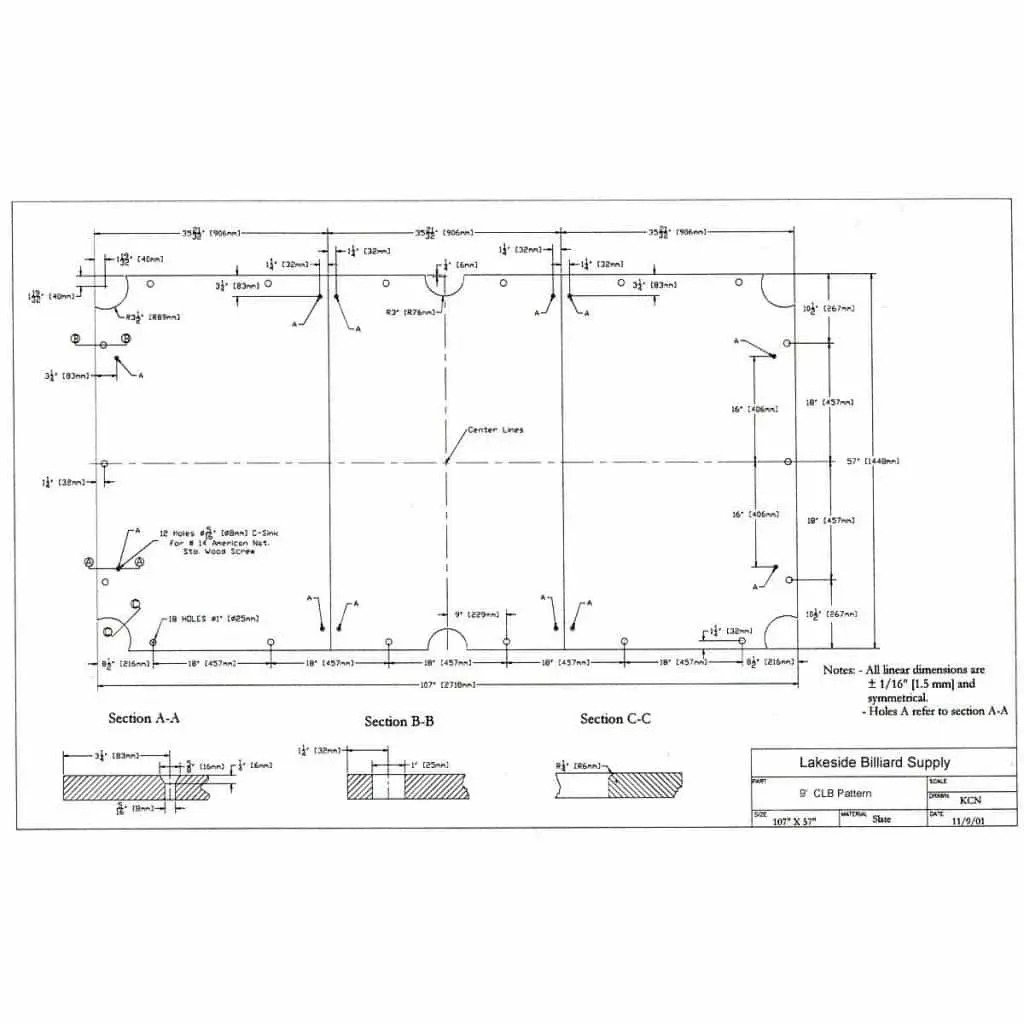

Thank You my friend, I found this drawing yesterday and it matches what you just told me about the rail holes, you can also see the slate/frame holes, but the drawing is hard to read, tearing your eyes out still manages to discover the measurements, twice the manufacturer did not answer me, when we ask for a submission of material there he answers and quickly.



[MamboFats]

https://forums.azbilliards.com/thre...signing-my-own-pool-table.533145/post-7368967

from a German online shop
