How many of you are aware the slate bolt holes don't line up on the side rails for the Centennial's, Anniversaries, Sport Kings, and GC's, which makes it hard to center the rails on the side pockets?
Brunswick slate rail bolt holes
- Thread starter realkingcobra
- Start date
How many of you know how to map out the rail bolt holes? Let's make it a 9ft, what are the rail bolt hole spec's?
Last edited:
I guess I never noticed but I had the rails on my GCI on and off twice and the rails seem to line up well with the side pockets.
Next time you have the rails off, check and see if the rail bolt hole are 18" inches on center, and are 1 1/4" on center from the edge of the slate.
coolidge
Well-known member
GC IV Pro 8

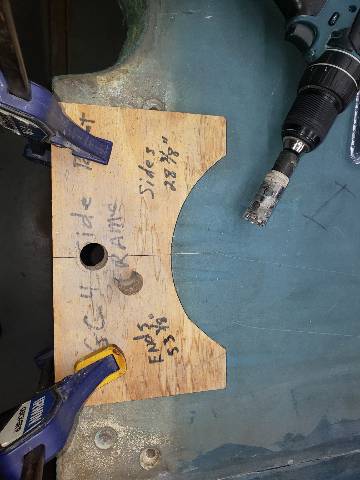

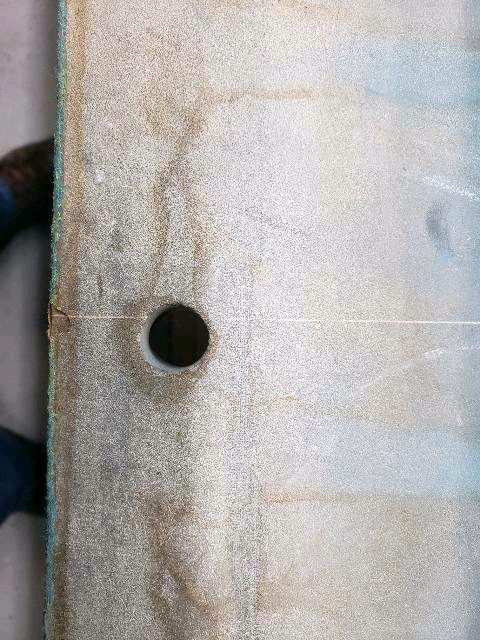

Slate holes down one side measure O 16 1/2" O 16 3/8" O 16 1/2" O 16 3/8" O 16 1/2" O The slate holes are consistent centered 1 1/4" in from the edge.
Rail threaded insert holes measure O 16 3/8" O
Slate holes are 3/4" in diameter
Rail holes are 1/2" in diameter, a bit sloppy some are + 1/16"

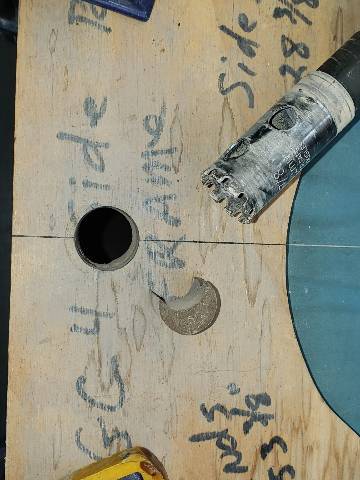

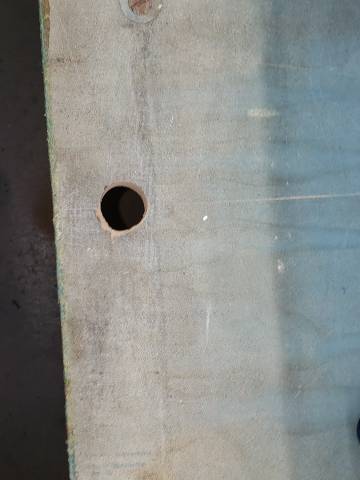

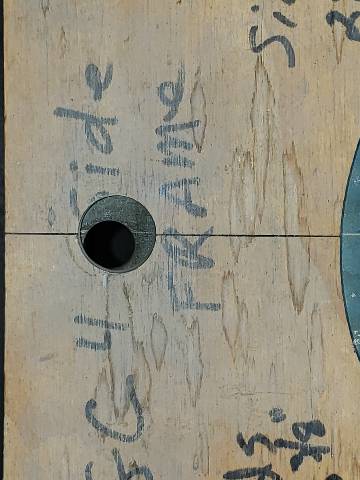

The MDF holes are centered a bit sloppy over the slate holes but are a massive 2 inches in diameter vs the 1 3/8 inch diameter washers so plenty of wiggle room.
There's enough slop in all the above that aligning the rails should not be difficult.
In related news my GC needs RCK love.
Slate holes down one side measure O 16 1/2" O 16 3/8" O 16 1/2" O 16 3/8" O 16 1/2" O The slate holes are consistent centered 1 1/4" in from the edge.
Rail threaded insert holes measure O 16 3/8" O
Slate holes are 3/4" in diameter
Rail holes are 1/2" in diameter, a bit sloppy some are + 1/16"
The MDF holes are centered a bit sloppy over the slate holes but are a massive 2 inches in diameter vs the 1 3/8 inch diameter washers so plenty of wiggle room.
There's enough slop in all the above that aligning the rails should not be difficult.
In related news my GC needs RCK love.
And your end rail bolt holes are wider center to center than the side rail bolt hole are
coolidge
Well-known member
No the end rail slate holes are narrower, O 15 15/16" O and the end rail rail holes are O 16" O weird!And your end rail bolt holes are wider center to center than the side rail bolt hole are
No the end rail slate holes are narrower, O 15 15/16" O and the end rail rail holes are O 16" O weird!
told ya
coolidge
Well-known member
Brunswick no fair you know drilling a consistent hole pattern WTH? I'm off to seek meds for my accuracy OCD.

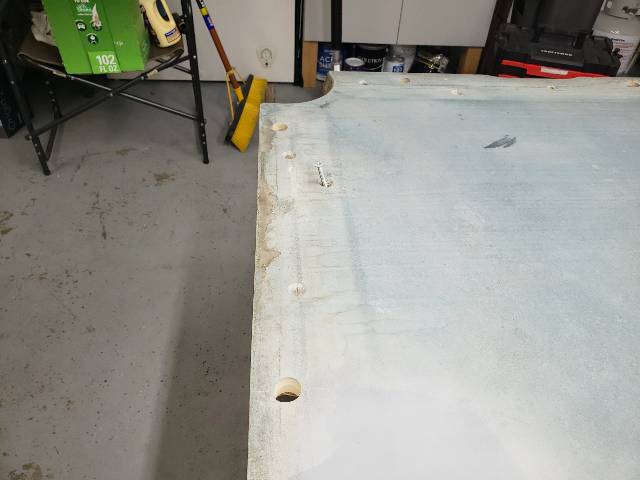

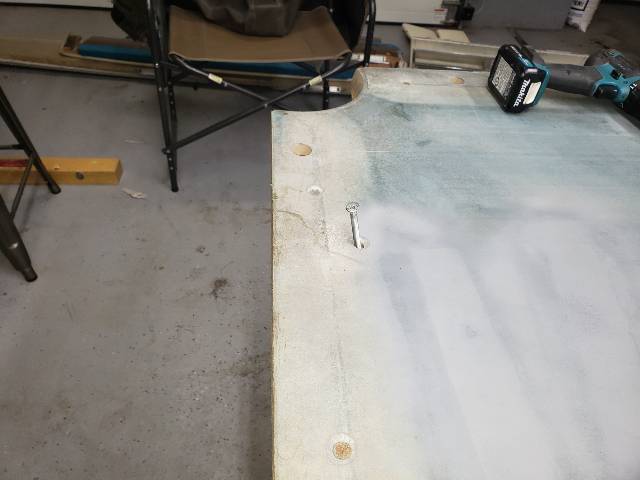

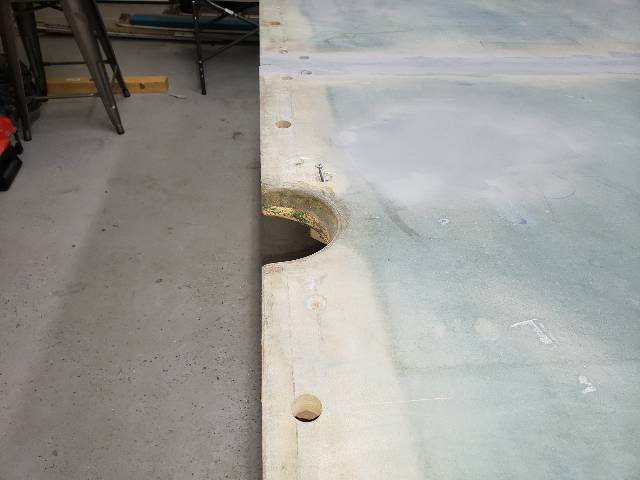

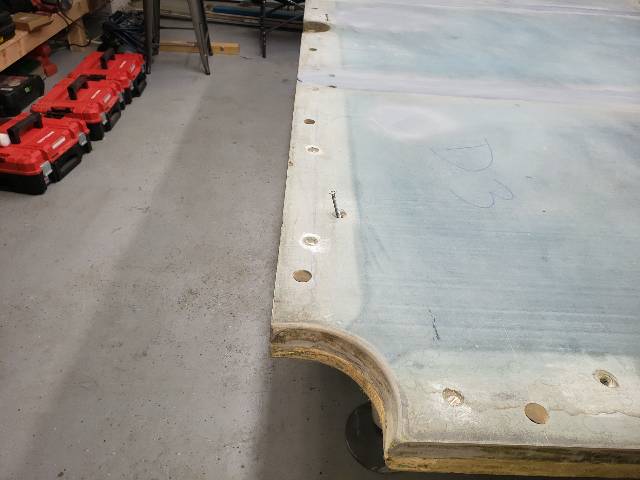

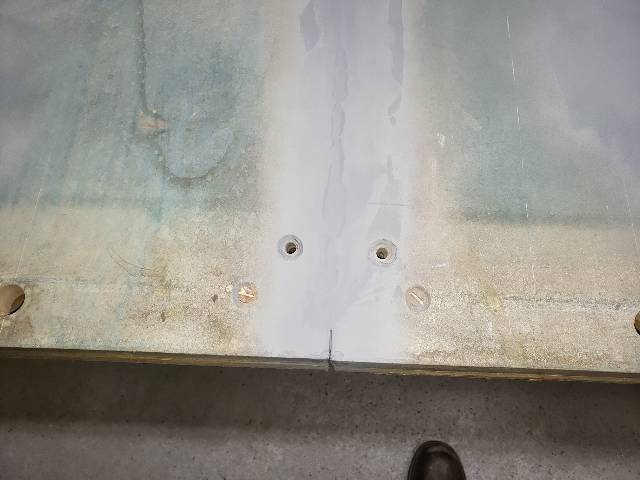

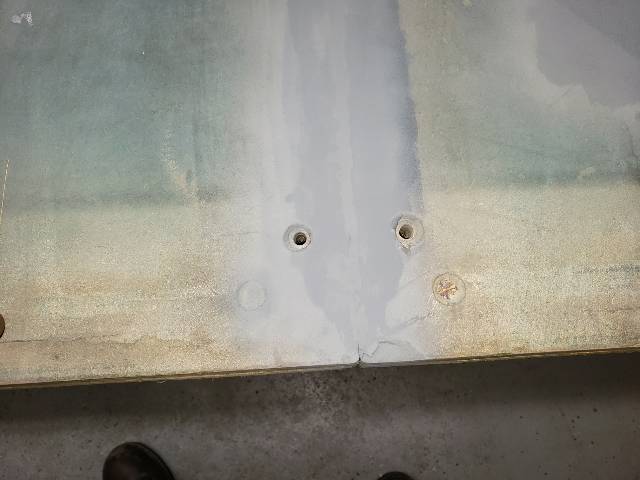

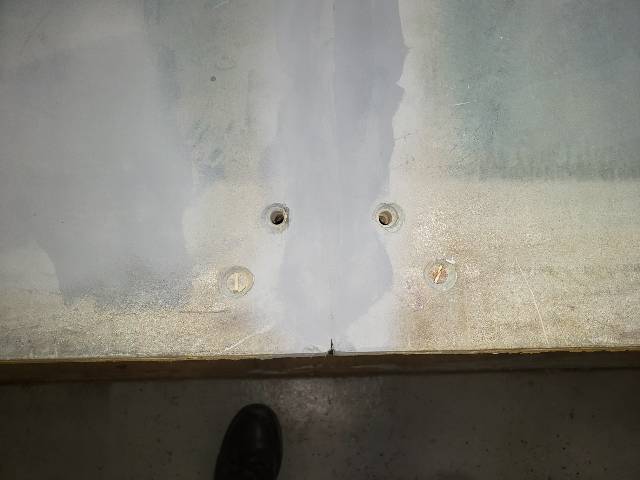

Here's another thing to confuse you, only used 6 slate screws to mount this 9ft slate, and none were used at the seams.
Attachments
-
20220202_193455_resize_20220202_233853.jpg -
20220202_193503_resize_20220202_233853.jpg -
20220202_193510_resize_20220202_233853.jpg -
20220202_193515_resize_20220202_233853.jpg -
20220202_193520_resize_20220202_233853.jpg -
20220202_193525_resize_20220202_233853.jpg -

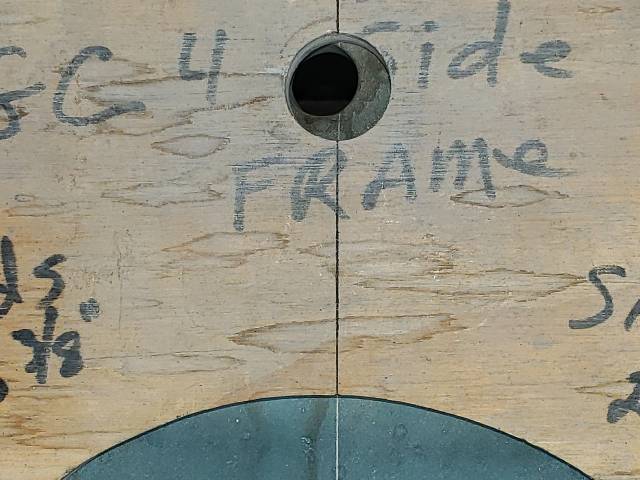

This is a continuation of this work in the main forum.
The perfect GC1, 2, 3, 4, 5, &6, really?
Just because you bolt the rails on the slate, that don't mean your rails are going to line up straight, especially in the side pockets, if you CAN'T adjust the rails left and right to center the side pockets of the rails with the side pocket slate shelf. And guess what, it don't even matter if...
forums.azbilliards.com
coolidge
Well-known member
What's the seam filler, Durham's rock hard putty?
Bondo
Next to duct tape and vice grips one of the top5 greatest inventions ever.
You forgot condomsNext to duct tape and vice grips one of the top5 greatest inventions ever.
coolidge
Well-known member
Okay this thread just got awkward.You forgot condoms
