Help IDing Radial Pin

jetlau3

jetlau3

AzB Silver Member
Silver Member
Jim Baxter is making a set of J/Ps for my Buss cue but I'm just not certain about the size of the pin.

Buss confirmed that it was a radial pin but couldn't remember if it was a 3/8-6 or a 3/8-10.

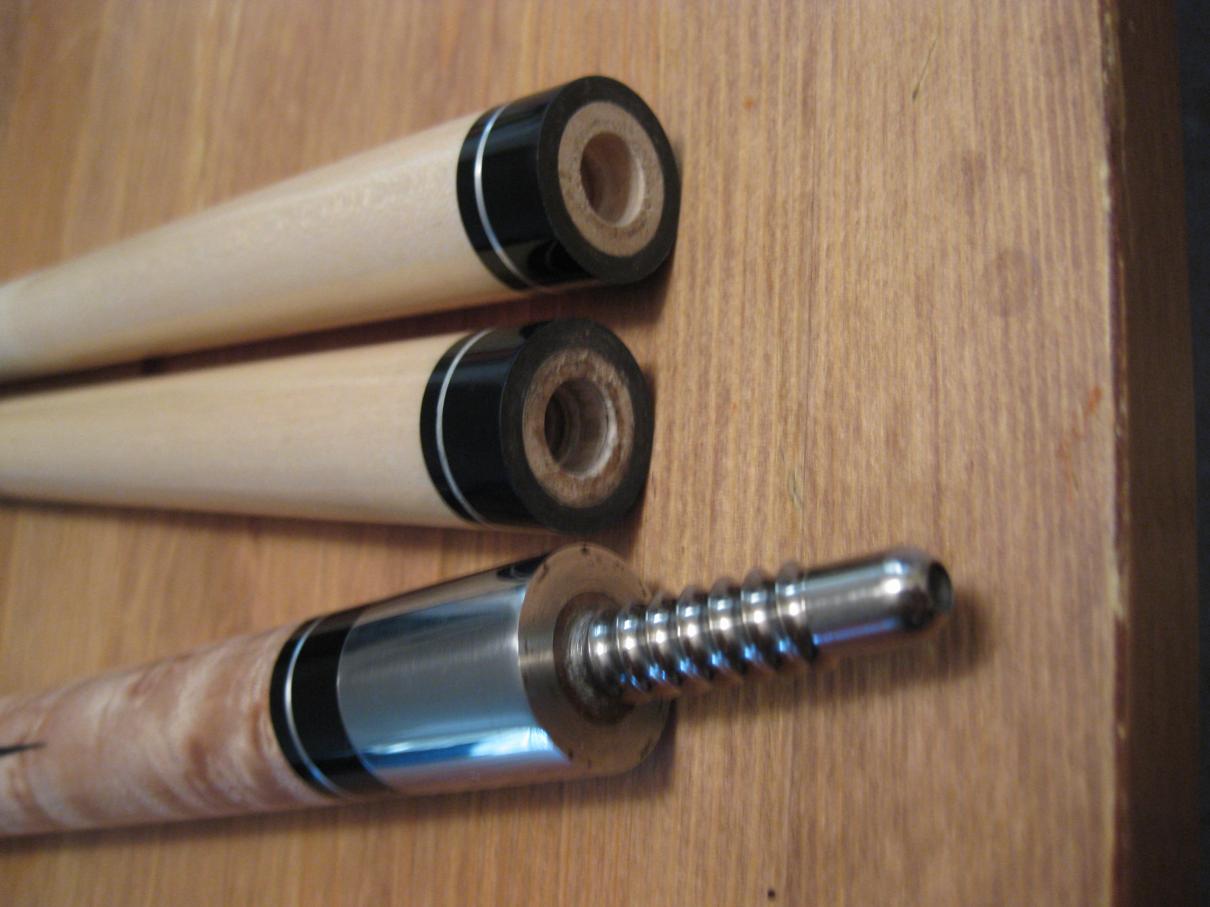

Can anyone tell from this photo? Help is greatly appreciated.

Thanks


Attachments

  • Buss5.jpg
    90.2 KB · Views: 272
Looks like Uni-Loc radial with a long pilot to me.
3/8 10 radial does not exist.

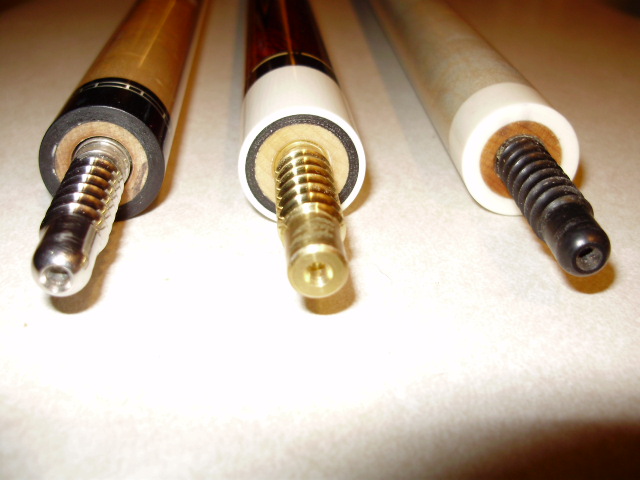

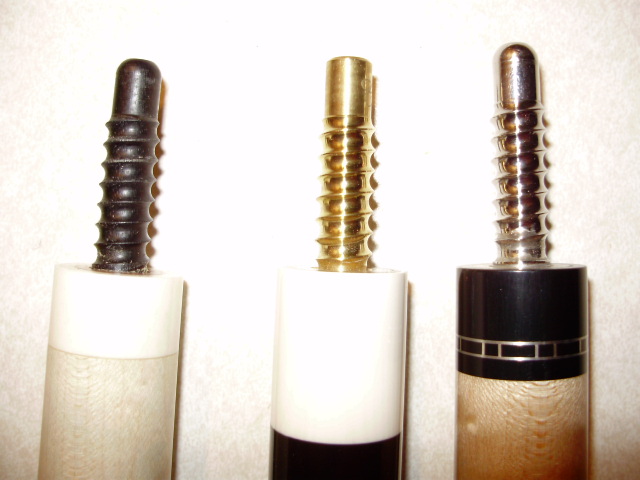

Radial Pins

It looks like a standard 3/8-8 radial
Not sure but all of these are the same and I have several other variations on cues.
All of the J/p's are interchangeable.
There is a foreign radial that's different but I think yours is standard.

Radial pins 015.jpg

Radial pins 001.jpg

If it's a Uni-Loc radial pin, the number of threads per inch is not a whole number. One report I read had it at exactly 7.6; others had it at slightly more than that.

jetlau3 said:
Jim Baxter is making a set of J/Ps for my Buss cue but I'm just not certain about the size of the pin.

Buss confirmed that it was a radial pin but couldn't remember if it was a 3/8-6 or a 3/8-10.

Can anyone tell from this photo? Help is greatly appreciated.

Thanks
Click to expand...

There is no mystery just count the threads.

Use a tape or a caliper and measure exactly half an inch across the peaks of the threads. Starting right on a thread, half an inch will land just short if it's a uni-loc. It should line right up if it's a knockoff.
It looks to me to be a uni-loc.
