How to adjust for banks close to the rail?

[LC3]

When shooting a bank shot with the object ball close to the rail, how do you estimate the adjustment needed to account for the angle shortening because the ball is sliding rather than rolling?

Are there any good drills for practicing this?

Thanks!



[Bob Jewett]

When shooting a bank shot with the object ball close to the rail, how do you estimate the adjustment needed to account for the angle shortening because the ball is sliding rather than rolling?

Are there any good drills for practicing this?

Thanks!

Set up a mirror image target. Find the line for a straight such bank that sits at 2 from the end rail. Extend that line forward until it hits the extended end rail nose. The intersection is the target for all cross-corner banks that are sliding. The point is roughly three diamonds from the side rail rail nose along the nose line of the end rail.

Of course this does not include any side spin you get on the object ball, but it does give you a starting point for twisted shots.



[Patrick Johnson]

Set up a mirror image target. Find the line for a straight such bank that sits at 2 from the end rail. Extend that line forward until it hits the extended end rail nose. The intersection is the target for all cross-side banks that are sliding. The point is roughly three diamonds from the side rail rail nose along the nose line of the end rail.

Of course this does not include any side spin you get on the object ball, but it does give you a starting point for twisted shots.

So, Spot On the Wall, but only 3/4 as far from the table as usual…?

pj
chgo



[LC3]

Thanks, Bob!



[Bob Jewett]

So, Spot On the Wall, but only 3/4 as far from the table as usual…?

pj
chgo

Yes. You can find that spot in two seconds by placing your cue along the end rail nose line. No arithmetic.



[Patrick Johnson]

You can find that spot in two seconds by placing your cue along the end rail nose line. No arithmetic.

Idea for a new pool product: the Spot on the Wall Assistant - a 30" tall free-standing pole (collapsible so it fits into a cue case) with a pool ball on top. Place it wherever your spot-on-the-wall-of-the-moment is.

pj <- definitely illegal, but accepting confidential pre-orders (bitcoin only)
chgo



[Bob Jewett]

Idea for a new pool product: the Spot on the Wall Assistant - a 30" tall free standing pole (collapsible so it can fit into a cue case) with a pool ball on top. Place it wherever your spot-on-the-wall-of-the-moment is.

pj <- definitely illegal, but accepting confidential pre-orders (bitcoin only)
chgo

I drilled and tapped a pool ball for a 1/4-20 screw, which is what camera tripods seem to have. A ball on a bar stool -- maybe sitting on chalk -- is cheaper.



[Bob Jewett]

So, Spot On the Wall, but only 3/4 as far from the table as usual…? ...

The 3/4 is three diamonds, just for reference and the distance is from the nose of the banking rail. Some rails seem to play closer to 70%, so you may want to test a new table.



[Patrick Johnson]

I drilled and tapped a pool ball for a 1/4-20 screw, which is what camera tripods seem to have. A ball on a bar stool -- maybe sitting on chalk -- is cheaper.

I like 'em both.

Shouldn't pool halls be offering tools like this for "practice"?

pj
chgo



[bbb]

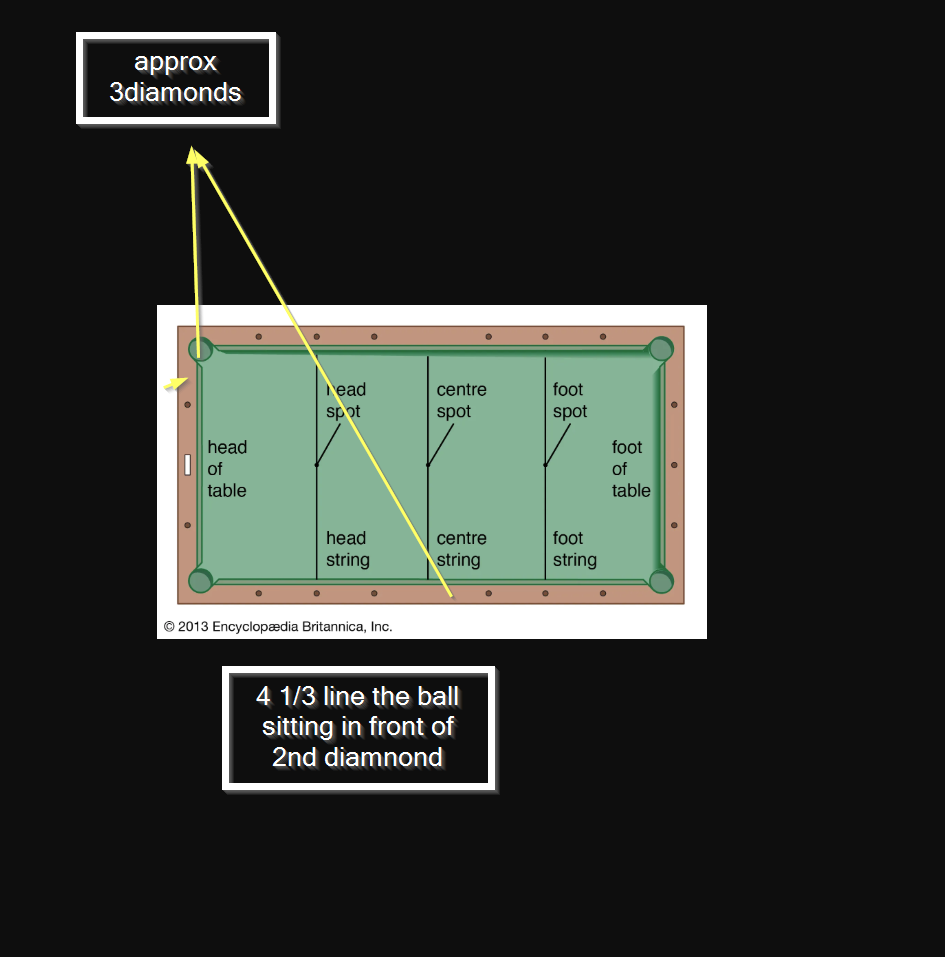

could someone hel with a pic please?
trying to follow bob"s description i could only come up with this to the corner pocket
please correct my diagram
i apologize in advance for my poor comprehension skills



[Patrick Johnson]

could someone hel with a pic please?
trying to follow bob"s description i could only come up with this to the corner pocket
please correct my diagram
i apologize in advance for my poor comprehension skills
View attachment 936962

Looks right to me. Doesn't matter where the balls are, as long as the shot's a 1-rail sliding bank/kick shot to the bottom left corner pocket.

pj
chgo



[bbb]

Set up a mirror image target. Find the line for a straight such bank that sits at 2 from the end rail. Extend that line forward until it hits the extended end rail nose. The intersection is the target for all cross-side banks that are sliding. The point is roughly three diamonds from the side rail rail nose along the nose line of the end rail.

Of course this does not include any side spin you get on the object ball, but it does give you a starting point for twisted shots.

could someone hel with a pic please?
trying to follow bob"s description i could only come up with this to the corner pocket
please correct my diagram
i apologize in advance for my poor comprehension skills
View attachment 936962

Looks right to me. Doesn't matter where the balls are, as long as the shot's a 1-rail sliding bank/kick shot to the bottom left corner pocket.

pj
chgo

@Patrick Johnson see bobb's post above he says for SIDE POCKET BANKS
thats why i am confused
but bob gave me a
so maybe he meant cross corner???
@Bob Jewett help please?



[Patrick Johnson]

@Patrick Johnson see bobb's post above he says for SIDE POCKET BANKS
thats why i am confused
but bob gave me a
so maybe he meant cross corner???
@Bob Jewett help please?

By “cross-side banks” I think he meant “cross-table using a side rail”.

pj
chgo



[bbb]

You mean when he said “cross-side banks”? I think he meant “cross-table using a side rail.”

pj
chgo

yes patrick that how i interpreted it
cross side banks =side pocket
but i can understand now that he could have meant what you said
cross-side banks=cross-table using a side rail



[Bob Jewett]

By “cross-side banks” I think he meant “cross-table using a side rail”.

Yup. Corrected. Just testing to see if people were paying attention.



[bbb]

Yup. Corrected. Just testing to see if people were paying attention.

thanks bob for the reply
and the ...means alot to me....seriously



[heater451]

could someone hel with a pic please?
trying to follow bob"s description i could only come up with this to the corner pocket
please correct my diagram
i apologize in advance for my poor comprehension skills
View attachment 936962

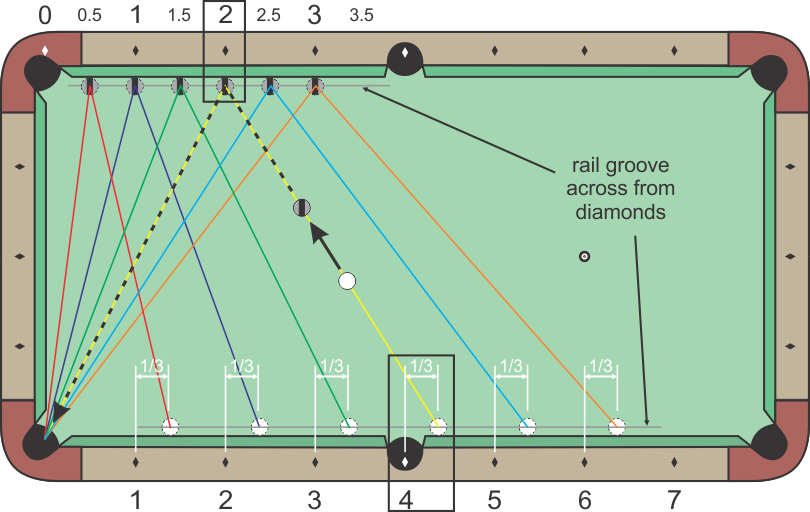

Dr. Dave's, "1/3-more-than-twice" diagram, where the individual lines should converge at the same aimpoint (off the table):



[bbb]

Dr. Dave's, "1/3-more-than-twice" diagram, where the individual lines should converge at the same aimpoint (off the table):

if you notice thats where i started my line



[heater451]

if you notice thats where i started my line

Yes, I posted in support of your graphic, with the extra lines supporting your locating of the 'spot on the wall' point.



[bbb]

Yes, I posted in support of your graphic, with the extra lines supporting your locating of the 'spot on the wall' point.

Thanks
