Mid America Basic repair first impression

muskyed

AzB Silver Member
Silver Member
Ordered one of these to do some tip replacements, and shaft clean ups,.for myself and possibly others in my area. Pool is doing well here, but there is no service available to replace tips with a lathe, other than when big tournament's are in the area, and Jacoby has a booth set up. Not looking at this as a money making thing, I just like doing my own thing, I am familiar with using a lathe, as I had extensive use with a machine lathe when I was younger, and have been an avid woodturner for the last 14 years, so should hopefully be a short learning process, I hope. Haven't fully setup yet, as right after it arrived, we were leaving town for a few days. I did unpack it before leaving, and this is my review for now. It was extremely well packaged and boxed up and shipped. Very professional job. Can't wait to put it all together today, and hopefully try it out. I have lots of yard work to do, so it may be tomorrow before I get a chance to try it out. Lathe was built and shipped in the time frame promised, and extremely well packaged. First impression, is A+


muskyed

AzB Silver Member
Silver Member
Couldn't wait for tomorrow to try it out. Took one of my inexpensive house cues, and took my time, and quite honestly it was straight forward, and fairly easy tip install. To be fair, it took me about 30 min for this first one, but I had to learn the controls, and figure out what to do. Also took very small cuts the first time, as I had no idea how well the tip would cut, and quite honestly was afraid of taking too big of a cut and getting into the ferrule. Had to set up the radius cutter also, so, all in all, about 30 min for the first time. The tip actually cut quite easy, and smooth, both the side cut, and the radius cut with the V shaped cutter. Not sure if it was the tip I used, UltraSkin, or sharp cutters, maybe both, but it actually cut smoother than some of the youtubes that I watched. This actually was fun to do, and came out better than I could have expected for the first time. I did have experience with using lathes though, just not a cue lathe. This could be addicting, and hopefully I don't fall into the trap of continually changing out tips, to something else, just on a whim. These UltraSkin tips seem really nice, and Tom gives great service to members here. Great lathe, and great tips also, can't wait to try another stick, with a different tip hardness.

Last edited:

Biloxi69

Registered
Congrats on the lathe. I was on the same boat as you. Before you know it, I was upgrading to qctp, inserts, and etc.. It’s quite relaxing working on it.

Have fun!


muskyed

AzB Silver Member
Silver Member
I really appreciate every ones comments and helpful suggestions.. I really like this lathe for what I wanted to do with it. I've done 5 tips so far, all have turned out great, and no tips have popped off. I was a little concerned on our Wednesday night pool league, when my wife tried out a shaft I had done, on her cue just before we left for league, and said that was what she was going to use. While I had also just installed a new tip on my shaft, that morning, that didn't bother me as much as what would happen if my wife had a problem with her cue. Not to fear, we won our match that night, and I was told that I needed to Install a new tip on her shaft the next day, or she would be keeping the shaft that she had, matching ring work or not. I have since made a dedicated spot in my shop for this lathe, and am in the process of making a dust cover for it, as I do a lot of woodworking in there in the fall and winter. I do want to get one of those one sided cutting blades for when it is tough to get the ferrule running true, to make it easier to trim the tip even with the ferrule.


Tom1234

AzB Silver Member
Silver Member

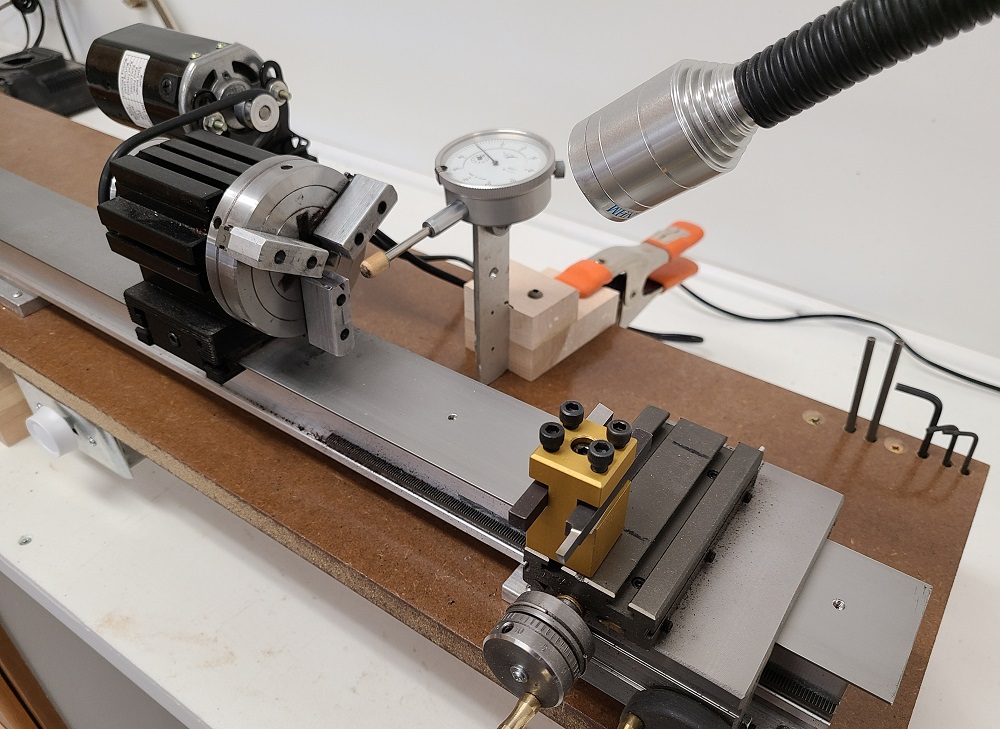

Just a suggestion - get a dial indicator if you don’t have one. Check the runout and get back with the company that made it if the runout is over about .002. Also, part of that problem may be the way you tighten the chuck.


muskyed

AzB Silver Member
Silver Member
I do have dial indicator setups that I use for setting up my woodworking equipment, and after reading went out and chucked a point up and it ran true. I am talking about a very small runout, at times, and not always. Also the runout will change, and can be eliminated by rotating the shaft, and or more importantly, by rotating the plastic bushing protecting the shaft. Keep in mind that I am constantly accused by my wife of being too much of a perfectionist. I was easily and quickly, able to zero out the runout to where it was unnoticeable, on 4 of the 5 shafts, and trim the tip and glue squeeze out into the ferrule, without problem. Only on one shaft did I end up with a runout of what I would consider to be about .002, and actually feel that it was the shaft, or quite possibly the clamping of the shaft. May have been able to zero it out if I had taken a little more time with it, but quite honestly had no problem dealing with it as it really was quite insignificant. I am very careful to only use as much clamping effort as necessary to keep the shaft from slipping. I guess with more experience it may get easier, but I really don't see how it could be any easier than it has been. I'm sure if you were not familiar in using a lathe, and or cutting tools, there might be a little longer learning curve, but honestly for me it has been a very straight forward process. This lathe, as I'm sure others like it, make it a very easy process in doing a professional tip install. Really looking forward to using it for other uses as well. I may play with my dial indicator on the ferrule for the next one, but so far I have found that if I don't see a runout, I am able to cut into the ferrule without issue.

Last edited:

Tom1234

AzB Silver Member
Silver Member
Thanks for clarifying. Looks like runout will not be an issue. Keep us posted when you replace ferrules and/or tenons. Thanks again.


muskyed

AzB Silver Member
Silver Member

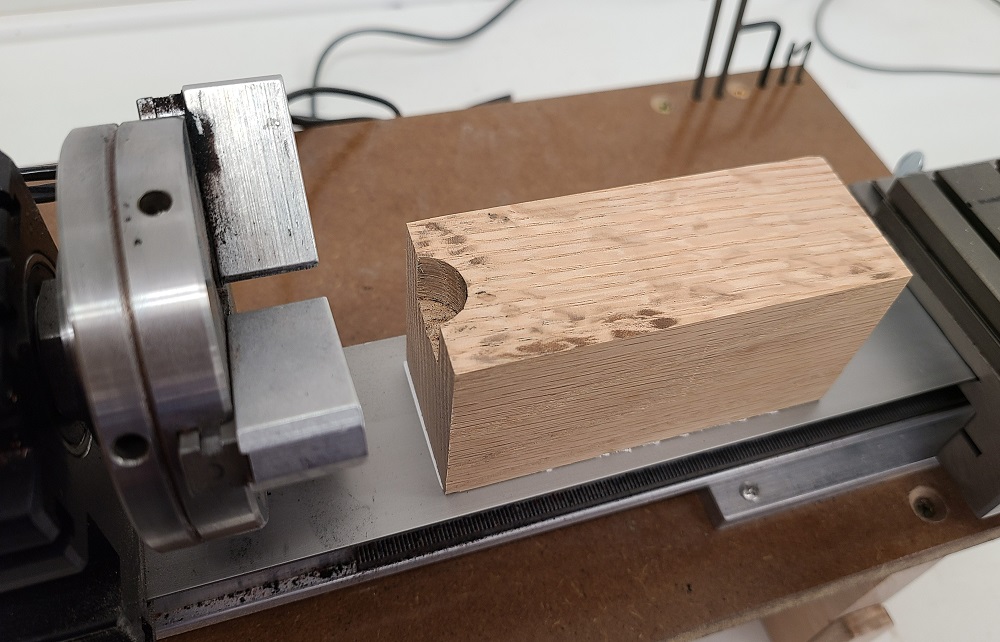

I have thought about how to do that. With a machinist lathe, I think it would be a fairly straight forward process to make a ferrule, but I know that on my woodworking lathe, even though its one of the highest end lathes made, it takes some doing to drill a round, centered hole, as the tailstock is really hit and miss in alignment with the headstock. I am able to get it close if needed by inserting two points and trying to lock the tailstock and headstock first. I didn't purchase the tailstock chuck attachment, but will probably have to in the future. Should be interesting the first time, and I'll be sure to practice on a house cue first.
