What angle for rubber cushions ???

[realkingcobra]

Additional graphics found online:

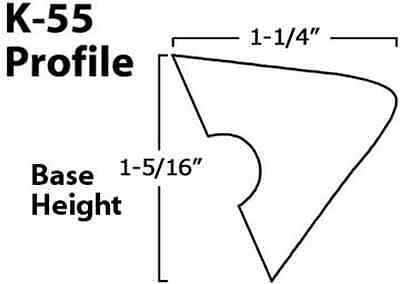

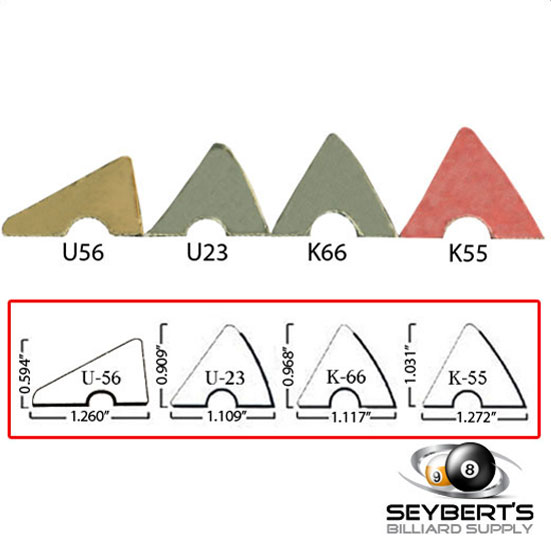

I am confused by these first 3 pictures: with an angled placement (like the 1st picture) there should be a difference between height of the cushion and the size of that side of the cushion (second picture).
It's pretty clear that the internet provides alternative truths ...

Which one is true?

View attachment 648076

View attachment 648079

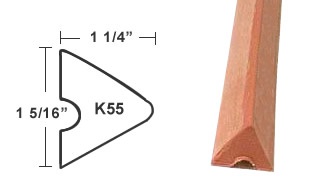

This Artemis N°66 cushion is supposed to be a K55-profile.
But other dimensions than above.
View attachment 648078

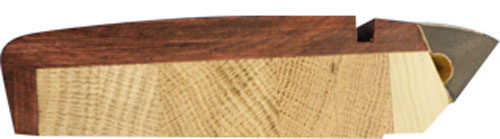

This is a profile of a Dymondwood rail
View attachment 648075

View attachment 648077

The cross cut section of the Diamond rail you pictured is of the Blue label design, of which I designed back in 2010.



[MamboFats]

I thought you said you had a GC1, those rails are 1.75 thick from the bottom of the rails, to the top of the formica, right at the edge of the feather strip dado. Yet you're saying your rails are 1 13/16" thick. The only way they could be that this is if you installed another layer of formica on top of the pre-existing formica.

No, my table is built from scratch.

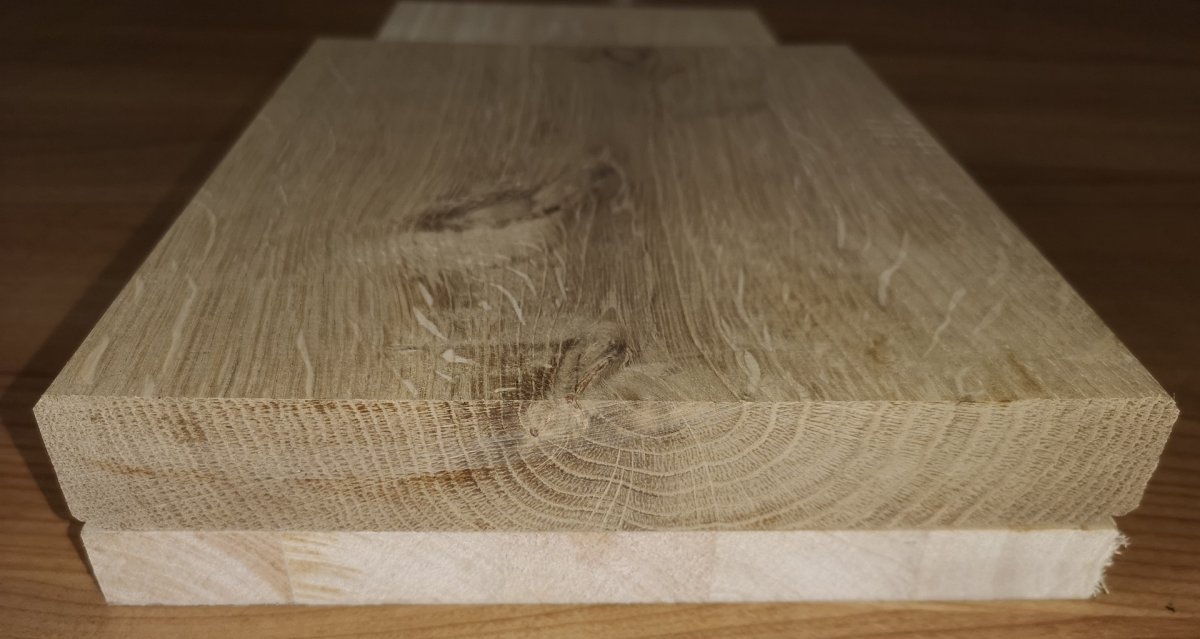

the rails basically consist of 18mm rubberwood pannel with a top of 28mm solid oak = a total of 46mm.

There will be cuts and slots and grooves and angles and ...

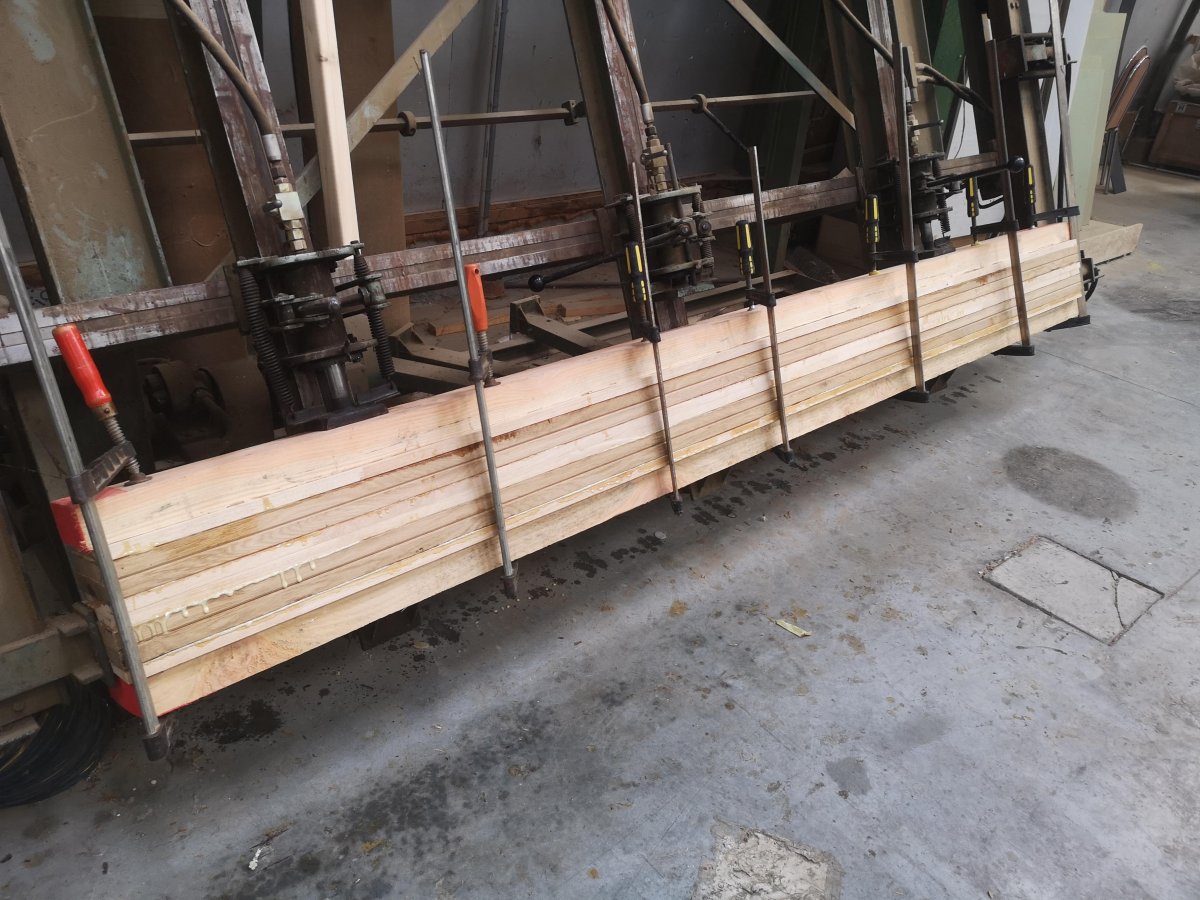

here is a picture of the rail glue up.
These babies are heavy.

enjoy pool



[realkingcobra]

No, my table is built from scratch.

the rails basically consist of 18mm rubberwood pannel with a top of 28mm solid oak = a total of 46mm.

There will be cuts and slots and grooves and angles and ...

View attachment 648195

here is a picture of the rail glue up.
These babies are heavy.

View attachment 648197

enjoy pool

46mm is 1 13/16" that's an 1/8" inch to thick for the rails. The sub rail needs to be at 1 11/16" which is an 1/8" below the top of the rail, which gives you a big step down to the rail cloth, compared to the tip finish of the rails.
