Anniversary Pro 8 Rehab and Moving a Table Yourself
- Thread starter bcarter123456
- Start date
bcarter123456
Member
We were in Augusta GA for some mountain biking this weekend and went looking for a place to play some pool. What a treat to find an old pool hall downtown that still has seven or eight Anniversaries on the floor. I'm now more excited than ever to get this one finished and set up. Unfortunately the tables were poorly maintained but at least they are still there. As long as you stood twenty feet away they looked amazing...
bcarter123456
Member
Here are a few shots of the recent progress. I spent a fair amount of time trying to find the right process for me to polish the aluminum to a degree I am willing to live with. The current process is described below. If all goes well I'll finish the second leg today.
Once both legs are done to this point I'll finish sanding the wood on the legs and spreader so all the wood can be stained and clear coated.
After the wood is finished I'll buff the aluminum with a softer wheel and green compound. A buffing cone with polishing compound should make the dented areas match the shine a little better.
Random orbit sander
1) 240 grit
2) 320 grit
8" airway buffing wheels mounted on a $40 variable speed 7" polisher.
3) Brown Tripoli compound on a very stiff wheel
4) Same compound on a slightly less stiff wheel.

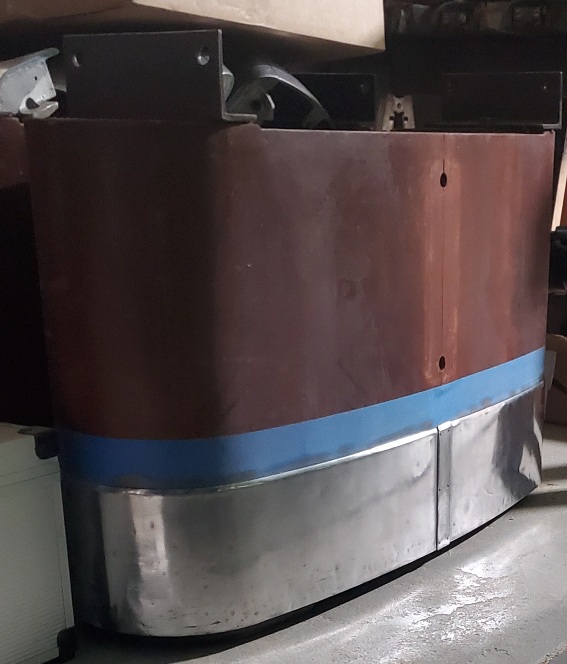

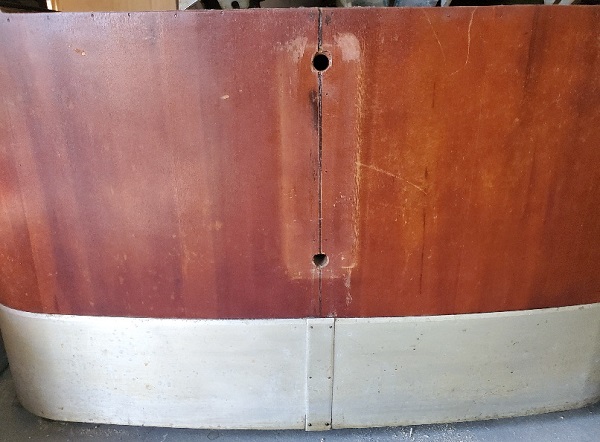

Original condition

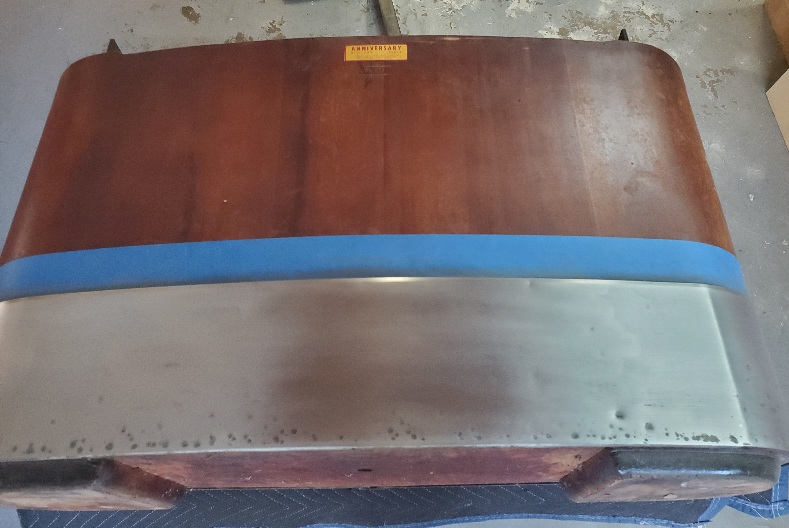

During buffing
After buffing
Take care,
Brent
Once both legs are done to this point I'll finish sanding the wood on the legs and spreader so all the wood can be stained and clear coated.
After the wood is finished I'll buff the aluminum with a softer wheel and green compound. A buffing cone with polishing compound should make the dented areas match the shine a little better.
Random orbit sander
1) 240 grit
2) 320 grit
8" airway buffing wheels mounted on a $40 variable speed 7" polisher.
3) Brown Tripoli compound on a very stiff wheel
4) Same compound on a slightly less stiff wheel.
Original condition
During buffing
After buffing
Take care,
Brent
bcarter123456
Member

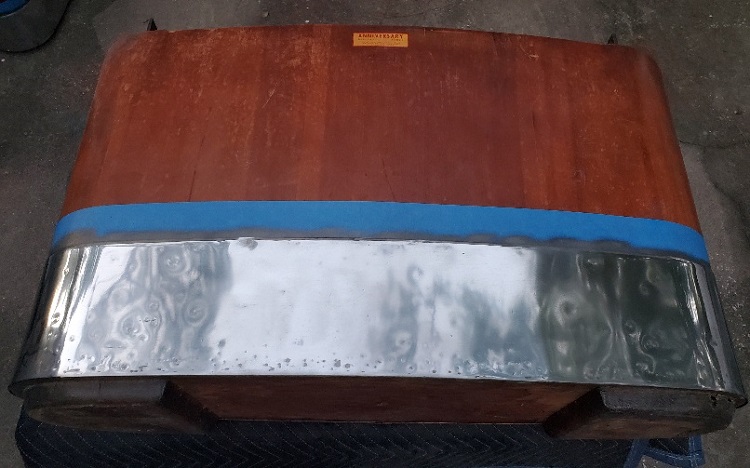

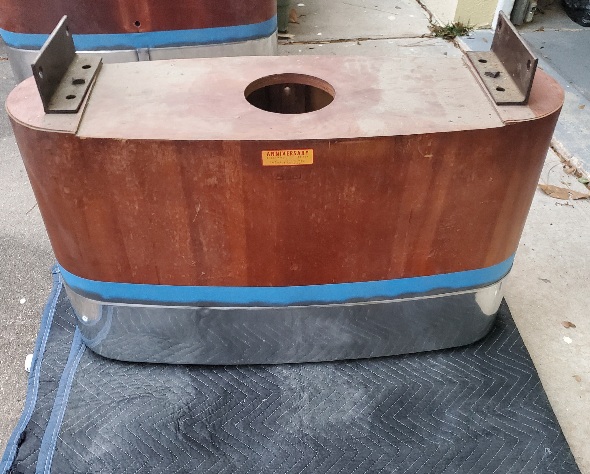

The second base is finished to the same point. On this one 80/120/240/320 grit were used on the random orbit before switching to the buffer. In the first image you can see how many dings the leg has suffered over the past 60+ years. Sitting on the blanket in person though it look acceptable.
If at all possible I would have to pull the stainless off of the wood to hammer and dolly the dents out, Im pretty particular about stuff like that.
Yep! I was thinking the same. Those bands should come off fairly easy.
bcarter123456
Member
I'm normally immune to peer pressure but I had been considering it anyway. ;-) First band is off.
I'd love to hear your suggestions for the best way tools and techniques to get the dents out?
@Steve Dickey what finish did you use on the wood, stain and clear coat?
I'd love to hear your suggestions for the best way tools and techniques to get the dents out?
@Steve Dickey what finish did you use on the wood, stain and clear coat?
That looks outstanding!!!!!
I have rather expensive hammers and dollies but you should be able to get away with Harbor Freight stuff for a single job. You just want a relatively flat faced body hammer and a flat dolly, it should have a radius on the opposite side and a radiused edge on it too. You may need a radiused dolly if you have to work on the sides of the bend. Once you see the dollies in person it should be pretty easy to figure out what will work best for you. You just want to make sure to take your time and move it slowly with light hits otherwise you might make an inny an outty and create more work for yourself.

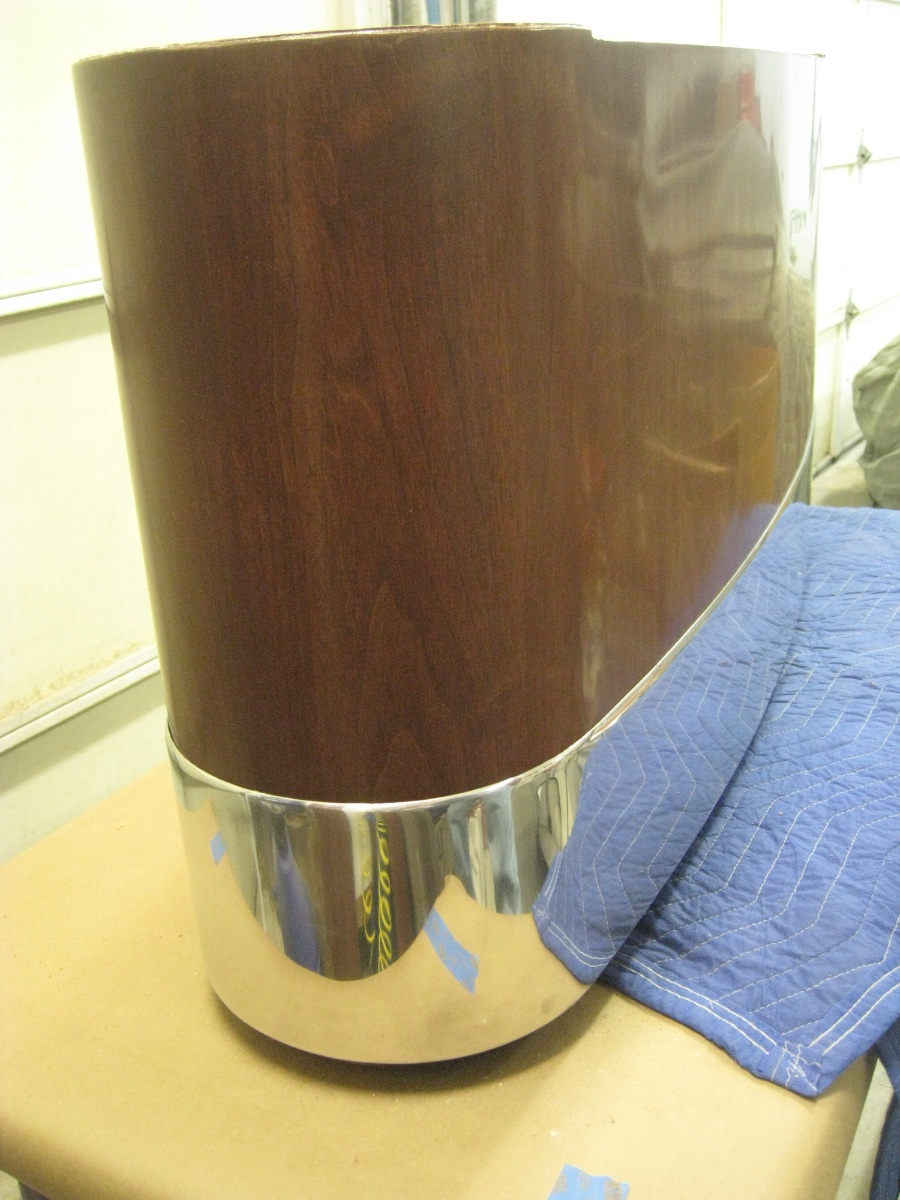

Personnally I had zero experience with that kind of dent removal. I used a brass punch and a hammer and push the dents out from the inside and then sand the outside with an orbital sander with a medium grit (probably 120 but I cant recall exactly). I was slighly over correcting the dents and knocking off the resulting high spot with the sander to get a smooth surface. The sanding was revealing the high and low spot really well.
It took me a while but the end result, while not perfect, is pretty good .
It took me a while but the end result, while not perfect, is pretty good .
Attachments

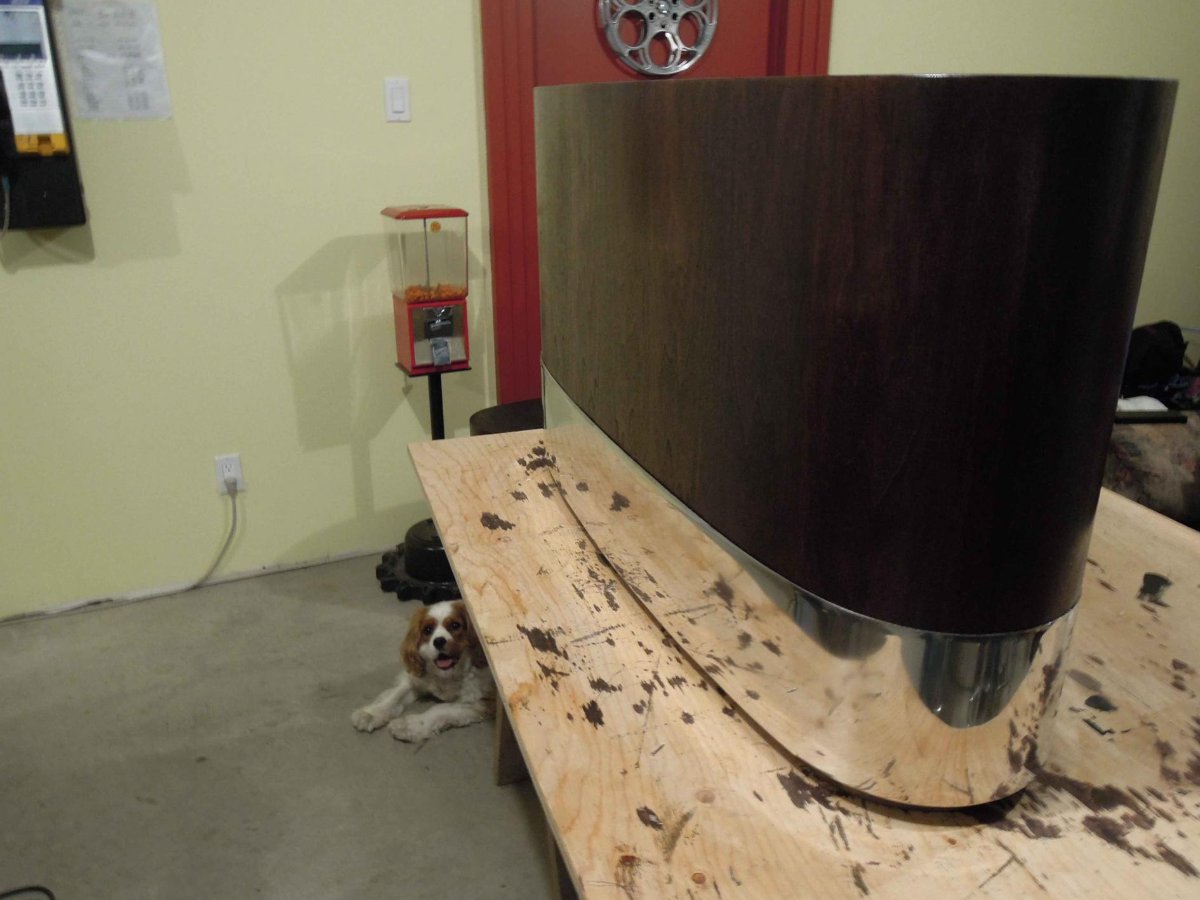

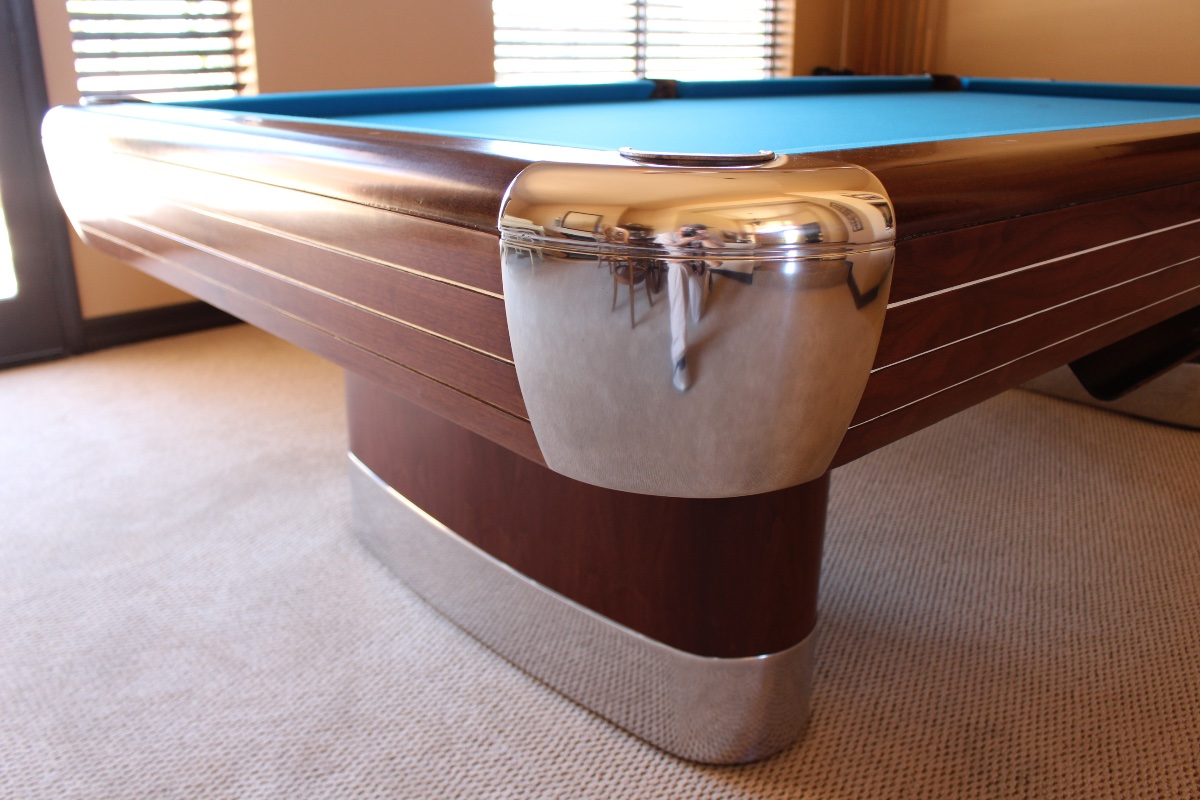

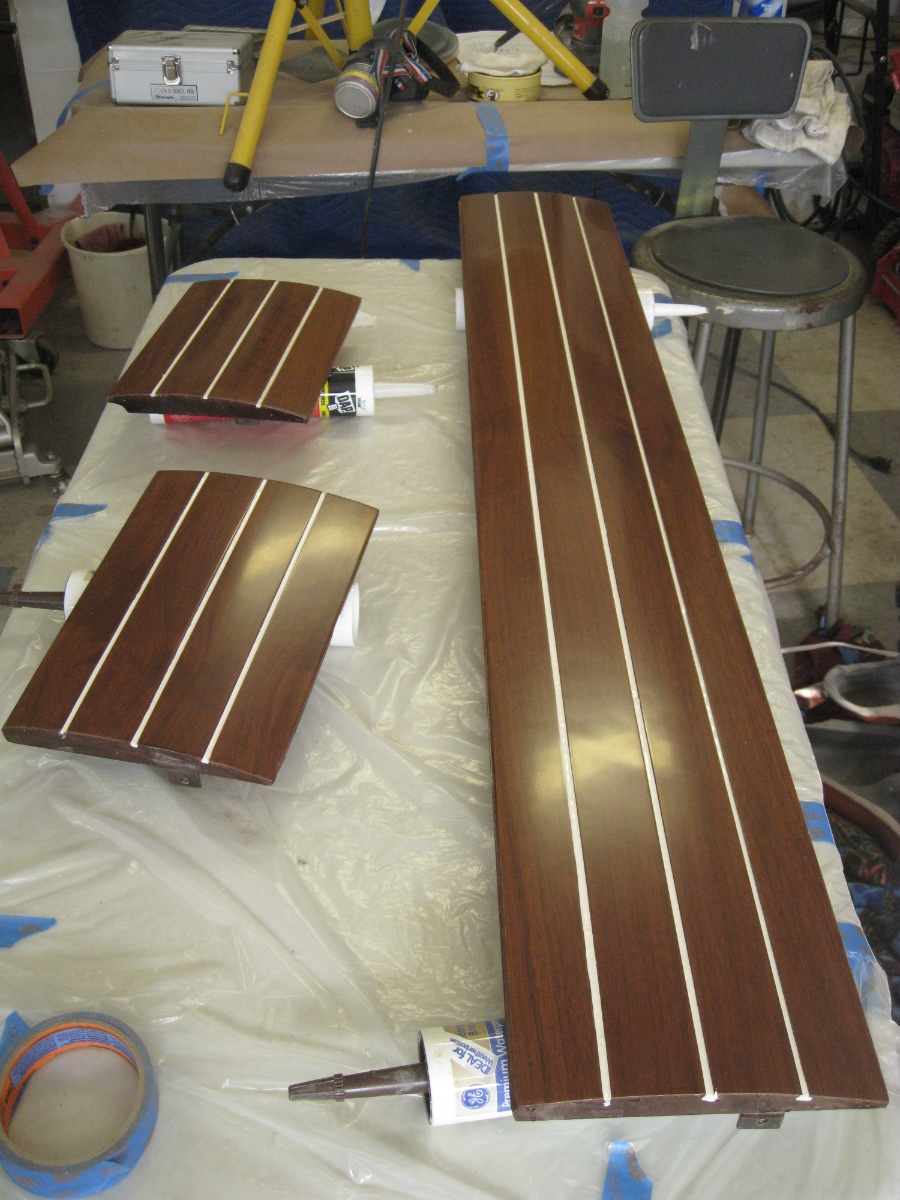

Thanks. The outboard surface of one of my pedestals was pretty beat up due to sun damage. I knew I would not be able to get a decent finish on it so I re-veneered them. Then as one thing leads to another, in an effort to have a similar finish on all the wood I did the same thing to the skirts and stringer. I mixed three stains together in an effort to match the existing formica on the rails ( I can't recall which) and then finished it off with Polyurethane.
Attachments
It worked for you, looks great!!!
I did the same thing when I stained the skirts on my GCI, I couldn't find a stain to match the rails so I ended up mixing 2 together but I don't remember what I used or what the mixture was. I guess if it ever needs touch up its going back to the original white skirts.
bcarter123456
Member
Sorry for the delayed updates. I have been working on it when I'm not distracted by some other shiny object.

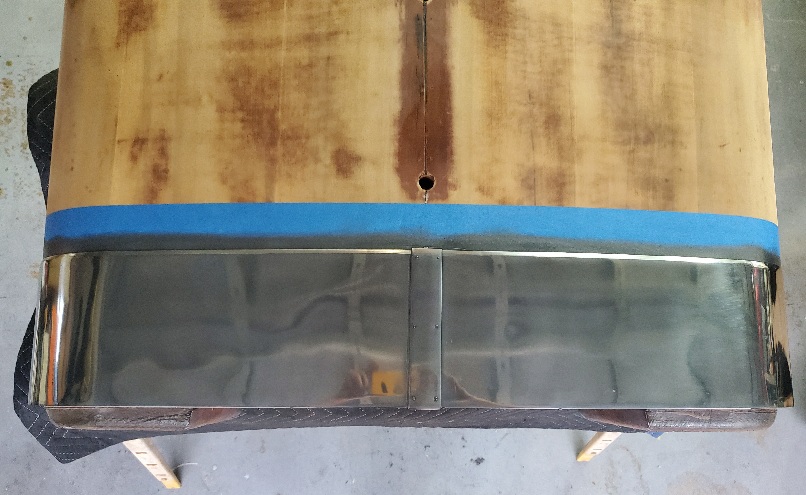

A skirt after pulling it off and removing the larger dings. Both legs are ready for dye and clear coat.

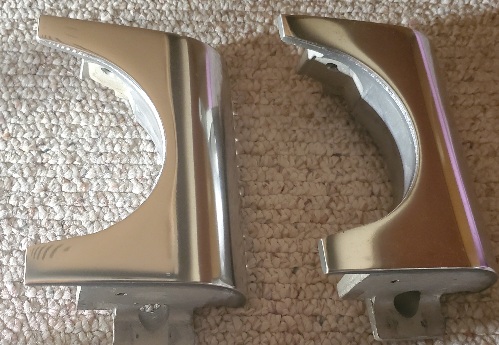

The two side pockets are polished.
I hope to finish the corner pockets over the weekend.
For anyone contemplating a similar project the polishing is quicker and easier than I expected with modest tools.

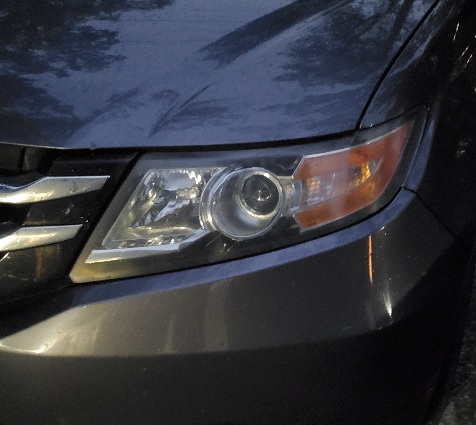

Cleaning my old foggy headlights in ten minutes paid for the handheld buffer and pads.
A skirt after pulling it off and removing the larger dings. Both legs are ready for dye and clear coat.
The two side pockets are polished.
I hope to finish the corner pockets over the weekend.
For anyone contemplating a similar project the polishing is quicker and easier than I expected with modest tools.
Cleaning my old foggy headlights in ten minutes paid for the handheld buffer and pads.
Hard Knock Cues
Well-known member
I sure know how other shiny objects can get in the way, but over time things get done.Sorry for the delayed updates. I have been working on it when I'm not distracted by some other shiny object.
A skirt after pulling it off and removing the larger dings. Both legs are ready for dye and clear coat.
View attachment 825195
The two side pockets are polished.
View attachment 825196
I hope to finish the corner pockets over the weekend.
For anyone contemplating a similar project the polishing is quicker and easier than I expected with modest tools.
Cleaning my old foggy headlights in ten minutes paid for the handheld buffer and pads.
View attachment 825197
Looking good, big improvement on the pedestal skirt. The dings almost disappeared. Pocket castings are a big improvement. I'm guessing it'll be well worth the effort. I'm looking forward to seeing more as you move along.
bcarter123456
Member
Steading plodding has never been my strong suit.

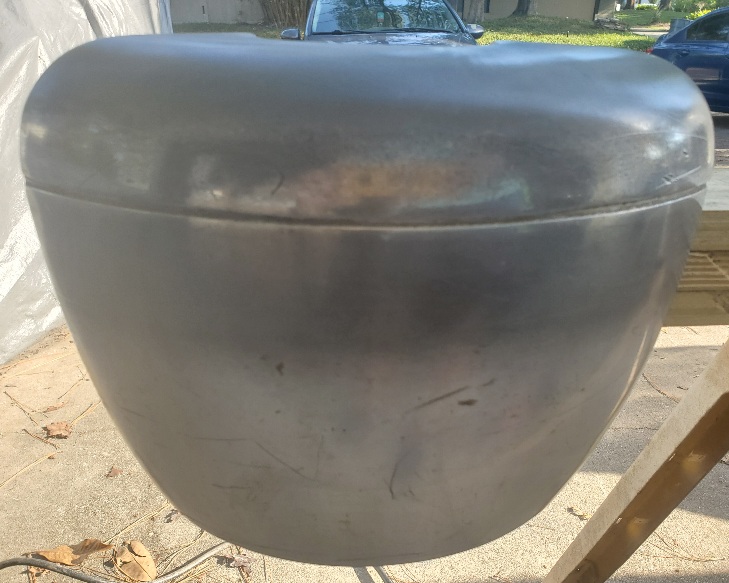

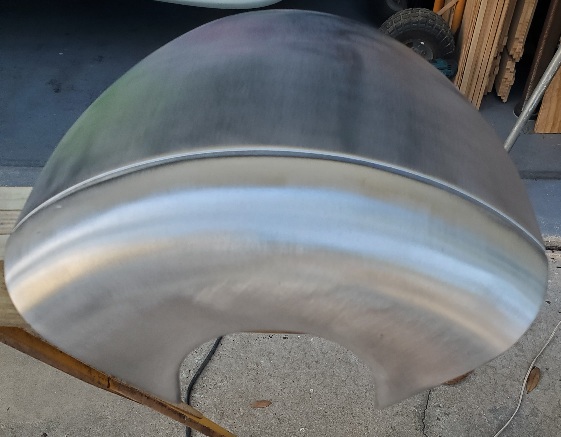

Corner pocket as it started.

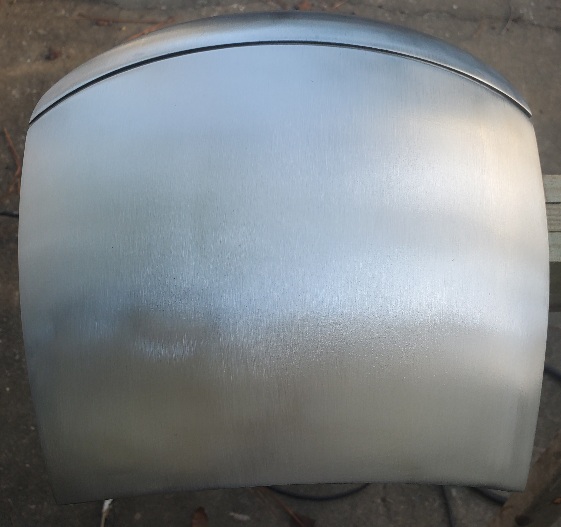

After 10 minutes with the surfacing tool.

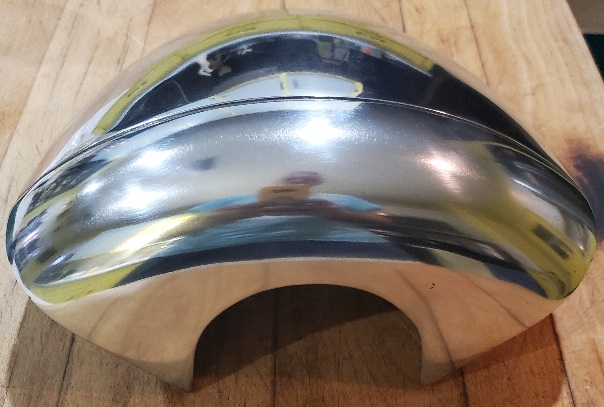

An hour and fifteen minutes later.
Three to go.
Corner pocket as it started.
After 10 minutes with the surfacing tool.
An hour and fifteen minutes later.
Three to go.
