Ball size testing

Bavafongoul said:
Well, hopefully you already started to eliminate and replace mismatched sets.
I know it took Tommy five to six months to swap balls and sets at his pool hall.
I carry calipers & scale in auto’s trunk but these can slip in my Aramith ball case.
For only $12 bucks, it costs about a cube & a half of fancy chalk & doesn’t wear out.
Click to expand...
Interesting, I have been having an issue getting all balls to touch on 8 ball racks even with a template. This seems pretty cheap to confirm. I have two sets of aramiths I can test. Would be interested to see the tolerance deviation difference between aramiths and a company like dynasphere.

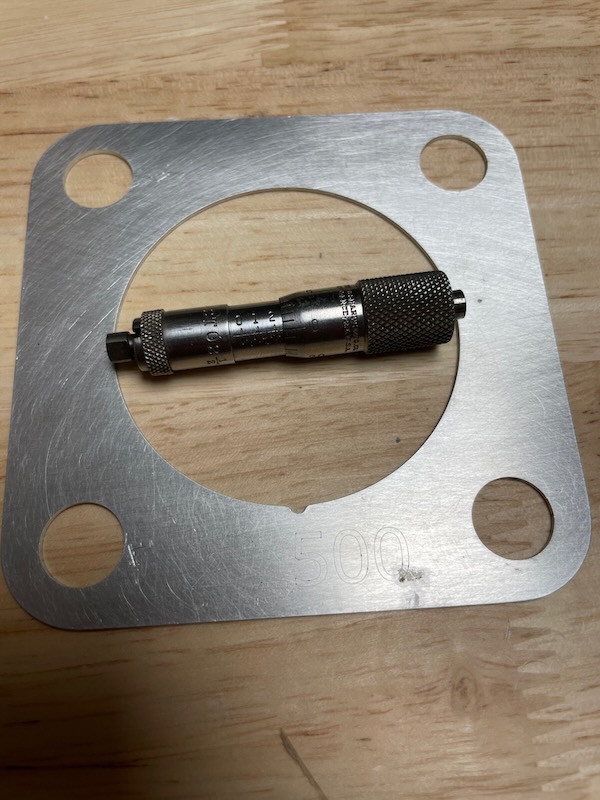

Update on the laser cut gauge. I found a way to measure them with better accuracy than inside jaw dial calipers. I bought an inside micrometer from ebay for about $15. Its an old Brown and Sharpe. I wanted another type of inside micrometer with two pins, but could not find in the size range for a pool ball. The laser cut gauge is right on, better than .0005". measured at a few points around the circumference.

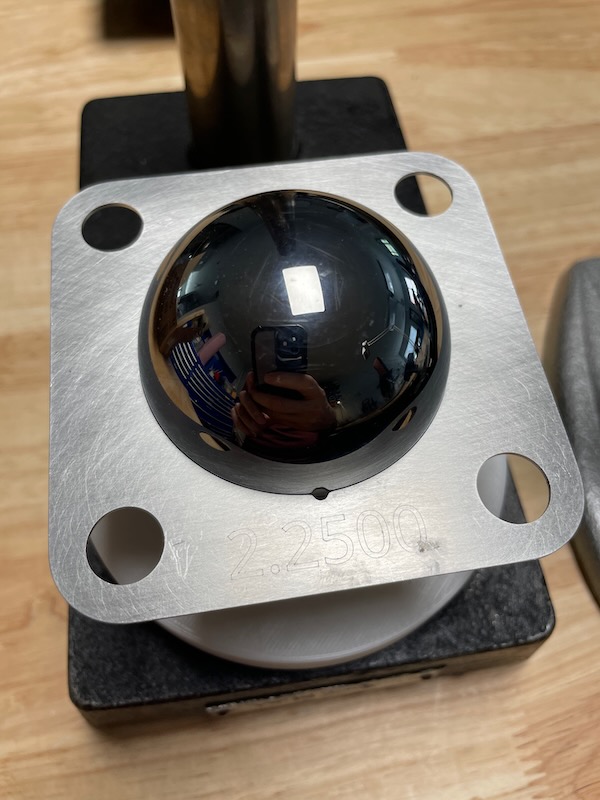

The high accuracy 2.250" steel ball bearing does not pass through the 2.250" gauge, as expected. I will order another set probably from 2.240" to 2.253", in .001" increments, and see how they do. I'm making an order for my day job in a couple of days, and I'll sneak these in.

.040" thick aluminum was the winner on the material. It looks good, stiff enough, and cheap.


iusedtoberich said:

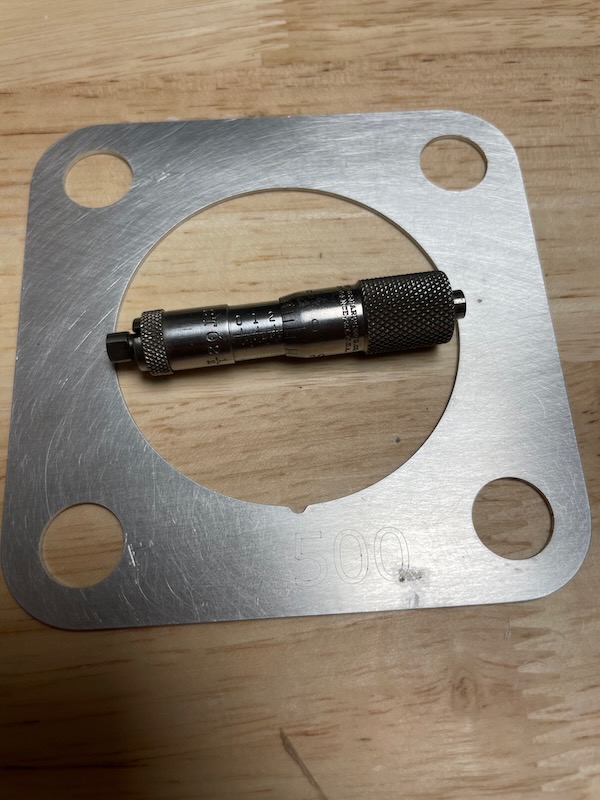

Update on the laser cut gauge. I found a way to measure them with better accuracy than inside jaw dial calipers. I bought an inside micrometer from ebay for about $15. Its an old Brown and Sharpe. I wanted another type of inside micrometer with two pins, but could not find in the size range for a pool ball. The laser cut gauge is right on, better than .0005". measured at a few points around the circumference.

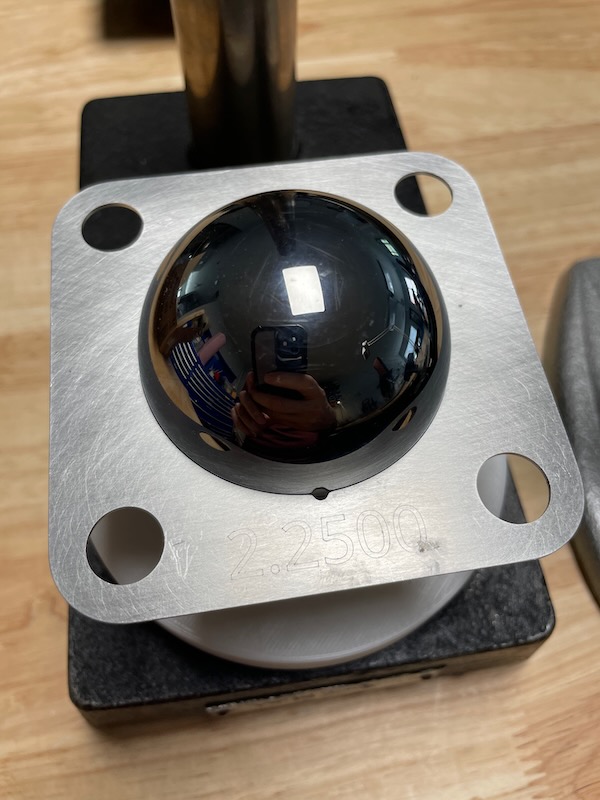

The high accuracy 2.250" steel ball bearing does not pass through the 2.250" gauge, as expected. I will order another set probably from 2.240" to 2.253", in .001" increments, and see how they do. I'm making an order for my day job in a couple of days, and I'll sneak these in.

.040" thick aluminum was the winner on the material. It looks good, stiff enough, and cheap.

View attachment 645917View attachment 645918
Click to expand...

How did you calibrate the eBay inside micrometer?

kling&allen said:
How did you calibrate the eBay inside micrometer?
Click to expand...
A 2-3 Starrett micrometer, that was calibrated to a new 2” Starrett micrometer standard. It actually was right on when I bought it so I didn’t move the zero.

The tricky part is the faces are convex, and the sheetmetal is thin. That’s why I wanted the other type with the pins. But I was able to get it to work in the end.

Of course 2 points of contact can’t measure roundness errors. But I think it’s good enough.

iusedtoberich said:
... The high accuracy 2.250" steel ball bearing does not pass through the 2.250" gauge, as expected. I will order another set probably from 2.240" to 2.253", in .001" increments, and see how they do. I'm making an order for my day job in a couple of days, and I'll sneak these in.
...
Click to expand...
Or, you could cool the ball bearing a known amount in a water bath and from the CTE you could calculate the size reduction. I'm guessing that would be plenty to get it through an "equal sized" hole.

Bob Jewett said:
Or, you could cool the ball bearing a known amount in a water bath and from the CTE you could calculate the size reduction. I'm guessing that would be plenty to get it through an "equal sized" hole.
Click to expand...
At first I thought you were making an aiming joke. Ha ha.

Let me put my hands on the gauge a while to see if that’s enough.
