Please hold all laughter until the end...

Another update...

My package came in from Prather today. The white/green is the same stuff on my Mace. I will save that for something else. The white /brown is a possibility, but I'm really diggin' the 'antique' which is essentially 'Ivory' colored.

I think it will look nice, and when it gets a bit dirty, it will look like a really old cue.:)

So, I think that's my choice for the moment. Once I spin it on, I may charge my mind... :eek:

OK! My first ever wrap job is complete.

Based on what I just learned, I will share some things to those of you contemplating doing a re-wrap, or a new wrap for the first time.

1) Use black, or black with white spec the first time.

I used this 'antique' color, which I really like (especially on this cue), but you have to be VERY careful of dirt. I had some minor meltdowns as I am working on a machine lathe that normally has oil all over it. On your own lathe, it might be easier...

2) You don't need wax.

I thought the shine came from the wax, but that is clearly not true. This wrap shines quite nicely (and feels like glass too) with no wax.

3) You don't need a $100.00 + linen press

That's right. Through PM's with another cue maker here, I was told to use oak boards for the press. Well, it works FANTASTIC and was very cheap! I used Red Oak, because I am out of white, however red is what was suggested to me, and I can confirm it works wonderfully!

4) cut your inlet for the wrap carefully and sharply.

Which I did, but once the finish was on, sanded and buffed, the edge lost some sharpness. This is not a huge deal to me, but the edge of the wrap is not perfectly flush with the finish.

I love this cue. I cannot believe that I could make such a great hitting cue for my first attempt ever at cue making. Cosmetically, it has a lot of issues, but it is at least not embarrassing to use in a pool room. I played with it again last night, and it still hits fantastic. I am getting TOO much action on the cue ball as compared to my Richard Black. Stroking more-or-less the same I am getting significantly more cue ball action- to the point of hooking myself because the ball draws back further than expected.

I also pulled off a beautiful full-cue jump shot last night. Over 1/2 a ball- typical stuff, but I just jacked up and stroked it. POW. I have tried that shot with my Black in the past and know it wouldn't work. I invite anyone in the area to try this thing for themselves. It really does hit well, and words and pictures here cannot convey that.

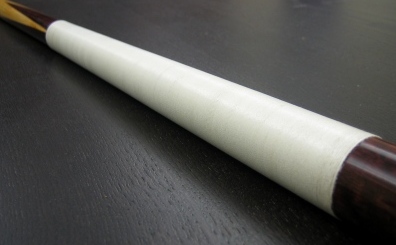

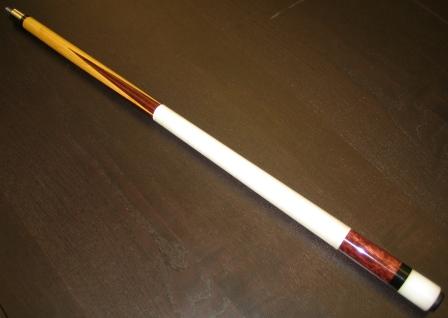

Anyway, here are some pics of the wrap as of now. I may pull it and re-do it at some point, but for now I'm just going to enjoy this cue! I love it!

Next is a pair of shafts with Ivory ferrules. That will be the next installment of "This old cue".

*edit* I may have to update my signature, as this is fast becoming my playing cue of choice!


Attachments

  • IMG_3857 edit.JPG
    IMG_3857 edit.JPG
    15 KB · Views: 242
  • IMG_3859 edit.JPG
    IMG_3859 edit.JPG
    35.1 KB · Views: 243
Last edited:

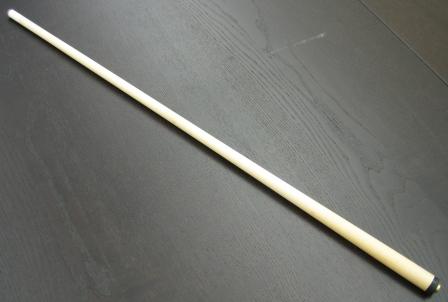

First shaft is (almost) done!

Yes! I have finished the first shaft. I ran out of clear before I had enough build, so I have to deal with that still, but I can do that next week. Leagues are tomorrow night and I'm bringing this cue, and the Black as a back-up cue...

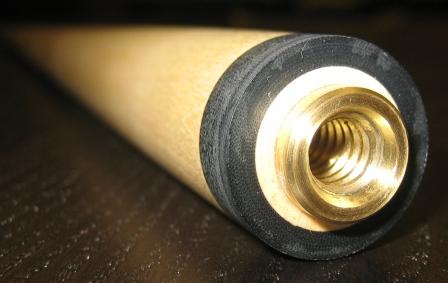

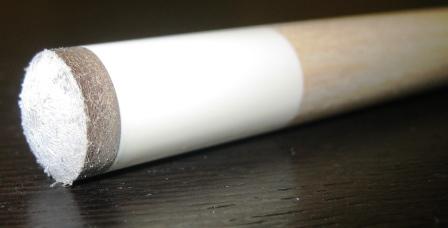

Anyway, it is 13.25mm diameter, triangle tip, Ivory ferrule. Extra-short trim ring (solid black) matching the butt and a nice piloted brass insert. I'd have two shafts by now, but the second insert cracked when I put it in. That was annoying...:mad:

Anyway, the cue with this shaft is 59" long, and balances at 19.5" from the butt. The shaft taper is VERY stiff; however it is a lot easier to remove wood, than it is to replace it. So, if I want to soften it up, I will do so.

The (patent pending) ;)"Semi-pro" taper I have on this is responsible for the stiffness. Only 4" of the shaft is straight, and then it begins to taper. I also kept the shaft at .850 longer than normal at the other end. Again, I can/may change it, but I will try this for now...

Pics:


Attachments

  • Shaft 1 comp.JPG
    Shaft 1 comp.JPG
    15.2 KB · Views: 224
  • Shaft Insert 1 comp.JPG
    Shaft Insert 1 comp.JPG
    19.1 KB · Views: 239
  • Shaft 1 tip comp.JPG
    Shaft 1 tip comp.JPG
    12.2 KB · Views: 228
Thanks!

It's not difficult work, but having the right tools and a lot of patience is key!

Wow, very nice. I would love to try this one day, but just don't have the space to setup a small workshop yet. Great work! I like the choice of the wrap! Looks great!

Thanks for the oak board tip on the wrap. Your post was very timely. I wraped my first cue this morning. I was not as brave as you. I used a 20 year old house cue instead making my own spliced butt. If I waited till I could splice a butt, it would never get done.
Hope you inspire more people to make/convert thier own cue. Here is my first attemp, please don't laugh to hard!

http://www.thefroginator.co.uk/fm-pix/albums/userpics/finished cue 1 002.JPG

Larry

I don't have space either!

I'm using lathes and mills at work, and I do the rest by hand.

I really want to get some new blanks going, but I don't have my tools set up! Should be in a house by September, so then the real fun begins (in between house projects of course).

But, I have a couple John Davis blanks now- waiting for me at the house so I'll finally see them tonight!:thumbup:

I may get some lower-cost blanks to make sure my skills are up to par before I risk a Davis blank...

By the way, the shaft I made is too stiff. Not a big surprise, but I can fix that.

I played my first matches last night with the cue and won the first, lost the second, and won the third. Of course the cue has nothing to do with it for the most part, but it feels really nice!

Cue looks great Larry!

There is a lot to be said for a maker that can take a house cue and get the points even.

I can't tell how close they are but it sure looks nice to me!

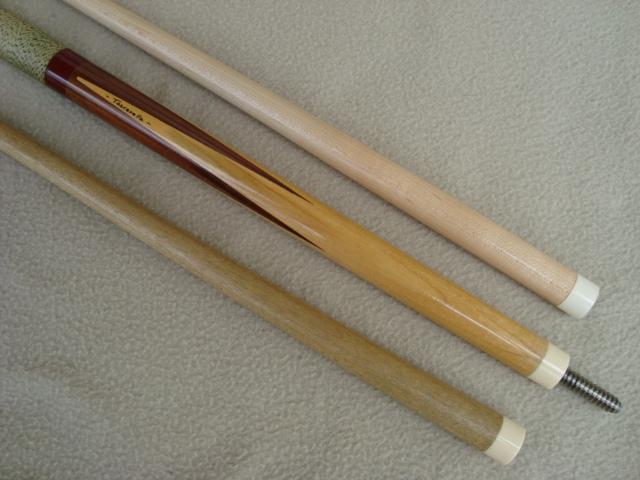

In fact, getting points perfect on ANY spliced cue is quite difficult. Take a lok at this Tascarella! It gave me hope because it is actually less perfect than mine is!


Attachments

  • t2.JPG
    51 KB · Views: 189
A minor update...

I pulled the "weight" bolt from the butt ans cut it down because the cue was a bit heavy overall (even after re-tapering the shaft) and the balance point was a tiny bit too far rearward in my opinion.

So, once I cut it down, I realized it was too short to catch the threads!

Back to the lathe with a new bolt...

I bored the bolt ID all the way through and cut the OD down below the head to the point where I needed to have threads. The back end was tapped for the bumper.

Once I finished, the bolt was a full 10 grams lighter than the old one, and the balance point was now at 19-3/4 inches from the butt. That sounds a bit far, but remember this is a 59" cue...

I'm happy!
