Thought you guys might enjoy a sneek preview of how I extend the sub rails to tighten up pockets.
Glen
Last edited:

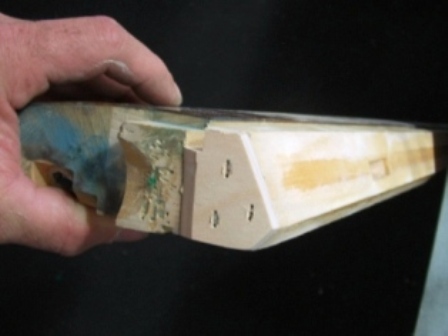

Pre-view of DVD on how to extend sub-rails.
- Thread starter realkingcobra
- Start date
Thought you guys might enjoy a sneek preview of how I extend the sub rails to tighten up pockets.
Glen

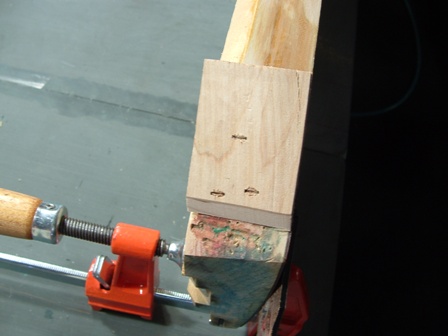

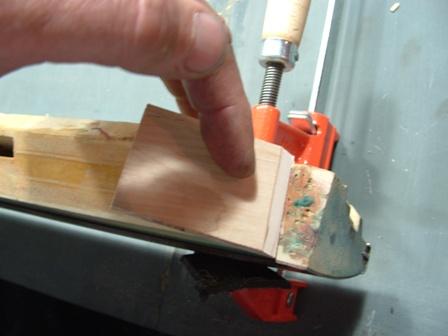

Some of the next steps. The slate makes a handy work bench.
Glen
Last edited:

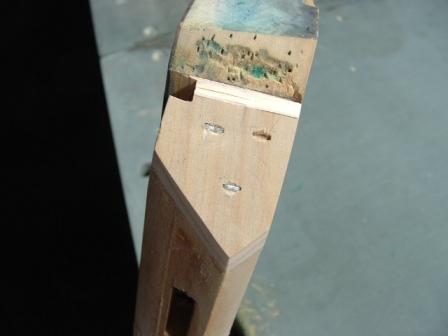

Sanding the rail extensions.
Glen
Last edited:

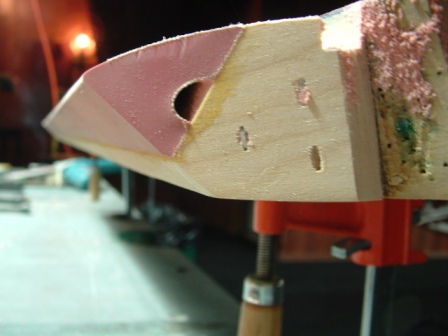

Cutting and sanding the rail rubber.
Glen
Glen
Last edited:

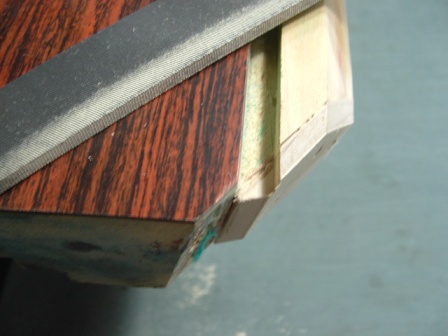

Making room for longer feather strips.
Glen
Glen
Last edited:

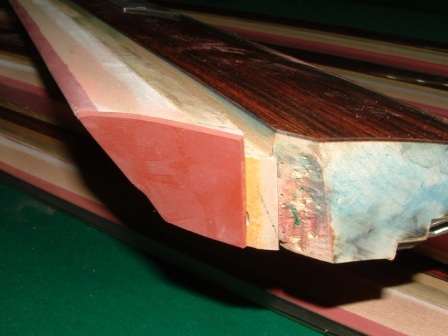

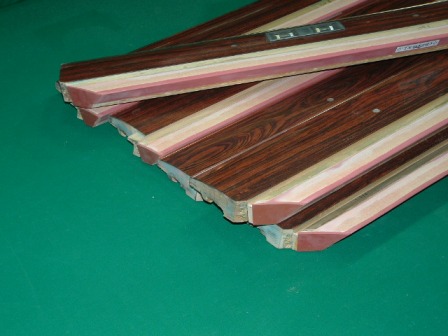

Finished with the facings.
Glen
Glen
Last edited:

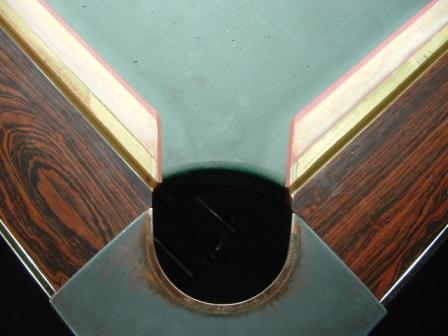

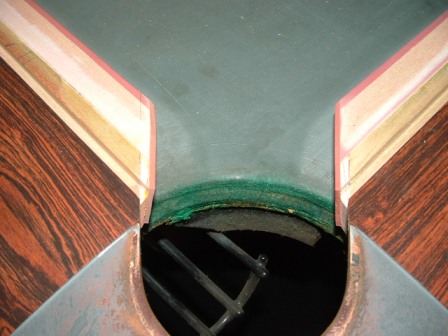

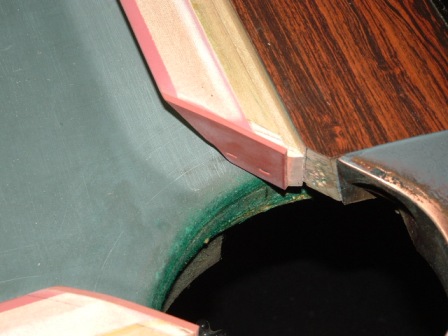

View of finished corner pocket before recovering.
Glen
Last edited:

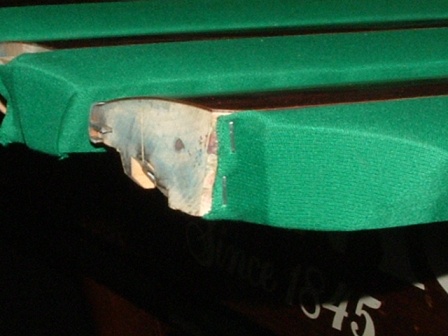

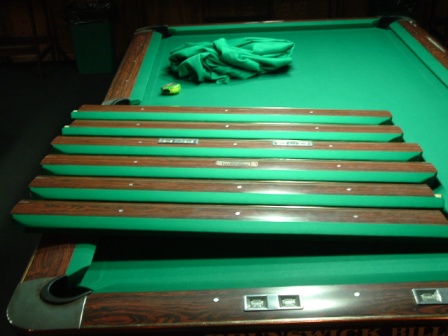

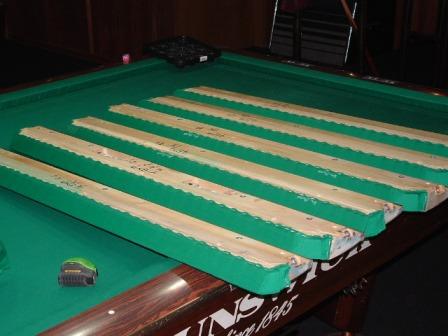

Recovered rails. Notice the relief in the rail in picture 3, now the pocket liner ears fit nice and snug.
Glen
Glen
Last edited:
Pockets
Looks awesome. I can't wait for the videos.
Looks awesome. I can't wait for the videos.
Best work I have seen of anyone trying to tighten rails the right way everything in those pictures are top notch. Only two questions i have were did you get the red facing i only find black or white. The wood spacers i assume are 1\4" mahogany ply or do you use something better.
Thanks again for the informative picture's and great advise you give out.
Craig
Thanks again for the informative picture's and great advise you give out.
Craig
I would liek to purchase your dvd when ready.
Sundown Wessels 866-379-8983
Sundown Wessels 866-379-8983

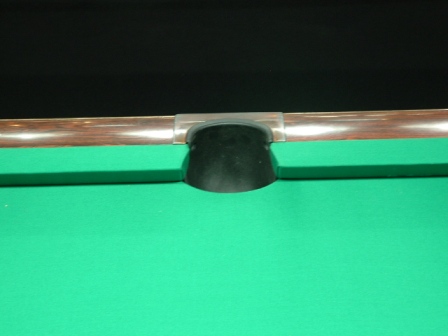

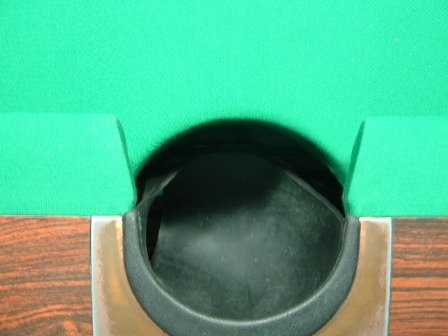

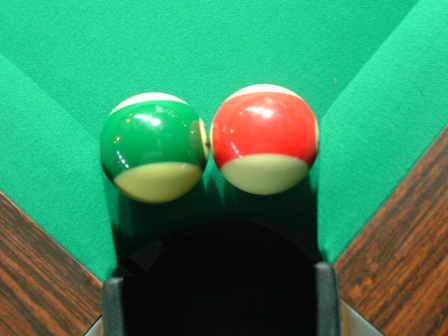

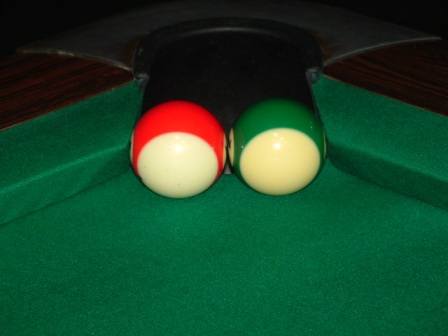

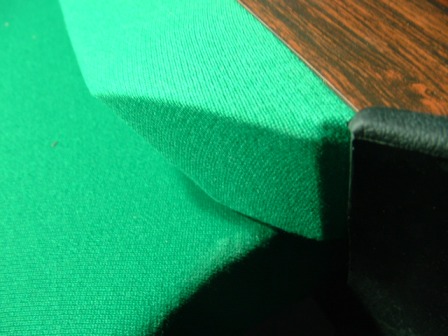

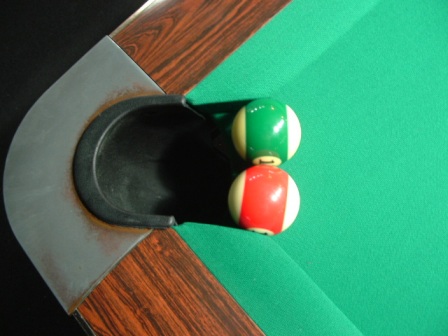

Final pictures of the corner and side pockets. Sides were set at 5" and a bevel of 102 degrees, corner pockets were set at 4 1/2" with a bevel of 141 degrees.
Glen
Last edited:
And the very last 2 pictures, I'm all done now...LOL
Glen
Last edited:
I think I'm delivering 3 pool tables to you or something, so I guess I'll be seeing you shortly.sdbilliards said:
Glen
You can get the red at Home Depot, or Lowe's. Normaly I get it at a rubber supplier back home. Yes, I used 1/4" Mahogany ply, but I also have 1/8", 3/16", 1/4", 5/16" and 3/8" solid wood at home for creating different openings.n10spool said:
Glen
By the way, them pocket liners were not even screwed in at the time I took the pictures, they're just sitting there. That's why I create the relief for the cloth in the extentions, so that the extending of the sub-rail won't interfear with the ears of the pocket liners when they mount up.
Glen
Glen

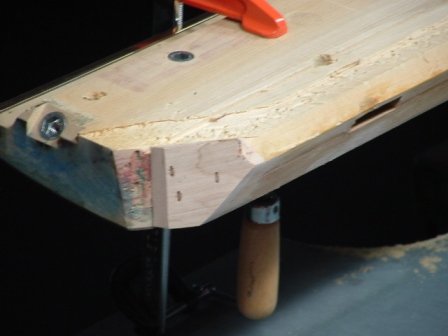

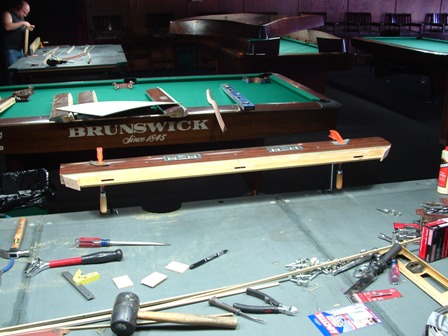

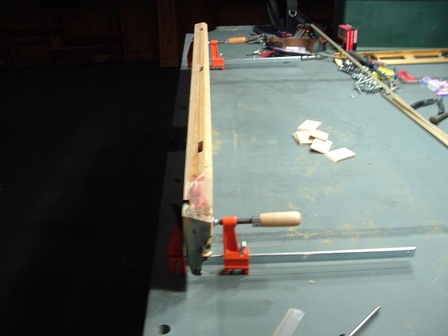

How did you like my work bench...LOL, rail bolt holes, and bar clamps work real good together...LOL
Glen
Glen
I don't know what Brian is planning. Last I heard he was shipping them today because of your busy schedule. Have you talked to Brian about them recently?
