20 minute epoxy for ring & joint work?
- Thread starter DanO
- Start date
I always liked 1 hour and let sit over night. Most times dry to the touch does not mean fully cured and cutting to soon can cause heat that can cause a seperation which could lead to a rattle in those areas.
West 206 works for me these days.
Joey, you got yourself set up to use the different hardners with same resin?
206 is the hardener . 105 is the epoxy.
There are so many ways to use that combo for different applications.
But, be warned. If you use it for joint pin, better make sure you won't need to blowtorch that pin ever . If you are using brass or G-10 screw, 206 away. Those are easy to machine out if needed.
not a bad idea at all

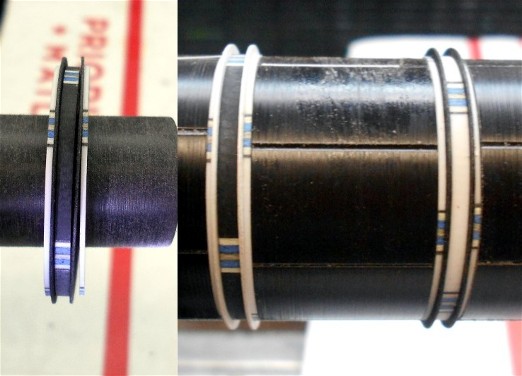

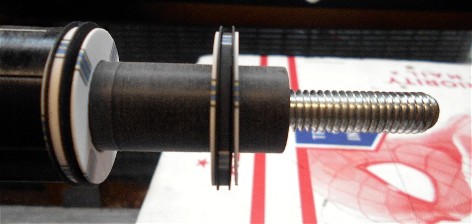

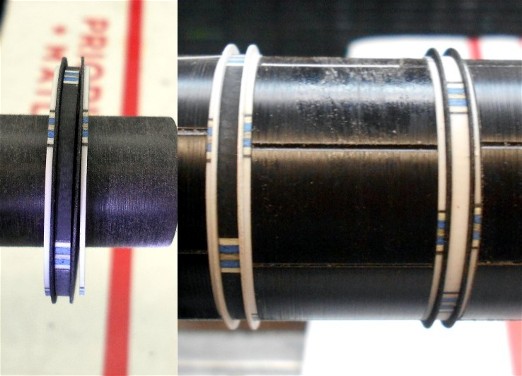

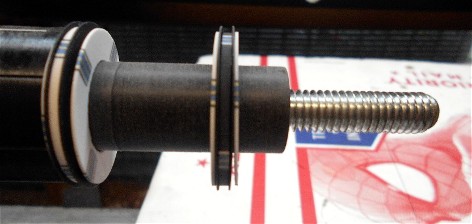

you can also do this
build your ring paks off the cue on a delrin jig
you can see the alignment marks indexed every 45 degrees

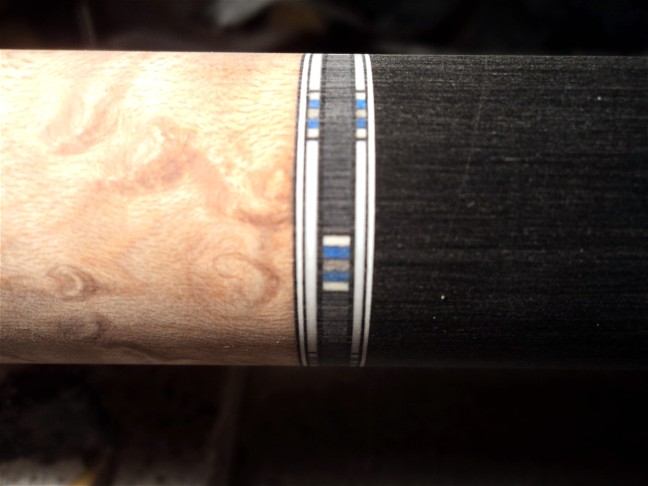

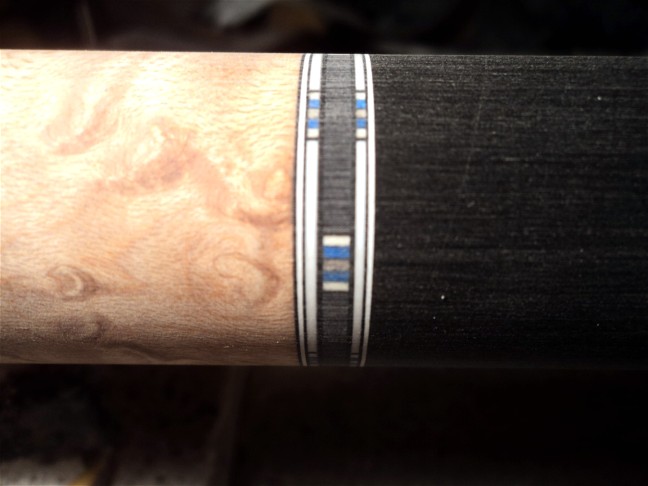

1st pic, obviously not glued and lined up, that was just to show my guy the 2 options i had in mind
Attachments
There are 4 hardeners with 105 that you can use. What I DON'T like with West, and this is based on over 20 years experience with it, is it likes to discolor with time if left unused. The fast I have is reddish pink now and unusable for anything visible.
On boats, the shipwrights almost always use the fast for repairs. ALTHOUGH, the new vinylester is getting very popular.
White pigment works.
Maybe it works to make it pink.... Would you like to buy my hardener Joey?
Brent, I’ve been using delrin ring fixtures for quite a while now. It takes a bit of torque to release them from the delrin though. As I’m trying thinner and thinner rings and veneer, this concerns me getting the ring pack off the delrin. Thus the epoxy questions. Your rings look very thin. If you are not having a problem with using the slow cure than I will give it a try.
Three questions for the West system guys.
A: How do you keep the hand pumps clean or do you have to?
2: Is the 205 more of a medium set time?
C: Preference on where to buy on the net? No retail anywhere near me.
Has anyone tried the Bob Smith 206 Slow-Cure 9oz Epoxy from Amazon? Interesting that it is also named “206” but is a completely different 1 to 1 mix.
I'd like to try Atlas's but they are out.
Good conversation gentlemen. Very helpful, thanks.
I use West or System 3 depending on what I am doing. No need for hand pumps. Just a dixie cup and a digital scale.
A. I keep the pump on the resin and I put the hardener in a squeeze bottle.
2. It's faster and I have had no use for it .
C. Rockler on line or just Ebay.
BSI's are the cheaper kind . Probably good enough for collars and ferrules but I wouldn't trust them for joint pins , A-joint and buttplate.
I usually use a slower setting epoxy on rings, but many years ago I made up different sized delrin jigs and spacers for glueing ring packs up. Much easier to line/index the segments up before going into a cue. Still have to line the rings packs up, But It's much easier to line those 4 or so up, as opposed to several times that many.
