Installing Joint Pin

Cheez Dawg

Cheez Dawg

Flawed Perfectionist
Silver Member
When installing a joint pin, to ensure you have a perfect hole, do any of you use a small boring bar?
If so, where did you get it?
I would assume it would have to be quite thin and around 4" long?
I am interested in finding one if they exist. I have done some searching, but have come up dry so far.
Thanks!

Thanks!
I was looking at this one, but I wasn't sure if it would be long enough to do a joint pin install.

What kind of pin?
For 3/8 barreled radial pin, I bore .312 by 1.5 inches deep then drill out the bottom to 2.25 or so. Tap the hole then rebore for the barrel (.370-372 depending on the pin ).
I fill up the bottom tap clearance with 1/4 long wood ( I hate wasting epoxy and I do not like air down there ).
Micro 100 sells long boring bars too.
http://www.expresscuttingtools.com/Boring_Bars.htm
Or that place.

the barrel on mine are .382" or so.i drill the hole deep enough for the pin with .290" then follow with .312"(both bits are 3 flute solid carbide so they won't walk)the bore a hole .382" about 1.3" deep for the barrel.then i clean the bored hole out with the tap which is actually a hair over .382",maybe .002" bigger and then tap.

my boring bar is small but probably only about 2" long.i think the smallest it bores is .325".

I had some made up that are .250 and can bore 3" deep. I think I paid $40-$50 each for them. I can't remember where I got them, but I did post it here a year or so ago.

Last edited:
BHQ said:
here's mine ;)
http://cgi.ebay.com/1-pc-1-4-SH-3-B...39:1|66:2|65:12|240:1318&_trksid=p3911.c0.m14
Click to expand...

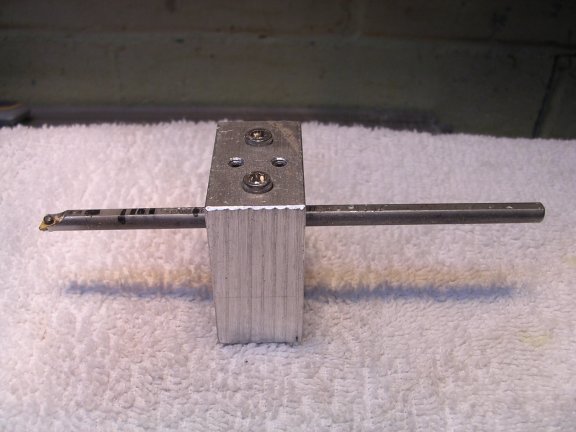

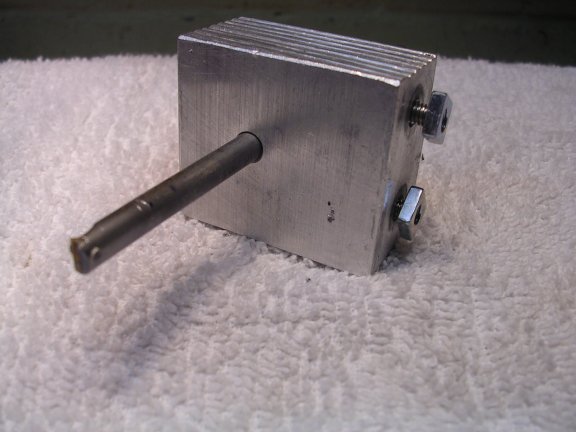

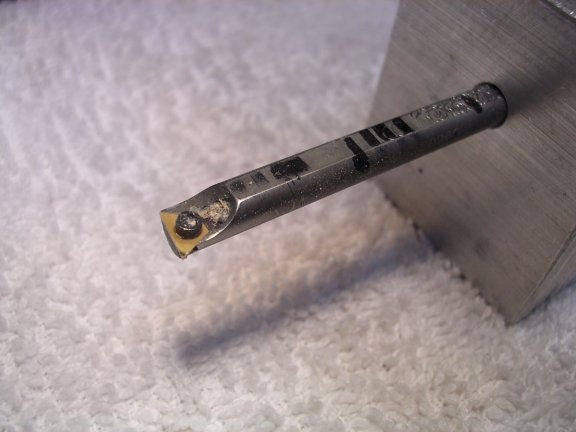

I got mine from J&L Industrial Supply. It is 6" long and can bore a 1/4" hole. I made the holder to work with my Deluxe Cuesmith. I like the double screws because it holds the boring bar alot more secure to the crosslide. 1.jpg



Last edited:
you dont need to bore the entire depth of the pin. I use the bar to get a perfect hole started around 1/2-3/4in deep then use a bit for the rest. As long as you start good the bit won't wobble. I just use the one from chris.

After the pin is in while still wet and still chucked up I get my cutting tool really close and spin by hand looking for movement between the very tip of the pin and the tool. . If there is I find the closest point and nudge the pin with my cutting tool until perfect.

Chris shows you all the in his videos best 100$ you can spend

Last edited:
dave sutton said:
you dont need to bore the entire depth of the pin. I use the bar to get a perfect hole started around 1/2-3/4in deep then use a bit for the rest. As long as you start good the bit won't wobble. I just use the one from chris.

After the pin is in while still wet and still chucked up I get my cutting tool really close and spin by hand looking for movement between the very tip of the pin and the tool. . If there is I find the closest point and nudge the pin with my cutting tool until perfect.

Chris shows you all the in his videos best 100$ you can spend
Click to expand...
Thanks for the info. I have every one of Chris' videos. Best $ I ever spent!

Busbee Cue said:

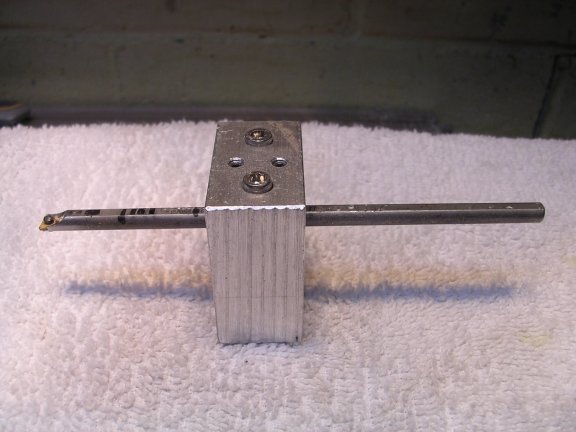

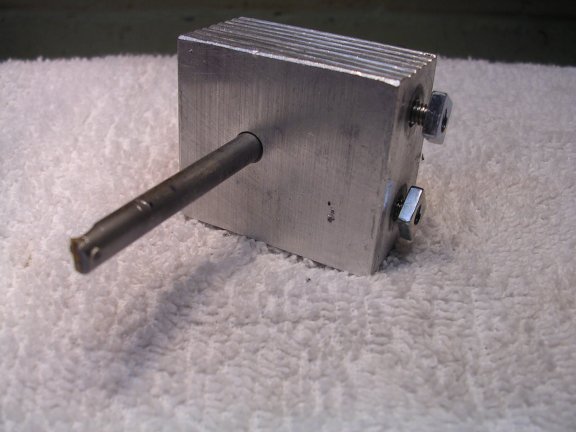

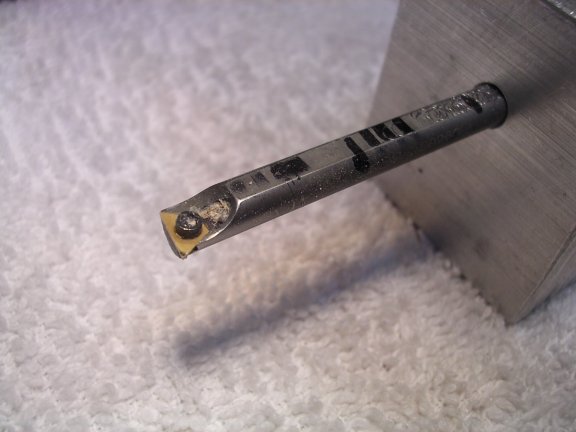

I got mine from J&L Industrial Supply. It is 6" long and can bore a 1/4" hole. I made the holder to work with my Deluxe Cuesmith. I like the double screws because it holds the boring bar alot more secure to the crosslide.View attachment 79524

View attachment 79525

View attachment 79526
Click to expand...

I went to J&S tools sight and got scared when I saw the prices of the 6 inch boring bars (most in the 2 to 300.00 range) but then found the one that you are probably referring to that will bore as low as .245 for around 82.00. I'll probably order one shortly. I am now using one that only cost 16.00 but is only 4 inches long but .312 is the smallest that it will bore. The one I have does not use replaceable inserts.

Dick

here is a pic of the one from chris hightower. i believe it is 35$ then 8$ for the tool post. i use it to face cut tips and ferrules bore holes. literally everything. its stays sharp a looong time. i use it more then any cutting tool i have.


rhncue said:
I went to J&S tools sight and got scared when I saw the prices of the 6 inch boring bars (most in the 2 to 300.00 range) but then found the one that you are probably referring to that will bore as low as .245 for around 82.00. I'll probably order one shortly. I am now using one that only cost 16.00 but is only 4 inches long but .312 is the smallest that it will bore. The one I have does not use replaceable inserts.

Dick
Click to expand...

I bought mine in Sept 2001. I paid $83.39 . It came with 10 inserts, case and shipping. It was on sale, have not seen it on sale since.
