Just for your information.

realkingcobra

Well-known member
Silver Member

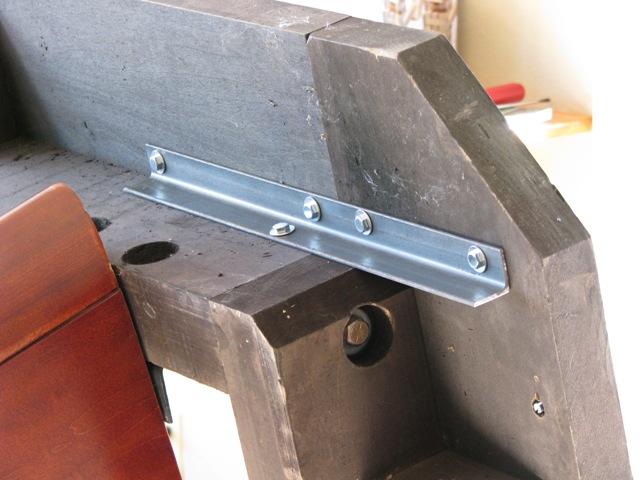

I thought I'd post some pictures of how to brace the end slate frame on a Gold Crown 4 as to stop the sagging of the end slates because of the bad slate frame design by Brunswick.

IMG_0009 - Copy.JPG

IMG_0010 - Copy.JPG

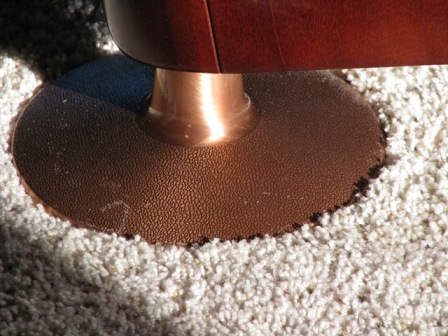

On thick carpet/padding you can use this little trick of mine to stop the feet of the table from crushing the carpeting and eliminate the settling of the table in the carpeting. In this first picture you see how the table sits on the carpeting without using my carpet spacer. And this is without the slate on the frame of the table.

IMG_0016 - Copy.JPG

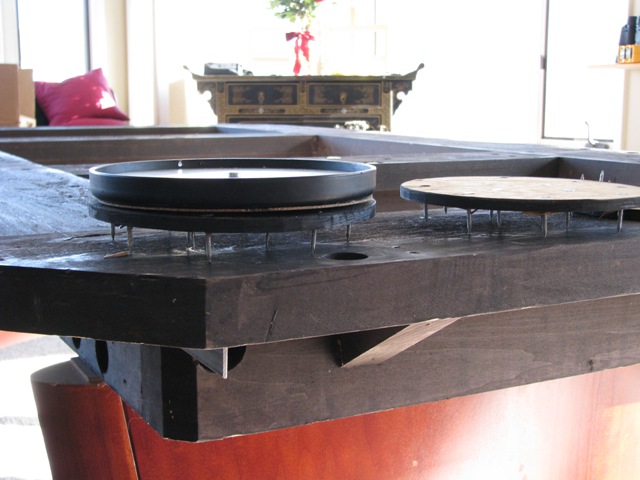

In this picture you can see I used a round cut piece of 3/8"ths plywood to drive 1 1/4" roofing nails through to give me the clearance over the carpeting that I wanted. It also allowed me to raise the playing surface of the table by 1 1/4" inch as well, to 30 1/4" overall.

IMG_0013 - Copy.JPG

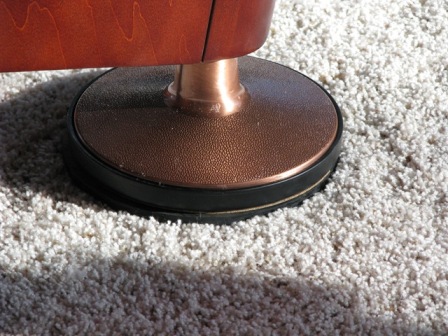

Now in this picture, you can see the foot of the table is well above the level of the carpeting, and yet the carpeting is not being smashed down either. This table could be moved at a later date, and you'd never know a table had ever been setting on the carpeting for years because there would never be any signs of it in the carpet from sitting there.

IMG_0020 - Copy.JPG

Glen


KoolKat9Lives

Taught 'em all I know
Silver Member
Glen, you are a rock star!

There's a new hall in my neck of the woods. Opened in December. I think there's 14 GCIV's. I brought your initial report of design flaw to his attention last week. He had already experienced the "droop", called on the original company that set it up, went round and round with them, no fix, hard feelings, and has since hired another mechanic.

This guy did something (lag bolts and ?, I didn't pay much attn) to correct it, although 2 tables apparently still roll off a bit. He's going to bring your information to his mechanic to ensure his investment is being properly taken care of. I am passing this latest info on.

Now if only all entities of this industry were as on the ball and forthright as you, then it would be on CBS live weekly, pro's would cash million dollar checks, sponsors would rush the gates, and even the ugliest players would get 4 star nookie!!! :p

Kudos Glen!


realkingcobra

Well-known member
Silver Member
I've got something comming for the pool playing world too, when I'm ready to release that information...I guarantee it'll rock this industry world wide;)

Glen


KoolKat9Lives

Taught 'em all I know
Silver Member
realkingcobra said:
I've got something comming for the pool playing world too, when I'm ready to release that information...I guarantee it'll rock this industry world wide;)

Glen

Did you invent the adjustable pocket Glen? ;)

5" for me.

3.75" with big "points" for everyone else please. :)


I may be on the right track.... just not sure to where


CocoboloCowboy

Cowboys are my heros.
Silver Member
We have a place in Phoenix called Metro Sports Bar, they have been having fits with their GC IV's, and they are on the Second Expert from Brunswick trying to make their tables right.


realkingcobra

Well-known member
Silver Member
CocoboloCowboy said:
We have a place in Phoenix called Metro Sports Bar, they have been having fits with their GC IV's, and they are on the Second Expert from Brunswick trying to make their tables right.
Experts from Brunswick????????...that's the problem right there:grin:

Glen


realkingcobra

Well-known member
Silver Member
I just figured I'd make a post that would at least pertain to all GC4 owners as to how to fix the frame problem permanently, as I know this is a common problem on all GC4's. I cut a 6' piece of 1 1/4" angle iron into 16" lenths and drilled each piece as you see in the pictures. Then mounted it with 1/4" x 1 1/4" lag screws. And to give ideas to home owners with a pool table, or a table on the way, and how to avoid the compressed dents in their thick carpeting/padding as I know quite a few homes have tables on carpeting like this carpet is in the pictures.

Glen


Bigtruck

Capt Diff Lock
Gold Member
Silver Member
Metro

CocoboloCowboy said:
We have a place in Phoenix called Metro Sports Bar, they have been having fits with their GC IV's, and they are on the Second Expert from Brunswick trying to make their tables right.

I have played on those table and this is the very problem they have. Maybe Glen can stop in and fix it for them.

He's not the cheapest, but his work is 1st rate, as you can see.

Ray


realkingcobra

Well-known member
Silver Member
fsarfino said:
So this sagging problem only exists on GC IV's then ?
Well, no....GC1's 2's and 3's have their own problems, but different than the 4's. The GC5's have no issues with the frame design that I'm aware of, as it's the best designed frame I've ever seen on a Brunswick.

Glen


Bigtruck

Capt Diff Lock
Gold Member
Silver Member
Feet

Glen,

How do those "feet" hold up to leaning on the table? Seems like the roofing nails, not being exact lengths, would create some leveling issues.

Curious.

Thanks,

Ray


Fatboy

AzB Silver Member
Silver Member
realkingcobra said:
I've got something comming for the pool playing world too, when I'm ready to release that information...I guarantee it'll rock this industry world wide;)

Glen


Glen, I love you but SSSHHHH!!!!!! or STFU!!!!!! please!!!!!



yes folks he is on to something big, I see more biz plans than JA does pool balls and 99.99999343% are junk or a weak attempt at gettong me to invest. What Glen has is the BEST idea I have seen in forever, it has nothing to do wit hthe foot thing here.

Glen is a greast person, a bit eccentric in a good way and thats why he is what he is, a innovator. a artest. no i'm not kissing ass, i dont need to or want to, its a complememt to him. Some of the time he gets ahead of himself but thats just passion, were going to make things happen-we already have for that matter.


At some point i'm going to need everyone who who has done biz with Glen to write/email me a short letter about their opinion of his innovitations and why or why not they are good or bad. the more i have the better. My goal is to make Glen $$$ for his retirement as his back cant take moving slates in snow forever, if he slipped and fell on that last job game over and I know a bit about back probs. Will I make $$??? yeah maybe and I will dump it back into pool an the promoting of pool. I done mind to keep open books on my side of the deal, As for Glen's $$ thats his biz. Why would I like to make a guy $$$??? youu might ask, I have changed-I did some bad stuff as Hu reminded us the other day and while I cant un-do the harm of the past I can do good deeds in the future. So thanks Hu for the friendly reminder-keeps me in check. No I'm not a sucker or soft looking to make everyone $$$, I chose Glen because he brought something to the table I believe I can make work-its not a guarantee, but i'm going to do my best.

Last edited:

Fatboy

AzB Silver Member
Silver Member
as far as this table goes I bought it new back in 99 or 2000, i think 2000. It was brand new from the factory,

when i had installed by Ernest the first time it was perfect and played perfect for 7 years, no rolls. Ernesto did a PERFECT job and is a great friend and table guy and I recommend him to anyone!!!

i took the table down and it sat in a climate controlled storage, properly packed for around 3 years.


Glen comes to town and set it up, had Glen not been here, Ernesto would have done the work. not knocking Glen, Ernesto was in the PI or something so Glen got the job. Point is they are both great, think I said that before. back to my thing here. Glen sets up the table with 860HR and it was PERFECT for the first 2-3 weeks and then we noticed a ball picking up speed playing 1P, it was on the foot end of the table it should have stopped 12"-14" short of the hole It was approaching at a 45 degree angle, by the time it got to the hole it was rolling faster. Over the next 2 weeks it got worse on both ends of the table. We ouldnt figure it out. Table settle and rolls happen woth climate changes but this box has been here 10 years!!!


I come in after Glen has the slates off and he said "look at this" the long rail of the frame-that board dosent run the whole length the short rail cuts it off from rnning the whole length of the frame(sorry for the poor description here im in a hurry) What ends up happening is the 2 wood triangles on the head and foot of the frame hold up the end of the table, the slate bolts are dependant on those triangles as they hold up the slate bolts, the metal extensions that Glen put in solve the problem 100%. The Gold Crown 5 has addressed this by making the long rail frame board run the length of the frame, we will get pics of both to show the difference, later.


i believe the reason it played perfect for all those years is the table was set up and acclimitazed to the dry air and "fell into place just right" when we moved it the wood triangles had shrank up a bit and were not as big so they wernt able to support the whole end of the table. Its a disaster for sure-a VERY bad design flaw. Easily fixed. point is ANYONE installing a GC4 or similar frame MUST put the angle iron in there.


were going to get pics from 1,2,3,4,5 and Centannial's I have all tables and want to see the frames for each. But the frame on the 5 is MUCH better than the 4, the Centennial is good too.


realkingcobra

Well-known member
Silver Member
Bigtruck said:
Glen,

How do those "feet" hold up to leaning on the table? Seems like the roofing nails, not being exact lengths, would create some leveling issues.

Curious.

Thanks,

Ray
Naaa, the nails are all the same 1 1/4" lengths, and they all pass though the carpet/padding perfectly. The table is as stable as it wood be setting on a wood floor, it all depends on how many nails you nail into the plywood, for sure 10 nails won't be as stable as 20 or 30 nails:grin:

Glen


md5key

AzB Silver Member
Silver Member
You took that "feet" idea right out of my head! I thought about that a few years ago and always wondered why that wasn't done on carpet.

I will admit your roofing nail solution is much more simple than the way I was thinking of doing it.


realkingcobra

Well-known member
Silver Member
md5key said:
You took that "feet" idea right out of my head! I thought about that a few years ago and always wondered why that wasn't done on carpet.

I will admit your roofing nail solution is much more simple than the way I was thinking of doing it.
Scrap 3/8th's plywood and 1 1/4" roofing nails....cost...$2.00..LOL

Glen


fd_colorado

Go Pack Go!!!
Silver Member
1 year later - GC4 is holding up very well, thank you.

The GC4 in the pictures with the frame and carpet mods is mine. It has been close to a year now since the table was set up and I have had no setup related problems whatsoever. These mods are solid and they work. Period.

Re: Glen not being the cheapest...I can't imagine anyone else even thinking about collecting this table in Las Vegas, making sure all the parts were there, converting it from gulley to drop, trucking it in winter 650 miles to my home in Colorado at 8250' elevation, doing the mods, buying and installing new Simonis 860, blueprinting the table, doing a dead triple nutz perfect job and gauranteeing it...for anything near what I paid Glen.

In my book Glen is the "Michaelangelo of Mechanics". Thanks for making an awesome table the BEST!


Post First

AzB Silver Member
Silver Member
Hey rkc what is the other part for the carpet feet fix..my table has exactly the same problem..You look like you have the solution ive been waiting for...I see the plywood part and the nails too its the other part im curious about..:grin:
