Question about brunswick model

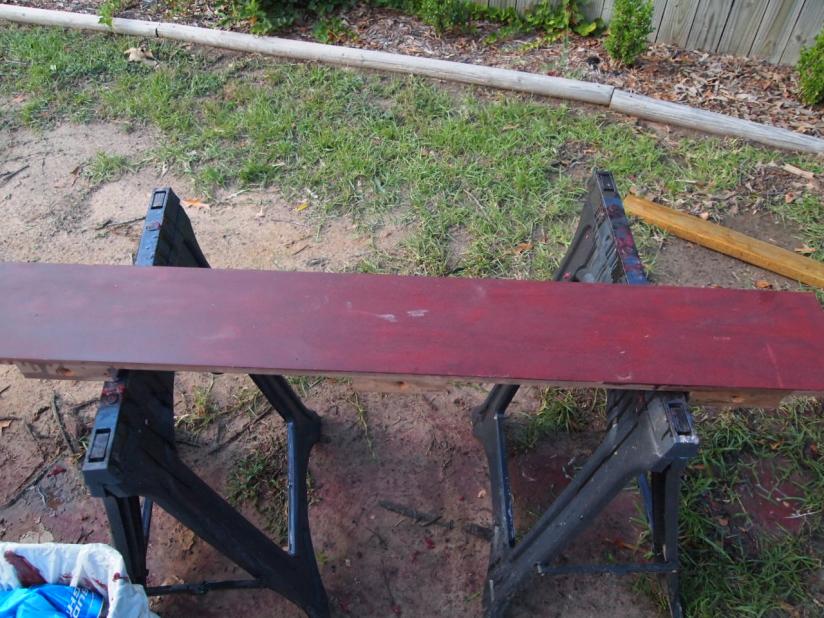

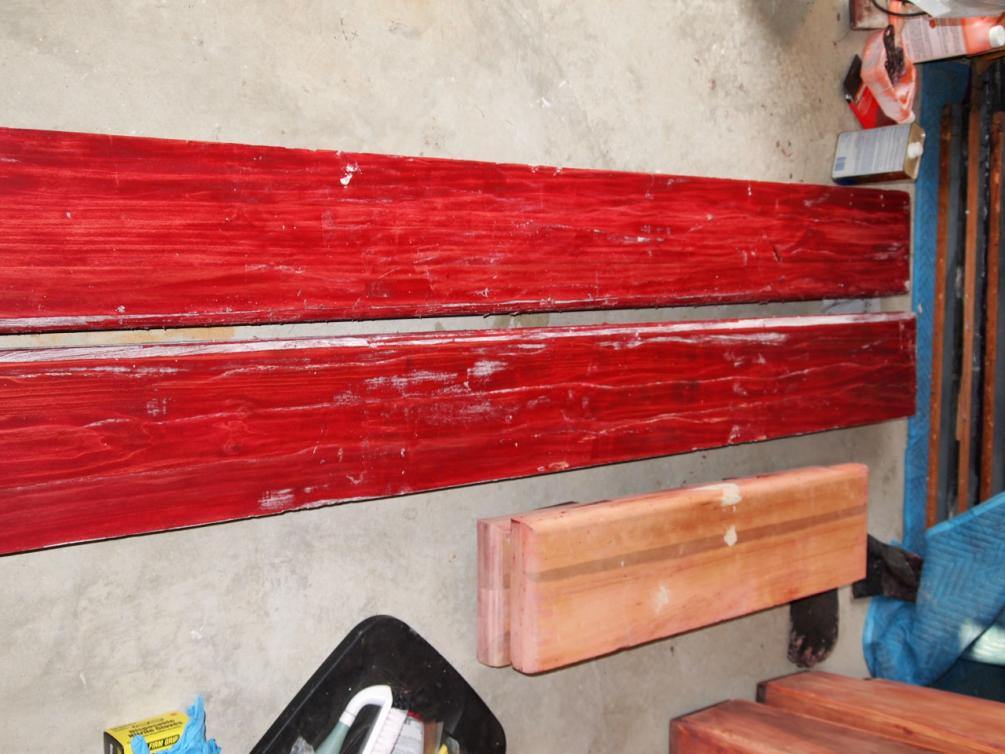

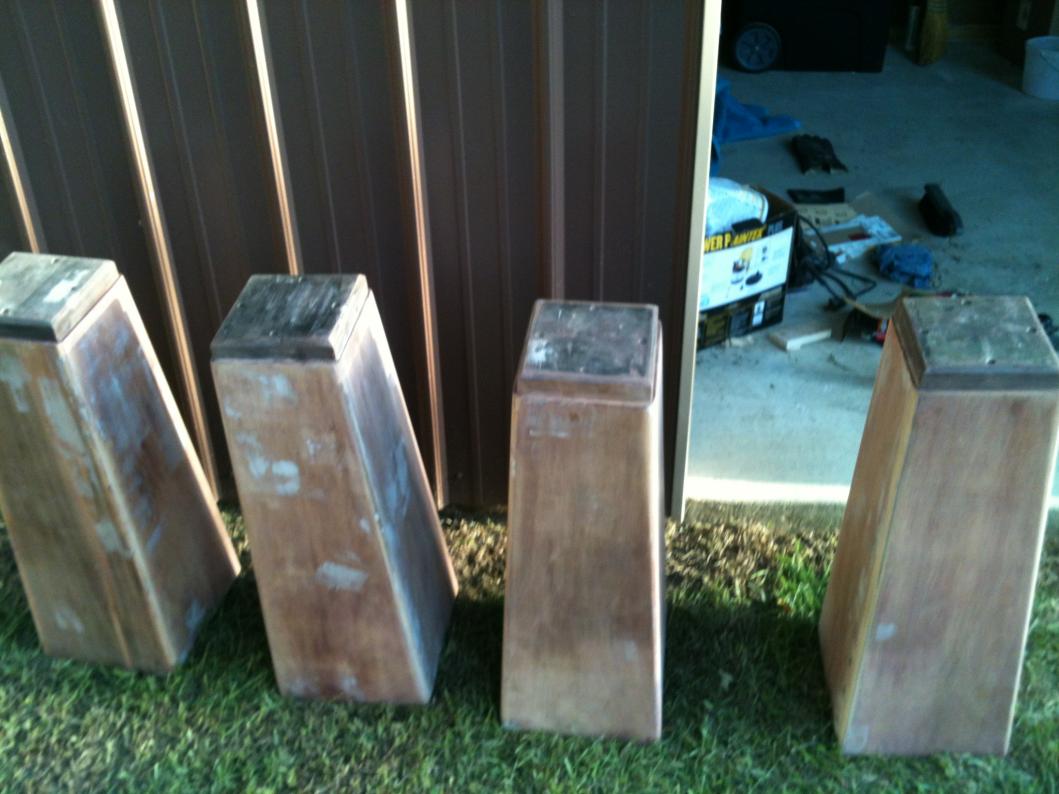

This is basically a before and after. All the plain wood pieces were this maroon color before stripping them


Attachments

  • P8170995.jpg
    93.3 KB · Views: 353
  • P8170998.jpg
    100.8 KB · Views: 325
Last edited:

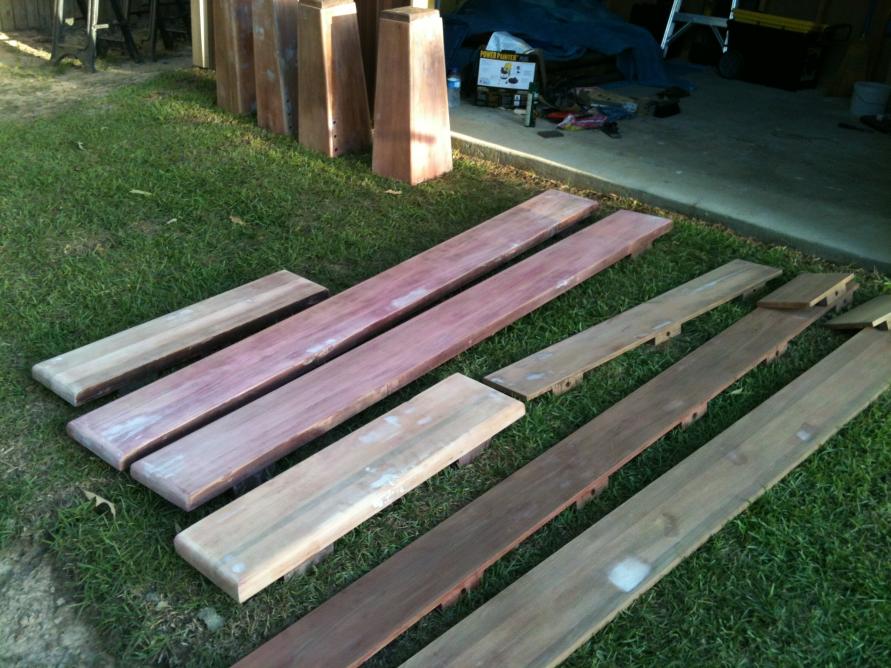

Sanding sux

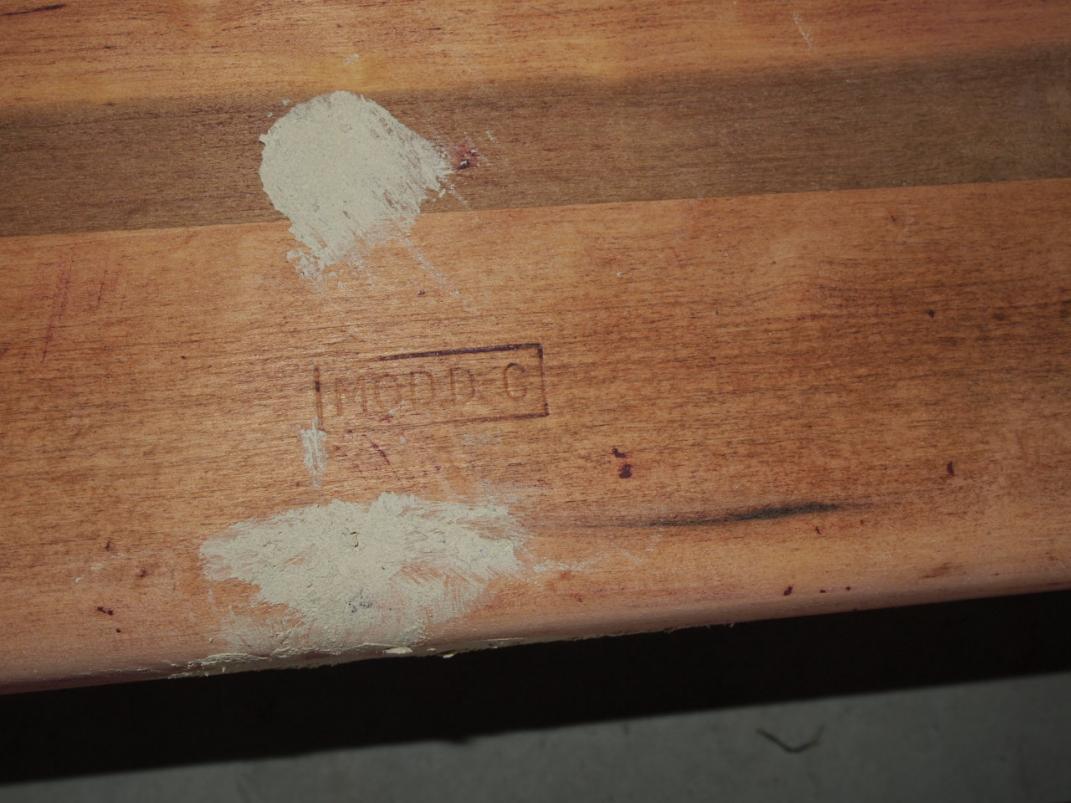

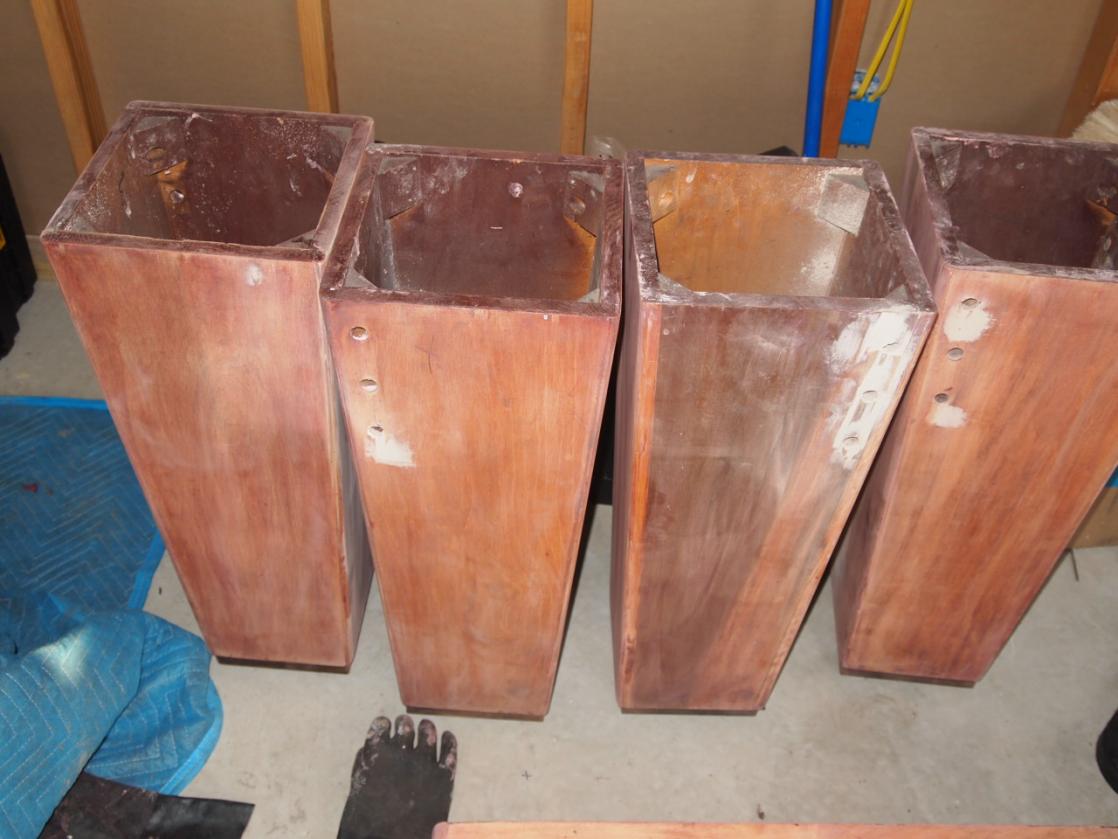

A few pics after fixing dings, dents and scratches. Still need to sand with some 220 before spraying


Jb

No worries my friend! Hope all is well.

It has been the busiest summer i have seen in twenty years. not sure what is going on.

-
-
I've been wondering what's up with John lately.. He been donating his time and materials, he must of hit the billiards lottery!

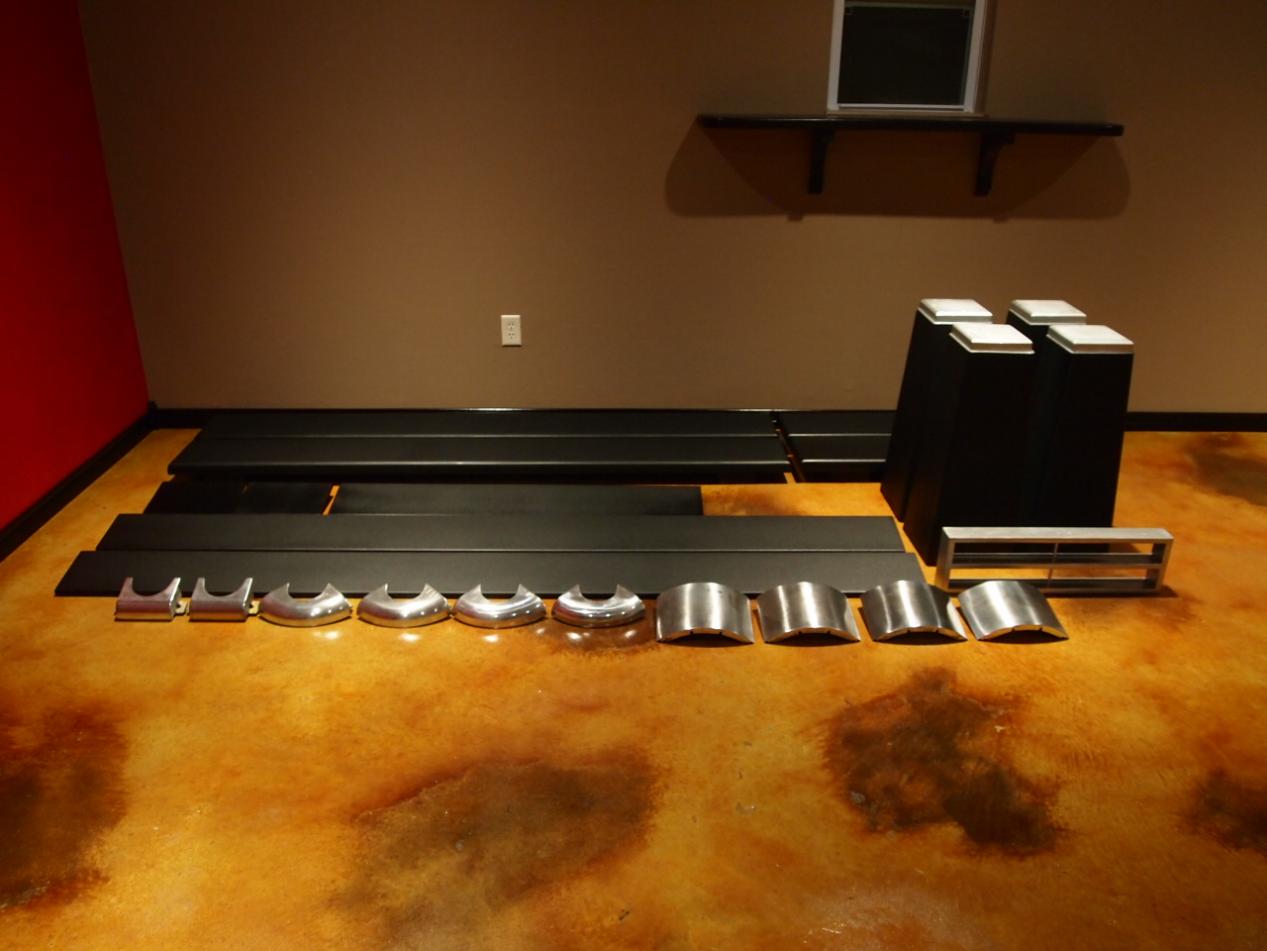

Almost there

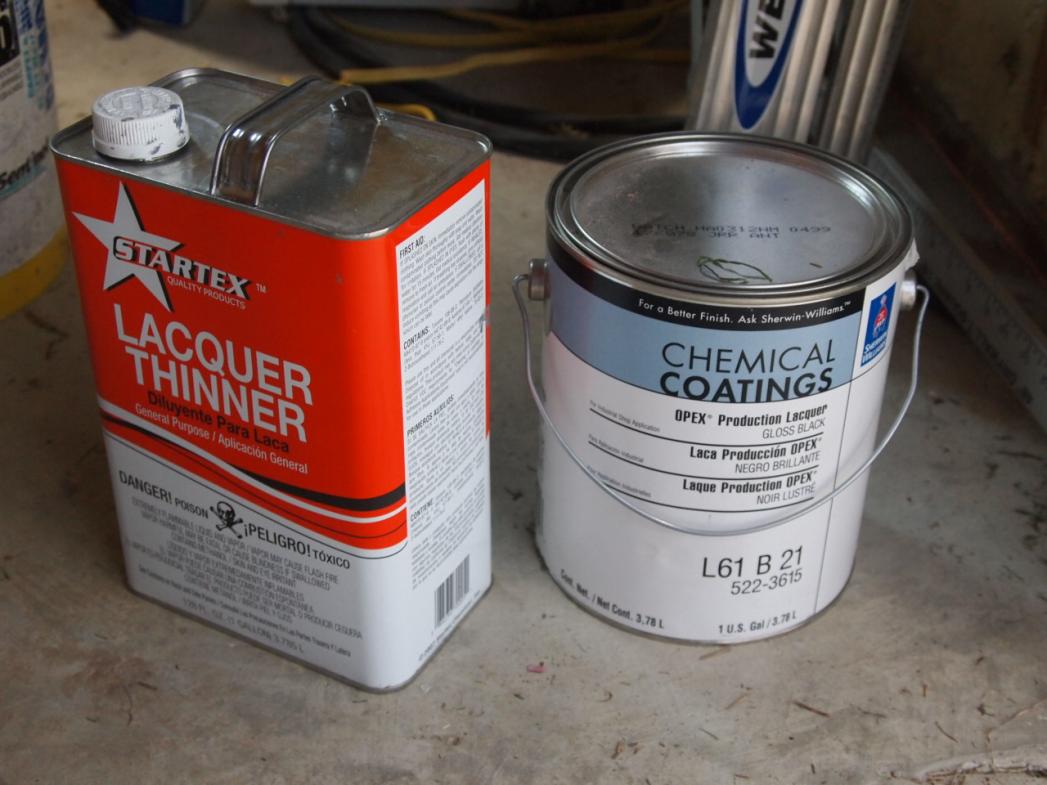

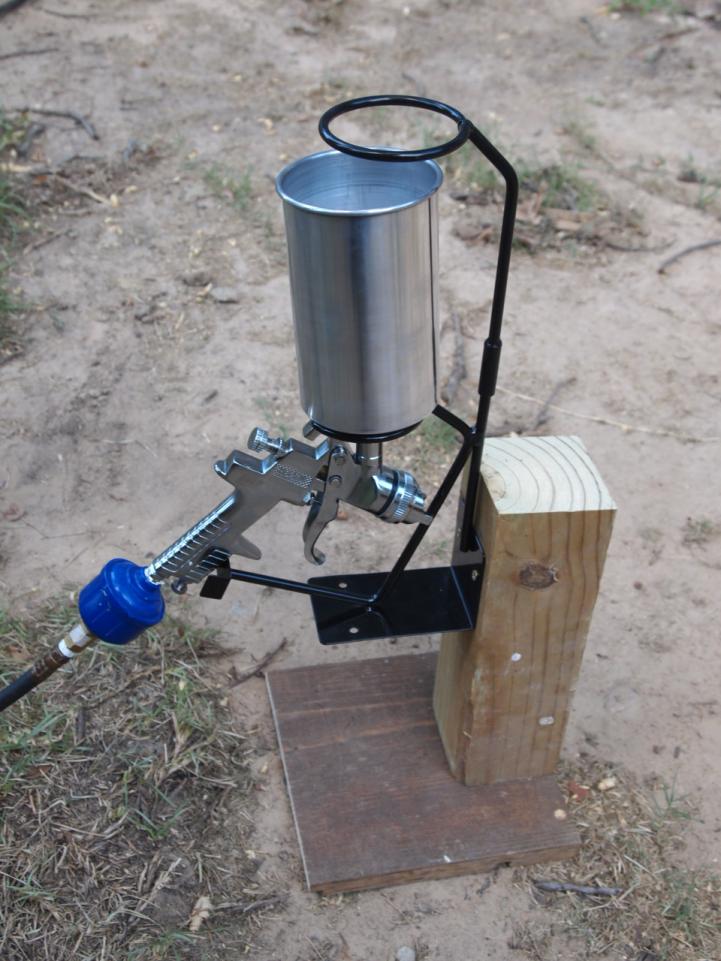

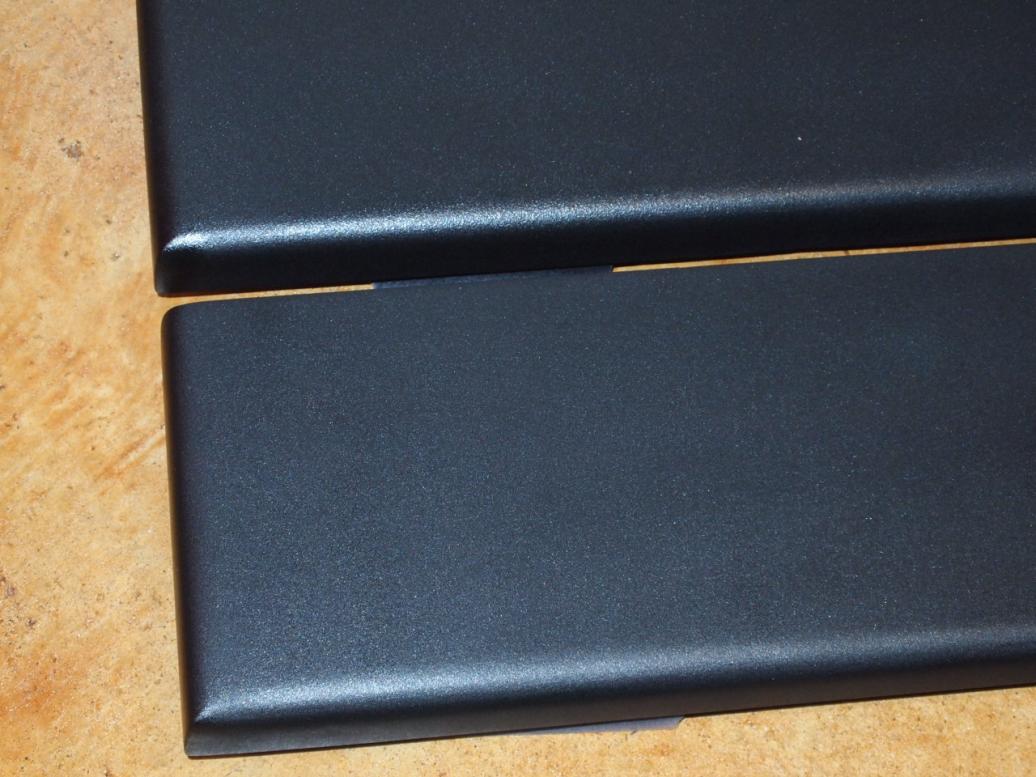

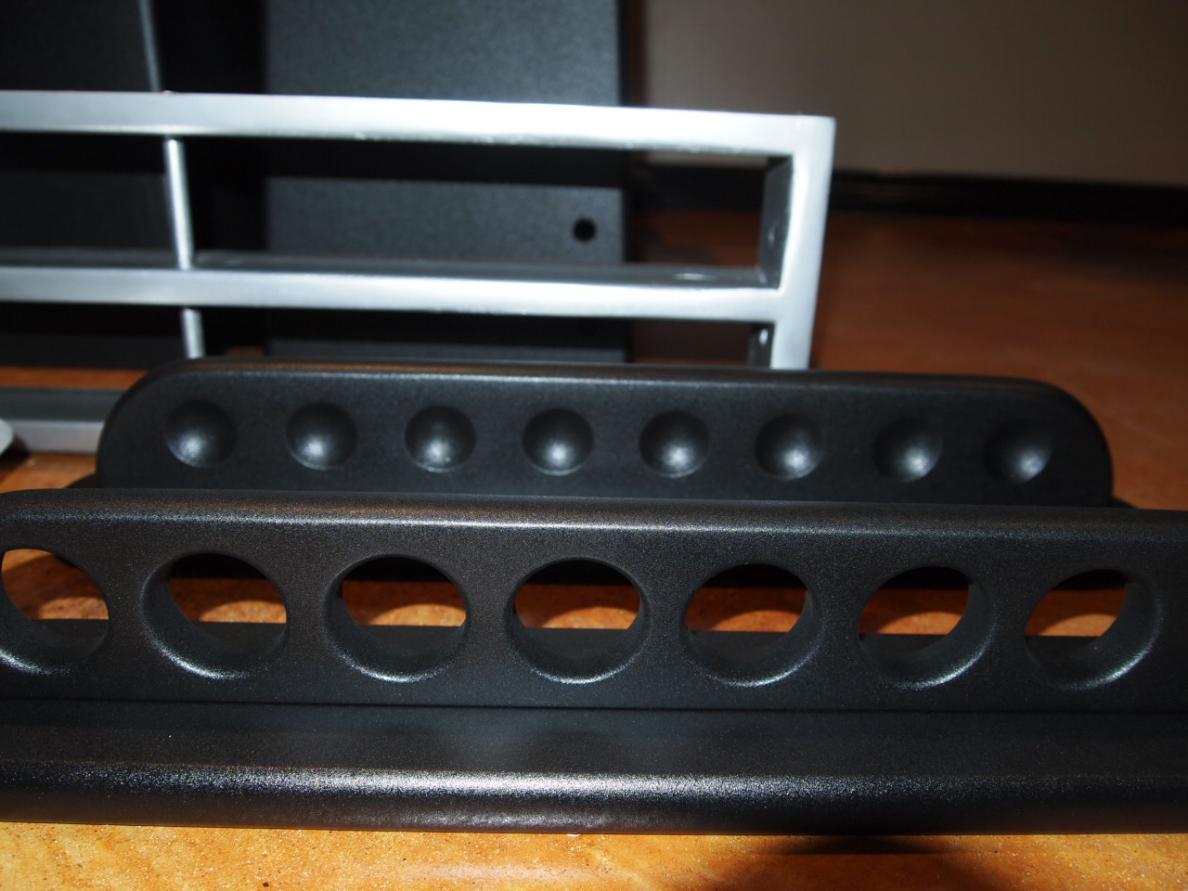

JFred's advice was solid. I decided, however, I am not a good prepper. Obviously, after painting, I figured out there were other dents, dings and scratches I missed. My high gloss finish showed to many imperfections, so I repsprayed with a textured finish


Attachments

  • P9101038.jpg
    84.4 KB · Views: 274
  • P9101078.jpg
    91.4 KB · Views: 291
  • P9081024.jpg
    90.1 KB · Views: 287
  • P9081025.jpg
    94.9 KB · Views: 280
Last edited:
Excellent Job!

Danny,

How about a "step by step" rundown on your metal refinishing? It sure looks good. :thumbup:

jfred

Hi JFred, thanks for the compliment.
This is what I did and it may or may not be the textbook correct version, but here goes.

The aluminum was painted, so I used the same paint stripper I used on the wood (Citristrip) It took most of the paint off.

Then I scrubbed what paint was left with synthetic steel wool. It was pretty coarse.

I found someone in another thread who said Easyoff oven cleaner worked for the cleaning further, so I did that and got a lot of oxidation off.

Then I used an automotive sandpaper (600 grit) to take the deep scratches out and give an even surface.

Use steel wool to get even smoother finish (00)

I bought a denim buffing wheel and put on my lathe. It really didnt do much, so I added some buffing compound and it started shining up nicely.

Lastly, I used paste for metal polishing and buffed on a cotton wheel.

Also, you cant see from where I took the pic, but the leftmost apron corner casting is scuffed beyond repair if anyone has one for sale at a good price. Otherwise, I'll just live with it.

Last edited:
Another Sport King owner checking in, can't wait to see the finished product.....

These really are great tables, under-appreciated and woefully under-priced for as good as they can be made to play.
