28.75" Bubinga cue

that weight is with the pin,cap and collars.it is a 3/8-10 brass s/w style pin and i think it weighs 41 grams.

rhncue said:
Is this with the joint, butt cap and pin installed or just the wood? I got my information of the weight of Bubinga at 55 lbs on the high side and 55lbs on the low side at this location: http://www.connectedlines.com/wood/wood16.htm
I am very sure that my calculations were correct when using your figures and the 55lb per cubic foot numbers. I can't hardly believe the weight difference would be so great.

Dick
Click to expand...

When I was making my guess I was using this info, which has it slightly heavier. I don't know if the 5lb. difference would explain the caculated and actual weights you have.

http://curiouswoods.com/wood--Bubinga--BUB

Dick,i also put a 6" long .750" dowel of Cocuswood in the front end which is very heavy wood.heavier than Ebony even.

the dowell itself weighed 2oz. and i guess i drilled out 1.25-1.5oz of Bubinga to install it.

so basically with that dowel and the pin i added about 2oz.

masonh said:
i think it was about an ounce heavier than that Chris,maybe i got lucky and found a nice dense piece.

i am cutting it again next week to .900" and i'll put the pin in and post the weight.i am hoping for 16oz with the pin at .900"
Click to expand...


I was referring to finished size weight with no additions to the Bubinga.

- Bubinga @ .527 ounce per cubic inch
- Cocuswood @ .75 ounce per cubic inch (per your weight/dims)
- 12" forearm .825" to 1.06" (4.43 oz)
- 16-3/4" handle 1.06 to 1.24 (9.19 oz)
- Brass pin (1.44 oz)
- Collar (guessing MPI @ .2 oz)
- Bumper (.28 oz)
- Shaft (4 oz)
- Less boring for pin and dowel (1.49 oz)
- Cocuswood dowel (1.99 oz)

Playing weight without boring for a weight bolt will be 20.05 ounces give or take.

Frank

(Dialing in my spreadsheet as we speak) ;)

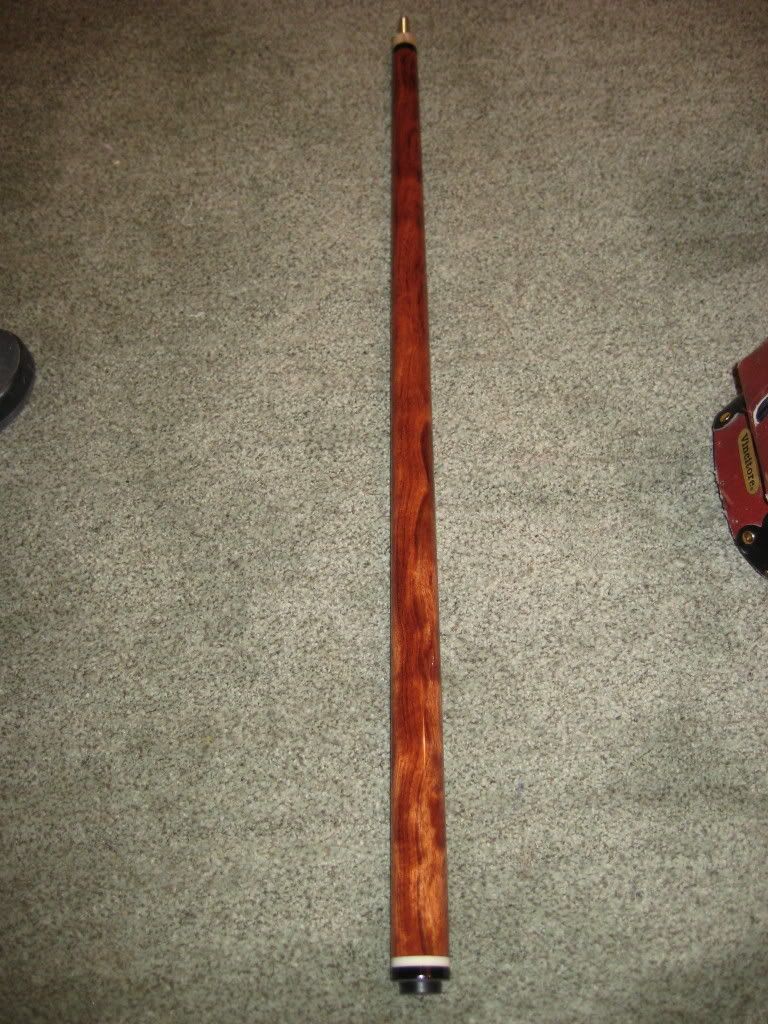

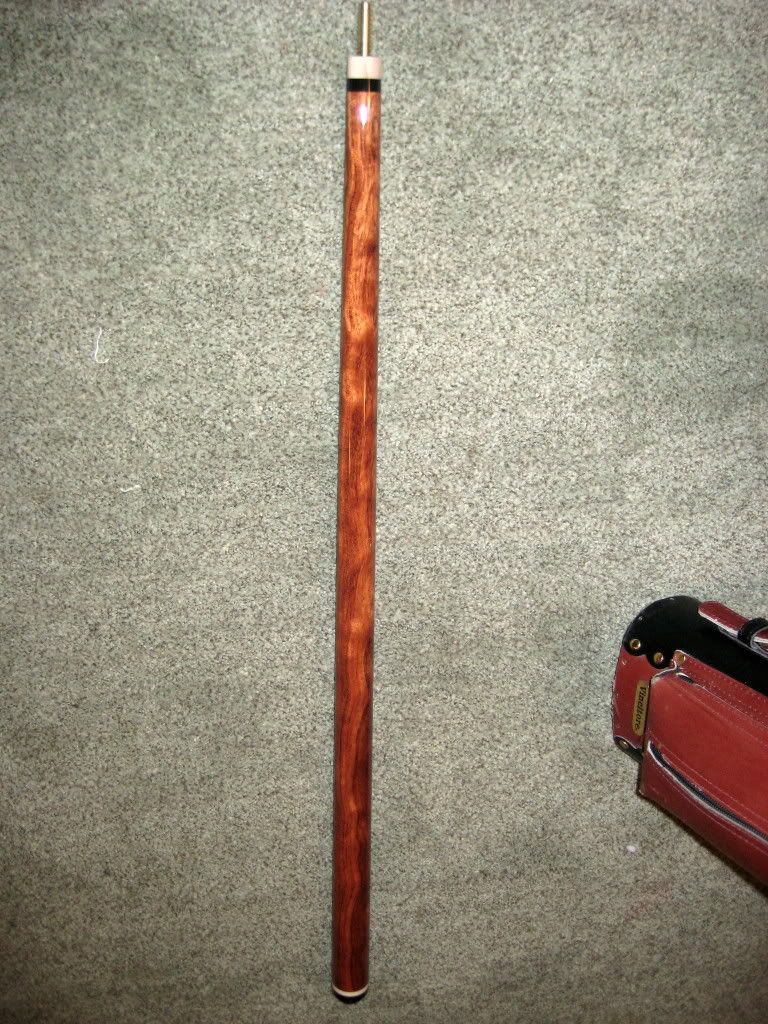

the butt came out 15.3oz with bumper guys.thanks for all the guesses.final size is .830" instead of .825".

coming up...





reindeer joint collar with Hoppe style butt.still straight so far.reeks like paint but i am going to try it out tonight.

Last edited:
I can't believe I was off by 7/10ths of an ounce.
Did you end up straight tapering or did you stay with your original plan?

I must have missed something :headscratch:

hey mason,

didn't see this until now for some reason. looks great.

how's it play? btw, on a post somewhere here it stated that you have a mean game. hopefully this cue raises your game.
